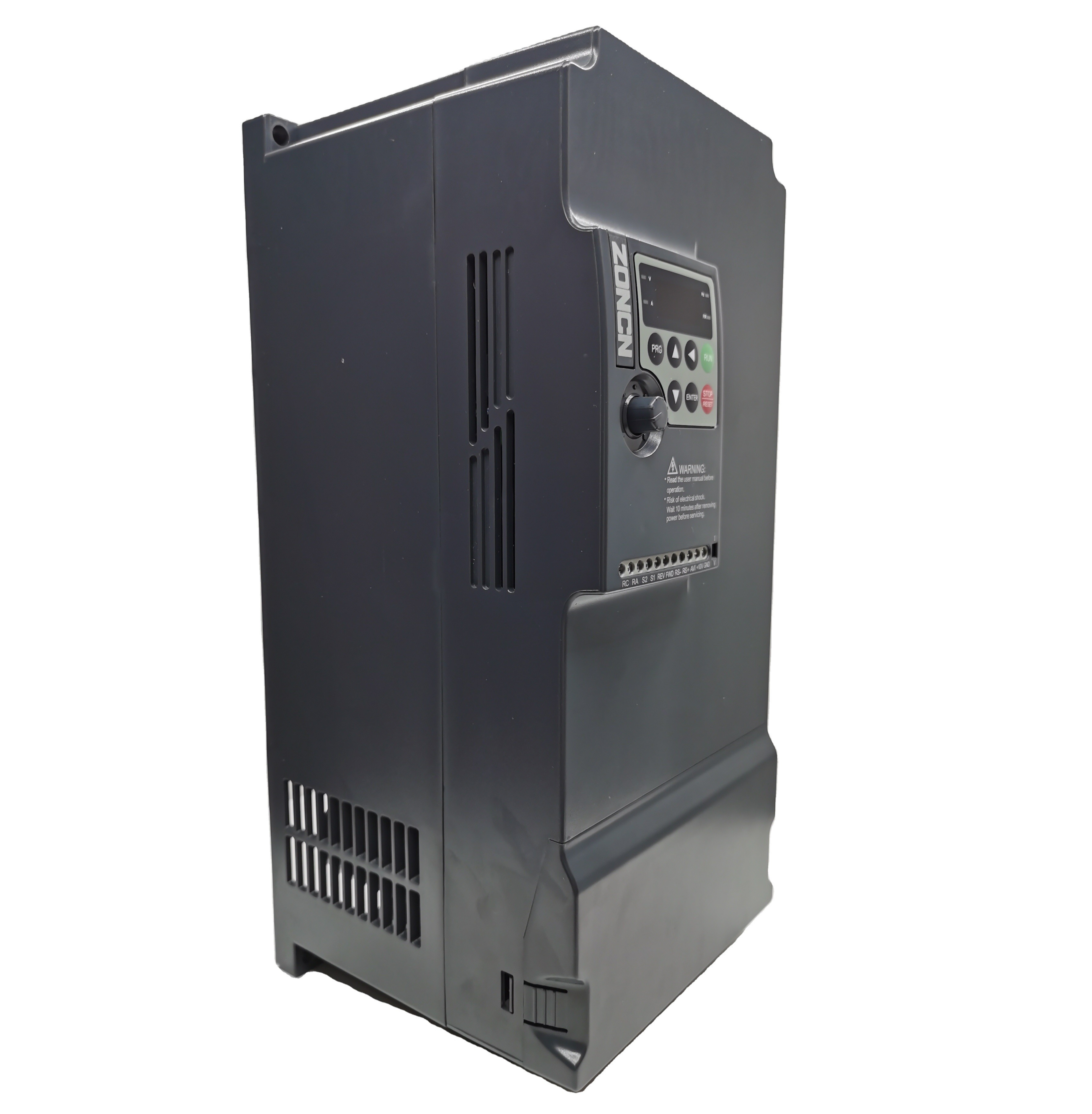

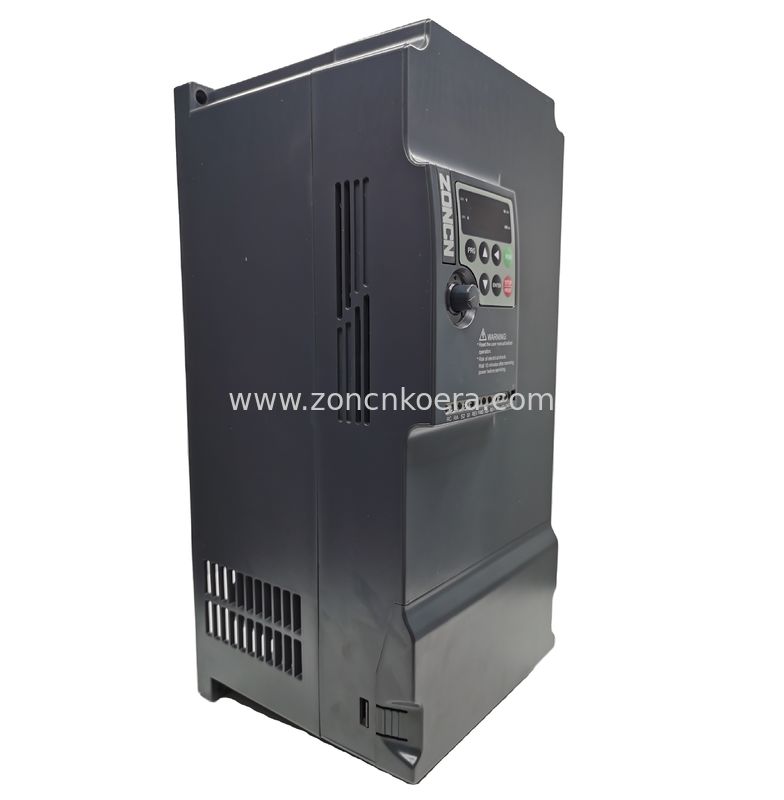

VFD Drives AC Frequency Inverter From ZONCN Factory 15kw 380v

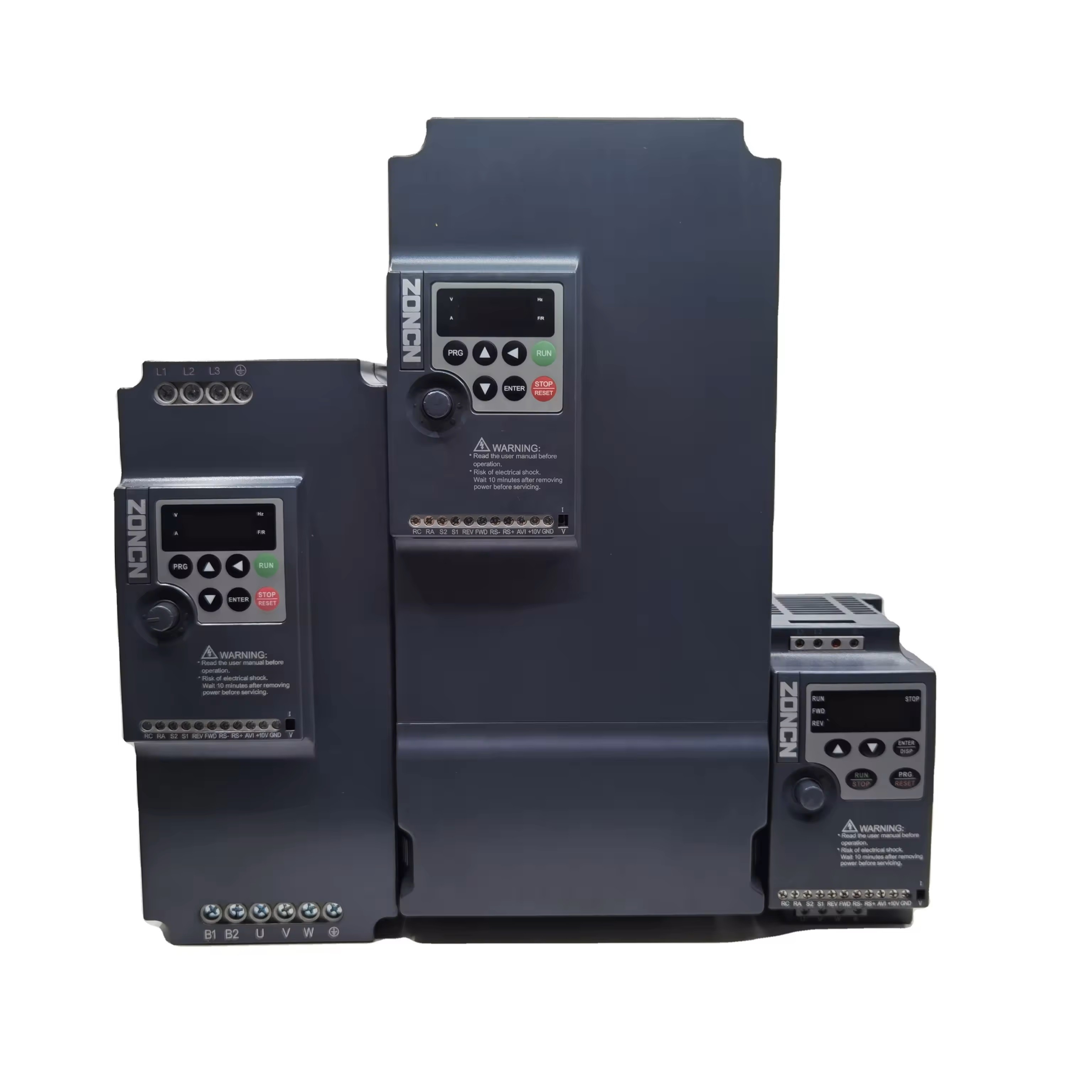

ZONCN NZ200 Series Econonic Vector control inverter





Company introduction

ZONCN is a Top 5 inverter factory which focus on producing inverter and servo products in China. We have different series, at present, the main series are NZ100, NZ200, Z2000, Z8000, T9000 and Z5000-BF(IP65/IP54 protection). The voltage ranges from 110v-1140v, powers range from 0.4kw to 2000kw. Our inverters are widely used in fan&pump, CNC machine, textile, packaging&printing, injection and extrusion machines, water treatment and air compressor etc.



What's more, we can produce for OEM and ODM,  which we have lots of experience already. We have factories both in Shanghai and Wuhu, total factory area is more than 100,000 ㎡. Our inverter annual sales quantity is 1 million units.



ZONCN always dedicate in the production inverters and servos and warmly welcome you to be our partner.











Inverter Nameplate Description



Inverter Specification

Model	Input Voltage (V)	Rated output power ( KW)	Rated input current(A)	Rated output current (A)	Motor power ( KW)
NZ200T-7R5GY/11P-4	3PH 380V±15%	7.5	20	17	7.5
NZ200T-11GY/15P-4		11	26	25	11
NZ200T-15GY/18.5P-4		15	35	32	15
NZ200T-18.5GY/22P-4		18.5	38	37	18.5
NZ200T-22GY/30P-4		22	46	45	22
NZ200T-30GY/37P-4		30	62	60	30
NZ200T-37GY/45P-4		37	76	75	37
NZ200T-45GY/55P-4		45	90	90	45
NZ200T-55GY-4		55	105	110	55
NZ200T-75GY/90P-4		75	140	150	75
NZ200T-90GY/110P-4		90	160	176	90
NZ200T-110GY/132P-4		110	210	210	110
NZ200T-132GY/160P-4		132	240	253	132
...		...	...	...	...
NZ200T-450GY/500P-4		450	790	790	450









Inverter Dimension



A. 0.4kw-37kw







B. 45kw-450kw









Inverter Packing









Inverter Application





Inverter accomendation







FAQ

Q1: Can i buy an inverter sample to test first?

A: Of course.



Q2: Can you produce for my logo?



A: No problem, we have lots of OEM/ODM experience.



Q2: What is your shipping method?



A: We can ship by Express/Air/Sea, etc.

Q3: Can you deliver to my forwarder's address in China?

A: Sure, no problem.
