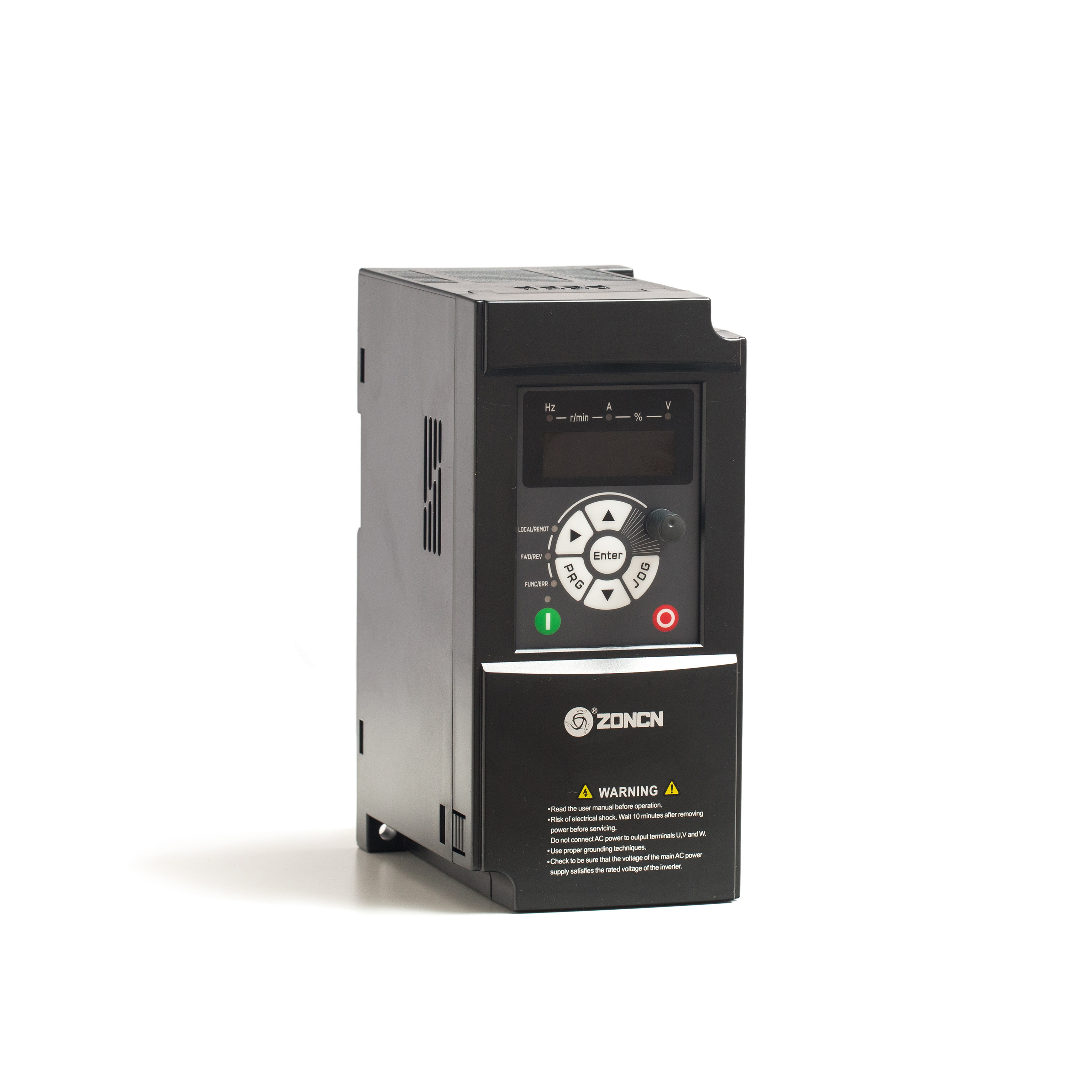

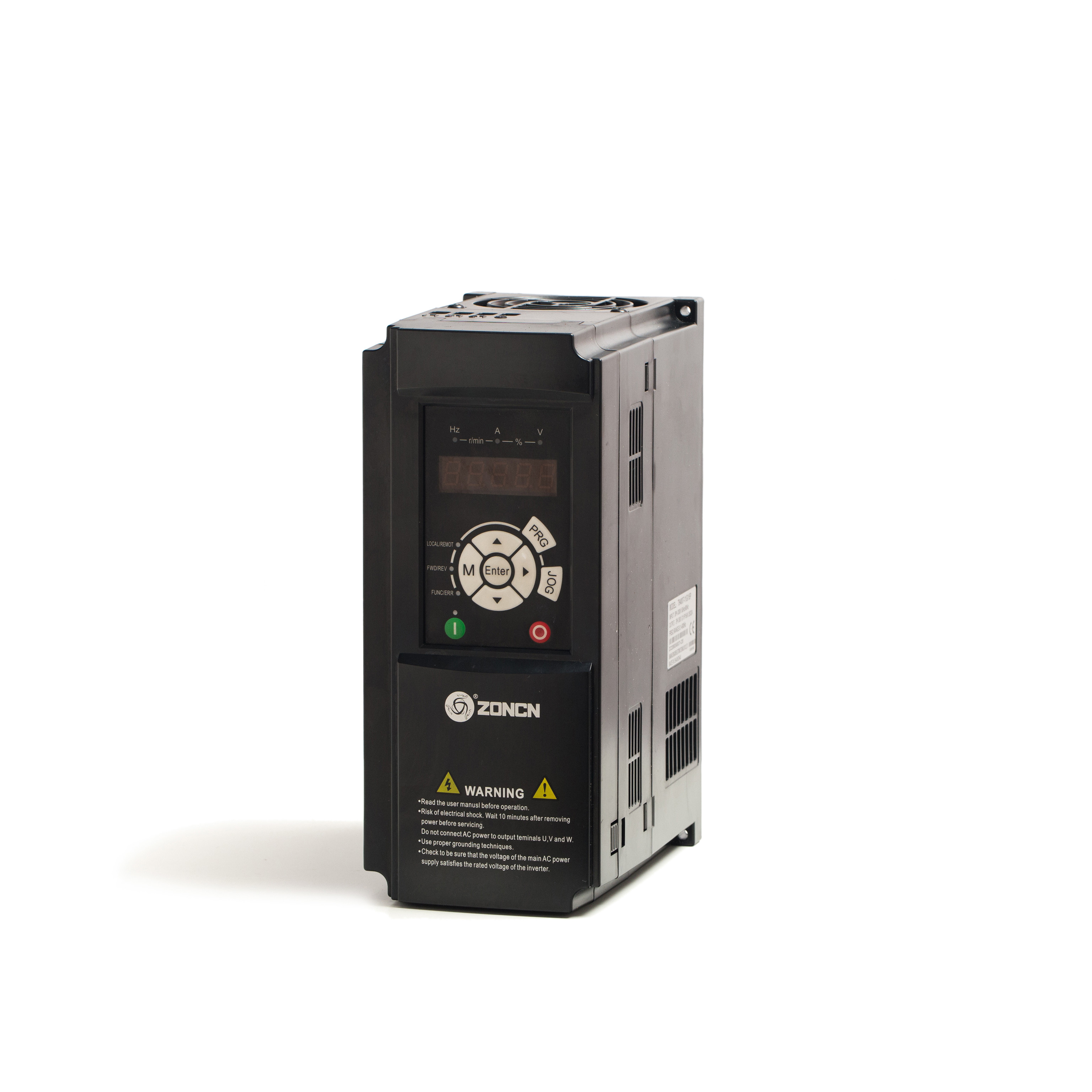

0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw ZONCN T9000 220v 380v Frequency Inverter

0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw ZONCN T9000 220v 380v Frequency Inverter
0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw ZONCN T9000 220v 380v Frequency Inverter 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw ZONCN T9000 220v 380v Frequency Inverter 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw ZONCN T9000 220v 380v Frequency Inverter 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw ZONCN T9000 220v 380v Frequency Inverter 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw ZONCN T9000 220v 380v Frequency Inverter 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw ZONCN T9000 220v 380v Frequency Inverter
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE, KC
Model Number: T9400-3R7G
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: Frequency Inverter Brand: ZONCN
Series: T9000 Series Inverter Input: 380v Three Phase
Output: 220v Three Phase Input Frequency: 50Hz / 60Hz
Communication: Profinet 24V Power Supply: Yes
Power: 3.7kw/5HP STO: Yes
Highlight:

2.2kw T9000 Inverter

,

3.7kw T9000 Inverter

,

7.5kw T9000 Inverter





ZONCN T9000 Series Advanced Vector Control Inverter





Inverter Features

  • Control mode: VF control+vector control
  • Braking unit: YES,below 37kw(include 37kw), Optional for 45KW and above
  • Removable panel: below 5.5kw, Yes
  • High speed pulse output: Yes
  • 24V power supply: Yes
  • STO: Yes
  • Simple PLC: Yes
  • 0.1S acceleration/deceleration: Yes
  • Communication: RS485, Profinet



Nameplate Description



0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw ZONCN T9000 220v 380v Frequency Inverter 0







Inverter Model

Model Input Voltage (V) Rated output power(kW) Rated input current(A) Rated output current(A) Motor Power (KW)
T9200-0R4G 1PH AC 220V±15% 0.4 5.4 2.5 0.4
T9200-0R75G 0.75 7.2 5 0.75
T9200-1R5G 1.5 10 7 1.5
T9200-2R2G 2.2 16 11 2.2
T9200-3R7G 3.7 17 16.5 3.7
T9200-5R5G 5.5 26 25 5.5
T9200-7R5G 7.5 35 32 7.5
T9400-0R4G 3PH AC 380V±15% 0.4 3.4 1.2 0.4
T9400-0R75G 0.75 3.8 2.5 0.75
T9400-1R5G 1.5 5 3.7 1.5
T9400-2R2G 2.2 5.8 5 2.2
T9400-3R7G/5R5P 3.7/5.5 10/15 9/13 3.7/5.5
T9400-5R5G/7R5P 5.5/7.5 15/20 13/17 5.5/7.5
T9400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
T9400-11G/15P 11/15 26/35 25/32 11/15
T9400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
T9400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
T9400-22G/30P 22/30 46/62 45/60 22/30
T9400-30G/37P 30/37 62/76 60/75 30/37
T9400-37G/45P 37/45 76/90 75/90 37/45
T9400-45G/55P 45/55 92/113 90/110 45/55
T9400-55G 55 113 110 55
T9400-75G/90P 75/90 157/180 150/176 75/90
T9400-90G/110P 90/110 180/214 176/210 90/110
T9400-110G/132P 110/132 214/256 210/253 110/132
★Due to space limitation, please contact us for powers above 110kw







Company Introduction
0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw ZONCN T9000 220v 380v Frequency Inverter 1

0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw ZONCN T9000 220v 380v Frequency Inverter 2
