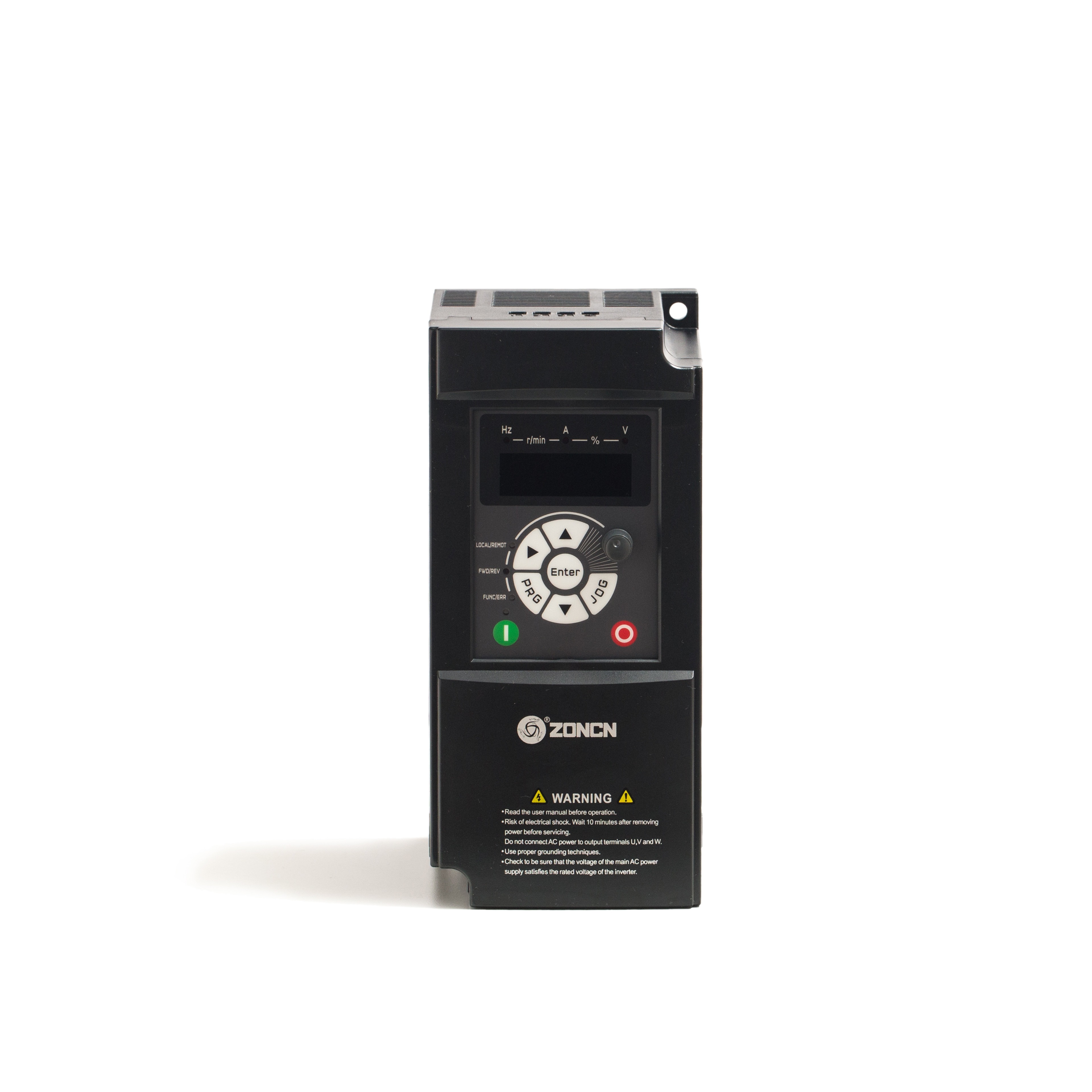

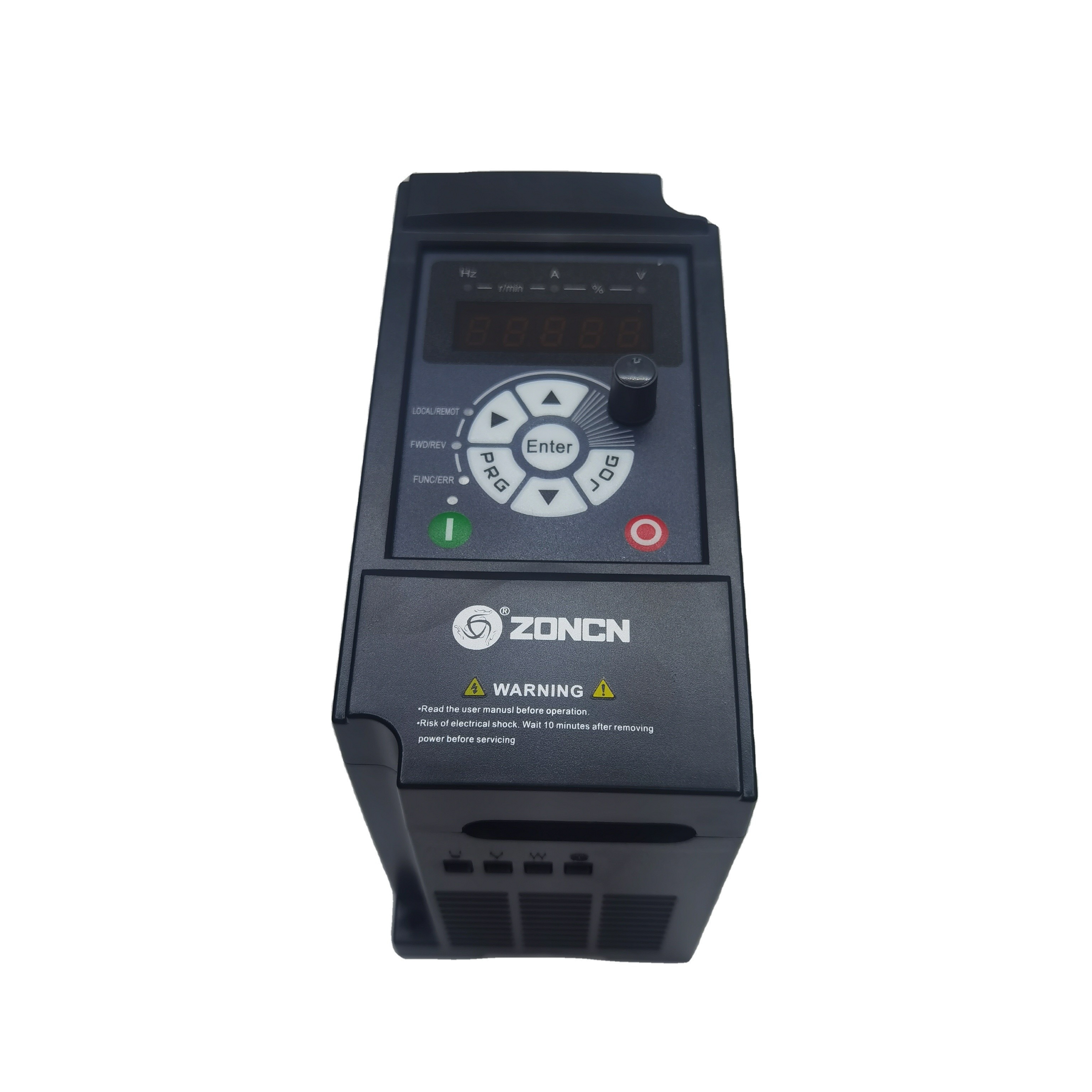

Variable Frequency Drive ZONCN VFD Inverter 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	CE, KC
Model Number:	T9400-0R75G

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T, Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	AC Inverter	Brand:	ZONCN
Series:	T9000	Input:	220v Single Phase
Output:	220v Three Phase	Input Frequency:	50Hz / 60Hz
Communication:	Profinet	24V Terminal:	Have
Highlight:	Variable Frequency Drive ZONCN VFD Inverter , 7.5kw ZONCN VFD Inverter , 2.2kw ZONCN VFD Inverter

ZONCN T9000 Series Advanced Vector Control Inverter

Inverter Features

	Technical parameter function	ZONCN
	Technical parameter function	T9000series
1	VF control	YES
2	close loop vector control	YES
3	Built-in braking unit	YES,below 37kw(include 37kw) Optional for more than 45KW
4	Removable panel	YES,below 5.5kw
5	high speed pulse output	YES
6	DC braking	YES
7	collector	1
8	24V power supply	YES
9	Protection	IP20
10	Certificate	CE
11	0.1S acceleration/deceleration	YES
12	simple PLC	YES
13	all kinds of protection	YES
14	PID	YES
15	DC choke	Optional for some power
16	STO	YES
17	IO expansion card(communication,IO)	YES
18	Standar Communication	RS485
19	Profinet communication	YES

Nameplate Description

Variable Frequency Drive ZONCN VFD Inverter 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw 0

Inverter Model

Model	Input Voltage (V)	Rated output power(kW)	Rated input current(A)	Rated output current(A)	Motor Power (KW)
T9400-0R4G	3PH AC 380V±15%	0.4	3.4	1.2	0.4
T9400-0R75G		0.75	3.8	2.5	0.75
T9400-1R5G		1.5	5	3.7	1.5
T9400-2R2G		2.2	5.8	5	2.2
T9400-3R7G/5R5P		3.7/5.5	10/15	9/13	3.7/5.5
T9400-5R5G/7R5P		5.5/7.5	15/20	13/17	5.5/7.5
T9400-7R5G/11P		7.5/11	20/26	17/25	7.5/11
T9400-11G/15P		11/15	26/35	25/32	11/15

Inverter Diamension

Variable Frequency Drive ZONCN VFD Inverter 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw 1

Variable Frequency Drive ZONCN VFD Inverter 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw 2

Company Introduction

Variable Frequency Drive ZONCN VFD Inverter 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 7.5kw 3

Tag:

Variable Frequency Drive Inverter,

vector control inverter,

low power inverter
