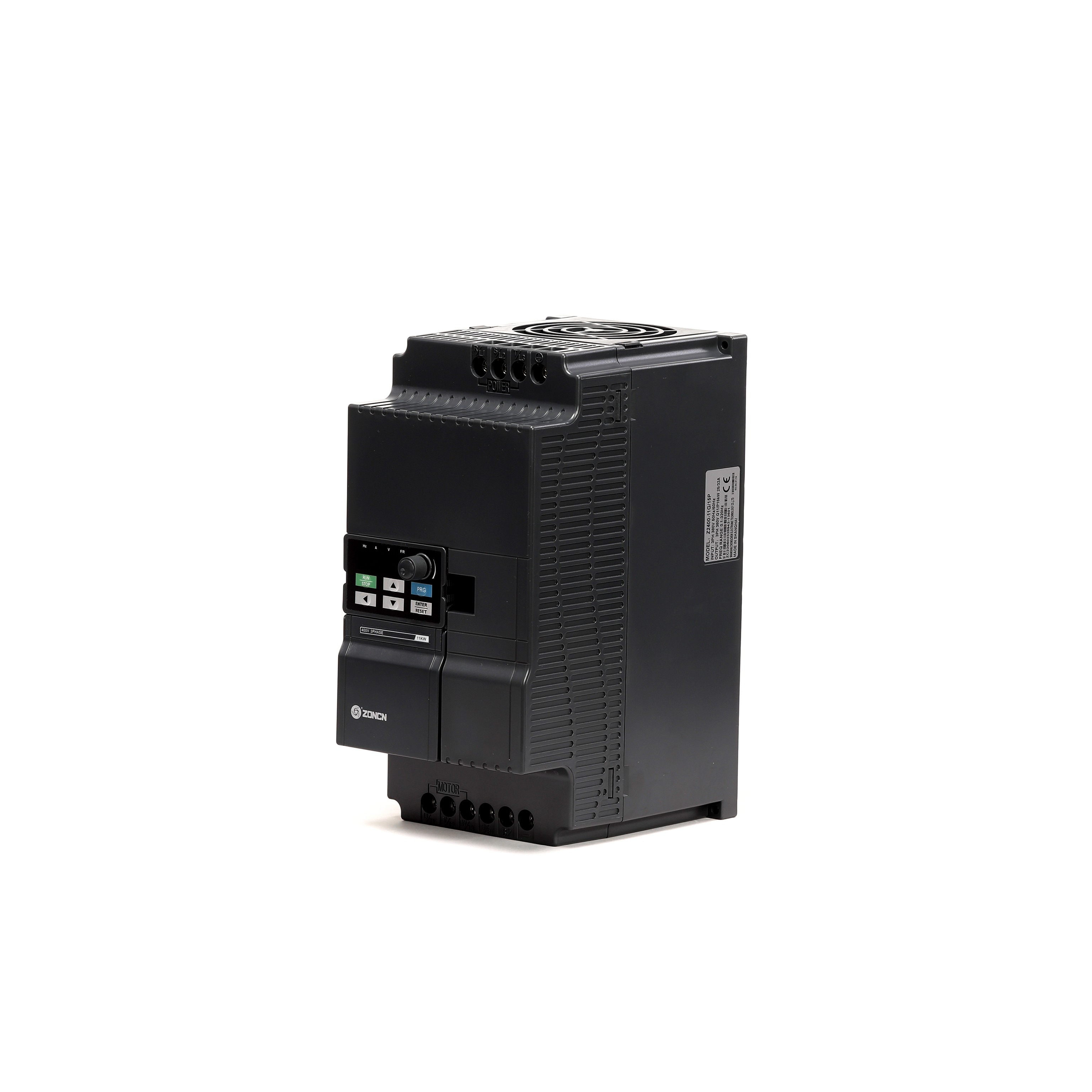

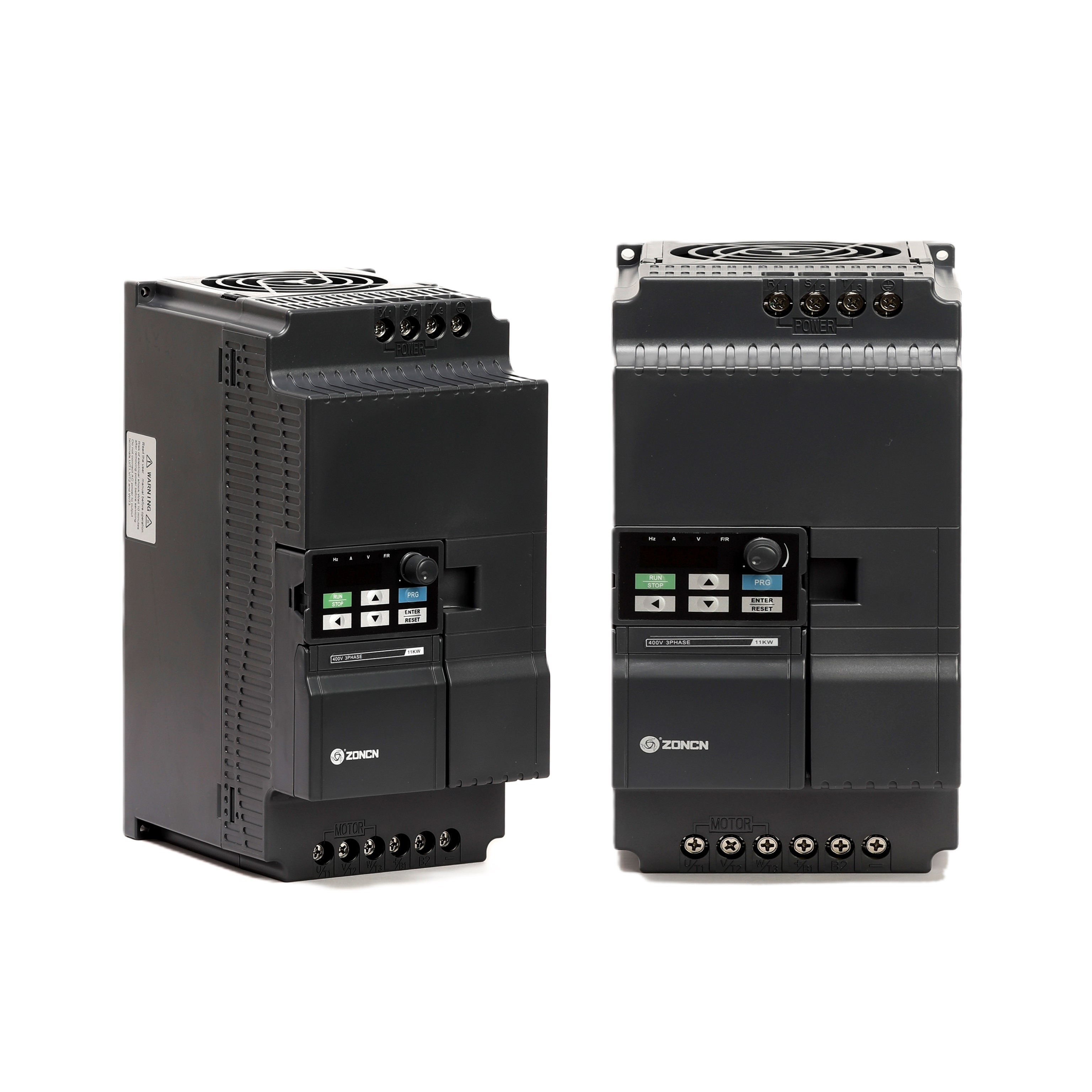

VFD Inverter 3 Phase 11kw 15kw Frequency Inverter 220v 380v 15hp 20hp

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	CE, KC
Model Number:	Z2400-11G

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T, Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	AC Inverters	Brand:	ZONCN
Input Frequency:	50Hz / 60Hz	Rated Power:	11kw/15HP; 15kw/20HP
Output Current:	25A	0-20mA Terminal:	Have
0-10v Terminal:	Have	Braking Unit:	Built-in
Highlight:	15kw VFD Inverter , 11kw VFD Inverter , 220v VFD Inverter

ZONCN Z2000 Series General Purpose Vector Control Inverter

WUHU ZONCN AUTOMATION EQUIPMENT CO., LTD, ZONCN is one of a leading manufacturers which specialized in Inverter in China, the headquarters is located in Shanghai. ZONCN focuses on the research anddevelopment , production sales and the service of Inverters. ZONCN has 6 main general series of VFD and there are more than 100 professional Inverter, it's used widely in various applications. We have passed ISO9001 Quality Management System Certificate and the CE Certificate in EU,and the KC Certificate in South Korea.

Product features

Display: LED
Voltage: 380V

Power: 11kw/15hp; 15kw/20hp

Overheat protection: Yes
Overload protection: Yes
Undervoltage protection: Yes
Short circuit protection: Yes
Overcurrent protection:Yes

Communication: RS485

24V terminal: Have

Specification

Specification
Model	Rated Output Power(kW)	Rated Input Current(A)	Rated Output Current(A)	Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G	0.4	5.4	2.5	0.4
Z2200-0R75G	0.75	7.2	5	0.75
Z2200-1R5G	1.5	10	7	1.5
Z2200-2R2G	2.2	16	11	2.2
Z2200-3R7G	3.7	23	16.5	3.7
Z2200-5R5G	5.5	21	25	5.5
Z2200-7R5G	7.5	31	32	7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G	0.75	3.8	2.5	0.75
Z2400-1R5G	1.5	5	3.7	1.5
Z2400-2R2G	2.2	5.8	5	2.2
Z2400-3R7G/5R5P	3.7/5.5	10/15.0	9/13	3.7/5.5
Z2400-5R5G	5.5	15	13	5.5
Z2400-7R5G/11P	7.5/11	20/26	17/25	7.5/11
Z2400-11G/15P	11/15	26/35	25/32	11/15
Z2400-15G/18.5P	15/18.5	35/38	32/37	15/18.5
Z2400-18.5G/22P	18.5/22	38/46	37/45	18.5/22
Z2400-22G/30P	22/30	46/62	45/60	22/30
Z2400-30G/37P	30/37	62/76	60/75	30/37
Z2400-37G/45P	37/45	76/90	75/90	37/45
Z2400-45G/55P	45/55	90/105	90/110	45/55
Z2400-55G	55	105	110	55
Z2400-75G/90P	75/90	140/160	150/176	75/90
Z2400-90G/110P	90/110	160/210	176/210	90/110
Z2400-110G/132P	110/132	210/240	210/253	110/132
Z2400-132G/160P	132/160	240/290	253/300	132/160
Z2400-160G/185P	160/185	290/330	300/340	160/185
Z2400-185G/200P	185/200	330/370	340/380	185/200
Z2400-200G/220P	200/220	370/410	380/420	200/220
…

*Note: If you have any special requirements, pls feel free to contact us directly, we can customize for you.

Nameplate Description

VFD Inverter 3 Phase 11kw 15kw Frequency Inverter 220v 380v 15hp 20hp 0

Company Introduction

VFD Inverter 3 Phase 11kw 15kw Frequency Inverter 220v 380v 15hp 20hp 1

VFD Inverter 3 Phase 11kw 15kw Frequency Inverter 220v 380v 15hp 20hp 2

Application

VFD Inverter 3 Phase 11kw 15kw Frequency Inverter 220v 380v 15hp 20hp 3

Inverter recommendation

VFD Inverter 3 Phase 11kw 15kw Frequency Inverter 220v 380v 15hp 20hp 4
