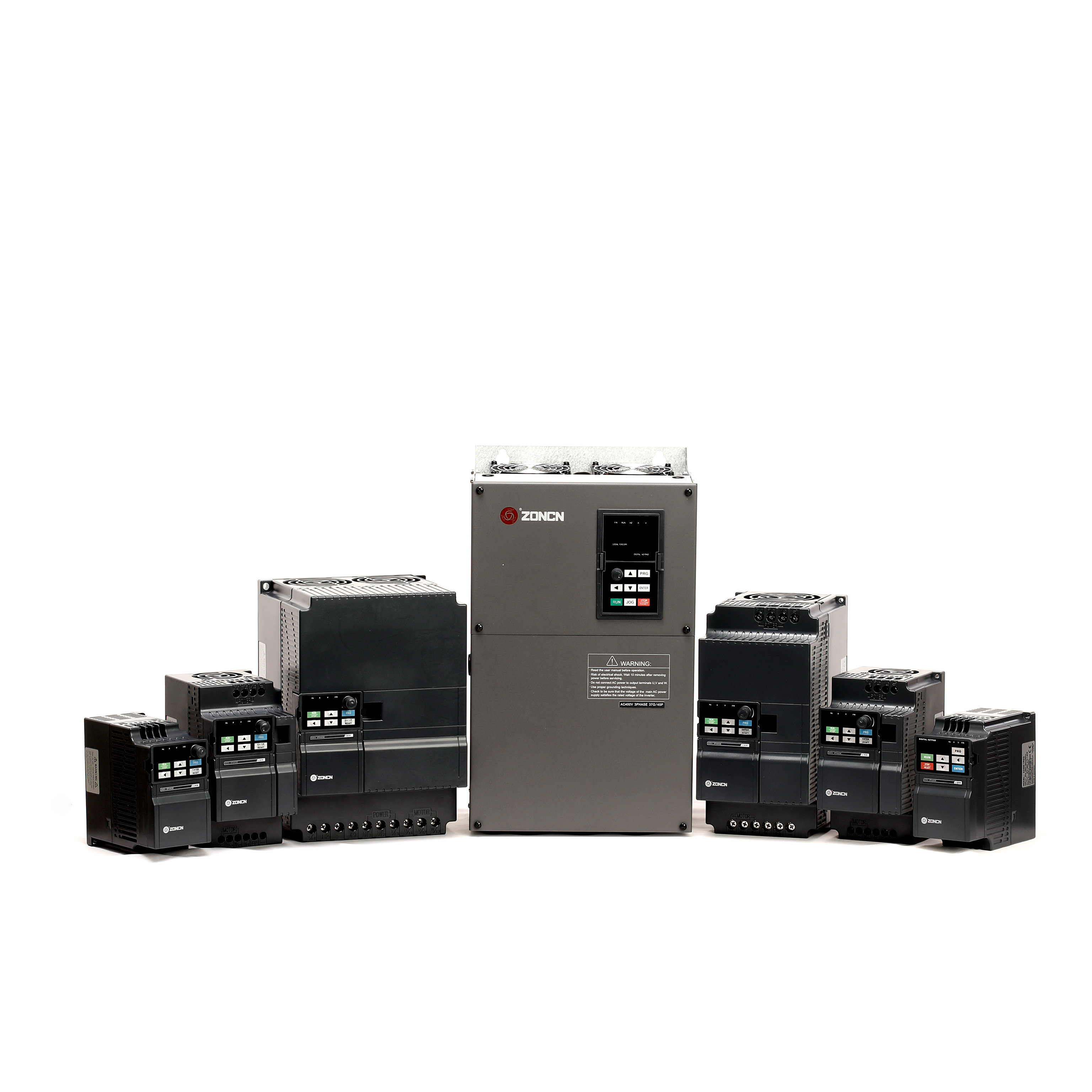

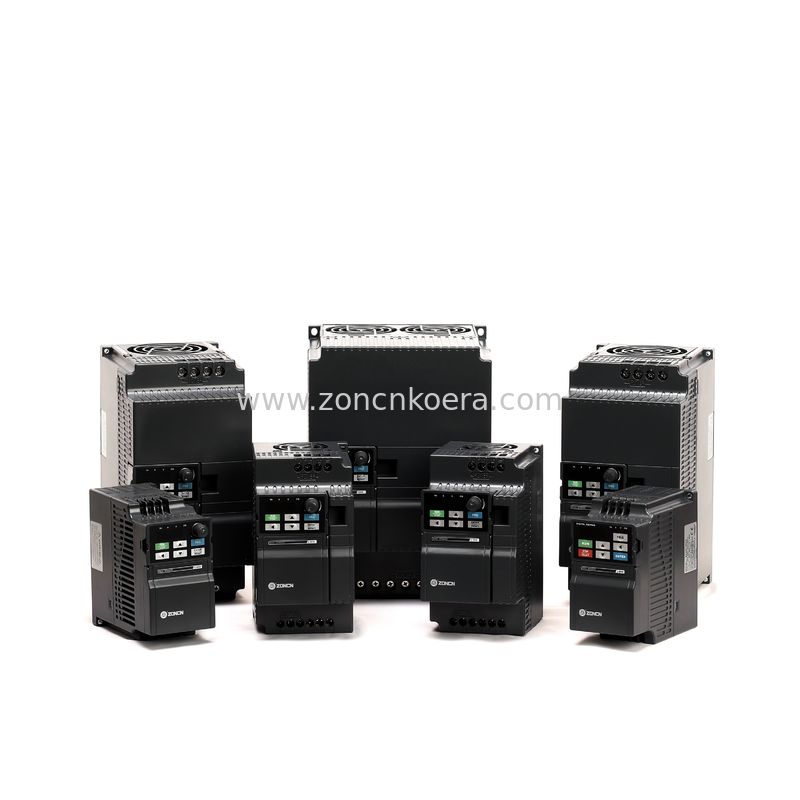

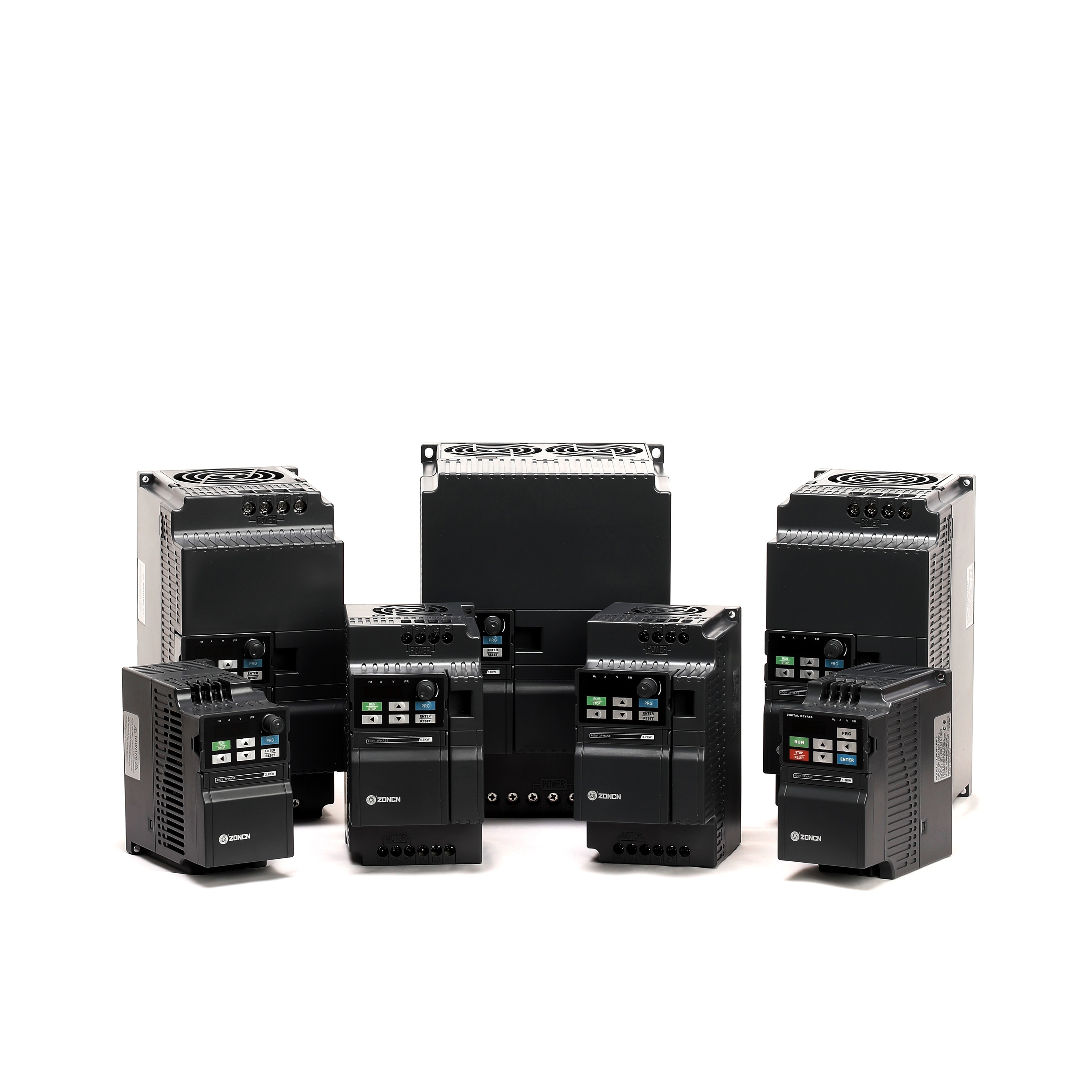

AC Inverter 380v 440v 480v 660v Variable Speed Drive ZONCN Frequency Inverter

AC Inverter 380v 440v 480v 660v Variable Speed Drive ZONCN Frequency Inverter
AC Inverter 380v 440v 480v 660v Variable Speed Drive ZONCN Frequency Inverter AC Inverter 380v 440v 480v 660v Variable Speed Drive ZONCN Frequency Inverter AC Inverter 380v 440v 480v 660v Variable Speed Drive ZONCN Frequency Inverter AC Inverter 380v 440v 480v 660v Variable Speed Drive ZONCN Frequency Inverter AC Inverter 380v 440v 480v 660v Variable Speed Drive ZONCN Frequency Inverter AC Inverter 380v 440v 480v 660v Variable Speed Drive ZONCN Frequency Inverter
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE, KC
Model Number: Z2400-22G/30P
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: AC Inverters Brand: ZONCN
Input Frequency: 50Hz / 60Hz Rated Power: 22kw/30HP
24V Terminal: Have PM Motor: Support
Braking Resistor: Optional Braking Unit: Built-in
Highlight:

660v AC Inverter

,

480v AC Inverter

,

440v AC Inverter





ZONCN Z2000 Series General Purpose Vector Control Inverter









Product features

  • Senseless fluc vector control (SFVC)

  • Maximum frequency: vector control: 0-600hz; V/F control: 0-3200hz

  • Startup freqency: 0.5HZ/150% (SFVC)

  • PID: Built-in

  • 37kw and below built in braking unit, 45kw - 160kw are optional

  • DC reactor:  30-160kw built-in are optional.



Specification

Specification
Model Rated Output Power(kW) Rated Input Current(A) Rated Output Current(A) Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G 0.4 5.4 2.5 0.4
Z2200-0R75G 0.75 7.2 5 0.75
Z2200-1R5G 1.5 10 7 1.5
Z2200-2R2G 2.2 16 11 2.2
Z2200-3R7G 3.7 23 16.5 3.7
Z2200-5R5G 5.5 21 25 5.5
Z2200-7R5G 7.5 31 32 7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G 0.75 3.8 2.5 0.75
Z2400-1R5G 1.5 5 3.7 1.5
Z2400-2R2G 2.2 5.8 5 2.2
Z2400-3R7G/5R5P 3.7/5.5 10/15.0 9/13 3.7/5.5
Z2400-5R5G 5.5 15 13 5.5
Z2400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
Z2400-11G/15P 11/15 26/35 25/32 11/15
Z2400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
Z2400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
Z2400-22G/30P 22/30 46/62 45/60 22/30
Z2400-30G/37P 30/37 62/76 60/75 30/37
Z2400-37G/45P 37/45 76/90 75/90 37/45
Z2400-45G/55P 45/55 90/105 90/110 45/55
Z2400-55G 55 105 110 55
Z2400-75G/90P 75/90 140/160 150/176 75/90
Z2400-90G/110P 90/110 160/210 176/210 90/110
Z2400-110G/132P 110/132 210/240 210/253 110/132
Z2400-132G/160P 132/160 240/290 253/300 132/160
Z2400-160G/185P 160/185 290/330 300/340 160/185
Z2400-185G/200P 185/200 330/370 340/380 185/200
Z2400-200G/220P 200/220 370/410 380/420 200/220
… 　 　 　 　




*Note: If you have any special requirements, pls feel free to contact us directly, we can customize for you.





Nameplate Description

AC Inverter 380v 440v 480v 660v Variable Speed Drive ZONCN Frequency Inverter 0





Company Introduction



AC Inverter 380v 440v 480v 660v Variable Speed Drive ZONCN Frequency Inverter 1

AC Inverter 380v 440v 480v 660v Variable Speed Drive ZONCN Frequency Inverter 2







Application

AC Inverter 380v 440v 480v 660v Variable Speed Drive ZONCN Frequency Inverter 3







Inverter recommendation

AC Inverter 380v 440v 480v 660v Variable Speed Drive ZONCN Frequency Inverter 4
