220v Single Phase To 380v 3ph 1.5kw 2.2 Kw 3.7kw AC Inverter Motor Drive 2hp 3hp 5hp FOR PUMP

220v Single Phase To 380v 3ph 1.5kw 2.2 Kw 3.7kw AC Inverter Motor Drive 2hp 3hp 5hp FOR PUMP
220v Single Phase To 380v 3ph 1.5kw 2.2 Kw 3.7kw AC Inverter Motor Drive 2hp 3hp 5hp FOR PUMP 220v Single Phase To 380v 3ph 1.5kw 2.2 Kw 3.7kw AC Inverter Motor Drive 2hp 3hp 5hp FOR PUMP 220v Single Phase To 380v 3ph 1.5kw 2.2 Kw 3.7kw AC Inverter Motor Drive 2hp 3hp 5hp FOR PUMP 220v Single Phase To 380v 3ph 1.5kw 2.2 Kw 3.7kw AC Inverter Motor Drive 2hp 3hp 5hp FOR PUMP 220v Single Phase To 380v 3ph 1.5kw 2.2 Kw 3.7kw AC Inverter Motor Drive 2hp 3hp 5hp FOR PUMP 220v Single Phase To 380v 3ph 1.5kw 2.2 Kw 3.7kw AC Inverter Motor Drive 2hp 3hp 5hp FOR PUMP
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE
Model Number: Z2000-3R7G-24
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: AC Frequency Inverter Brand: ZONCN
Model: Z2000-3R7G-24 Frequency: 50Hz/60Hz
Input: 220V 1 Phase Output: 380v 3 Phase
Control Mode: Open Loop Vector Control Warranty: 18 Months
Highlight:

5hp AC Inverter Motor Drive

,

380v 3ph AC Inverter Motor Drive





ZONCN Z2000 Series Boost Frequency Inverter





Product Features


  • Inverter type: Boost inverter

  • Control mode: open loop vector control

  • Input: single phase 220v; output: three phase 380v;

  • Power range: 0.4kw/0.75kw/1.5kw/2.2kw/3.7kw/5.5kw/7.5kw/11kw/15kw

  • PID control: Built-in

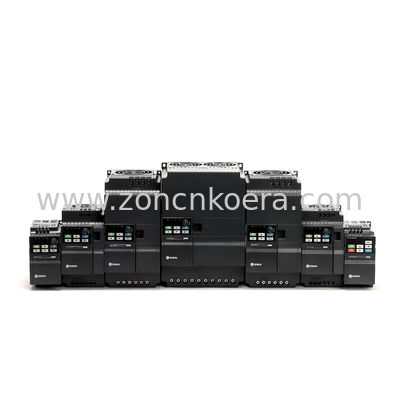

Product pictures

220v Single Phase To 380v 3ph 1.5kw 2.2 Kw 3.7kw AC Inverter Motor Drive 2hp 3hp 5hp FOR PUMP 0



Specification



220V 1PH input to 380V 3PH ouput Model Output Power(KW) Capacity(KVA) Rated Input Current(A) Rated Output Current(A)
Z2000-0R4G-24 0.4 0.8 3.7 1.2
Z2000-0R75G-24 0.75 1.6 7.8 2.5
Z2000-1R5G-24 1.5 2.5 11.8 3.8
Z2000-2R2G-24 2.2 3.4 15.9 5.1
Z2000-3R0G-24 3 4.7 22.4 7.2
Z2000-3R7G-24 3.7 5.9 28 9
Z2000-5R5G-24 5.5 8.6 40.5 13
Z2000-7R5G-24 7.5 11.2 53 17
Z2000-11G-24 11 16.5 77.9 25






Dimension

220v Single Phase To 380v 3ph 1.5kw 2.2 Kw 3.7kw AC Inverter Motor Drive 2hp 3hp 5hp FOR PUMP 1
220v Single Phase To 380v 3ph 1.5kw 2.2 Kw 3.7kw AC Inverter Motor Drive 2hp 3hp 5hp FOR PUMP 2



Company Introduction

220v Single Phase To 380v 3ph 1.5kw 2.2 Kw 3.7kw AC Inverter Motor Drive 2hp 3hp 5hp FOR PUMP 3
220v Single Phase To 380v 3ph 1.5kw 2.2 Kw 3.7kw AC Inverter Motor Drive 2hp 3hp 5hp FOR PUMP 4


ZONCN, Top 5 inverter manufacturer in China, which was established in 2006. ZONCN is focus on producing inverter and servo, we have nearly 630 staff, technical person takes about 20%, our annual sales quantity exceeds 1 million sets. we keep researching and developing different series, for example, NZ100, NZ200, Z2000, Z5000, T8000, T9000, SP500, SP600, DP500 etc., they are widely used in different applications, for example: fan and pump, printing and packaging, CNC, conveyor, textile machine, extrude machine, water treatment.

What's more, ZONCN is the most famous brand which used in air compressor in China. ZONCN will always dedicate in the field of VFD and warmly welcome you to be our partner.
