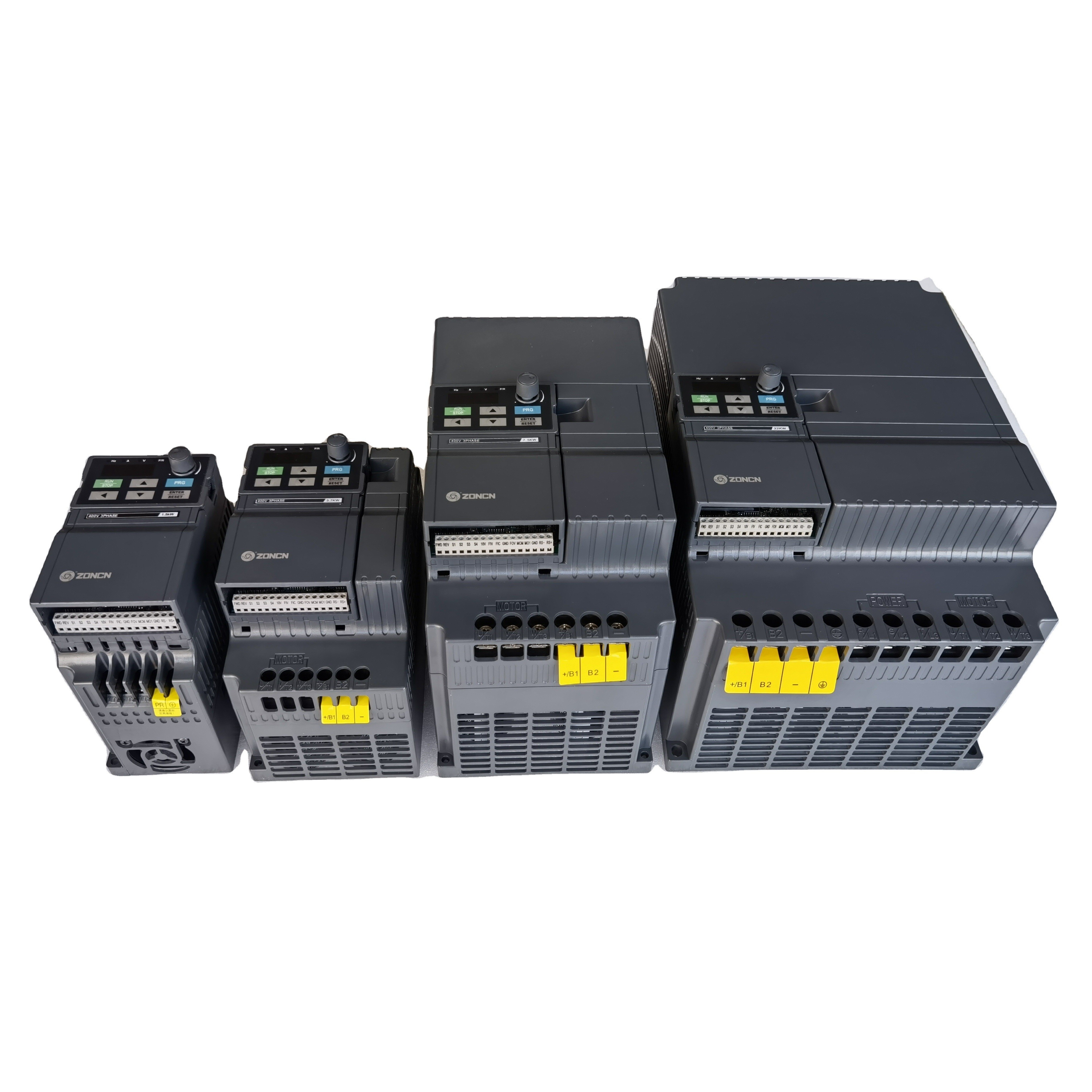

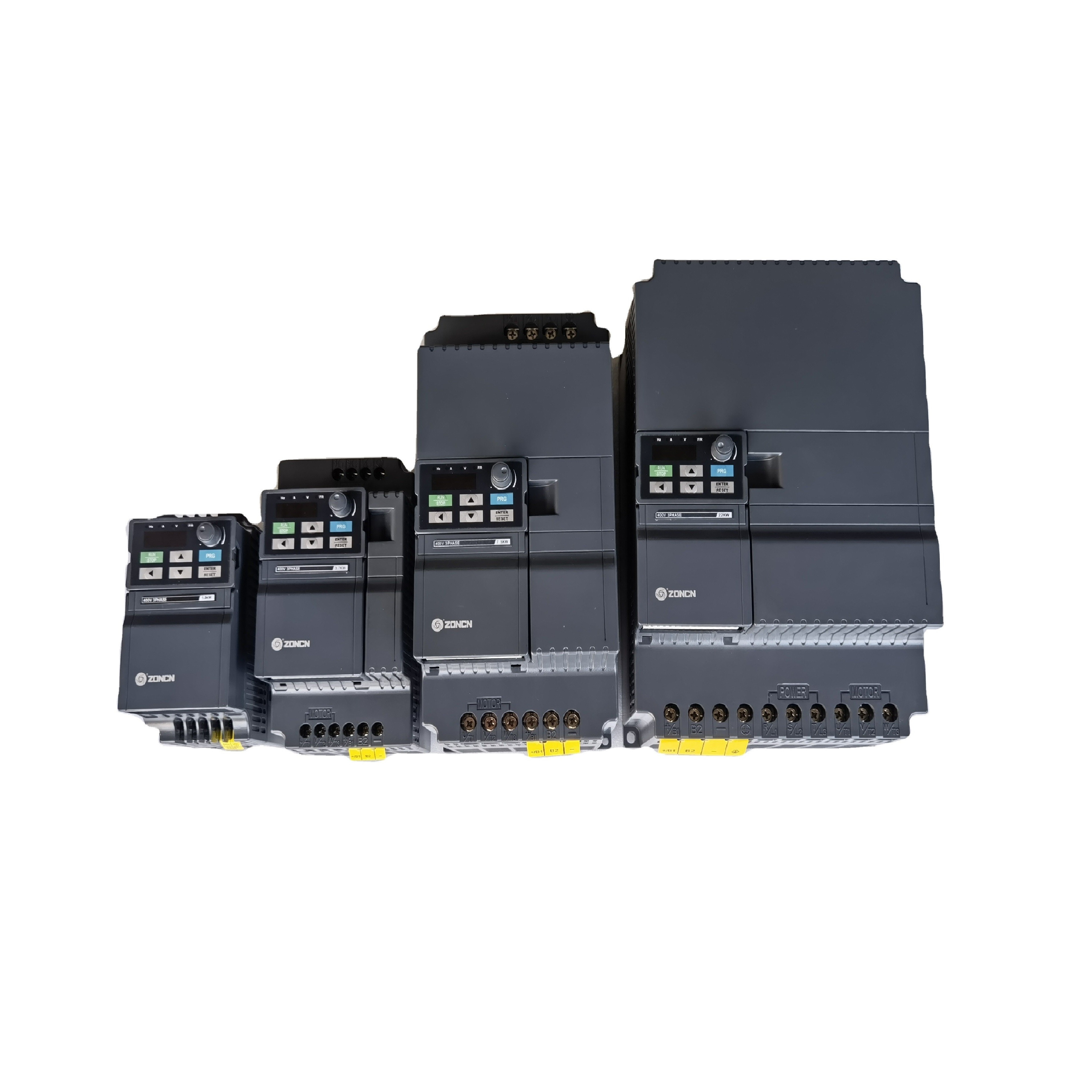

220v Single Phase To 380v 3 Phase Variable Frequency Drive VFD Inverters

220v Single Phase To 380v 3 Phase Variable Frequency Drive VFD Inverters
220v Single Phase To 380v 3 Phase Variable Frequency Drive VFD Inverters 220v Single Phase To 380v 3 Phase Variable Frequency Drive VFD Inverters 220v Single Phase To 380v 3 Phase Variable Frequency Drive VFD Inverters 220v Single Phase To 380v 3 Phase Variable Frequency Drive VFD Inverters 220v Single Phase To 380v 3 Phase Variable Frequency Drive VFD Inverters 220v Single Phase To 380v 3 Phase Variable Frequency Drive VFD Inverters
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE
Model Number: Z2000-5R5G-24
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: AC Frequency Inverter Brand: ZONCN
Model: Z2000-5R5G-24 Frequency: 50/60HZ
Input: 220V 1 Ph Output: 380v 3 Ph
Control Mode: Senseless Flux Vector Control Shipping: By Air
Highlight:

220v Single Phase VFD Inverters

,

380v 3 Phase VFD Inverters

,

Variable Frequency Drive VFD Inverters





ZONCN Z2000 Series Boost Frequency Inverter







Product Features



  • Type: Boost frequency inverter

  • Control mode: Vector control

  • Input: 220v single phase; output: 380v 3 phase;

  • Power rating: 0.4kw to 15kw

  • Lead time: within 15 days







Product description.

Item Z2000
Standard Function Control mode Senseless flux vector control(SFVC) ; Voltage/Frequency (V/F) control
Maximum frequency Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency 1-16kHz ; The carrier frequency is automatically adjusted based on the load features
Input frequency solution Digital setting: 0.01Hz ; Analog setting: maximum frequency x 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ; P type: 0.5Hz/100%
Speed range 1:100
Speed stability accuracy ±0.5%
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost ; Customized boost 0.1%-30.0%
V/F curve Line V/F curve; Multi-point V/F curve; N-power V/F curve
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp ; S-curve ramp ; Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking DC braking frequency : 0.0Hz to maximum frequency Braking time: 0.0~100.0s Braking action current value: 0.0%~100.0%
JOG control JOG frequency range: 0.00~50.00Hz JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of X terminal states.
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage changes.
Auto voltage/ Over current stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive
Torque limit and control It can keep constant output voltage automatically when the mains voltage changes



Specification

220V 1PH input to 380V 3PH ouput Model Output Power(KW) Capacity(KVA) Rated Input Current(A) Rated Output Current(A)
Z2000-0R4G-24 0.4 0.8 3.7 1.2
Z2000-0R75G-24 0.75 1.6 7.8 2.5
Z2000-1R5G-24 1.5 2.5 11.8 3.8
Z2000-2R2G-24 2.2 3.4 15.9 5.1
Z2000-3R0G-24 3 4.7 22.4 7.2
Z2000-3R7G-24 3.7 5.9 28 9
Z2000-5R5G-24 5.5 8.6 40.5 13
Z2000-7R5G-24 7.5 11.2 53 17
Z2000-11G-24 11 16.5 77.9 25









Company Introduction

220v Single Phase To 380v 3 Phase Variable Frequency Drive VFD Inverters 0

220v Single Phase To 380v 3 Phase Variable Frequency Drive VFD Inverters 1



ZONCN was establied in 2006, which focused on producing inverter servo for 19 years. ZONCN is famous inverter brand which are used in various industries such as textile, printing, CNC machinery, food packaging, injection molding, ventilation systems, pumping systems, air compressors, water treatment, industrial washing machines etc.

What's more, ZONCN is Top 1 brand which used in the air compressor industry in China.



Warmly welcome you to visit our factory for business cooperation. Sincerely hope we can help you for this inverter product with our professional experience.
