220v 380v ZONCN Inverter NZ100 NZ200 Mini VFD 0.4kw 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw

220v 380v ZONCN Inverter NZ100 NZ200 Mini VFD 0.4kw 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw
220v 380v ZONCN Inverter NZ100 NZ200 Mini VFD 0.4kw 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 220v 380v ZONCN Inverter NZ100 NZ200 Mini VFD 0.4kw 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 220v 380v ZONCN Inverter NZ100 NZ200 Mini VFD 0.4kw 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 220v 380v ZONCN Inverter NZ100 NZ200 Mini VFD 0.4kw 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 220v 380v ZONCN Inverter NZ100 NZ200 Mini VFD 0.4kw 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 220v 380v ZONCN Inverter NZ100 NZ200 Mini VFD 0.4kw 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: NZ100-3R7G-4
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Product Name: Frequency Inverter Brand: ZONCN
Input: 220v 380v Power: 0.4kw-7.5kw
Control Mode: V/F Control+vector Control Application: Fan/Pump/conveyor/blower Etc.
PID: Built-in Communication: RS485
Highlight:

220v 380v NZ100 Inverter

,

5.5kw NZ100 Inverter

,

0.4kw NZ100 Inverter

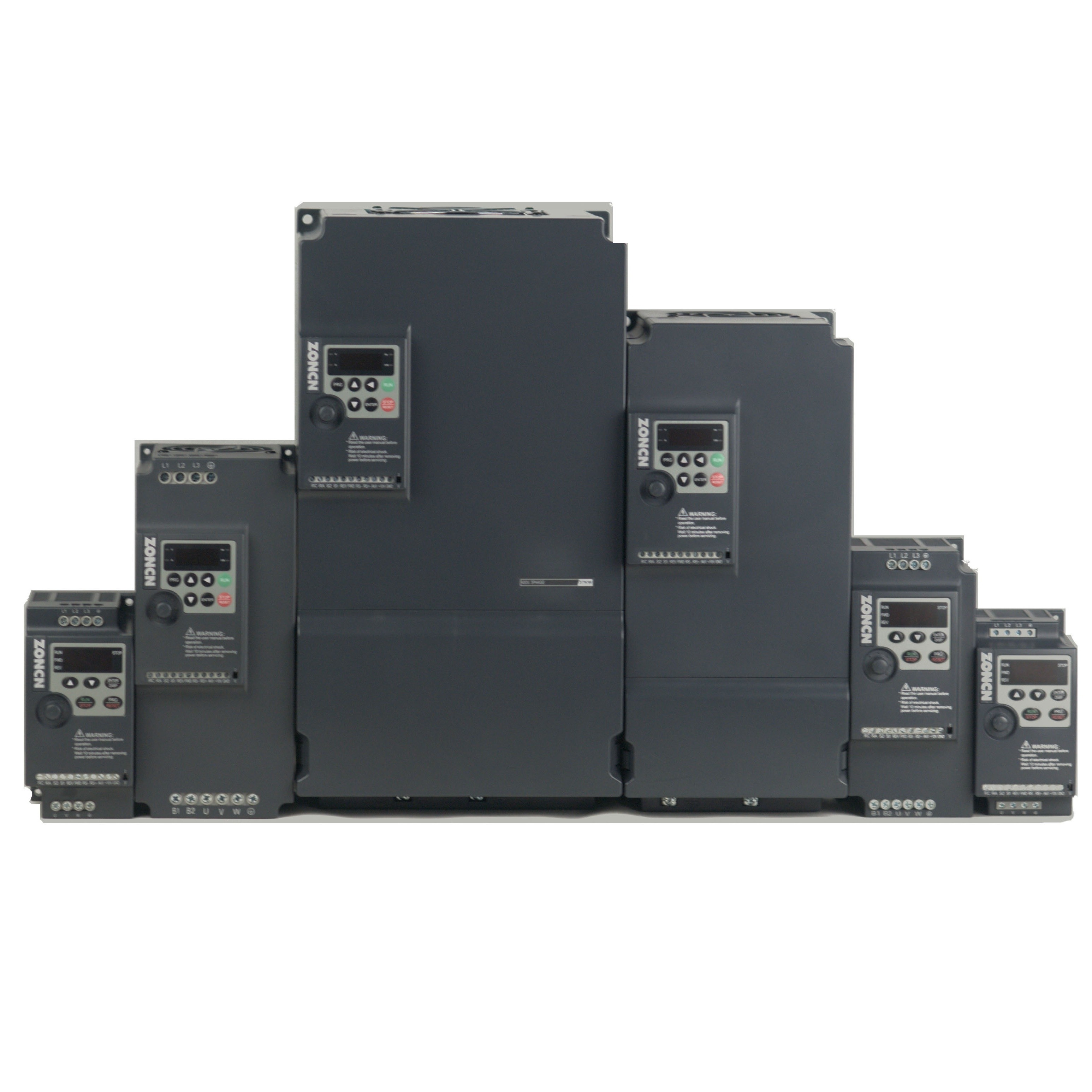

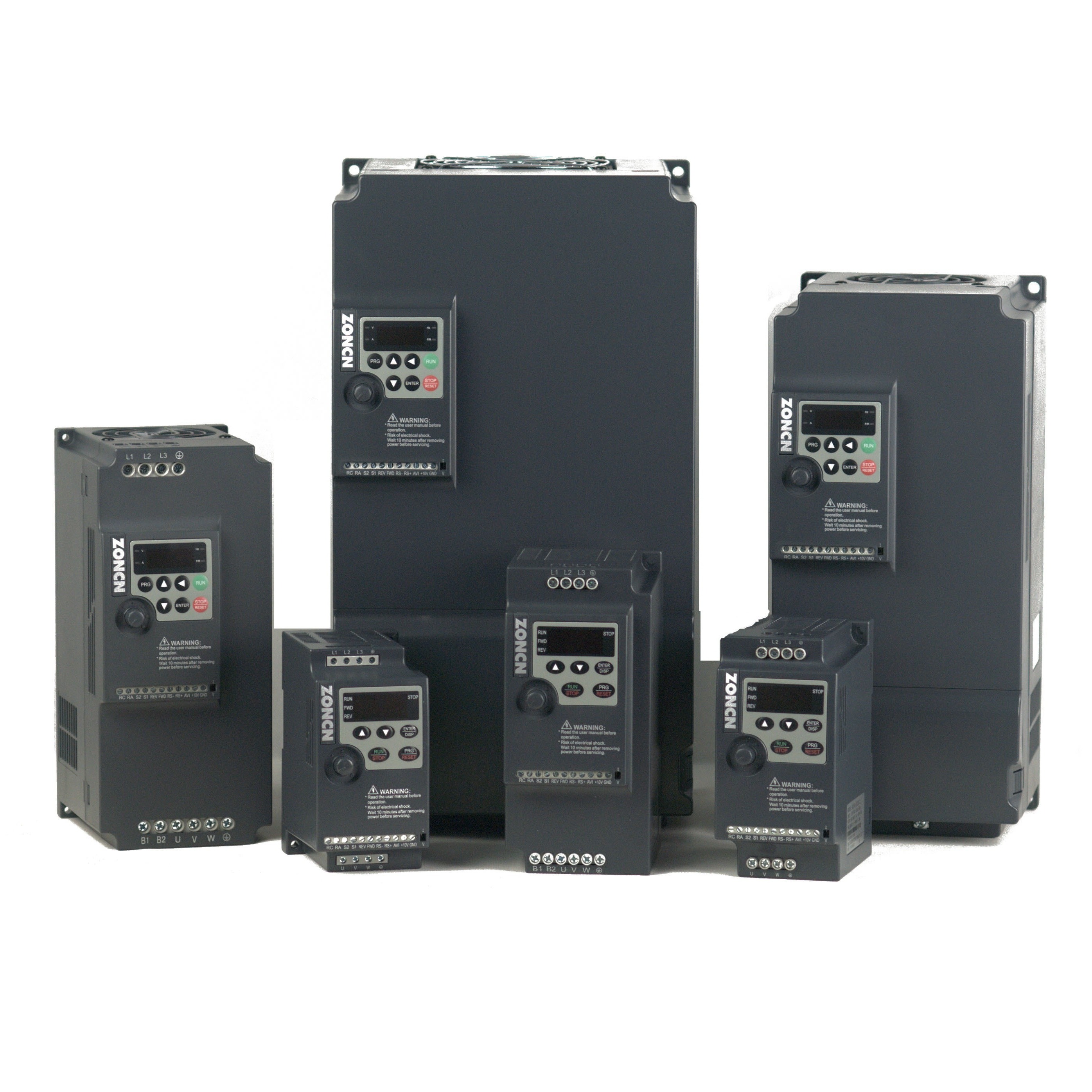

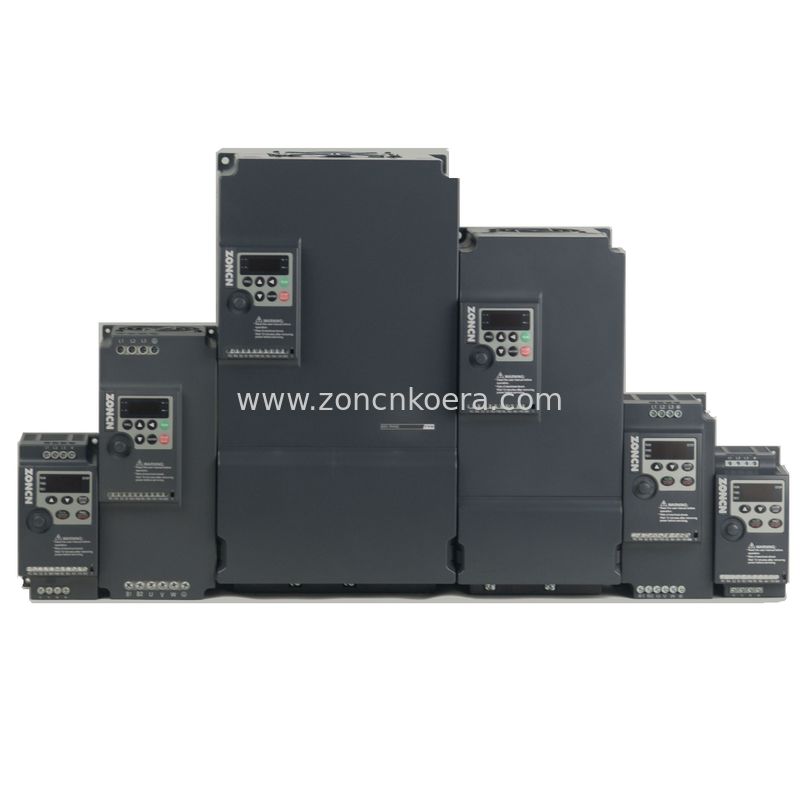

ZONCN NZ100 Series Mini variable frequency inverter





Product Features

  • Small Size

  • Detachable panel

  • Installation: Wall-mounted or standard 35mm rail mounting (below 5.5kw)

  • Application: fan/pump/conveyor/blower etc.

  • Communication: RS485 communicatio (MODBUS)

  • Frequency: 50hz / 60hz

  • Control mode: V/F control, vector control

  • Input voltage: 220v 1ph, 380v 3 phase







Nameplate Description

220v 380v ZONCN Inverter NZ100 NZ200 Mini VFD 0.4kw 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 0



Specification

Model Input Voltage  Output Power (KW) Input Current (A) Output Current (A)  Motor Equipped (KW)
NZ100-0R4G-2 1PH AC220V+/-15% 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
NZ100-0R75G-4 3PH AC380V+/-15% 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5.0 4.0 1.5
NZ100-2R2G-4 2.2 5.8 5.0 2.2
NZ100-3R7G-4 3.7 10.7 8.6 3.7
NZ100-5R5G-4 5.5 14.6 12.5 5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.



































Dimension



220v 380v ZONCN Inverter NZ100 NZ200 Mini VFD 0.4kw 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 1







Wiring Diagram



220v 380v ZONCN Inverter NZ100 NZ200 Mini VFD 0.4kw 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 2





Packing&Shipping

220v 380v ZONCN Inverter NZ100 NZ200 Mini VFD 0.4kw 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 3



Workshop

220v 380v ZONCN Inverter NZ100 NZ200 Mini VFD 0.4kw 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 4



Warehouse

220v 380v ZONCN Inverter NZ100 NZ200 Mini VFD 0.4kw 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 5









Application



220v 380v ZONCN Inverter NZ100 NZ200 Mini VFD 0.4kw 0.75kw 1.5kw 2.2kw 3.7kw 5.5kw 6



FAQ

Q: Can i order 1 unit?

A: Yes, our MOQ is 1 pc.



Q: What is your lead time?

A: within 15 days.



Q:  Does your VFD have warranty?

A: Sure, our warranty time is 18 months after delivery.



Q: Can you produce for my own logo?

A: Yes, if the order quantity can meet the MOQ.
