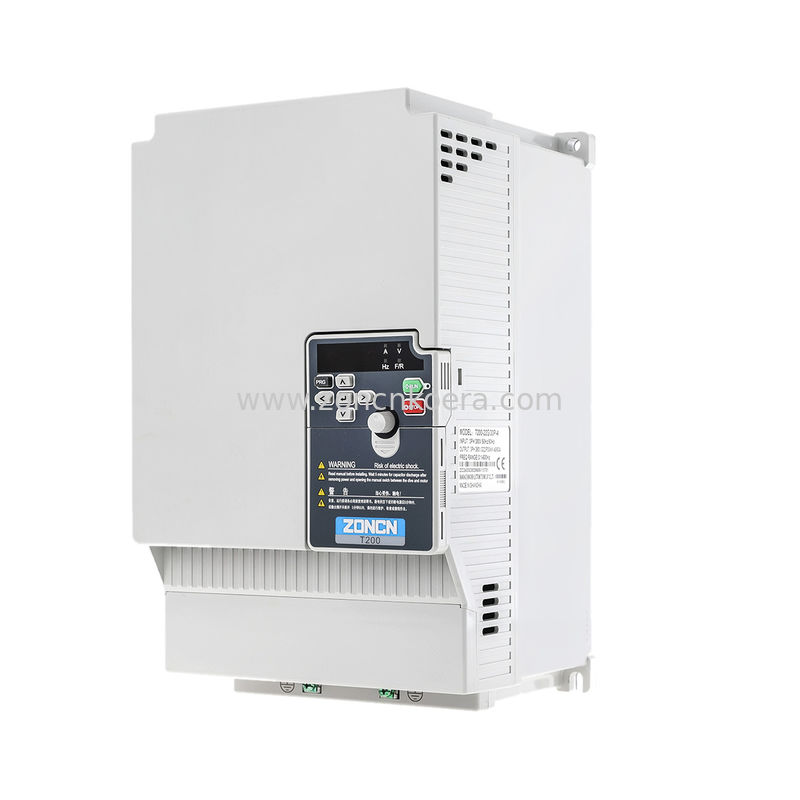

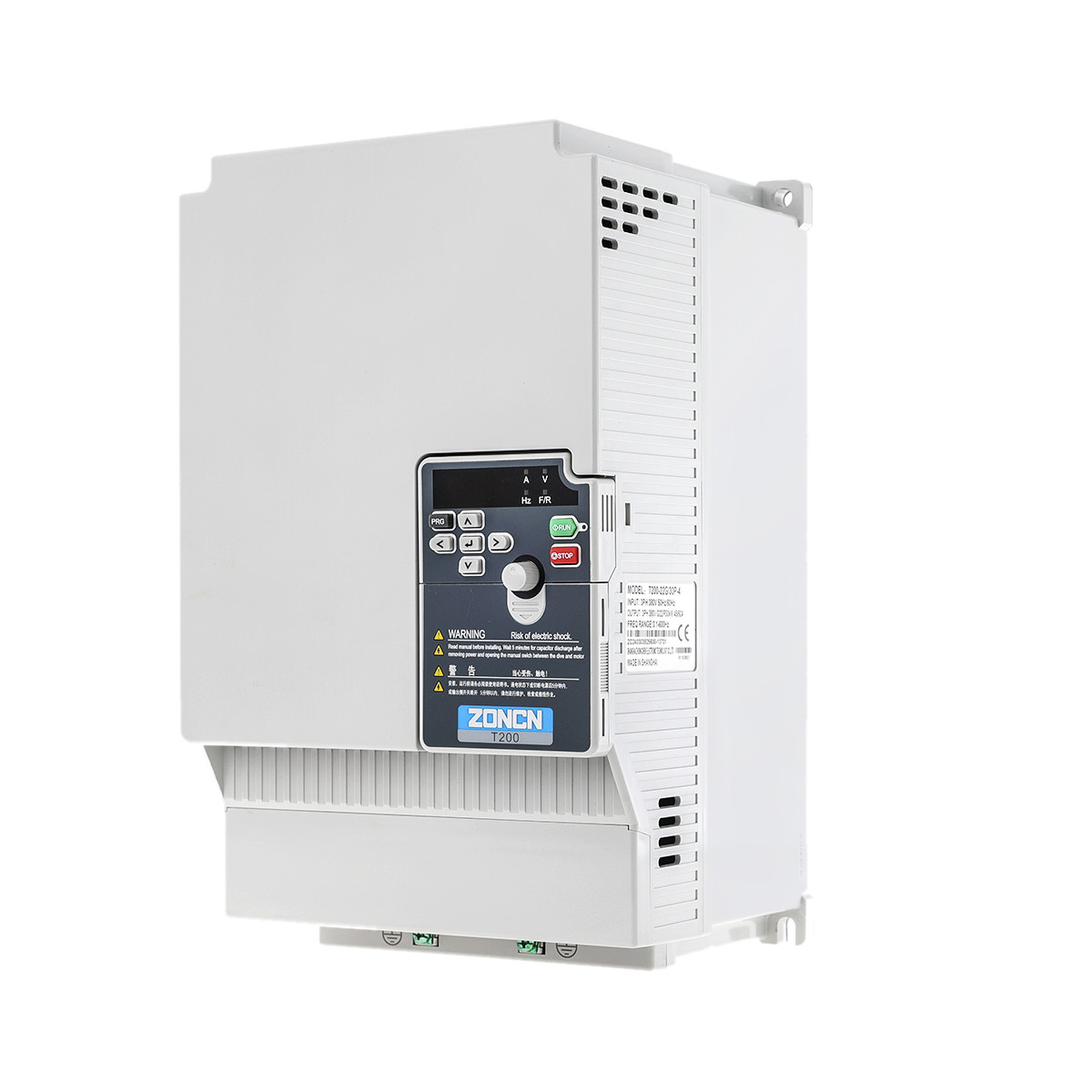

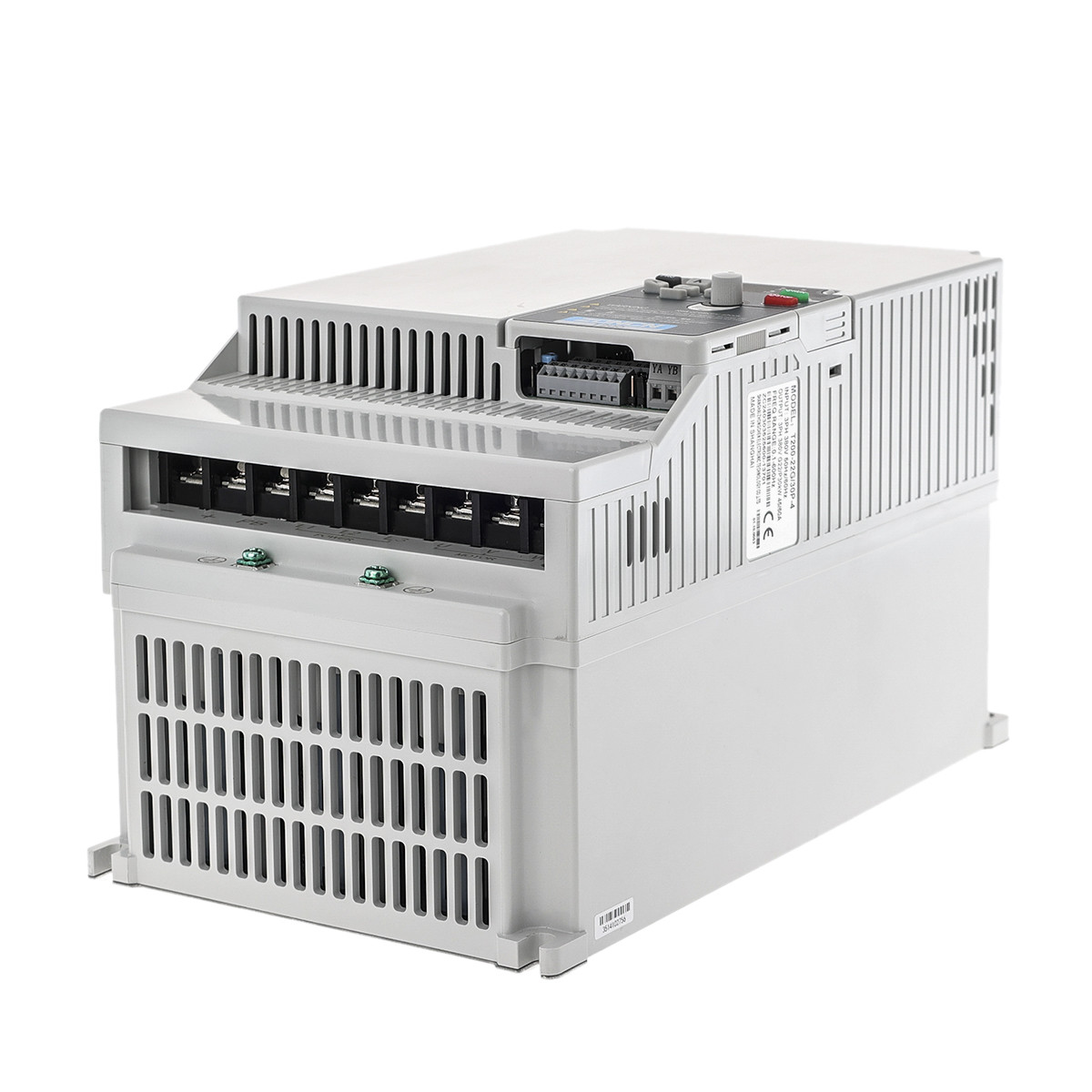

ZONCN AC Drives Variable Frequency Inverter Vfd 18.5kw 22kw Low Voltage 220v 380v

ZONCN AC Drives Variable Frequency Inverter Vfd 18.5kw 22kw Low Voltage 220v 380v
ZONCN AC Drives Variable Frequency Inverter Vfd 18.5kw 22kw Low Voltage 220v 380v ZONCN AC Drives Variable Frequency Inverter Vfd 18.5kw 22kw Low Voltage 220v 380v ZONCN AC Drives Variable Frequency Inverter Vfd 18.5kw 22kw Low Voltage 220v 380v ZONCN AC Drives Variable Frequency Inverter Vfd 18.5kw 22kw Low Voltage 220v 380v ZONCN AC Drives Variable Frequency Inverter Vfd 18.5kw 22kw Low Voltage 220v 380v ZONCN AC Drives Variable Frequency Inverter Vfd 18.5kw 22kw Low Voltage 220v 380v
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN Inverter
Certification: CE
Model Number: T200 series VFD
Minimum Order Quantity: 1 unit
Packaging Details: Carton
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Voltage: 380v±15%；220±15% Protection: IP20
CE: Yes STO Function: Support
Communication: RS485 Type: AC Frequency Inverter
Application: Motor Speed Controller Input: AC 220V / 380V
Output: AC 220V /380V ODM Service: Yes
OEM Service: Yes
Highlight:

18.5kw AC Drives

,

22kw AC Drives

,

220v 380v AC Drives

T200 series catalog.pdf

ZONCN T200 Series VFD Frequency Inverter AC Drives



Basic product introduction:

ZONCN AC Drives Variable Frequency Inverter Vfd 18.5kw 22kw Low Voltage 220v 380v 0

T200 series variable frequency inverter provide a compact AC drive that combines easy operation with high-efficiency control for AC induction, PMS motor. The robust compact designed, various controls mode, support EtheCAT,Modbus,Profibus-DP communication,built-in EMC filter,24DC,STO function. Extension PG Cards.The ZONCN T200 series vfd inverter are known for their superior performance and are suitable for a wide range of industrial applications. With cutting-edge technology and reliable quality, it provides users with energy efficient and stable power solutions.With its excellent performance, the ZONCN T200 series will continue to shine in the field of automation inverters and set a benchmark in the inverter market.





Technical characteristic:

Maximum frequency Vector control:0～600Hz；V/F control:0-3200Hz
Control mode V/F control；Senseless flux vector control(SFVC); Closed loop vector control (CLVC)
Carrier frequency

0.5kHz～16kHz；The carrier frequency can be automatically adjusted based on the load feature

Input frequency resolution

 Digital setting:0.01Hz；Analog setting: maximum frequency×0.025%
Startup torque G Type:0.5Hz/150%(SFVC)；P Type:0.5Hz/100%
Speed range 1:100(No PG)
Speed stability accuracy ±0.5%(No PG)
Torque control accuracy ±5%(FVC)
Overload capacity

G type: 60s for 150% of the rated current, 3s for 180% of the rated current；P type: 60s for 120% of the rated current, 3s for 150% of the rated current
Torque boost Fixed boost；Customized boost 0.1%-30.0%
V/F curve

Straight-line V/F curve；Multi-point V/F curve；

N-power V/F curve (1.2-power, 1.4-power, 1.6- power,1.8-power, square)
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp；S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.00-6500.0s
DC braking DC braking frequency: 0.00 Hz to maximum frequency
Braking time: 0.0-100.0s
Braking action current value: 0.0%–100.0%
JOG control
Jog frequency range:0.00Hz~50.00Hz.
Jog acceleration/deceleration time0.0s~6500.0s

Onboard multiple preset speeds

 It implements up to 16 speeds via the simple PLC function or by input terminal state
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR) It can keep constant output voltage automatically when the mains voltage changes
Over-voltage/Over-current stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current
Rapid current limit It helps to avoid frequent over-current faults of the inverter
Torque limit and torque control It can limit the torque automatically and prevent frequent over-current tripping during the running process
Instantaneous stop doesn’t stop The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time





Product specifiction:

Model Input voltage Rated output power(kw) Rated input current(A) Rated output current(A) Motor power(kw)
T200-0R4G-2 AC 1PH 220V± 15% 0.4 5.4 2.5 0.4
T200-0R75G-2 0.75 7.2 5.0 0.75
T200-1R5G-2 1.5 10.0 7.0 1.5
T200-2R2G-2 2.2 16.0 11.0 2.2
T200-0R4G-4









AC 3PH 380V±15%

 0.4 3.4 1.2 0.4
T200-0R75G-4 0.75 3.8 2.5 0.75
T200-1R5G-4 1.5 5.0 3.7 1.5
T200-2R2G-4 2.2 5.8 5.0 2.2
T200-3R0G-4 3.0 8.5 7.0 3.0
T200-3R7G/5R5P-4 3.7/5.5 10.0/15.0 9.0/13.0 3.7/5.5
T200-5R5G/7R5P-4 5.5/7.5 15.0/20.0 13.0/17.0 5.5/7.5
T200-7R5G/11P-4 7.5/11 20.0/26.0 17.0/25.0 7.5/11
T200-11G/15P-4 11/15 26.0/35.0 25.0/32.0 11/15
T200-15G/18.5P-4 15/18.5 35.0/38.0 32.0/37.0 15/18.5





T200 series product circuit diagram:

ZONCN AC Drives Variable Frequency Inverter Vfd 18.5kw 22kw Low Voltage 220v 380v 1





Product front structure:

ZONCN AC Drives Variable Frequency Inverter Vfd 18.5kw 22kw Low Voltage 220v 380v 2



Company profile:

ZONCN AC Drives Variable Frequency Inverter Vfd 18.5kw 22kw Low Voltage 220v 380v 3

Our advantages:
· We are a professional variable frequency inverter manufacturing company in China, we have four factories in China.
· Our annual output is close to 900,000 units vfd inverter, and our product failure rate is less than 0.1%, making it one of the most cost-effective vfd products in China.
· Our frequency inverter products have passed ISO9001, CE and KC.
· One of our biggest advantages is our short lead time.
· OEM/ODM: Yes; And has cooperated with more than 40 brands.
· We also have HMI, PLC and servo system for your choice.





FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.





Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
