ZONCN 380v 3phase VSD Variador De Frecencia 5hp 7hp 10hp 11hp 5.5kw 7.5kw 11kw VFD Inverter





ZONCN T9000 Series Advanced Vector Control Inverter







ZONCN, established in 2006, which is a professional inverter and Servo manufacturer in China. Our annnual sales quantity is about 1 Million units.

Our Headquarters is in Shanghai, we both have factories in Shanghai and Wuhu, with total area around 100,000 ㎡.  We have our own R&D center, our engineer person is more than 70, so we keep developing and upgrading our inverter series, now our main series is NZ100, NZ200(T), Z2000(T), Z8000, T9000, Z5000 series etc.  And we can produce from 0.4kw to 2000kw. T9000 series is an advanced vector control inverter which for general use. Especially, it supports Profinet commnucation and have 24V terminal. It is a very economical series to be used in various applications.

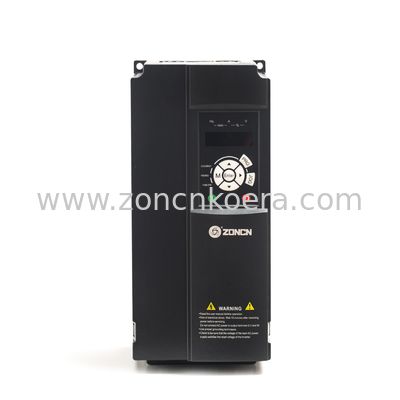

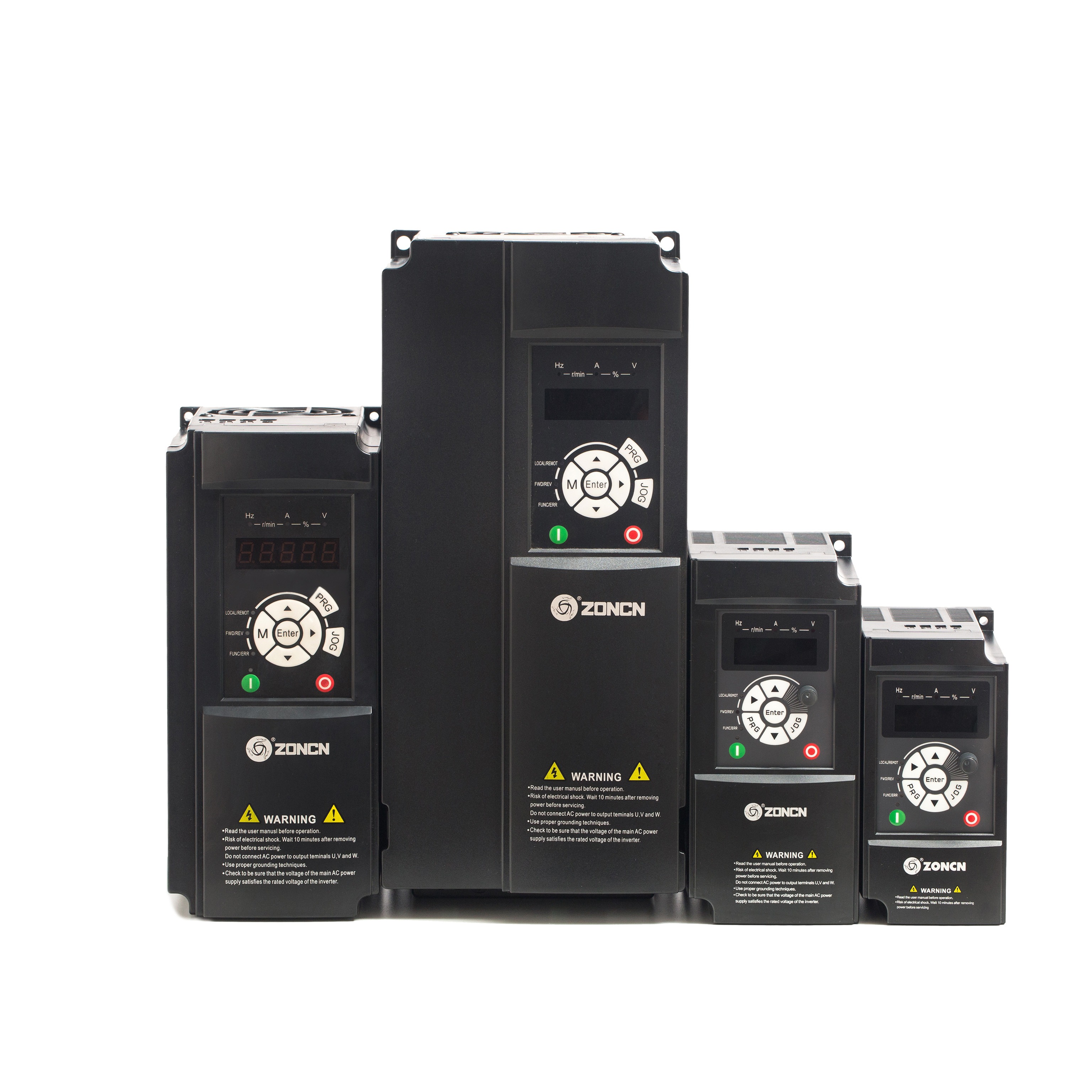

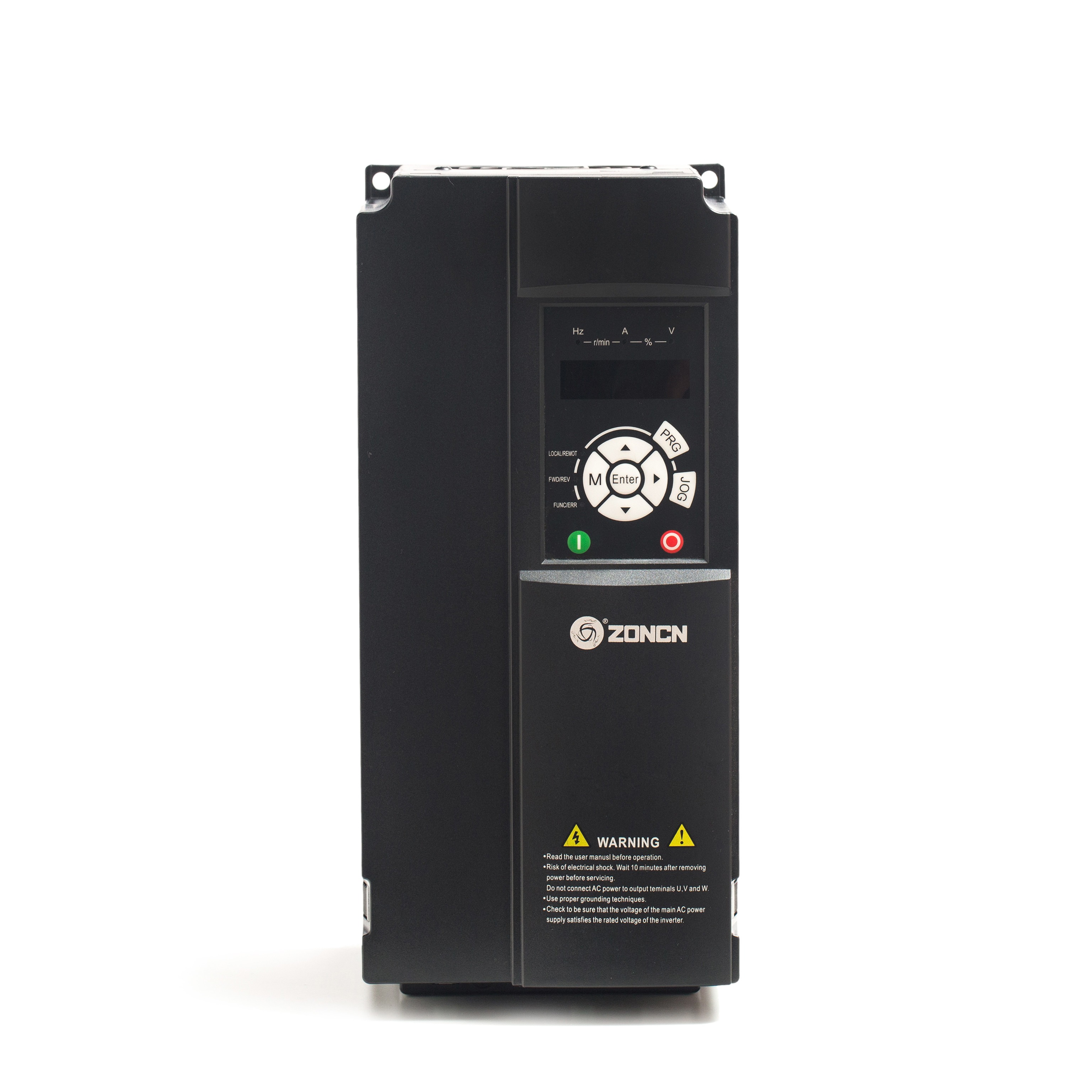

T9000 inverter picture





Inverter Specification

Item		Description
Basic function	Control Mode	VF control
		Sensorless flux vector control(SVC)
		Close-loop vector control(FVC)(Above 3.7kW)
	Maximum frequency	0~600Hz
	Carrier frequency	0.5kHZ——8kHz
		The carrier frequency is automatically adjusted based on the load features
	Input frequency resolution	Digital setting:0.01Hz
		Analog setting: Maximum frequency x 0.025%
	Start torque	G Type:0.5Hz/150%(SVC)
		P Type:0.5Hz/100%
	Speed range	1:100 (SVC)
	Speed stability accuracy	±0.5%(SVC)
	Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
	Torque boost	Auto-boost ;
		Customized boost: 0.1%~30.0%
	V/F Curve	Straight-line V/F curve
		Multi-point V/F curve
		N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
	V/F separation	2 types: complete separation; half separation
	Ramp Mode	Straight-line ramp.
		Four groups of acceleration/deceleration time with the range of 0.00`6500.0s
	DC braking	DC braking frequency:0.00Hz~Maximum frequency
		Braking time:0.0s~36.0s
		Braking action current value:0.0%~100.0%
	JOG control	JOG frequency range:0.00Hz~50.00Hz
		JOG acceleration/deceleration time: 0.0s~6500.0s.
	Simple PLC,Multiple preset speeds	It implements up to 16 speeds via the simple PLC function or combination of terminal states
	Onboard PID	It realizes process-controlled closed loop control system easily
	Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage
	Overvoltage/overcurrent stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
	Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
	Torque limit and control	It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be
		implemented in the FVC mode.
	Support for multiple PG card	Support for differential input PG card, resolver PG card ,rotating transformer PG card








Nameplate Description









Inverter Model

Model	Input Voltage (V)	Rated output power(kW)	Rated input current(A)	Rated output current(A)	Motor Power (KW)
T9400-0R4G	3PH AC 380V±15%	0.4	3.4	1.2	0.4
T9400-0R75G		0.75	3.8	2.5	0.75
T9400-1R5G		1.5	5	3.7	1.5
T9400-2R2G		2.2	5.8	5	2.2
T9400-3R7G/5R5P		3.7/5.5	10/15	9/13	3.7/5.5
T9400-5R5G/7R5P		5.5/7.5	15/20	13/17	5.5/7.5
T9400-7R5G/11P		7.5/11	20/26	17/25	7.5/11
T9400-11G/15P		11/15	26/35	25/32	11/15







Inverter Diamension






Company Introduction












Company Introduction

Q: Which power range do you have?

A: we can produce from 0.4kw-2000kw



Q: Can you do our own logo?

A: Yes, we can produce for your own brand if you can meet quantity requirements.



Q: What is the standard communication?

A: RS485/MODBUS



Q: Can i order some samples to test first?

A: Sure.
