ZONCN T9000 Series Advanced Vector Control Inverter







T9000 series is an advanced vector control inverter which for general use. This series inverter both have V/F control and Senseless flux Vector control, it also supports Profinet commnucation and have 24V terminal. Overload capacity is 60s for 150% of rated current, 3s for 180% of the rated current. It is a very economical series to be used in various applications. We also have other hot selling series NZ100, NZ200, Z2000, Z8000, T9000, Z5000 series  etc for options, which are widely used in various industrial applications.

ZONCN has enjoyed high reputation from the market. Our annnual sales quantity is about 1 Million units.

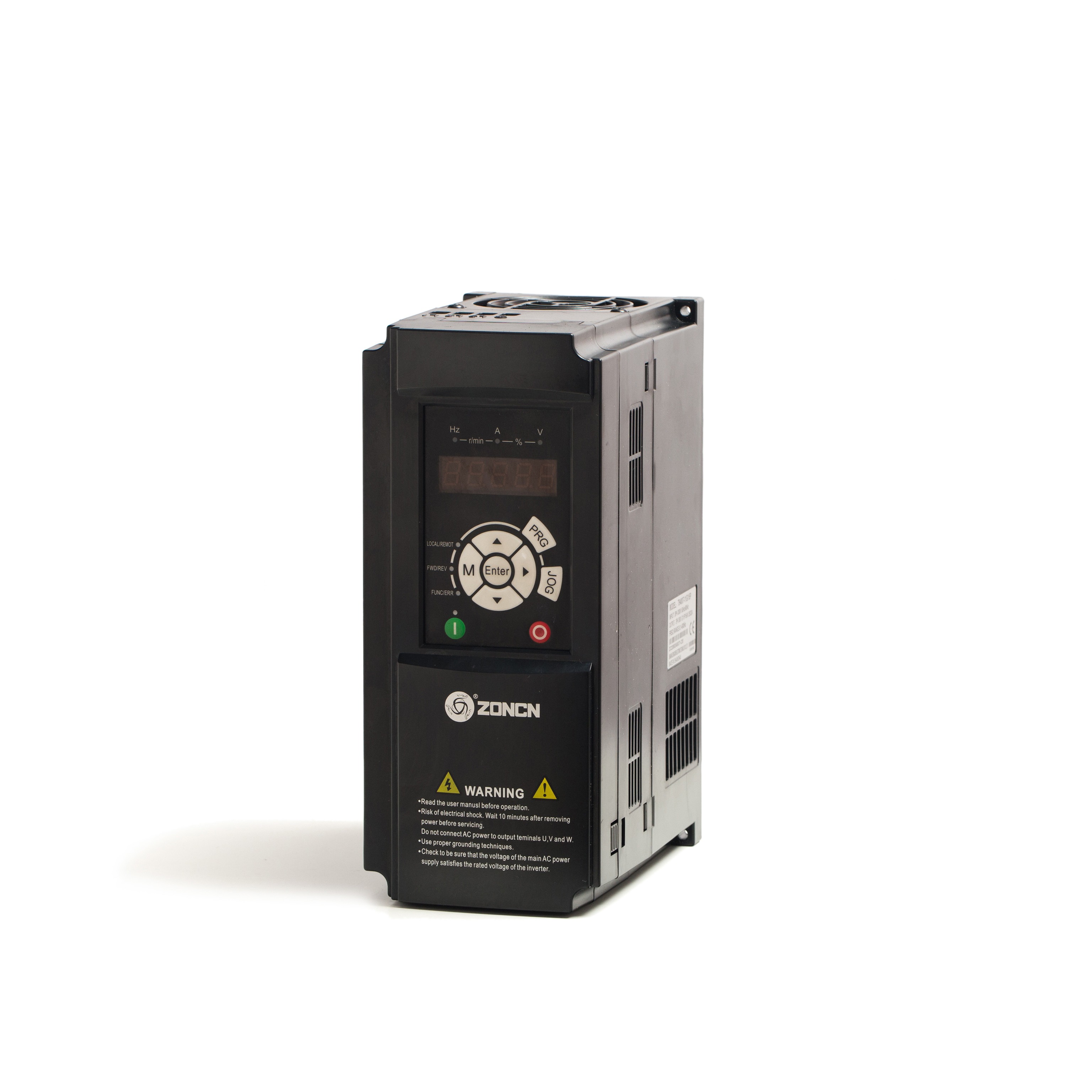

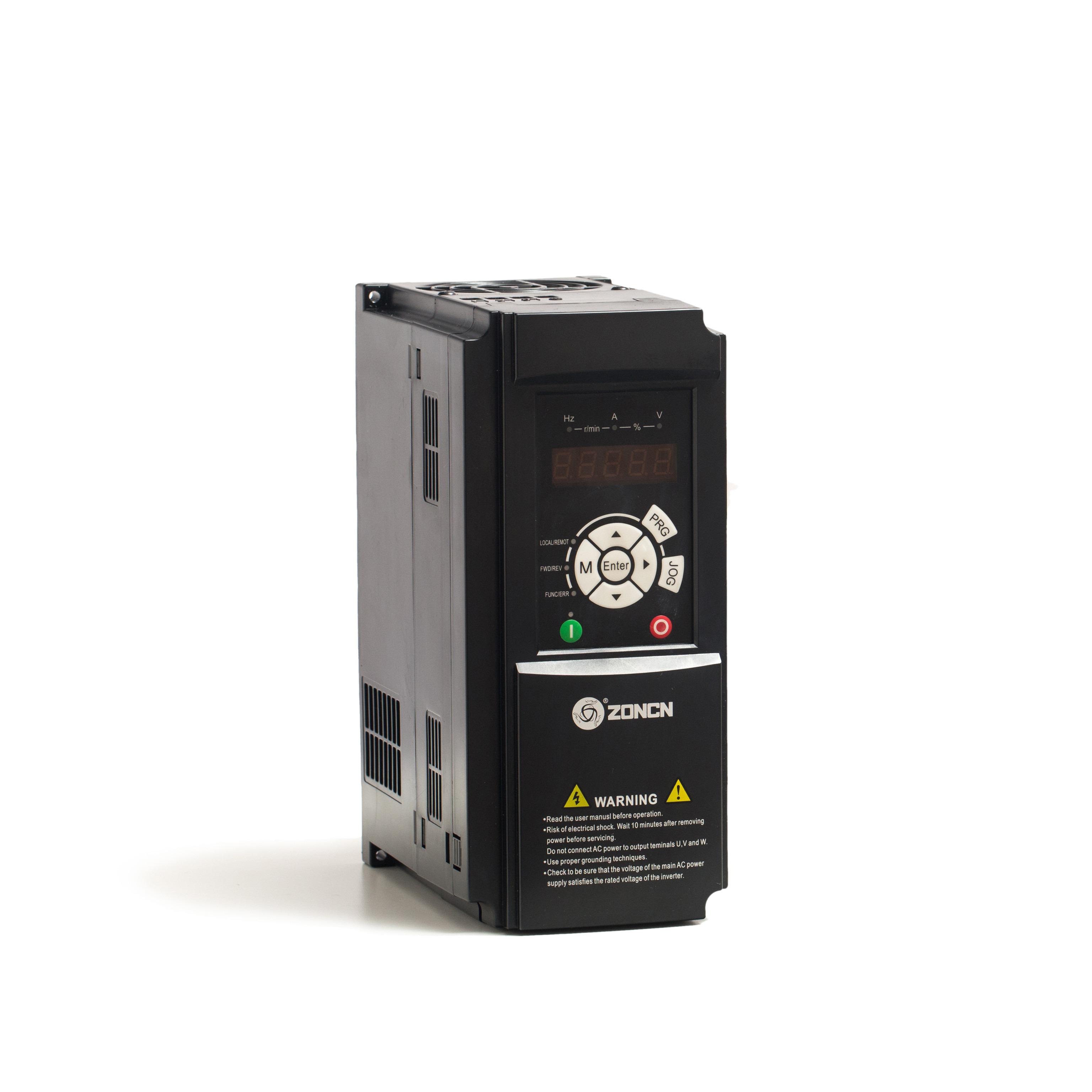

T9000 inverter picture





Inverter Specification

Item		Description
Basic function	Control Mode	VF control
		Sensorless flux vector control(SVC)
		Close-loop vector control(FVC)(Above 3.7kW)
	Maximum frequency	0~600Hz
	Carrier frequency	0.5kHZ——8kHz
		The carrier frequency is automatically adjusted based on the load features
	Input frequency resolution	Digital setting:0.01Hz
		Analog setting: Maximum frequency x 0.025%
	Start torque	G Type:0.5Hz/150%(SVC)
		P Type:0.5Hz/100%
	Speed range	1:100 (SVC)
	Speed stability accuracy	±0.5%(SVC)
	Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
	Torque boost	Auto-boost ;
		Customized boost: 0.1%~30.0%
	V/F Curve	Straight-line V/F curve
		Multi-point V/F curve
		N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
	V/F separation	2 types: complete separation; half separation
	Ramp Mode	Straight-line ramp.
		Four groups of acceleration/deceleration time with the range of 0.00`6500.0s
	DC braking	DC braking frequency:0.00Hz~Maximum frequency
		Braking time:0.0s~36.0s
		Braking action current value:0.0%~100.0%
	JOG control	JOG frequency range:0.00Hz~50.00Hz
		JOG acceleration/deceleration time: 0.0s~6500.0s.
	Simple PLC,Multiple preset speeds	It implements up to 16 speeds via the simple PLC function or combination of terminal states
	Onboard PID	It realizes process-controlled closed loop control system easily
	Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage
	Overvoltage/overcurrent stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
	Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
	Torque limit and control	It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be
		implemented in the FVC mode.
	Support for multiple PG card	Support for differential input PG card, resolver PG card ,rotating transformer PG card





Inverter Model

Model	Input Voltage (V)	Rated output power(kW)	Rated input current(A)	Rated output current(A)	Motor Power (KW)
T9400-0R4G	3PH AC 380V±15%	0.4	3.4	1.2	0.4
T9400-0R75G		0.75	3.8	2.5	0.75
T9400-1R5G		1.5	5	3.7	1.5
T9400-2R2G		2.2	5.8	5	2.2
T9400-3R7G/5R5P		3.7/5.5	10/15	9/13	3.7/5.5
T9400-5R5G/7R5P		5.5/7.5	15/20	13/17	5.5/7.5
T9400-7R5G/11P		7.5/11	20/26	17/25	7.5/11
T9400-11G/15P		11/15	26/35	25/32	11/15







Inverter Diamension
