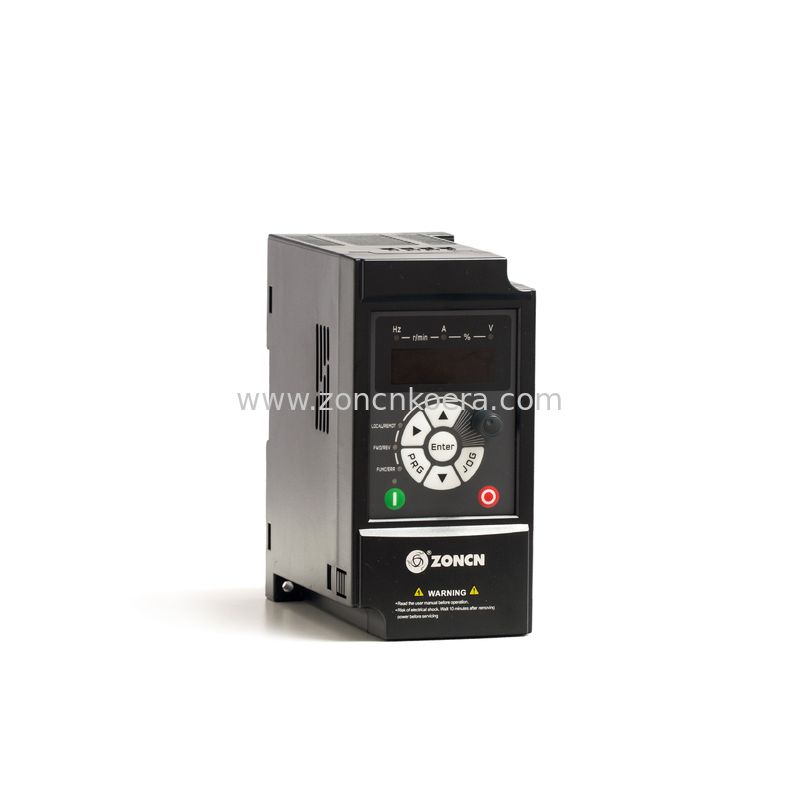

380v Variable Frequency Drive ZONCN VFD 0.75kw 1.5kw 2.2kw 3.7kw Inverters

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	CE, KC
Model Number:	T9400-0R75G

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T, Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	Variable Frequency Inverter	Brand:	ZONCN
Series:	T9000	Input:	380v 3phase
Input Frequency:	50Hz / 60Hz	Communication:	Profinet
24V Terminal:	Yes	Control Mode:	V/F Control; Open Loop/close Loop Vector Control
Highlight:	2.2kw Variable Frequency Drive , 1.5kw Variable Frequency Drive , 380v Variable Frequency Drive

ZONCN T9000 Series Advanced Vector Control Inverter

ZONCN is a professional inverter and Servo manufacturer with 19 years of experience in China. Our HQ is located in Shanghai, we both have factories in Shanghai and Wuhu, with total area around 100,000 ㎡. Our inverter's annual sales quantity is about 1,000,000 units, which have been sold both in domestic and abroad market. We have our R&D center, so we keep developing and upgrading our inverter series, now our core inverter series is NZ100, NZ200, Z2000, Z8000, T9000, Z5000 series etc. which are widely used in various industrial applications.

Specification

Item		Description
Basic function	Control Mode	VF control
		Sensorless flux vector control(SVC)
		Close-loop vector control(FVC)(Above 3.7kW)
	Maximum frequency	0~600Hz
	Carrier frequency	0.5kHZ——8kHz
		The carrier frequency is automatically adjusted based on the load features
	Input frequency resolution	Digital setting:0.01Hz
		Analog setting: Maximum frequency x 0.025%
	Start torque	G Type:0.5Hz/150%(SVC)
		P Type:0.5Hz/100%
	Speed range	1:100 (SVC)
	Speed stability accuracy	±0.5%(SVC)
	Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
	Torque boost	Auto-boost ;
		Customized boost: 0.1%~30.0%
	V/F Curve	Straight-line V/F curve
		Multi-point V/F curve
		N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
	V/F separation	2 types: complete separation; half separation
	Ramp Mode	Straight-line ramp.
		Four groups of acceleration/deceleration time with the range of 0.00`6500.0s
	DC braking	DC braking frequency:0.00Hz~Maximum frequency
		Braking time:0.0s~36.0s
		Braking action current value:0.0%~100.0%
	JOG control	JOG frequency range:0.00Hz~50.00Hz
		JOG acceleration/deceleration time: 0.0s~6500.0s.
	Simple PLC,Multiple preset speeds	It implements up to 16 speeds via the simple PLC function or combination of terminal states
	Onboard PID	It realizes process-controlled closed loop control system easily
	Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage
	Overvoltage/overcurrent stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
	Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
	Torque limit and control	It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be
		implemented in the FVC mode.
	Support for multiple PG card	Support for differential input PG card, resolver PG card ,rotating transformer PG card

Model details

T9000 inverter Model	Input Voltage (V)	Rated output power(kW)	Rated input current(A)	Rated output current(A)	Motor Power (KW)
T9400-0R4G	3PH AC 380V±15%	0.4	3.4	1.2	0.4
T9400-0R75G		0.75	3.8	2.5	0.75
T9400-1R5G		1.5	5	3.7	1.5

Nameplate Description

380v Variable Frequency Drive ZONCN VFD 0.75kw 1.5kw 2.2kw 3.7kw Inverters 0

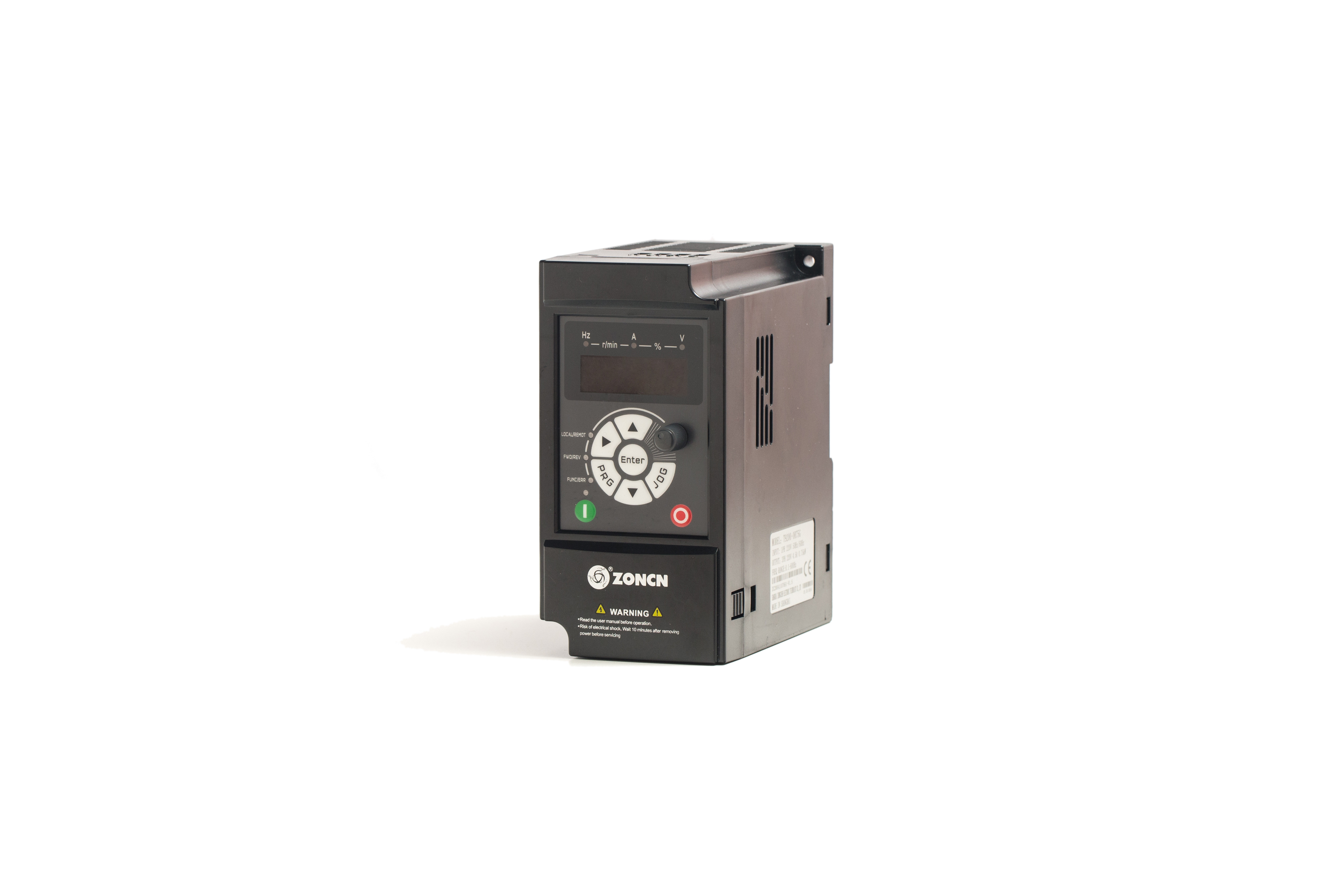

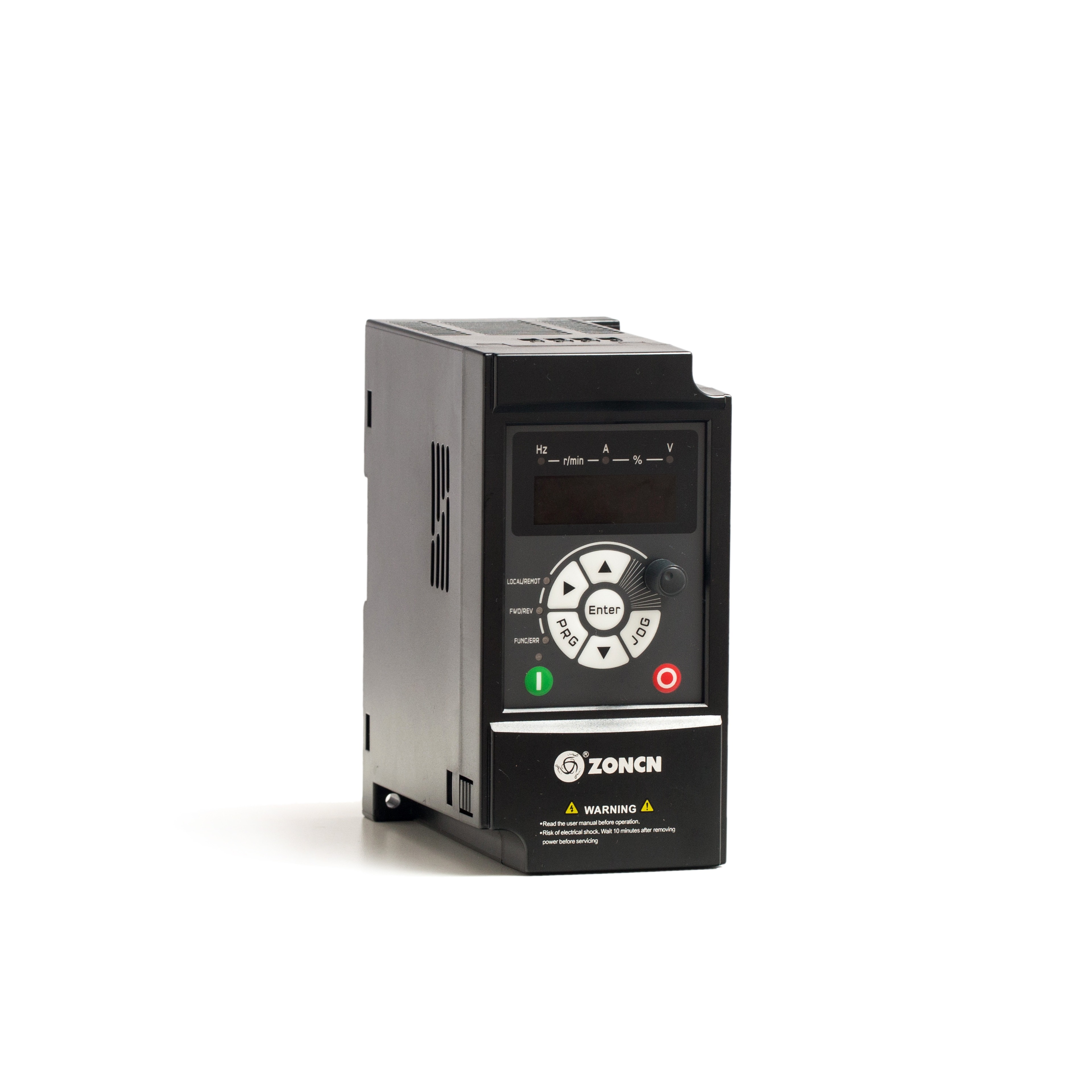

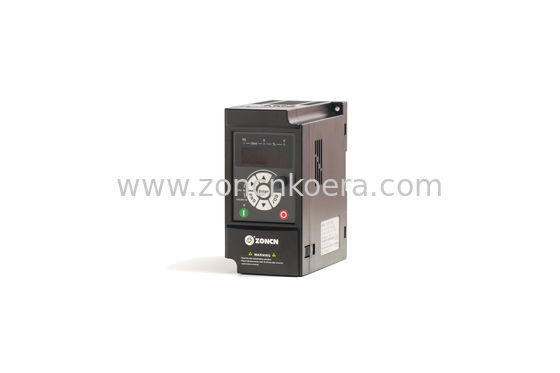

Product pictures

380v Variable Frequency Drive ZONCN VFD 0.75kw 1.5kw 2.2kw 3.7kw Inverters 1

Company Introduction

380v Variable Frequency Drive ZONCN VFD 0.75kw 1.5kw 2.2kw 3.7kw Inverters 2

FAQ

Q: The inverter's keypad is detachable?

A: Yes

Q: What is your inverter's control mode?

A: This T9000 series inverter have V/F control, close loop vector control, and open loop vector control.

Q: What is the communication of this series of inverter support?

A: Profinet and standard RS485.

Q: Does this series of inverter have 24V terminal?

A: Yes.
