220v Single Phase 2.2kw 3.7kw Variable Frequency Drive AC Drives Low Voltage Inverter

220v Single Phase 2.2kw 3.7kw Variable Frequency Drive AC Drives Low Voltage Inverter
220v Single Phase 2.2kw 3.7kw Variable Frequency Drive AC Drives Low Voltage Inverter 220v Single Phase 2.2kw 3.7kw Variable Frequency Drive AC Drives Low Voltage Inverter 220v Single Phase 2.2kw 3.7kw Variable Frequency Drive AC Drives Low Voltage Inverter 220v Single Phase 2.2kw 3.7kw Variable Frequency Drive AC Drives Low Voltage Inverter 220v Single Phase 2.2kw 3.7kw Variable Frequency Drive AC Drives Low Voltage Inverter 220v Single Phase 2.2kw 3.7kw Variable Frequency Drive AC Drives Low Voltage Inverter
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE, KC
Model Number: T9200-2R2G; T9200-3R7G
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: Variable Frequency Drive Brand: ZONCN
Series: T9000 Input: 220v Single Phase
Output: 220v Three Phase Input Frequency: 50Hz / 60Hz
Power: 3hp/2.2kw; 5hp/3.7kw Communication: Profinet
24V Terminal: Have Control Mode: V/F Control; Vector Control
Highlight:

3.7kw Variable Frequency Drive

,

Low Voltage Inverter Variable Frequency Drive

,

2.2kw Variable Frequency Drive





ZONCN T9000 Series Advanced Vector Control Inverter







Specification

Item Description
Basic function Control Mode VF control
Sensorless flux vector control(SVC)
Close-loop vector control(FVC)(Above 3.7kW)
Maximum frequency 0~600Hz
Carrier frequency 0.5kHZ——8kHz
The carrier frequency is automatically adjusted based on the load features
Input frequency resolution Digital setting:0.01Hz
Analog setting: Maximum frequency x 0.025%
Start torque G Type:0.5Hz/150%(SVC)
P Type:0.5Hz/100%
Speed range 1:100 (SVC)
Speed stability accuracy ±0.5%(SVC)
Overload capacity G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto-boost ;
Customized boost: 0.1%~30.0%
V/F Curve Straight-line V/F curve
Multi-point V/F curve
N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
V/F separation 2 types: complete separation; half separation
Ramp Mode Straight-line ramp.
Four groups of acceleration/deceleration time with the range of 0.00`6500.0s
DC braking DC braking frequency:0.00Hz~Maximum frequency
Braking time:0.0s~36.0s
Braking action current value:0.0%~100.0%
JOG control JOG frequency range:0.00Hz~50.00Hz
JOG acceleration/deceleration time: 0.0s~6500.0s.
Simple PLC,Multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of terminal states
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage
Overvoltage/overcurrent stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive.
Torque limit and control It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be
implemented in the FVC mode.
　 Support for multiple PG card Support for differential input PG card, resolver PG card ,rotating transformer PG card





Model details

Model Input Voltage (V) Rated output power(kW) Rated input current(A) Rated output current(A) Motor Power (KW)
T9200-0R4G 1PH AC 220V±15% 0.4 5.4 2.5 0.4
T9200-0R75G 0.75 7.2 5 0.75
T9200-1R5G 1.5 10 7 1.5
T9200-2R2G 2.2 16 11 2.2
T9200-3R7G 3.7 17 16.5 3.7





Nameplate Description

220v Single Phase 2.2kw 3.7kw Variable Frequency Drive AC Drives Low Voltage Inverter 0

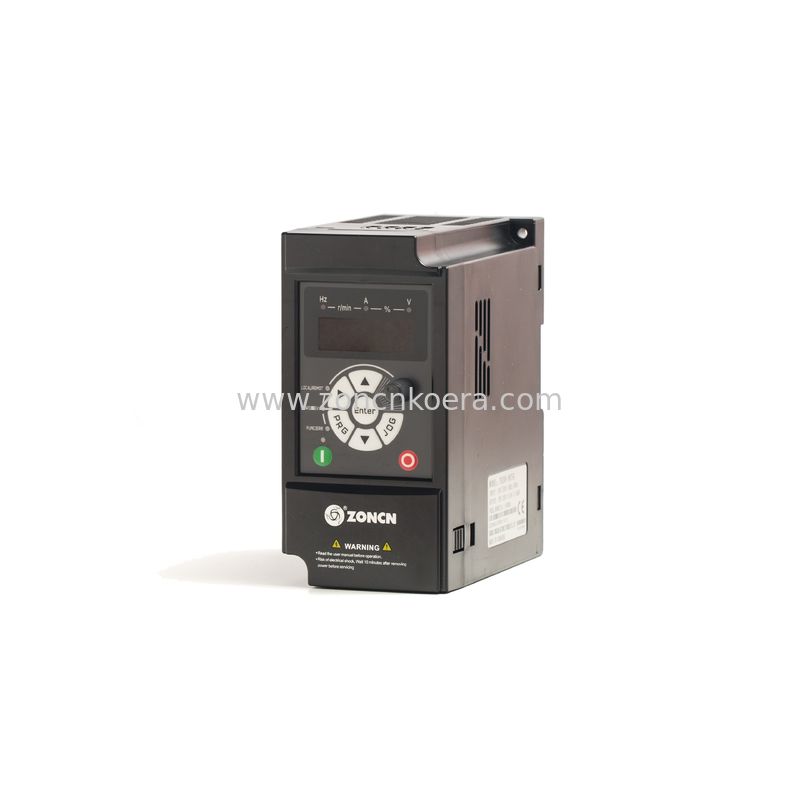

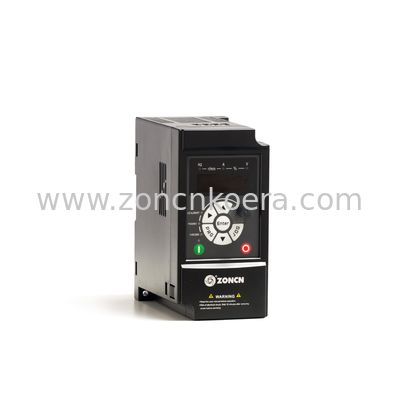

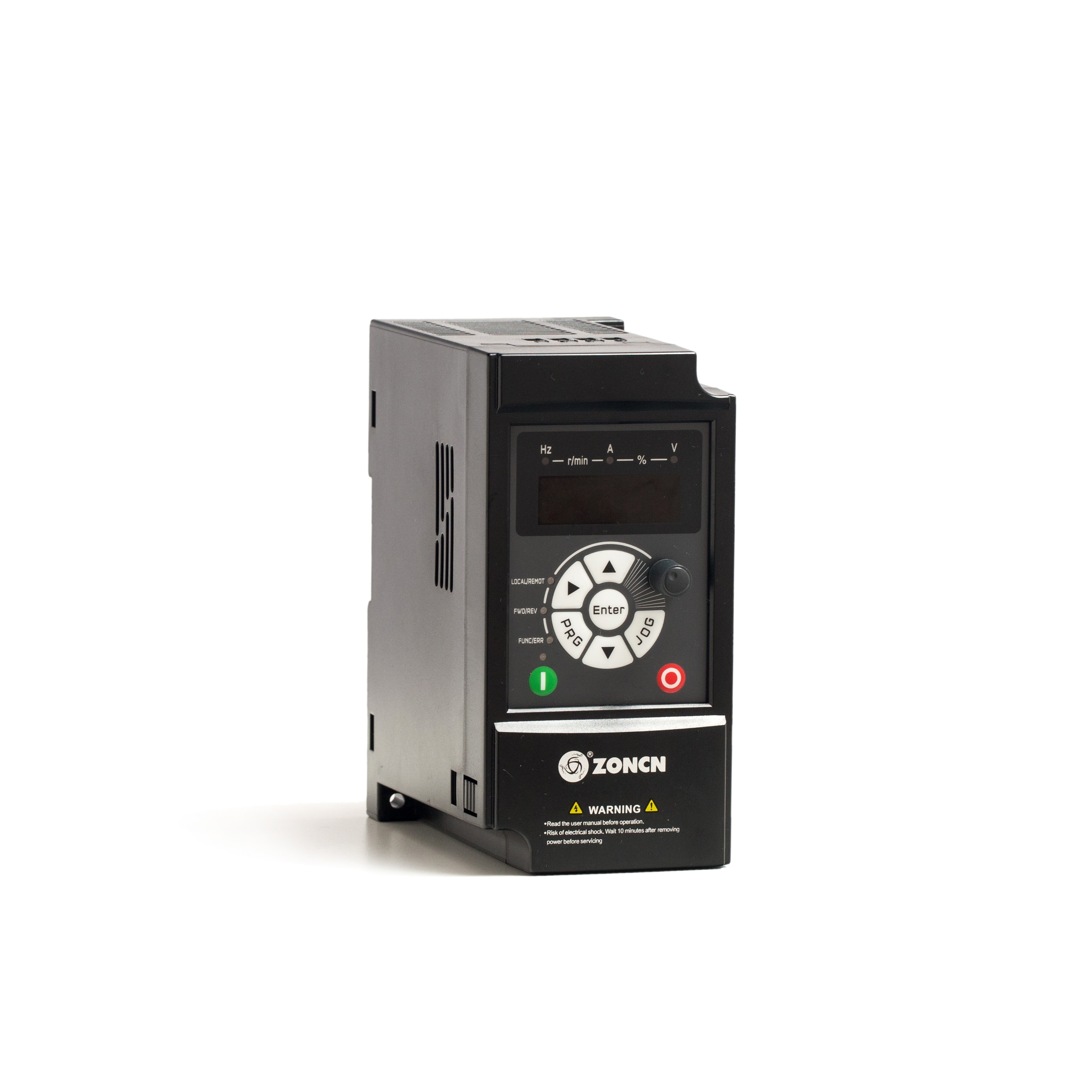

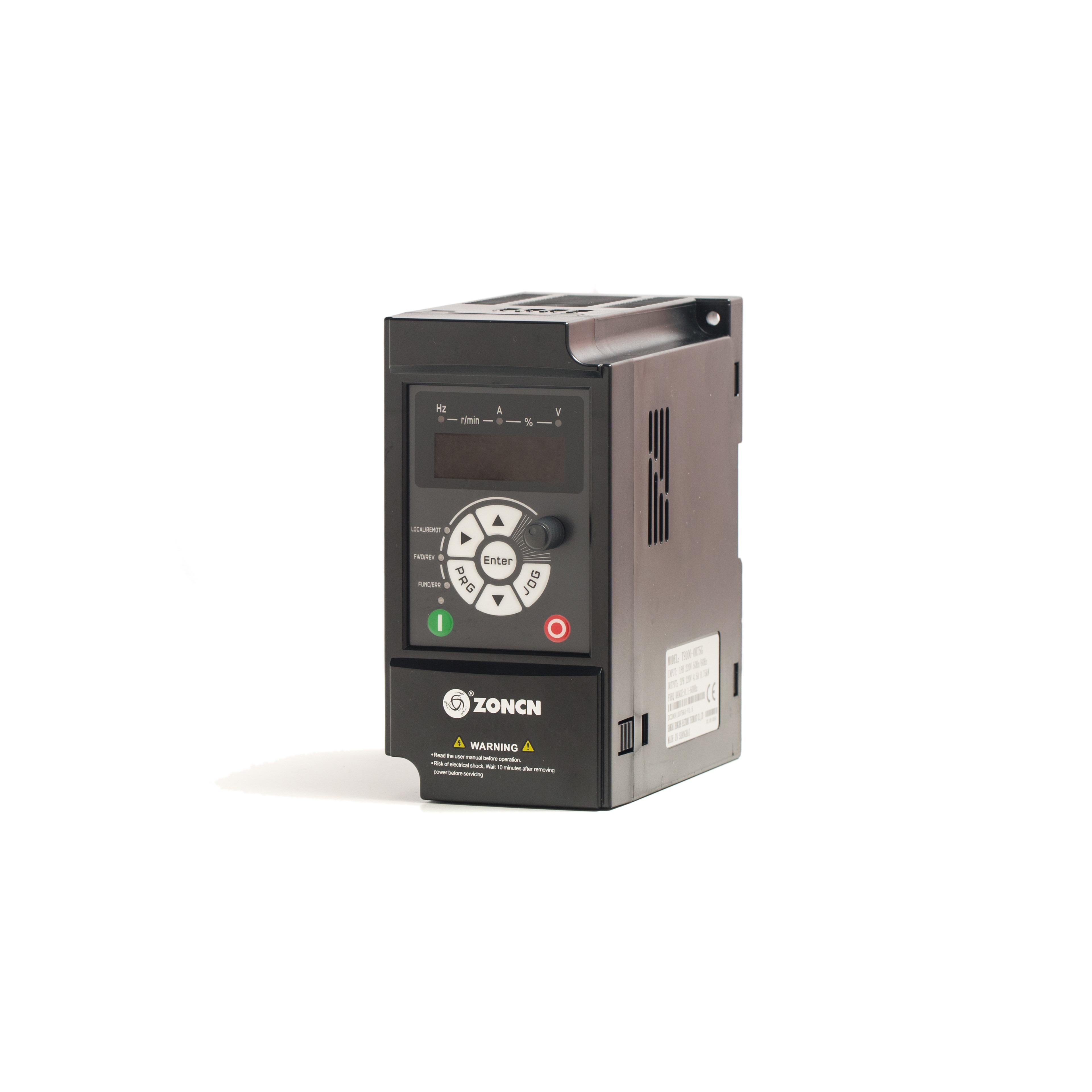

Product pictures

220v Single Phase 2.2kw 3.7kw Variable Frequency Drive AC Drives Low Voltage Inverter 1






Detachable Keypad

220v Single Phase 2.2kw 3.7kw Variable Frequency Drive AC Drives Low Voltage Inverter 2



Company Introduction

220v Single Phase 2.2kw 3.7kw Variable Frequency Drive AC Drives Low Voltage Inverter 3

220v Single Phase 2.2kw 3.7kw Variable Frequency Drive AC Drives Low Voltage Inverter 4





FAQ

Q: Which voltage can you produced for?

A: 220V and 380V/400V



Q:  what is the power range do you have?

A: from 0.4kw to 1000kw



Q: What is the communication this series support?

A: RS485 and Profinet



Q: Does this series have 24V terminal?

A: Yes.



Q: What is the warranty time?

A:  18 months after delivery.
