220v 380v ZONCN Single Phase Three Phase Variable Frequency Drive VFD Inverter 0.75kw 1.5kw

220v 380v ZONCN Single Phase Three Phase Variable Frequency Drive VFD Inverter 0.75kw 1.5kw
220v 380v ZONCN Single Phase Three Phase Variable Frequency Drive VFD Inverter 0.75kw 1.5kw 220v 380v ZONCN Single Phase Three Phase Variable Frequency Drive VFD Inverter 0.75kw 1.5kw 220v 380v ZONCN Single Phase Three Phase Variable Frequency Drive VFD Inverter 0.75kw 1.5kw
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: CE, KC
Model Number: T9200-0R75; T9200-1R5G
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: AC Inverters Brand: ZONCN
Series: T9000 Input: 220v Single Phase
Output: 220v Three Phase Input Frequency: 50Hz / 60Hz
Power: 1hp/0.75kw; 2hp/1.5kw Communication: Profinet
Highlight:

Single Phase Drive VFD Inverter

,

Three Phase Drive VFD Inverter

,

0.75kw Drive VFD Inverter





ZONCN T9000 Series Advanced Vector Control Inverter







Specification

ItemDescription
Basic functionControl ModeVF control
Sensorless flux vector control(SVC)
Close-loop vector control(FVC)(Above 3.7kW)
Maximum frequency0~600Hz
Carrier frequency0.5kHZ——8kHz
The carrier frequency is automatically adjusted based on the load features
Input frequency resolutionDigital setting:0.01Hz
Analog setting: Maximum frequency x 0.025%
Start torqueG Type:0.5Hz/150%(SVC)
P Type:0.5Hz/100%
Speed range1:100 (SVC)
Speed stability accuracy±0.5%(SVC)
Overload capacityG Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boostAuto-boost ;
Customized boost: 0.1%~30.0%
V/F CurveStraight-line V/F curve
Multi-point V/F curve
N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
V/F separation2 types: complete separation; half separation
Ramp ModeStraight-line ramp.
Four groups of acceleration/deceleration time with the range of 0.00`6500.0s
DC brakingDC braking frequency:0.00Hz~Maximum frequency
Braking time:0.0s~36.0s
Braking action current value:0.0%~100.0%
JOG controlJOG frequency range:0.00Hz~50.00Hz
JOG acceleration/deceleration time: 0.0s~6500.0s.
Simple PLC,Multiple preset speedsIt implements up to 16 speeds via the simple PLC function or combination of terminal states
Onboard PIDIt realizes process-controlled closed loop control system easily
Auto voltage regulation(AVR)It can keep constant output voltage automatically when the mains voltage
Overvoltage/overcurrent stall controlThe current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
Rapid current limitIt helps to avoid frequent over current faults of the AC drive.
Torque limit and controlIt can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be
implemented in the FVC mode.
　Support for multiple PG cardSupport for differential input PG card, resolver PG card ,rotating transformer PG card





Model details

ModelInput Voltage (V)Rated output power(kW)Rated input current(A)Rated output current(A)Motor Power (KW)
T9200-0R4G 1PH AC 220V±15%0.45.42.50.4
T9200-0R75G 1PH AC 220V±15%0.757.250.75
T9200-1R5G 1PH AC 220V±15%1.51071.5





Nameplate Description

220v 380v ZONCN Single Phase Three Phase Variable Frequency Drive VFD Inverter 0.75kw 1.5kw 0

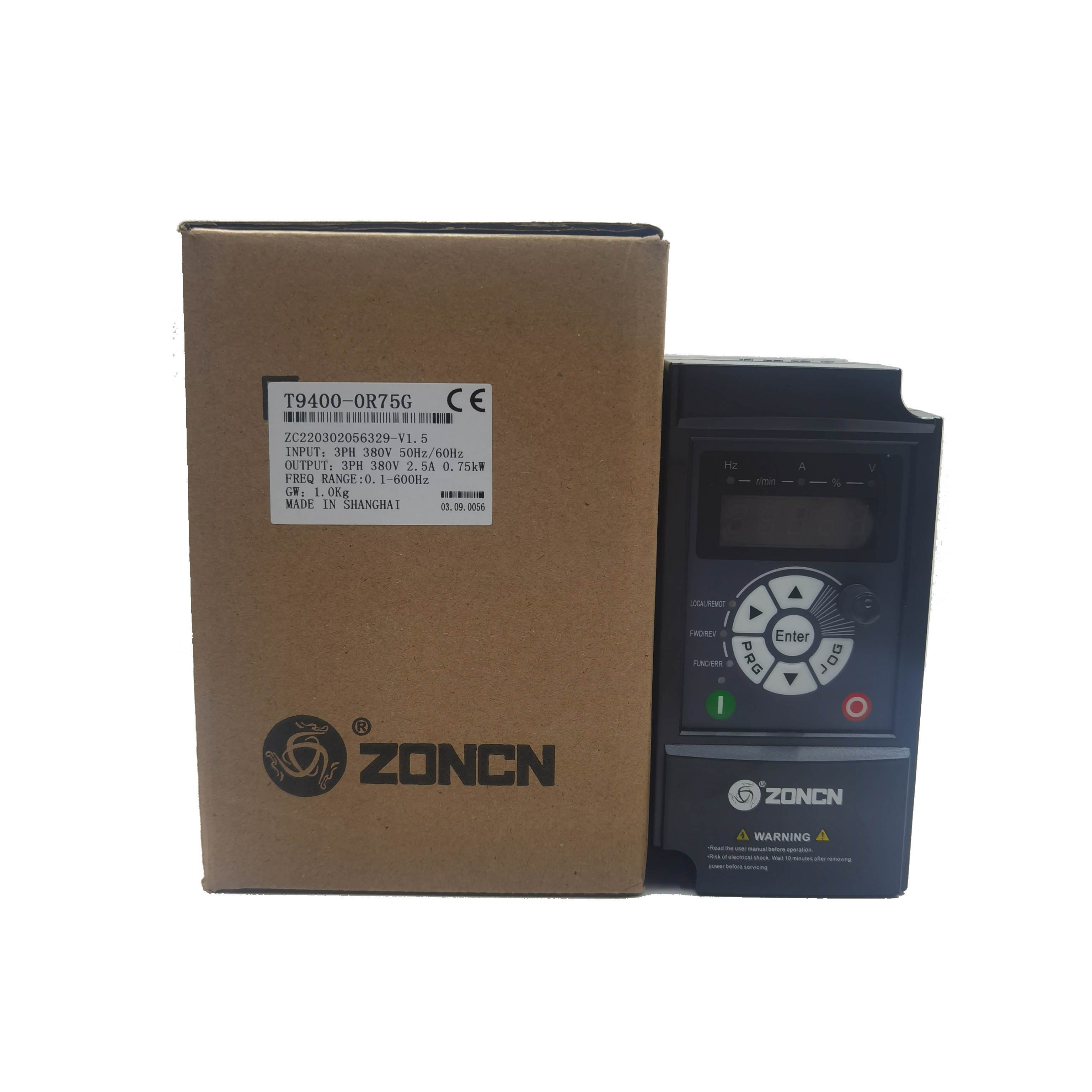

Product pictures

220v 380v ZONCN Single Phase Three Phase Variable Frequency Drive VFD Inverter 0.75kw 1.5kw 1


Company Introduction

220v 380v ZONCN Single Phase Three Phase Variable Frequency Drive VFD Inverter 0.75kw 1.5kw 2

220v 380v ZONCN Single Phase Three Phase Variable Frequency Drive VFD Inverter 0.75kw 1.5kw 3













Tag:

Variable Frequency Drive Inverter,

vector control inverter,

low power inverter
