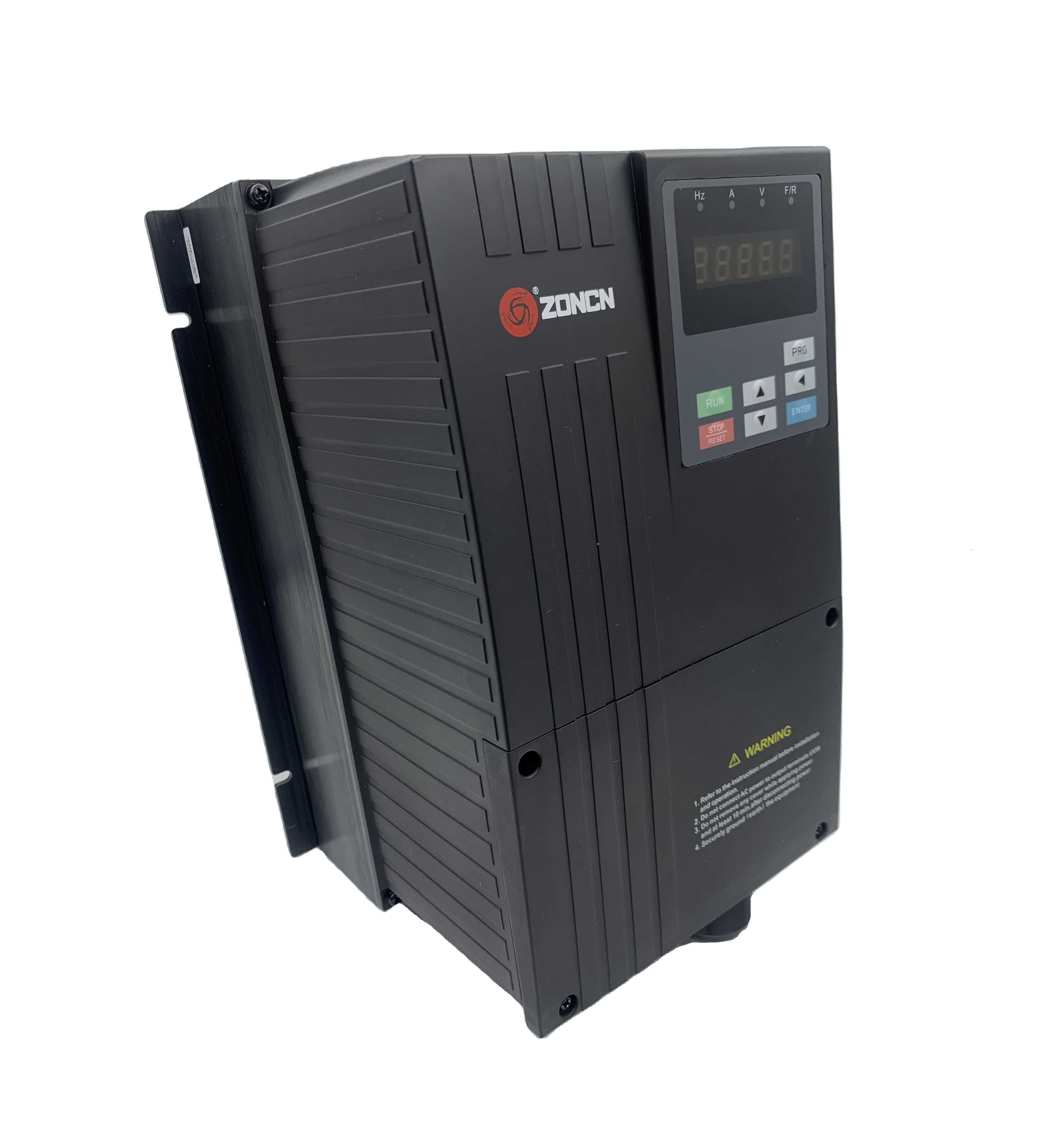

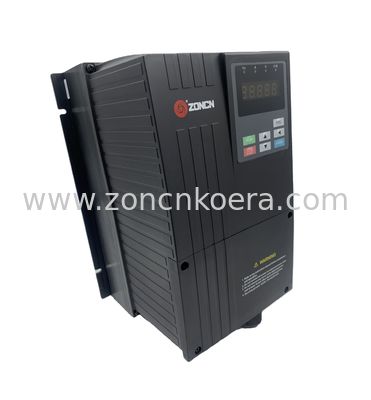

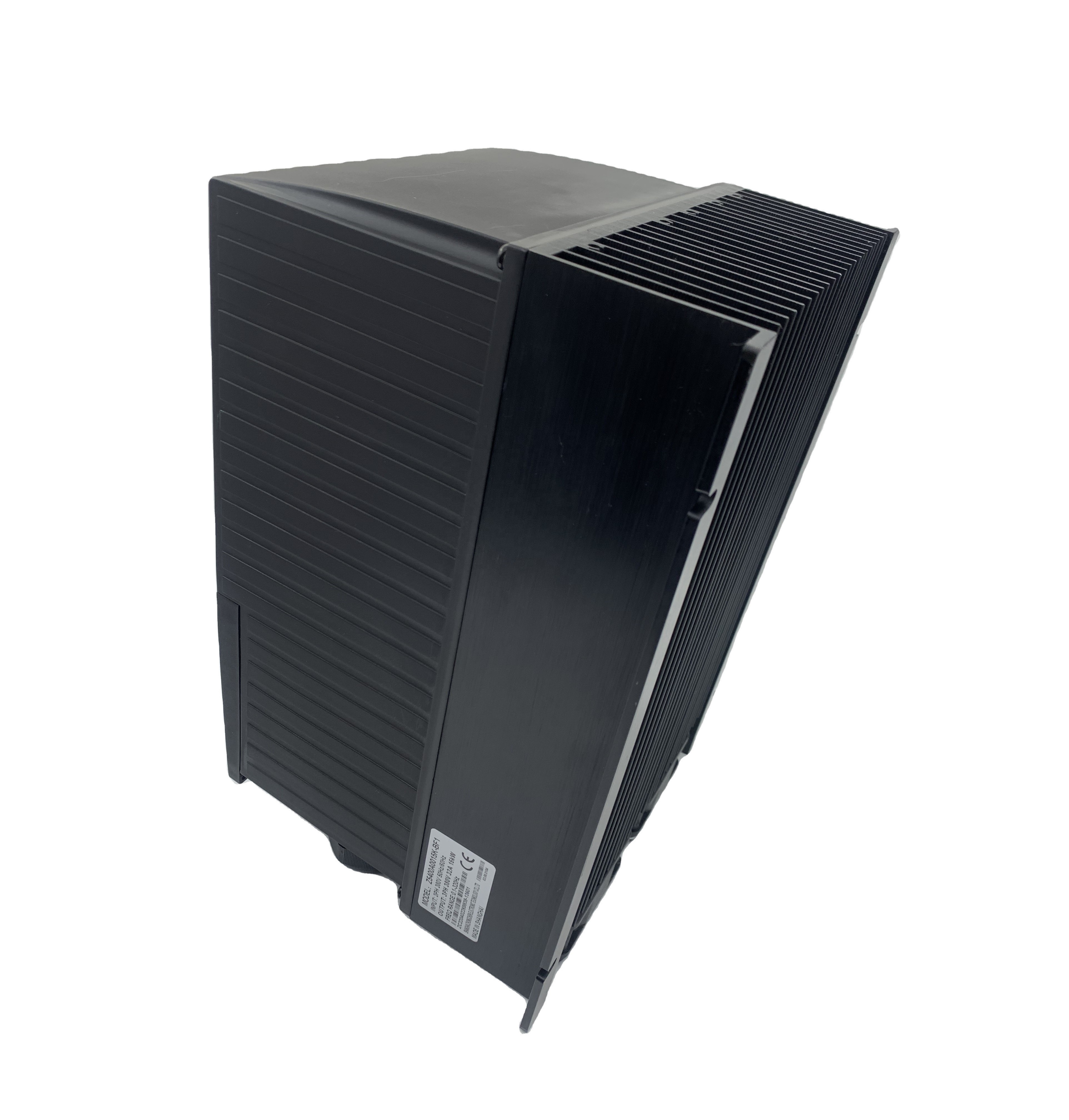

380v IP55 Protection 30kw 37kw Pump Inverter VFD Built In EMC Filter





ZONCN Z5000 Series IP65 Waterproof Inverter





Product Features

• Can be mounted directly on the motor or to the wall

• Allow for heavy load equipment

• Control mode: VF control, vector control

• Function: no water stop, timing, antifreeze, change pump when fault, water supply alarm, etc; IP65, allows to use in all kinds of bad environment.

• PID control: Built-in



• EMC filter:  Built-in



Product description



ITEM		Z5000-BF
Input	Rated voltage, Frequency	1PH/3PH AC 220V 50/60Hz; 3PH AC 380V 50/60 Hz
	Voltage Range	220V: 170~240V; 380V: 330V～440V
Output	Voltage Range	220V: 0~220V ; 380 V: 0～380 V
	Frequency Range	0.10～400.0 Hz
Control method		V/F control, Space vector control
Indication		Operating status/Alarm definition, interactive guidance; eg, frequency setting, the output frequency /current, rotating speed, fault and so on.
Control specification	Output Frequency Range	0.10～400.00 Hz.
	Frequency Setting Resolution	Digital input: 0.01 Hz.
		Analog input:0,1% of maximum output frequency
	Output Frequency Accuracy	0.01 Hz.
	V/F Control	Setting V/F curve to satisfy various load requirements
	Torque Control	Auto increase: auto raise torque by loading condition; Manual increase: enable to set 0.0~20% of raising torque
	Multifunctional Input Terminal	4 multi-function input terminals, realizing functions including 15 section speed control, program running, 4 section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions
	Multifunctional Output Terminal	1 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings
	Acceleration/deceleration Time Setting	0~999.9 s acceleration/deceleration time can be set individually
Other functions	PID Control	Built-in PID control
	RS485	Standard RS485 communication function (MODBUS)
	Frequency Setting	Analog input 0～10V, 0～20мА, can be selected; Digital input: input using the setting dial of the operation panel or RS 485 or UP/DOWN
	Multi-speed	4 multi-function input terminals,15 section speed can be set
	Automatic voltage regulation	Automatic voltage regulation function can be selected
	Counter	Built-in 2 group of counters
Protection function	Overload	150%, 60s (Constant torque); 120%,60s (variable torque)
	Over Voltage	Over voltage protection can be set
	Under Voltage	Under voltage protection can be set
	Other Protections	Output short-circuit, over current, and parameter lock and so on.
Environment	Ambient Temperature	–10℃~40℃(non-freezing)
	Ambient Humidity	Max. 95% (non-condensing)
	Altitude	Lower than 1000м.
	Vibration	Max. 0.5 g
Structrure	Cooling Mode	Below 3.7 kW no have fan; Above 5.5 kW Forced air cooling
	Protective Structure	Below 3.7kw IP 65, 3.7kw and above IP54







Specification

Model	Input voltage	Rated Output Power (KW)	Rated Input current (A)	Rated Output Current (A)	Motor Power (kW)
Z5200A00D7K-BF	1PH AC220V ±15%	0.75	7.2	5	0.75
Z5200A01D5K-BF		1.5	10	7	1.5
Z5200A02D2K-BF		2.2	16	11	2.2
Z5400A0D75K-BF	3PH AC380V ±15%	0.75	3.8	2.5	0.75
Z5400A1D5K-BF		1.5	5	3.7	1.5
Z5400A02D2K-BF		2.2	5.8	5	2.2
Z5400A03D7K-BF		3.7	10	9	3.7
Z5400A05D5K-BF		5.5	15	13	5.5
Z5400A07D5K-BF		7.5	20	17	7.5
Z5400A0011K-BF		11	26	25	11
Z5400A0015K-BF		15	35	32	15
Z5400A0018K-BF		18.5	38	37	18.5
Z5400A0022K-BF		22	46	45	22
Z5400A0030K-BF		30	62	60	30
Z5400A0037K-BF		37	76	75	37
…		…	…	…	…
Z5400A00160K-BF		160			160







Nameplate Description









Typical Wiring Diagram







Company Introduction











Workshop







FAQ

Q: Which power do you have?

A: We can produce from 0.75kw to 160kw.



Q: What is the input voltage?

A:  110v, 220v, 380v.



Q: What is the protection grade of your VFD?

A: 0.75kw to 2.2kw is IP65, 3.7kw and above is IP54



Q:  Can i test samples before formal order?

A: Yes, you can buy samples first to test, no problem.



Q: It can be used in bad environment?

A: Yes, it can be used in damp, dirty, high pollution, and other bad environment.
