3.7kw 5.5kw IP65 IP54 VFD Inverter 220v 380v 5hp 7hp Variable Frequency Drive For Pump

3.7kw 5.5kw IP65 IP54 VFD Inverter 220v 380v 5hp 7hp Variable Frequency Drive For Pump
3.7kw 5.5kw IP65 IP54 VFD Inverter 220v 380v 5hp 7hp Variable Frequency Drive For Pump 3.7kw 5.5kw IP65 IP54 VFD Inverter 220v 380v 5hp 7hp Variable Frequency Drive For Pump 3.7kw 5.5kw IP65 IP54 VFD Inverter 220v 380v 5hp 7hp Variable Frequency Drive For Pump 3.7kw 5.5kw IP65 IP54 VFD Inverter 220v 380v 5hp 7hp Variable Frequency Drive For Pump 3.7kw 5.5kw IP65 IP54 VFD Inverter 220v 380v 5hp 7hp Variable Frequency Drive For Pump 3.7kw 5.5kw IP65 IP54 VFD Inverter 220v 380v 5hp 7hp Variable Frequency Drive For Pump
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: Z5400A03D7K-BF
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: AC Inverter Brand: ZONCN
Input: 330v-440v Output: 3PH 380V
Rated Power: 3.7kw/5hp Protection: IP54
Frequency: 50/60Hz Mounting: On The Motor/wall
PID Control: Built-in EMC Filter: Built-in
Highlight:

5hp VFD Inverter

,

3.7kw VFD Inverter

,

220v VFD Inverter





ZONCN Z5000 Series IP65 Waterproof Inverter



3.7kw 5.5kw IP65 IP54 VFD Inverter 220v 380v 5hp 7hp Variable Frequency Drive For Pump 0






Product description



ITEM Z5000-BF
Input Rated voltage, Frequency 1PH/3PH AC 220V 50/60Hz;
3PH AC 380V 50/60 Hz
Voltage Range 220V: 170~240V; 380V: 330V～440V
Output Voltage Range 220V: 0~220V ; 380 V: 0～380 V
Frequency Range 0.10～400.0 Hz
Control method V/F control, Space vector control
Indication Operating status/Alarm definition, interactive guidance; eg, frequency setting, the output frequency /current, rotating speed, fault and so on.
Control specification Output Frequency Range 0.10～400.00 Hz.
Frequency Setting Resolution Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency
Output Frequency Accuracy 0.01 Hz.
V/F Control Setting V/F curve to satisfy various load requirements
Torque Control Auto increase: auto raise torque by loading condition; Manual increase: enable to set 0.0~20% of raising torque
Multifunctional Input Terminal 4 multi-function input terminals, realizing functions including 15 section speed control, program running, 4 section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions
Multifunctional Output Terminal 1 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings
Acceleration/deceleration Time Setting 0~999.9 s acceleration/deceleration time can be set individually
Other functions PID Control Built-in PID control
RS485 Standard RS485 communication function (MODBUS)
Frequency Setting Analog input 0～10V, 0～20мА, can be selected; Digital input: input using the setting dial of the operation panel or RS 485 or UP/DOWN
Multi-speed 4 multi-function input terminals,15 section speed can be set
Automatic voltage regulation Automatic voltage regulation function can be selected
Counter Built-in 2 group of counters
Protection function Overload 150%, 60s (Constant torque); 120%,60s (variable torque)
Over Voltage Over voltage protection can be set
Under Voltage Under voltage protection can be set
Other Protections Output short-circuit, over current, and parameter lock and so on.
Environment Ambient Temperature –10℃~40℃(non-freezing)
Ambient Humidity Max. 95% (non-condensing)
Altitude Lower than 1000м.
Vibration Max. 0.5 g
Structrure Cooling Mode Below 3.7 kW no have fan; Above 5.5 kW Forced air cooling
Protective Structure Below 3.7kw IP 65, 3.7kw and above IP54







Specification

Model Input voltage Rated Output Power (KW) Rated Input current (A) Rated Output Current (A) Motor Power (kW)
Z5200A00D7K-BF 1PH AC220V ±15% 0.75 7.2 5 0.75
Z5200A01D5K-BF 1.5 10 7 1.5
Z5200A02D2K-BF 2.2 16 11 2.2
Z5400A0D75K-BF 3PH AC380V ±15% 0.75 3.8 2.5 0.75
Z5400A1D5K-BF 1.5 5 3.7 1.5
Z5400A02D2K-BF 2.2 5.8 5 2.2
Z5400A03D7K-BF 3.7 10 9 3.7
Z5400A05D5K-BF 5.5 15 13 5.5
Z5400A07D5K-BF 7.5 20 17 7.5
Z5400A0011K-BF 11 26 25 11
Z5400A0015K-BF 15 35 32 15
Z5400A0018K-BF 18.5 38 37 18.5
Z5400A0022K-BF 22 46 45 22
Z5400A0030K-BF 30 62 60 30
Z5400A0037K-BF 37 76 75 37
… … … … …
Z5400A00160K-BF 160 　 　 160

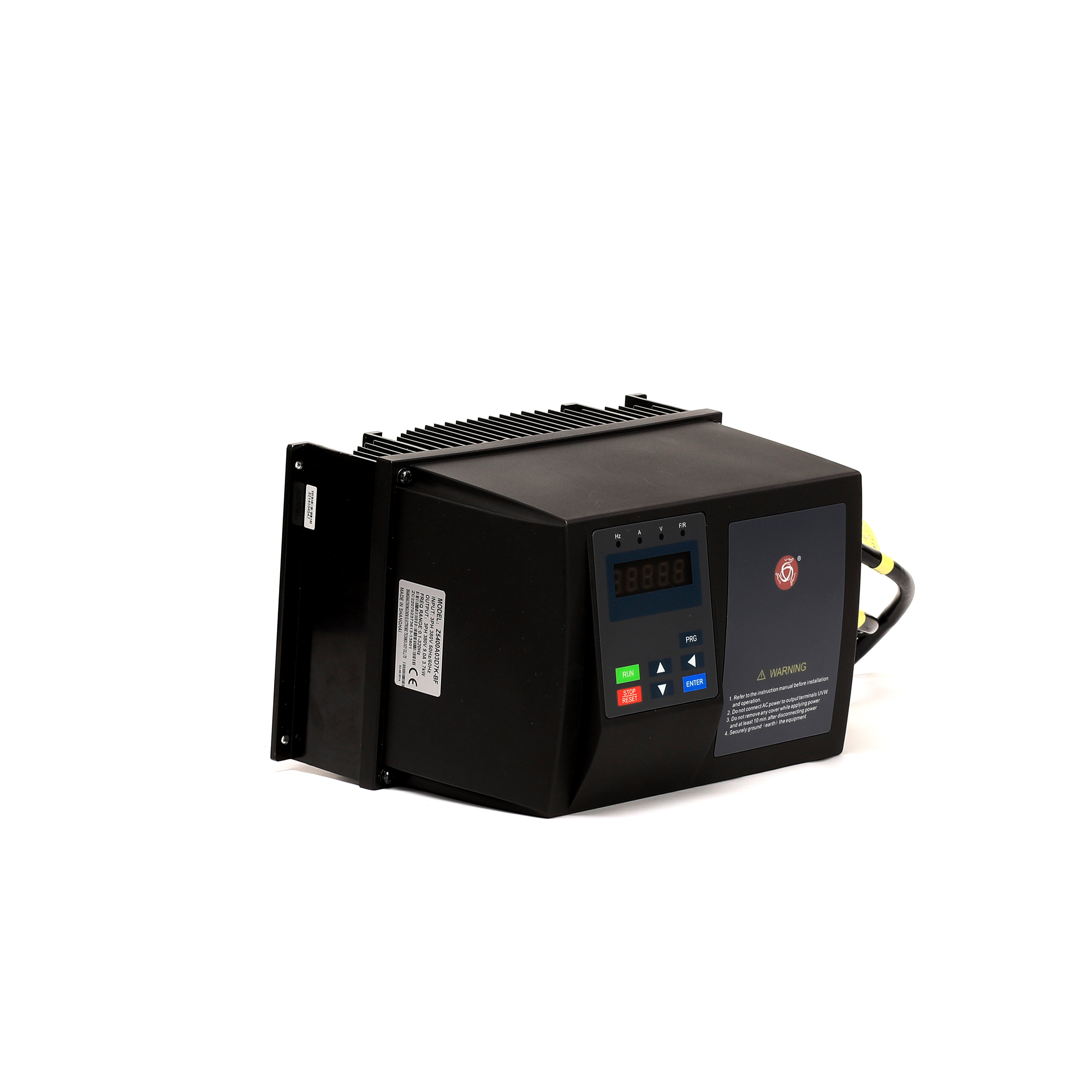

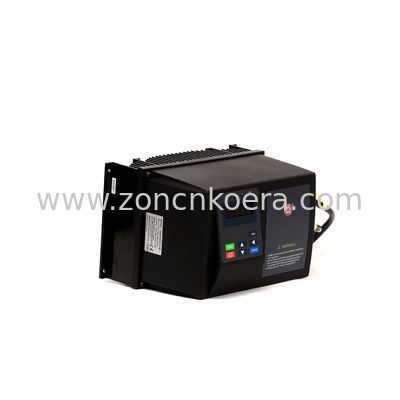

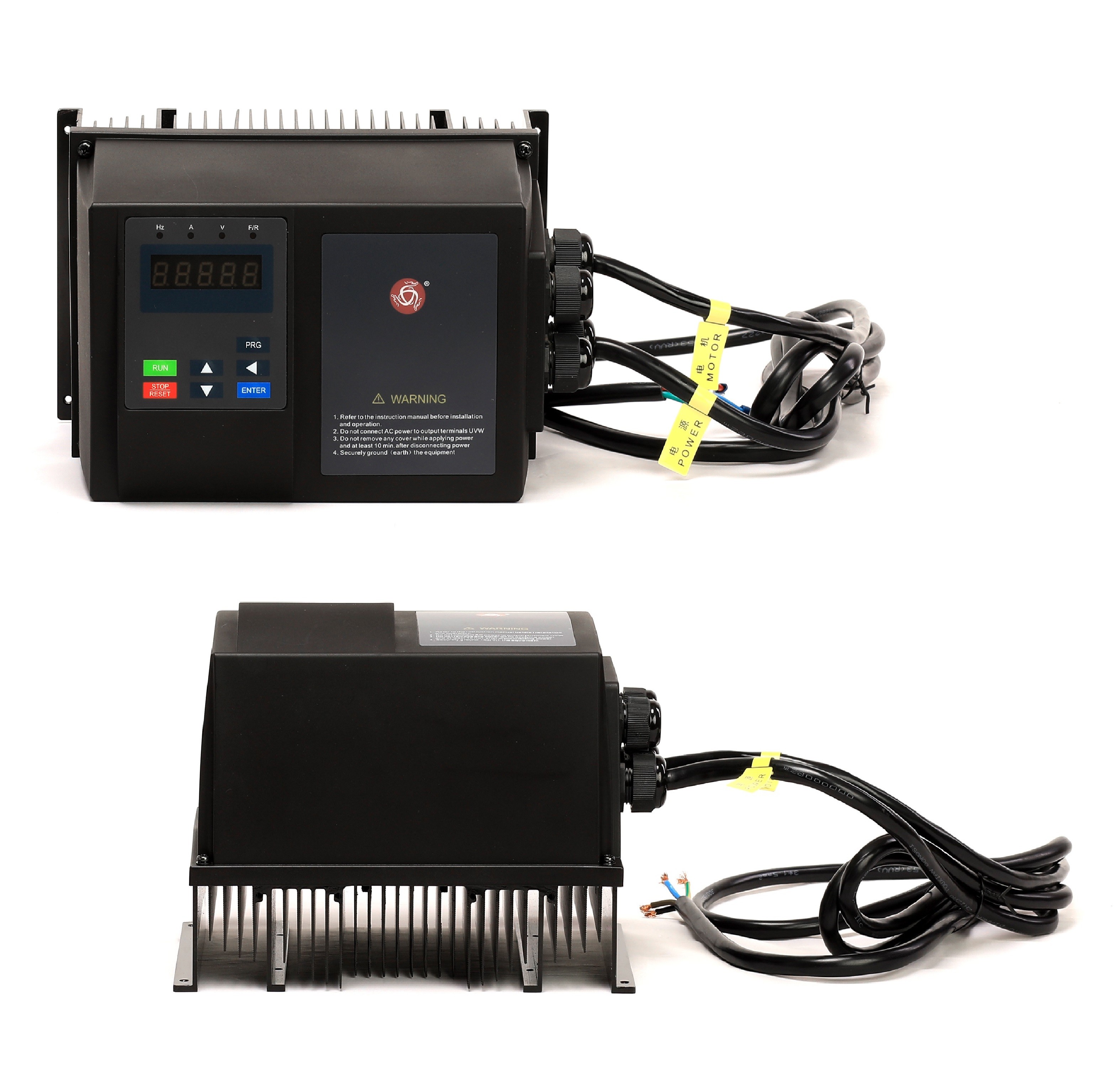

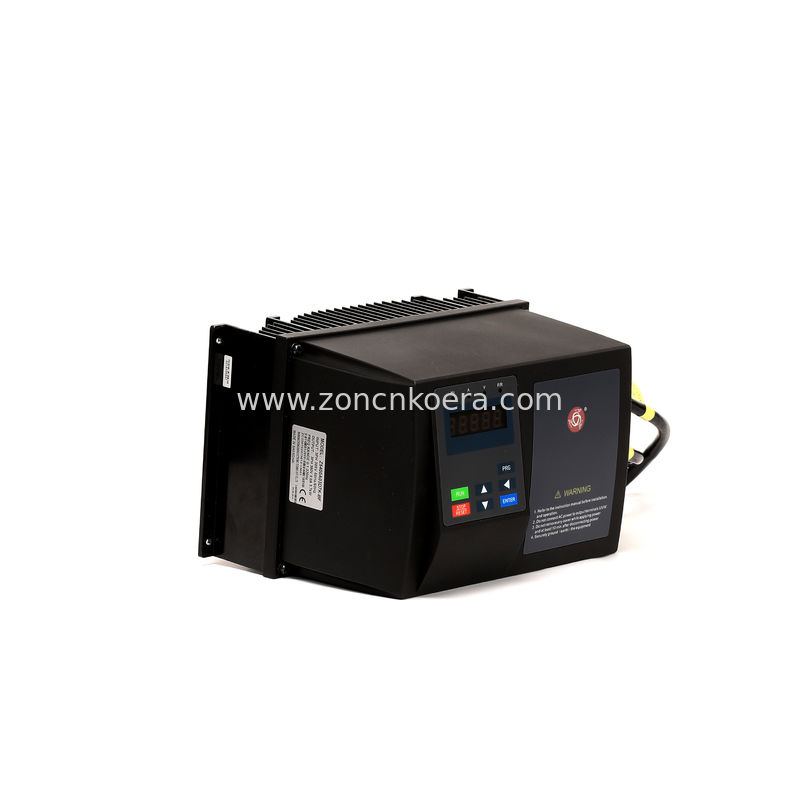

Product Pictures

3.7kw 5.5kw IP65 IP54 VFD Inverter 220v 380v 5hp 7hp Variable Frequency Drive For Pump 1



Company Introduction

3.7kw 5.5kw IP65 IP54 VFD Inverter 220v 380v 5hp 7hp Variable Frequency Drive For Pump 2

3.7kw 5.5kw IP65 IP54 VFD Inverter 220v 380v 5hp 7hp Variable Frequency Drive For Pump 3





ZONCN was established in 2005, now have two factories in Shanghai and Wuhu with total factory area about 100,000 ㎡. ZONCN focus on producing inverter and servo products. There are 600+ staff including 70+ professional technical engineers. Our annual sales quantity is about 1,000,000 pcs. ZONCN was listed on the main board of the Shanghai Stock Exchange in August 2023 (Stock Code: 603257)



ZONCN has 6 mains series of VFDs: NZ100, NZ200, Z2000, Z8000, T9000, Z5000 (IP65/54), etc. which are widely used in various industrial applications. Besides, ZONCN is a leading supplier which researched and developed inverters which used for air compressor, automatic door, construction machinery, hoisting machinery specially. What's more, we can customize for OEM/ODM as per requirements.



ZONCN have many agents both in China at abroad. ZONCN will always dedicate on the inverter and servo products, and warmly welcome you to be our partner.



Workshop

3.7kw 5.5kw IP65 IP54 VFD Inverter 220v 380v 5hp 7hp Variable Frequency Drive For Pump 4



Exhibition

3.7kw 5.5kw IP65 IP54 VFD Inverter 220v 380v 5hp 7hp Variable Frequency Drive For Pump 5
