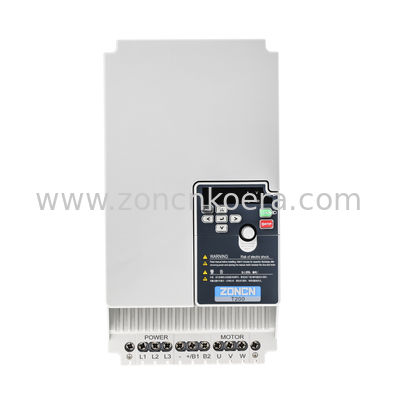

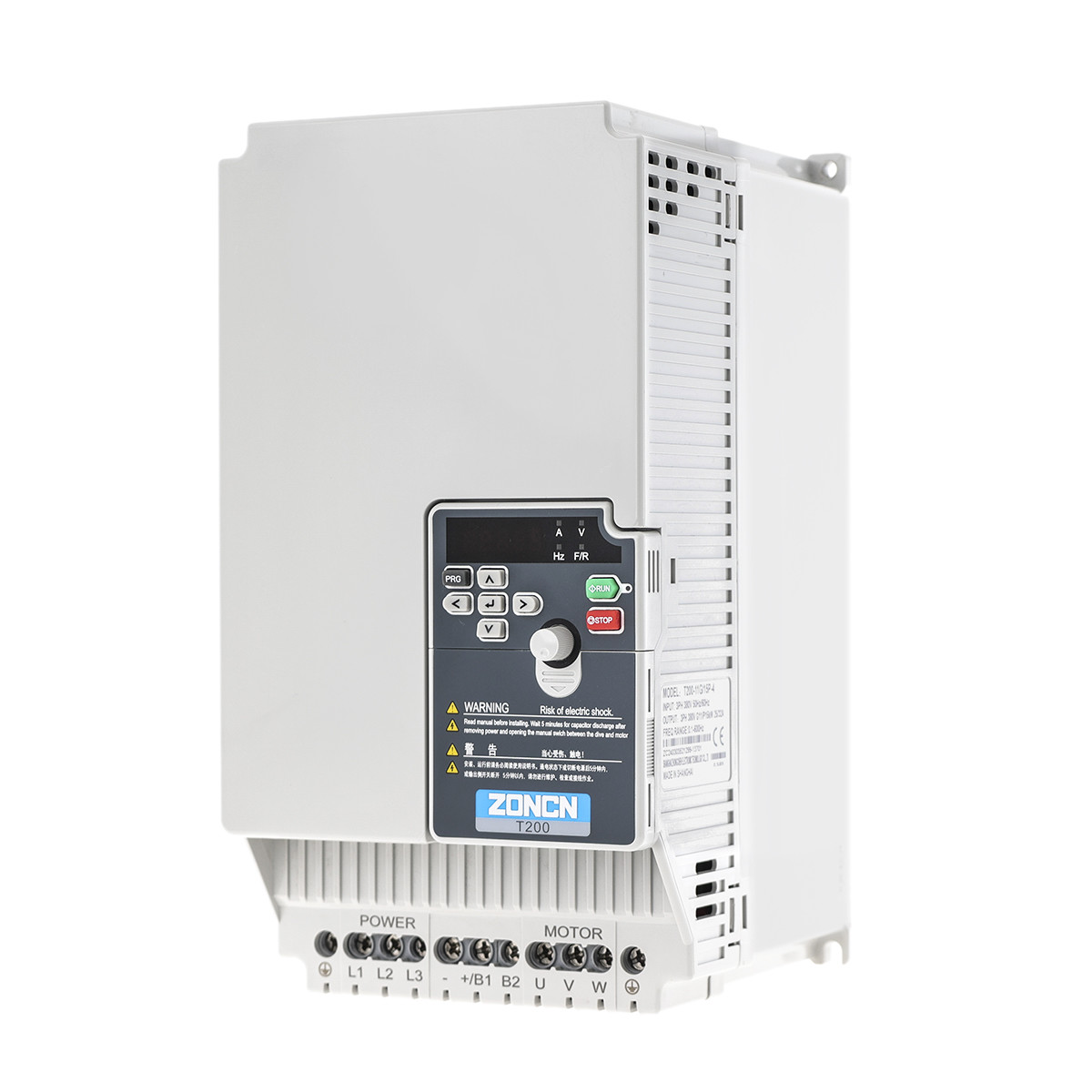

11KW VFD Frequency Inverter 380v Low Voltage Motor Drives With STO Built-In EMC Filter

11KW VFD Frequency Inverter 380v Low Voltage Motor Drives With STO Built-In EMC Filter
11KW VFD Frequency Inverter 380v Low Voltage Motor Drives With STO Built-In EMC Filter 11KW VFD Frequency Inverter 380v Low Voltage Motor Drives With STO Built-In EMC Filter 11KW VFD Frequency Inverter 380v Low Voltage Motor Drives With STO Built-In EMC Filter 11KW VFD Frequency Inverter 380v Low Voltage Motor Drives With STO Built-In EMC Filter 11KW VFD Frequency Inverter 380v Low Voltage Motor Drives With STO Built-In EMC Filter 11KW VFD Frequency Inverter 380v Low Voltage Motor Drives With STO Built-In EMC Filter
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: CE
Model Number: T200-11G-4
Minimum Order Quantity: 1 unit
Packaging Details: Carton
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Voltage: 380v±15% Protection: IP20
Frequency Range: 0-600Hz Build In EMC Filter: Support
STO Fuction: Support DIN Rail Mount: Support
Power: 11KW Quality Guarantee: 18 Months
CE: Yes
Highlight:

380v 11KW VFD Frequency Inverter

,

Low Voltage VFD Frequency Inverter

,

VFD Frequency Inverter With STO

T200 series catalog.pdf

11KW ZONCN T200 Series Variable Frequency Inverter

Basic product introduction:

· Cost effective；Micro compact design.

· Build-in EMC filter,24v DC power resource

· RS485,Ethercat,Profibus DP,CAN is optional

· VF control；Sensorless flux vector control

· External keypad interface RJ45





Technical characteristic:

Maximum frequency Vector control:0～600Hz；V/F control:0-3200Hz
Control mode V/F control；Senseless flux vector control(SFVC); Closed loop vector control (CLVC)
Carrier frequency

0.5kHz～16kHz；The carrier frequency can be automatically adjusted based on the load feature

Input frequency resolution

 Digital setting:0.01Hz；Analog setting: maximum frequency×0.025%
Startup torque G Type:0.5Hz/150%(SFVC)；P Type:0.5Hz/100%
Speed range 1:100(No PG)
Speed stability accuracy ±0.5%(No PG)
Torque control accuracy ±5%(FVC)
Overload capacity

G type: 60s for 150% of the rated current, 3s for 180% of the rated current；P type: 60s for 120% of the rated current, 3s for 150% of the rated current
Torque boost Fixed boost；Customized boost 0.1%-30.0%
V/F curve

Straight-line V/F curve；Multi-point V/F curve；

N-power V/F curve (1.2-power, 1.4-power, 1.6- power,1.8-power, square)
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp；S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.00-6500.0s
DC braking DC braking frequency: 0.00 Hz to maximum frequency
Braking time: 0.0-100.0s
Braking action current value: 0.0%–100.0%
JOG control
Jog frequency range:0.00Hz~50.00Hz.
Jog acceleration/deceleration time0.0s~6500.0s

Onboard multiple preset speeds

 It implements up to 16 speeds via the simple PLC function or by input terminal state
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR) It can keep constant output voltage automatically when the mains voltage changes
Over-voltage/Over-current stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current
Rapid current limit It helps to avoid frequent over-current faults of the inverter
Torque limit and torque control It can limit the torque automatically and prevent frequent over-current tripping during the running process
Instantaneous stop doesn’t stop The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time





Product specifiction:

Model Input voltage Rated output power(kw) Rated input current(A) Rated output current(A) Motor power(kw)
T200-0R4G-2 AC 1PH 220V± 15% 0.4 5.4 2.5 0.4
T200-0R75G-2 0.75 7.2 5.0 0.75
T200-1R5G-2 1.5 10.0 7.0 1.5
T200-2R2G-2 2.2 16.0 11.0 2.2
T200-0R4G-4









AC 3PH 380V±15%

 0.4 3.4 1.2 0.4
T200-0R75G-4 0.75 3.8 2.5 0.75
T200-1R5G-4 1.5 5.0 3.7 1.5
T200-2R2G-4 2.2 5.8 5.0 2.2
T200-3R0G-4 3.0 8.5 7.0 3.0
T200-3R7G/5R5P-4 3.7/5.5 10.0/15.0 9.0/13.0 3.7/5.5
T200-5R5G/7R5P-4 5.5/7.5 15.0/20.0 13.0/17.0 5.5/7.5
T200-7R5G/11P-4 7.5/11 20.0/26.0 17.0/25.0 7.5/11
T200-11G/15P-4 11/15 26.0/35.0 25.0/32.0 11/15
T200-15G/18.5P-4 15/18.5 35.0/38.0 32.0/37.0 15/18.5





T200 series product circuit diagram:

11KW VFD Frequency Inverter 380v Low Voltage Motor Drives With STO Built-In EMC Filter 0

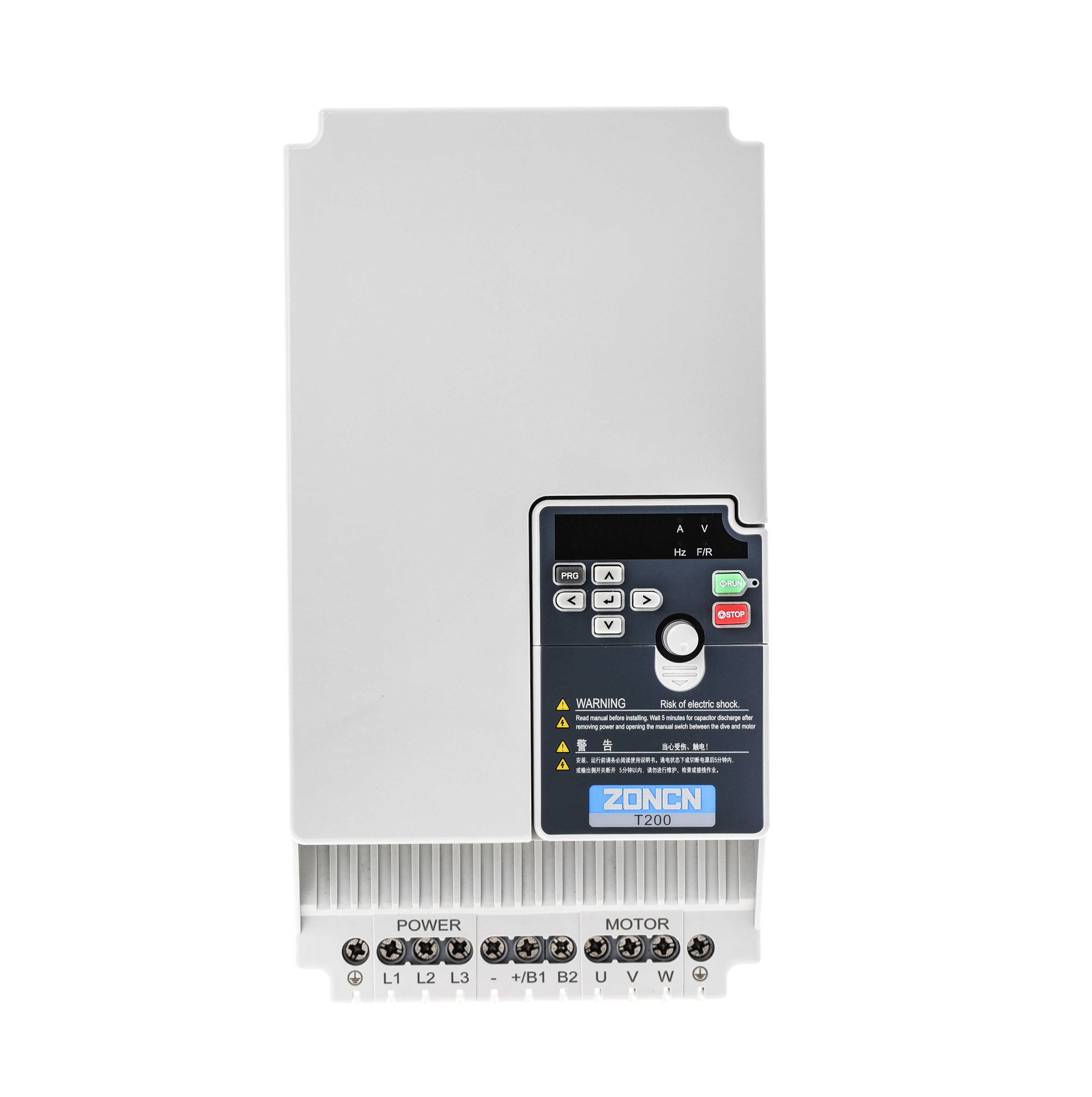

Product front structure:

11KW VFD Frequency Inverter 380v Low Voltage Motor Drives With STO Built-In EMC Filter 1





FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.





Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
