220v 380v IP65 IP54 Water Pump Variable Frequency Inverters AC Inverters 0.75kw 1.5kw 2.2kw

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	KC; CE
Model Number:	Z5200A02D2K-BF

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T, Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	AC Inverter	Brand:	ZONCN
Input:	1PH 220V	Output:	3PH 220V
Rated Power:	2.2kw/3hp	Protection:	IP54
Frequency:	1PH AC 220v 50/60Hz	Control Mode:	Vector Control
Voltage Range:	220V: 170-240V	Power Range:	220v 0.4kw-2.2kw
Highlight:	380v Variable Frequency Inverters , IP54 Variable Frequency Inverters , IP65 Variable Frequency Inverters

ZONCN Z5000 Series IP65 Waterproof Inverter

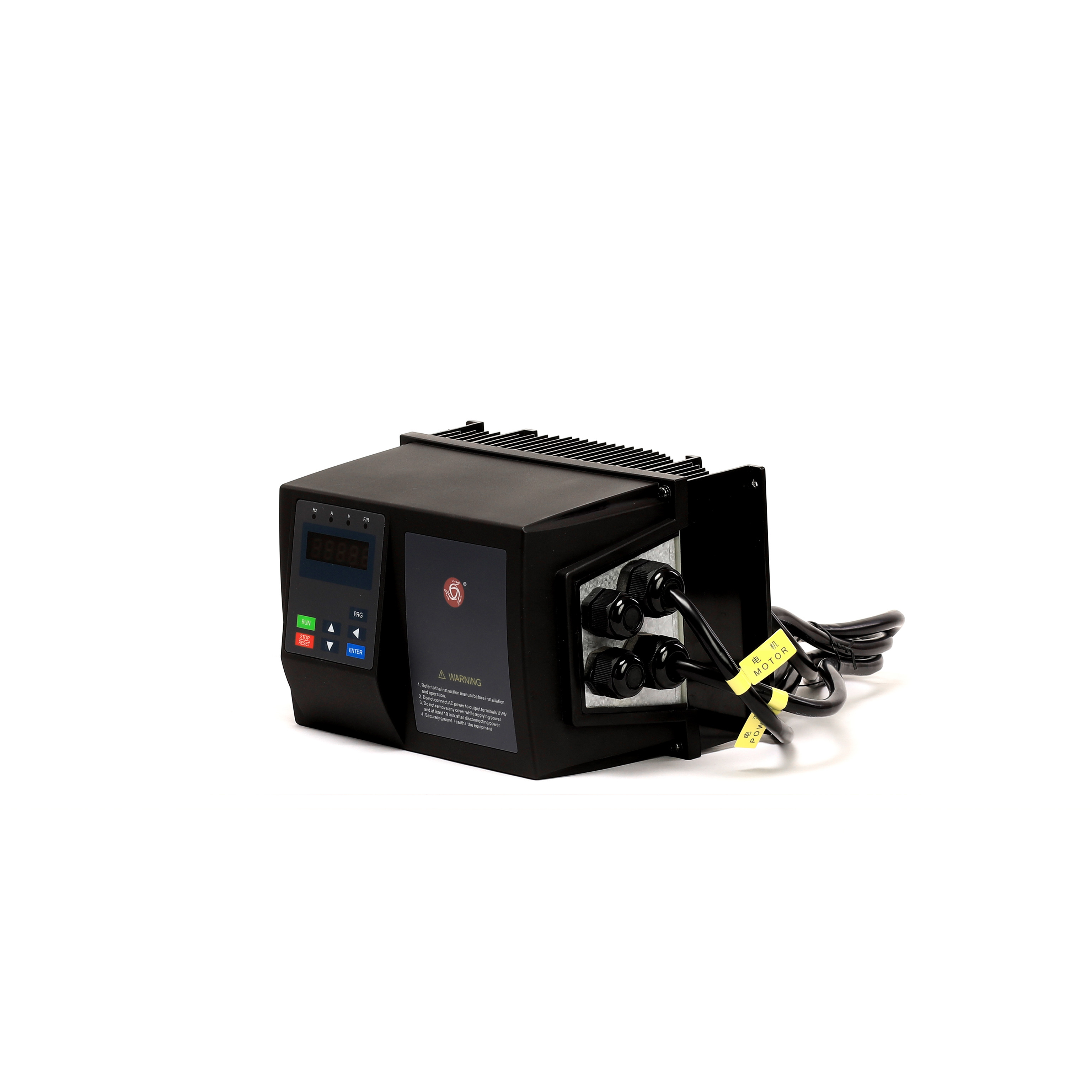

220v 380v IP65 IP54 Water Pump Variable Frequency Inverters AC Inverters 0.75kw 1.5kw 2.2kw 0

Product description

ITEM		Z5000-BF
Input	Rated voltage, Frequency	1PH/3PH AC 220V 50/60Hz; 3PH AC 380V 50/60 Hz
Input	Voltage Range	220V: 170~240V; 380V: 330V～440V
Output	Voltage Range	220V: 0~220V ; 380 V: 0～380 V
Output	Frequency Range	0.10～400.0 Hz
Control method		V/F control, Space vector control
Indication		Operating status/Alarm definition, interactive guidance; eg, frequency setting, the output frequency /current, rotating speed, fault and so on.
Control specification	Output Frequency Range	0.10～400.00 Hz.
	Frequency Setting Resolution	Digital input: 0.01 Hz.
	Frequency Setting Resolution	Analog input:0,1% of maximum output frequency
	Output Frequency Accuracy	0.01 Hz.
	V/F Control	Setting V/F curve to satisfy various load requirements
	Torque Control	Auto increase: auto raise torque by loading condition; Manual increase: enable to set 0.0~20% of raising torque
	Multifunctional Input Terminal	4 multi-function input terminals, realizing functions including 15 section speed control, program running, 4 section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions
	Multifunctional Output Terminal	1 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings
	Acceleration/deceleration Time Setting	0~999.9 s acceleration/deceleration time can be set individually
Other functions	PID Control	Built-in PID control
	RS485	Standard RS485 communication function (MODBUS)
	Frequency Setting	Analog input 0～10V, 0～20мА, can be selected; Digital input: input using the setting dial of the operation panel or RS 485 or UP/DOWN
	Multi-speed	4 multi-function input terminals,15 section speed can be set
	Automatic voltage regulation	Automatic voltage regulation function can be selected
	Counter	Built-in 2 group of counters
Protection function	Overload	150%, 60s (Constant torque); 120%,60s (variable torque)
	Over Voltage	Over voltage protection can be set
	Under Voltage	Under voltage protection can be set
	Other Protections	Output short-circuit, over current, and parameter lock and so on.
Environment	Ambient Temperature	–10℃~40℃(non-freezing)
	Ambient Humidity	Max. 95% (non-condensing)
	Altitude	Lower than 1000м.
	Vibration	Max. 0.5 g
Structrure	Cooling Mode	Below 3.7 kW no have fan; Above 5.5 kW Forced air cooling
Structrure	Protective Structure	Below 3.7kw IP 65, 3.7kw and above IP54

Specification

Model	Input voltage	Rated Output Power (KW)	Rated Input current (A)	Rated Output Current (A)	Motor Power (kW)
Z5200A00D7K-BF	1PH AC220V ±15%	0.75	7.2	5	0.75
Z5200A01D5K-BF		1.5	10	7	1.5
Z5200A02D2K-BF		2.2	16	11	2.2
Z5400A0D75K-BF	3PH AC380V ±15%	0.75	3.8	2.5	0.75
Z5400A1D5K-BF		1.5	5	3.7	1.5
Z5400A02D2K-BF		2.2	5.8	5	2.2
Z5400A03D7K-BF		3.7	10	9	3.7
Z5400A05D5K-BF		5.5	15	13	5.5
Z5400A07D5K-BF		7.5	20	17	7.5
Z5400A0011K-BF		11	26	25	11
Z5400A0015K-BF		15	35	32	15
Z5400A0018K-BF		18.5	38	37	18.5
Z5400A0022K-BF		22	46	45	22
Z5400A0030K-BF		30	62	60	30
Z5400A0037K-BF		37	76	75	37
…		…	…	…	…
Z5400A00160K-BF		160			160

Product Pictures

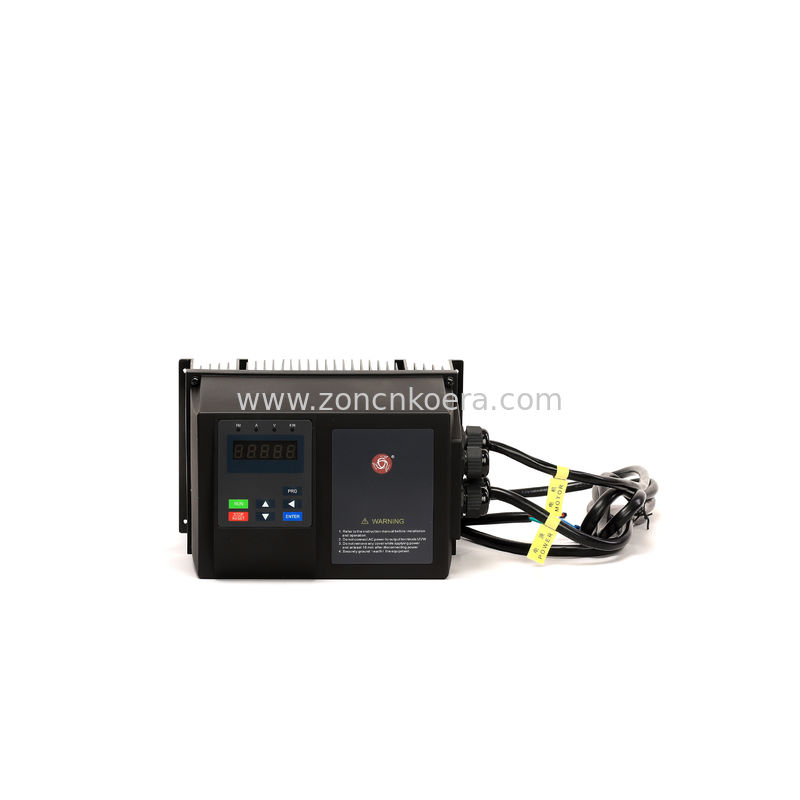

220v 380v IP65 IP54 Water Pump Variable Frequency Inverters AC Inverters 0.75kw 1.5kw 2.2kw 1

Company Introduction

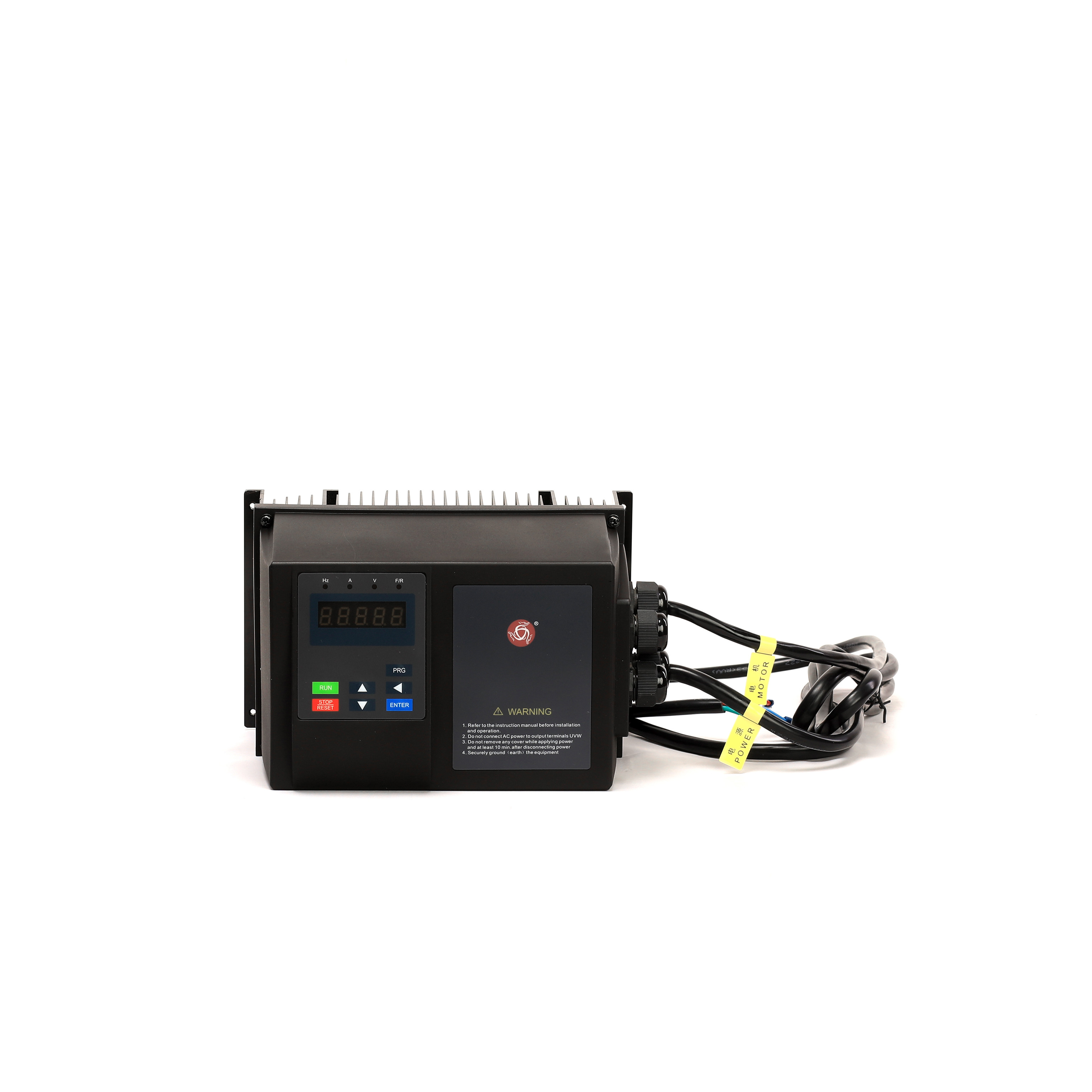

220v 380v IP65 IP54 Water Pump Variable Frequency Inverters AC Inverters 0.75kw 1.5kw 2.2kw 3

Wuhu Zoncn Automation Equipment Co., Ltd is a professional manufacturer which focus on producing inverter and servo products. We are established in 2005 and our factory size is about 100,000 ㎡. There are 600+ staff including 70+ professional technical engineers. Our annual sales quantity is about 1,000,000 pcs. ZONCN has 6 mains series of VFDs: NZ100, NZ200, Z2000, Z8000, T9000, Z5000 (IP65/54), etc. which are widely used in various application, for example, conveyor, textile, printing, CNC machine, injection&extrusion machine, fan, pump, air compressor, water treatment, industrial washing machine and many industrial applications. What’s more, ZONCN is a leading supplier in the fields of air compressor, automatic door, construction machinery, hoisting machinery etc. Besides, we can customize for OEM/ODM as per requirements.

ZONCN inverters are exported to more than 50 countries in Asia, Europe, Africa and America, etc. ZONCN will always dedicate in the field of drives and servo, and warmly welcome you to be our partner.

Exhibition

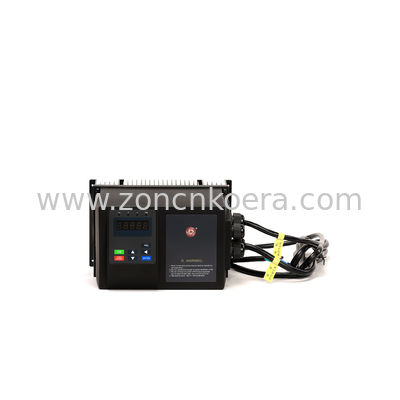

220v 380v IP65 IP54 Water Pump Variable Frequency Inverters AC Inverters 0.75kw 1.5kw 2.2kw 4
