IP65 IP54 Water Proof Variable Frequency Drives AC Inverters 220v 380v

IP65 IP54 Water Proof Variable Frequency Drives AC Inverters 220v 380v
IP65 IP54 Water Proof Variable Frequency Drives AC Inverters 220v 380v IP65 IP54 Water Proof Variable Frequency Drives AC Inverters 220v 380v IP65 IP54 Water Proof Variable Frequency Drives AC Inverters 220v 380v IP65 IP54 Water Proof Variable Frequency Drives AC Inverters 220v 380v IP65 IP54 Water Proof Variable Frequency Drives AC Inverters 220v 380v IP65 IP54 Water Proof Variable Frequency Drives AC Inverters 220v 380v
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: Z5200A01D5K-BF
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: AC Inverter Brand: ZONCN
Input: 1PH 220V Output: 3PH 220V
Rated Power: 1.5kw/2hp Protection: IP65
Control Mode: Vector Control Fan: No
Highlight:

Water Proof Variable Frequency Drives

,

IP54 Variable Frequency Drives

,

220v Variable Frequency Drives





ZONCN Z5000 Series IP65 Waterproof Inverter

IP65 IP54 Water Proof Variable Frequency Drives AC Inverters 220v 380v 0



Product Features

  • Mounted directly on the motor or to the wall ;

  • Allow for heavy load equipment;

  • Vector Control mode ( Z5400A Series)

  • Function: no water stop, timing, antifreeze, change pump when fault, water supply alarm, ect; IP65, allows to use in kinds of bad environment.





Product description



ITEM Z5000-BF
Input Rated voltage, Frequency 1PH/3PH AC 220V 50/60Hz;
3PH AC 380V 50/60 Hz
Voltage Range 220V: 170~240V; 380V: 330V～440V
Output Voltage Range 220V: 0~220V ; 380 V: 0～380 V
Frequency Range 0.10～400.0 Hz
Control method V/F control, Space vector control
Indication Operating status/Alarm definition, interactive guidance; eg, frequency setting, the output frequency /current, rotating speed, fault and so on.
Control specification Output Frequency Range 0.10～400.00 Hz.
Frequency Setting Resolution Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency
Output Frequency Accuracy 0.01 Hz.
V/F Control Setting V/F curve to satisfy various load requirements
Torque Control Auto increase: auto raise torque by loading condition; Manual increase: enable to set 0.0~20% of raising torque
Multifunctional Input Terminal 4 multi-function input terminals, realizing functions including 15 section speed control, program running, 4 section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions
Multifunctional Output Terminal 1 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings
Acceleration/deceleration Time Setting 0~999.9 s acceleration/deceleration time can be set individually
Other functions PID Control Built-in PID control
RS485 Standard RS485 communication function (MODBUS)
Frequency Setting Analog input 0～10V, 0～20мА, can be selected; Digital input: input using the setting dial of the operation panel or RS 485 or UP/DOWN
Multi-speed 4 multi-function input terminals,15 section speed can be set
Automatic voltage regulation Automatic voltage regulation function can be selected
Counter Built-in 2 group of counters
Protection function Overload 150%, 60s (Constant torque); 120%,60s (variable torque)
Over Voltage Over voltage protection can be set
Under Voltage Under voltage protection can be set
Other Protections Output short-circuit, over current, and parameter lock and so on.
Environment Ambient Temperature –10℃~40℃(non-freezing)
Ambient Humidity Max. 95% (non-condensing)
Altitude Lower than 1000м.
Vibration Max. 0.5 g
Structrure Cooling Mode Below 3.7 kW no have fan; Above 5.5 kW Forced air cooling
Protective Structure Below 3.7kw IP 65, 3.7kw and above IP54







Specification

Model Input voltage Rated Output Power (KW) Rated Input current (A) Rated Output Current (A) Motor Power (kW)
Z5200A00D7K-BF 1PH AC220V ±15% 0.75 7.2 5 0.75
Z5200A01D5K-BF 1.5 10 7 1.5
Z5200A02D2K-BF 2.2 16 11 2.2
Z5400A0D75K-BF 3PH AC380V ±15% 0.75 3.8 2.5 0.75
Z5400A1D5K-BF 1.5 5 3.7 1.5
Z5400A02D2K-BF 2.2 5.8 5 2.2
Z5400A03D7K-BF 3.7 10 9 3.7
Z5400A05D5K-BF 5.5 15 13 5.5
Z5400A07D5K-BF 7.5 20 17 7.5
Z5400A0011K-BF 11 26 25 11
Z5400A0015K-BF 15 35 32 15
Z5400A0018K-BF 18.5 38 37 18.5
Z5400A0022K-BF 22 46 45 22
Z5400A0030K-BF 30 62 60 30
Z5400A0037K-BF 37 76 75 37
… … … … …
Z5400A00160K-BF 160 　 　 160

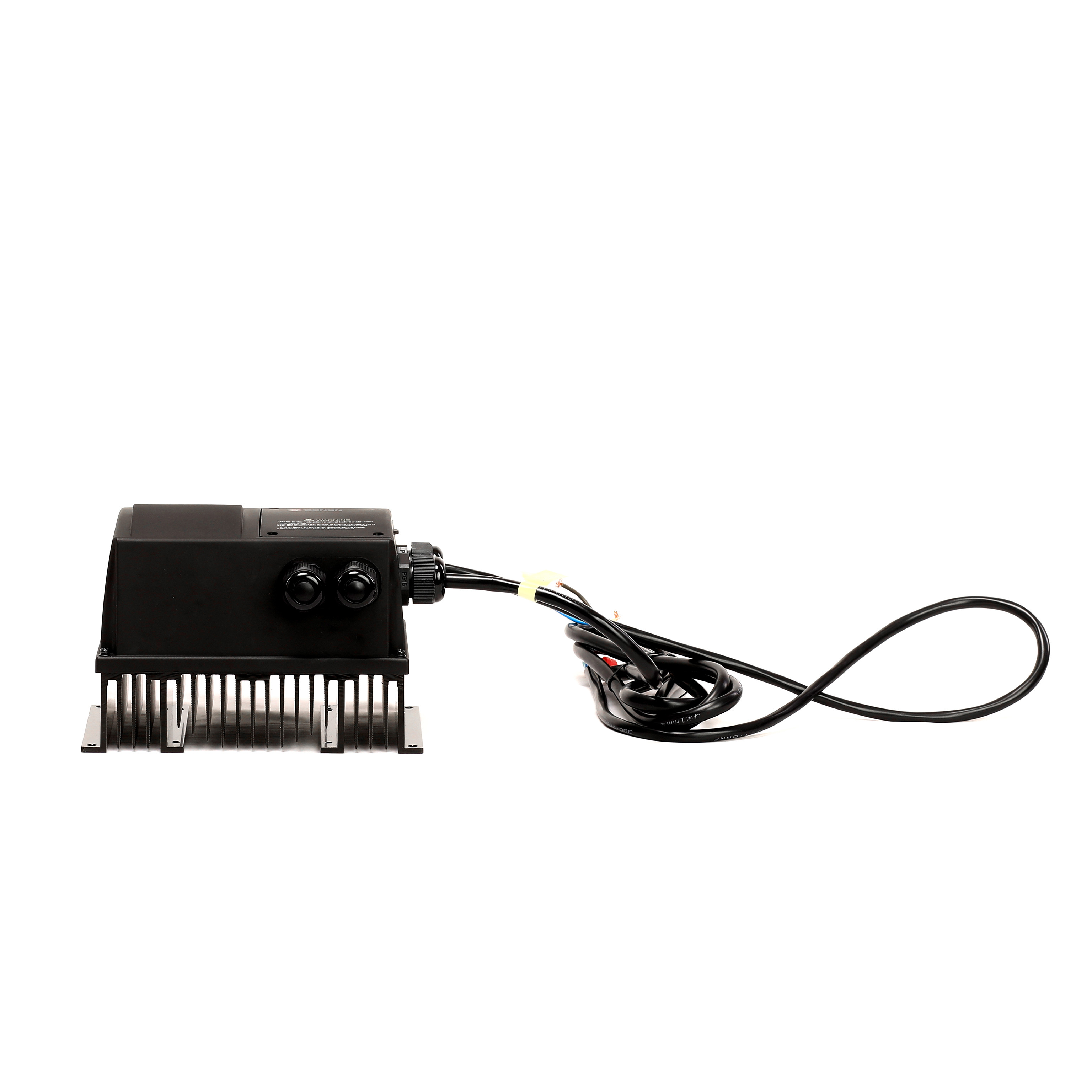

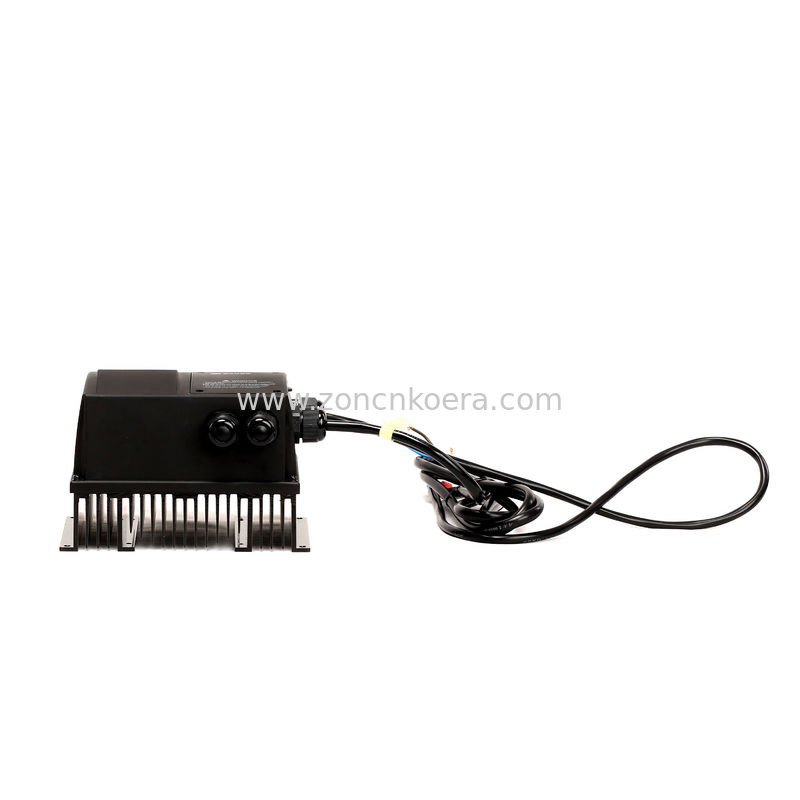

Product Pictures

IP65 IP54 Water Proof Variable Frequency Drives AC Inverters 220v 380v 1IP65 IP54 Water Proof Variable Frequency Drives AC Inverters 220v 380v 2

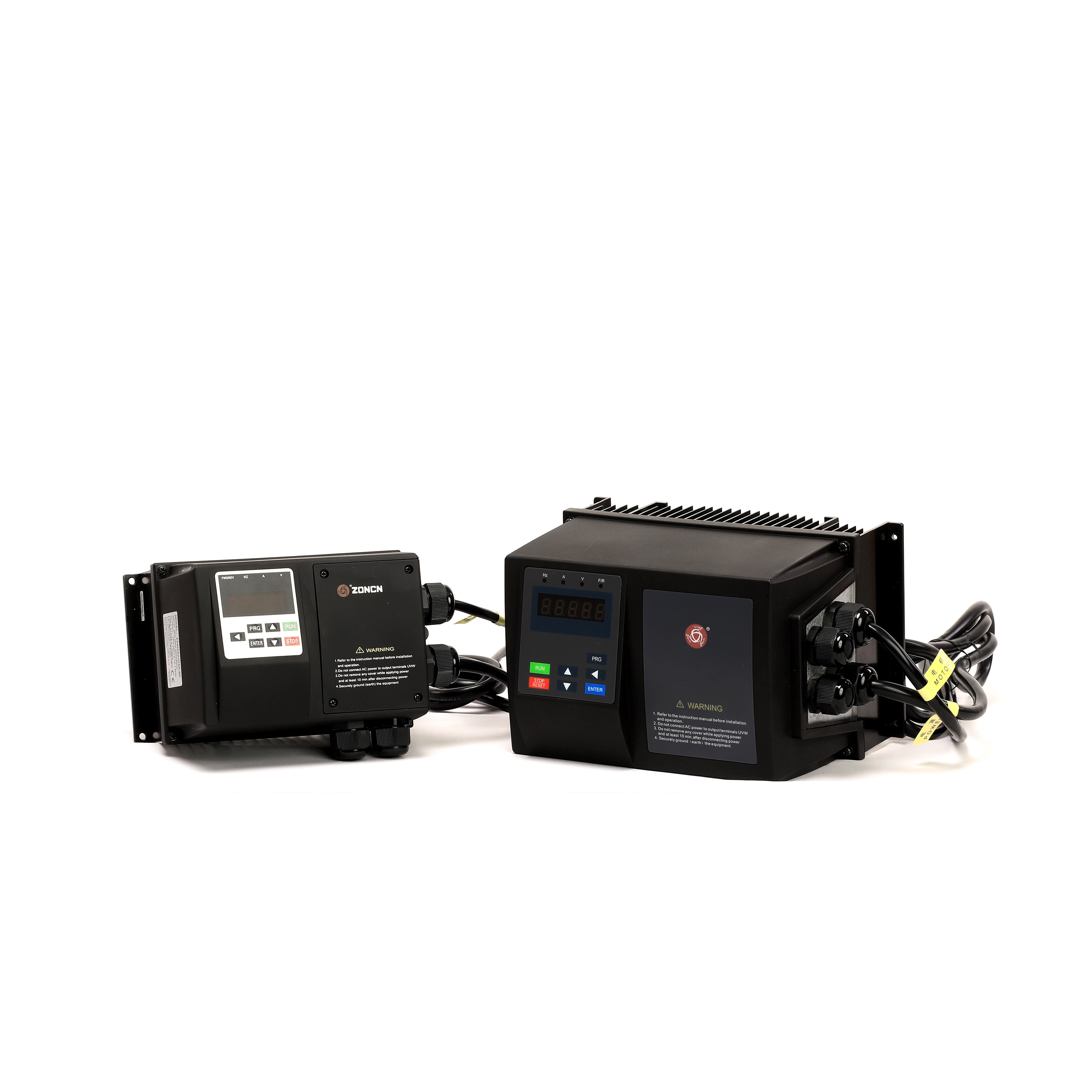

Company Introduction

IP65 IP54 Water Proof Variable Frequency Drives AC Inverters 220v 380v 3

Wuhu Zoncn Automation Equipment Co., Ltd is a professional manufacturer which focus on producing inverter and servo products. We have factory both in Shanghai and Wuhu, our annual sales quantity is about 1,000,000 pcs. ZONCN has 6 mains series of VFDs: NZ100, NZ200, Z2000, Z8000, T9000, H5000 (IP65/54), etc. which are widely used in various application both in China and abroad. All our products have CE certification.

ZONCN inverters are very competitive both on quality and price, and have gained high reputation in domestic market and at abroad. Our products are widely used in textile, print, CNC machine, food package, injection machine, fan, pump, air compressor, water treatment, industrial washing machine and many industrial applications. What’s more, ZONCN is a leading supplier in the fields of air compressor, automatic door, construction machinery, hoisting machinery etc.

ZONCN has more than 80 dealers in China and abroad. Now our products are exported to more than 50 countries in Asia, Europe, Africa and America. ZONCN will always dedicate in the field of electrical drive and warmly welcome you to be our partner.



Exhibition

IP65 IP54 Water Proof Variable Frequency Drives AC Inverters 220v 380v 4
