380v AC Inverter 15kw 18.5kw 22kw VFD Inverter AC Drives 20HP 25HP 30HP

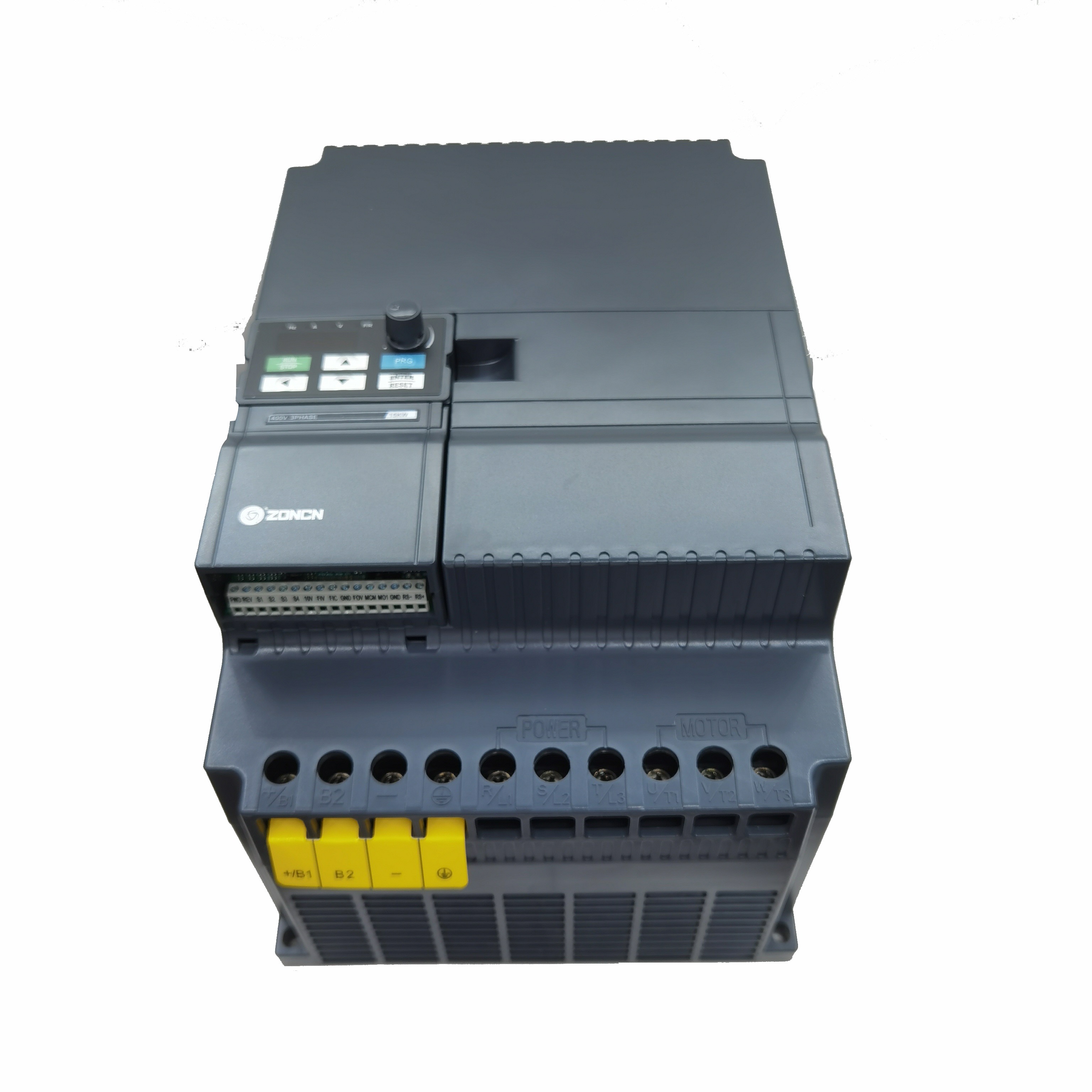

ZONCN Z2000 Series 15kw 380v Vector Control Inverter







Inverter Features



No.	Technical Parameter Function	Z2000 series inverter VFD
1	Control mode	VF+Vector control
2	Built-in braking unit	YES,below 37kw (include 37kw), Optional for 45KW above
3	Removable panel	YES
4	High speed pulse output	optional
5	AI	2
6	AO	1
7	DI	6
8	DO	standard 1,optional 2
9	Relay output	Standard 1,30kw above optional 2
10	DC braking	YES
11	Collector	1
12	24V power supply	30kw optional, 30kw and above all have
13	EMC filter	optional
14	Protection	IP20
15	Certificate	CE + KC
16	0.1s acceleration/deceleration	YES
17	Simple PLC	YES
18	all kinds of protection	YES
19	PID	YES
20	DC choke	30kw—220kw optional,250kw and above all have
21	DC bus +,- terminals	YES
22	Standard Communication	RS485
23	EtherCAT communication	YES



Product description

Item		Z2000 inverter VFD
Standard Function	Control mode	Senseless flux vector control(SFVC) ; Voltage/Frequency (V/F) control
	Maximum frequency	Vector control: 0-320Hz ; V/F control: 0-3200Hz
	Carrier frequency	1-16kHz ; The carrier frequency is automatically adjusted based on the load features
	Input frequency solution	Digital setting: 0.01Hz ; Analog setting: maximum frequency x 0.025%
	Startup torque	G type: 0.5Hz/150%(SFVC) ; P type: 0.5Hz/100%
	Speed range	1:100
	Speed stability accuracy	±0.5%
	Overload capacity	G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
	Torque boost	Auto boost ; Customized boost 0.1%-30.0%
	V/F curve	Line V/F curve; Multi-point V/F curve; N-power V/F curve
	V/F separation	Two types: complete separation; half separation
	Ramp mode	Straight-line ramp ; S-curve ramp ; Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
	DC braking	DC braking frequency : 0.0Hz to maximum frequency Braking time: 0.0~100.0s Braking action current value: 0.0%~100.0%
	JOG control	JOG frequency range: 0.00~50.00Hz JOG acceleration/deceleration time: 0.0~6500.0s
	Onboard multiple preset speeds	It implements up to 16 speeds via the simple PLC function or combination of X terminal states.
	Onboard PID	It realizes process-controlled closed loop control system easily
	Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage changes.
	Auto voltage/ Over current stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current
	Rapid current limit	It helps to avoid frequent over current faults of the AC drive
	Torque limit and control	It can keep constant output voltage automatically when the mains voltage changes



Inverter Specification

Model	Rated Output Power(kW)	Rated Input Current(A)	Rated Output Current(A)	Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G	0.4	5.4	2.5	0.4
Z2200-0R75G	0.75	7.2	5	0.75
Z2200-1R5G	1.5	10	7	1.5
Z2200-2R2G	2.2	16	11	2.2
Z2200-3R7G	3.7	23	16.5	3.7
Z2200-5R5G	5.5	21	25	5.5
Z2200-7R5G	7.5	31	32	7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G	0.75	3.8	2.5	0.75
Z2400-1R5G	1.5	5	3.7	1.5
Z2400-2R2G	2.2	5.8	5	2.2
Z2400-3R7G/5R5P	3.7/5.5	10/15.0	9/13	3.7/5.5
Z2400-5R5G	5.5	15	13	5.5
Z2400-7R5G/11P	7.5/11	20/26	17/25	7.5/11
Z2400-11G/15P	11/15	26/35	25/32	11/15
Z2400-15G/18.5P	15/18.5	35/38	32/37	15/18.5
Z2400-18.5G/22P	18.5/22	38/46	37/45	18.5/22
Z2400-22G/30P	22/30	46/62	45/60	22/30
Z2400-30G/37P	30/37	62/76	60/75	30/37
Z2400-37G/45P	37/45	76/90	75/90	37/45
Z2400-45G/55P	45/55	90/105	90/110	45/55
Z2400-55G	55	105	110	55
Z2400-75G/90P	75/90	140/160	150/176	75/90
Z2400-90G/110P	90/110	160/210	176/210	90/110
Z2400-110G/132P	110/132	210/240	210/253	110/132
Z2400-132G/160P	132/160	240/290	253/300	132/160
Z2400-160G/185P	160/185	290/330	300/340	160/185
Z2400-185G/200P	185/200	330/370	340/380	185/200
Z2400-200G/220P	200/220	370/410	380/420	200/220
…





Inverter Nameplate Description









Inverter we can do



No.	Input	Output
1	110v single phase	110v single phase
2	110v single phase	110v 3 phase
3	110v single phase	220v 3 phase
1	220v single phase	220v single phase
2	220v single phase	220v 3 phase
3	220v single phase	380v 3 phase
4	220v 3 phase	220v 3 phase
5	220v 3 phase	380v 3 phase
6	380v 3 phase	380v 3 phase
7	440v 3 phase	440v 3 phase
8	480v 3 phase	480v 3 phase

Note: If you have any specialy requirements, pls feel free to contact us directly.
