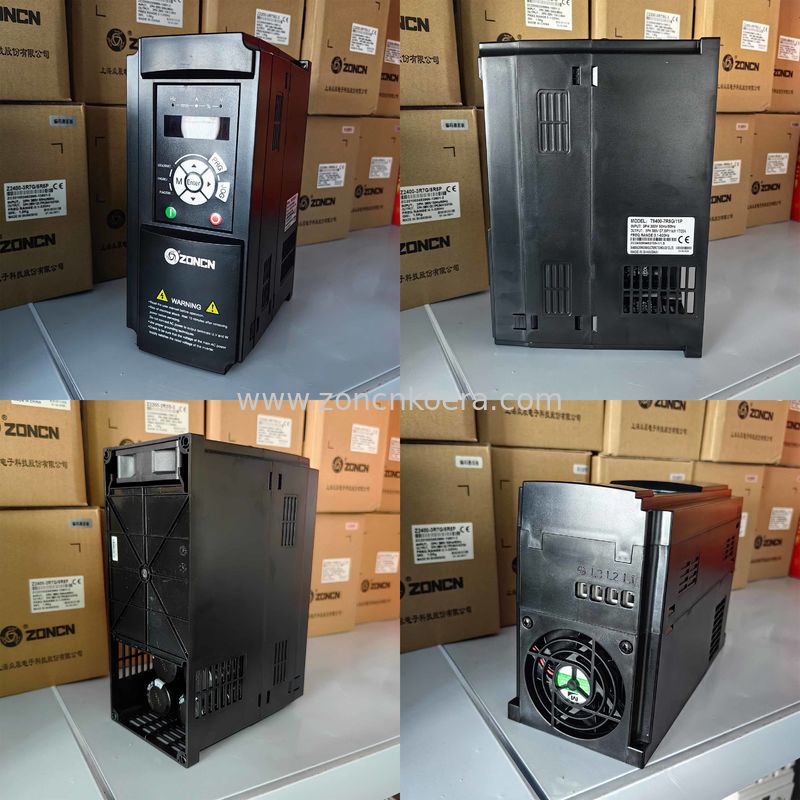

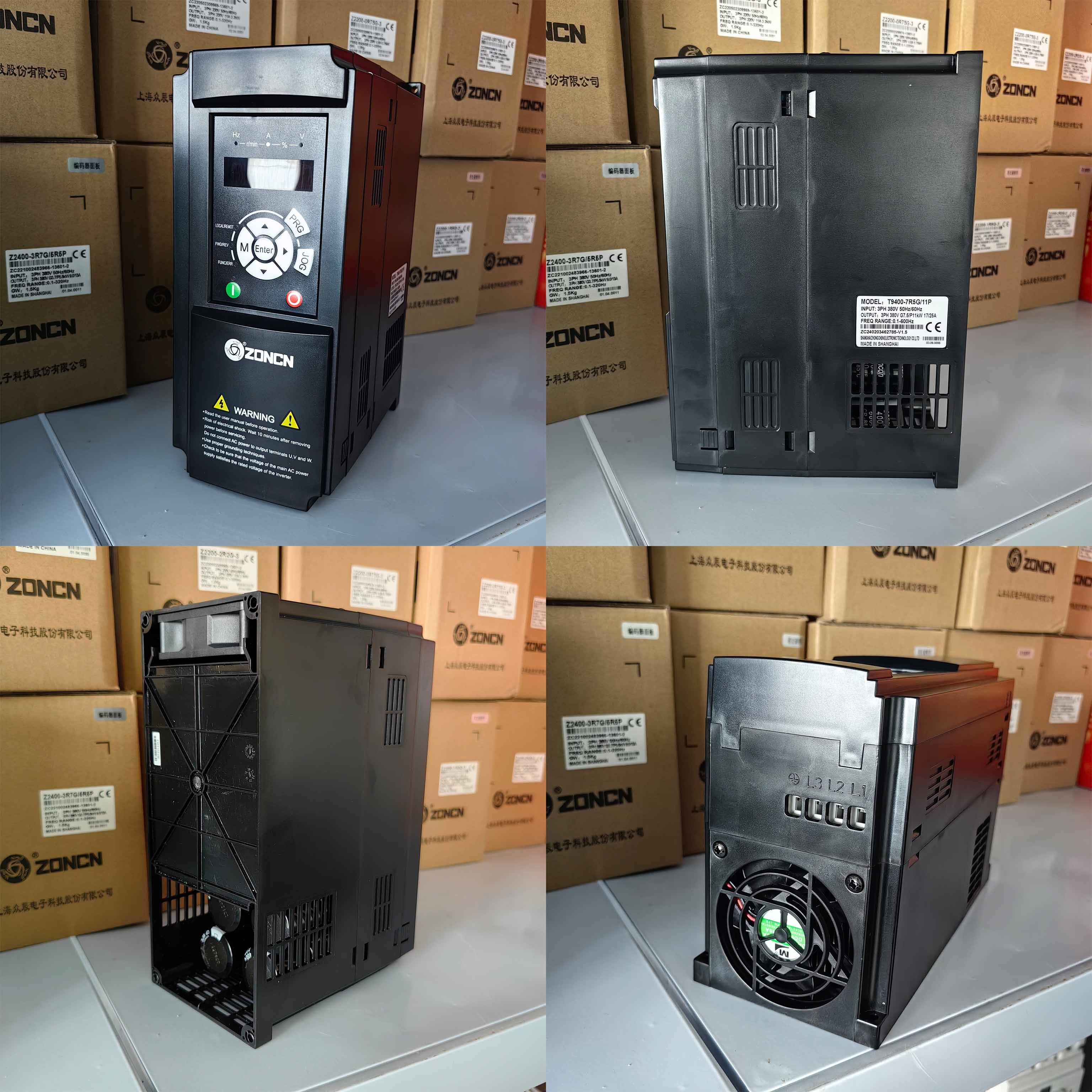

440V 380V 220V Low Voltage Inverter VFD 10HP 15HP AC Drive For Motor Controller

440V 380V 220V Low Voltage Inverter VFD 10HP 15HP AC Drive For Motor Controller
440V 380V 220V Low Voltage Inverter VFD 10HP 15HP AC Drive For Motor Controller 440V 380V 220V Low Voltage Inverter VFD 10HP 15HP AC Drive For Motor Controller 440V 380V 220V Low Voltage Inverter VFD 10HP 15HP AC Drive For Motor Controller 440V 380V 220V Low Voltage Inverter VFD 10HP 15HP AC Drive For Motor Controller 440V 380V 220V Low Voltage Inverter VFD 10HP 15HP AC Drive For Motor Controller 440V 380V 220V Low Voltage Inverter VFD 10HP 15HP AC Drive For Motor Controller
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: Eu CE certification
Model Number: T9000 Series
Minimum Order Quantity: 1 unit
Packaging Details: Carton packing；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Power: 10~15HP Model: T9400-7R5G/11P; T9400-11G/15P
Voltage: 220V 380V 440V±15% ODM: Support
OEM: Support Brand: ZONCN
STO: Support Detachable Panel: Standard Or External
User Manual: English
Highlight:

10HP 15HP Low Voltage Inverter VFD

,

10HP Low Voltage Inverter VFD

,

220V Low Voltage Inverter VFD

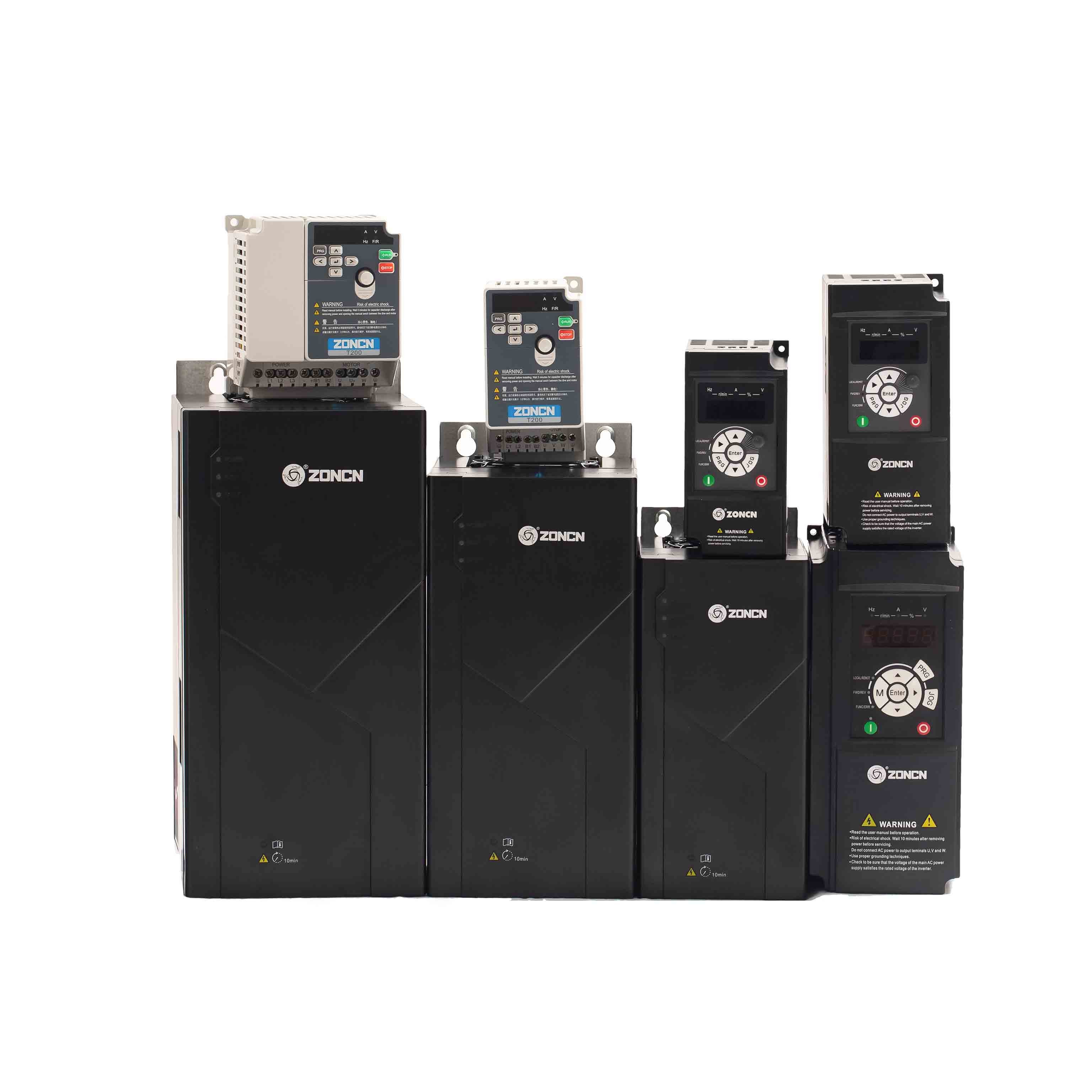

ZONCN 7.5kw 11kw Advanced Frequency Inverter Drives T9000



Basic product introduction:

  • Open/closed loop vector control, VF control (built-in PlD) for synchronousand asynchronous motors
  • Large torque output, the motor can be smooth output under heavy load
  • Powerful function, excellent performance, suitable for most use occasions
  • Supports various types of PG cards
  • Supports instant stop and instant start
  • 220V: 0.4-7.5KW; 380V: 0.4-450KW
  • Support STO function and optional Profinet communication



T9000 technical specifications:

Item T9000 series Inverter
Basic function Control mode

V/F control

Open loop vector control (without PG); Closed loop vector control (with PG).
Maximum frequency 0.00-600.00Hz.
Carrier frequency

0.5kHz~16kHz

The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution

Digital setting:0.01Hz

Analog setting: Maximum frequency 0.025%
Start torque

G-type:0.5Hz/150% (no PG);

P-type :0.5Hz/100%
Speed range 1:100(No PG)
Speed stability accuracy ±0.5%(No PG)
Basic function Overload capacity

G Type:60s for 150% of the rated current, 3s for 180% of the rated current.

P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto-boost ; Customized boost:0.1%~30.0%.
VF curve Straight-line VF curve; Multi-point VF curve; N-power VF curve (1.2 power, 1.4 power, 1.6 power, 1.8 power, 2 power)
VF separation 2 types: complete separation；half separation.
Ramp Mode Linear or S-curve acceleration and deceleration mode. Four kinds of acceleration and deceleration time, acceleration and deceleration time range 0.0~65000s.
DC braking Dc braking frequency :0.00Hz~ maximum frequency；Braking interval :0.0s~36.0s ；Braking action current value :0.0%~100.0%
JOG control

Jog frequency range:0~50Hz

Jog acceleration/deceleration time:0-6500s
Simple PLC; Multi-speed operation Up to 16 segment speeds are possible with built-in PLC or control terminals.
Built-in PID It is convenient to realize the closed-loop control system of process control.
Automatic Voltage Regulation (AVR) When the grid voltage changes, it can automatically keep the output voltage constant.
Overvoltage and overcurrent stall control Automatic current and voltage limit during operation to prevent frequent overvoltage skipping.
Rapid current limiting function Minimize the overcurrent fault and protect the normal operation of the inverter.
Torque limit and control Automatic torque limit during operation to prevent frequent overcurrent tripping; The closed-loop vector mode(FVC) enables torque control.
Characteristic function Excellent performance The control of asynchronous motor is realized with high performance current vector control technology.
Instant stop non-stop function The load feedback energy is used to compensate the voltage reduction in the transient power failure, and the inverter can continue to run for a short time.
Rapid current limit It helps to avoid frequent over current faults of the AC drive.
Timing control Timing range:00Min-6500.0Min.
Communication Modbus RS485；Optional Profinet communication (Optional communication card).
Safe Torque Off(STO function) Below 10HP use 10HP inverter housing.
Supports a variety of PG cards Support for differential input PG card, resolver PG card, rotating transformer PG card and so on.
Running Command source Operation panel, control terminal, serial communication port. Users can switch in a variety of ways.
Frequency source 10 frequency sources: digital set, analog voltage set, analog current set, pulse set, serial port set. Users can switch in a variety of ways.
Auxiliary frequency source 10 auxiliary frequency sources. Users can flexibly realize auxiliary frequency fine-tuning and frequency synthesis.
Input terminal

Standard :4(1PH 220V 0.4kW-2.2kW-VF control) / 5(1PH 220V 0.4kW-3.7kW-vector control /3PH 380V 0.4kW-5.5kW vector control) / 6(7.5kW or more) digital input terminals, The S3 supports high-speed pulse input up to 100kHz;

1 (below 5.5KW) / 2 (above 7.5KW) analog input terminals, 1 support 0-10V voltage input, 1 (above 7.5KW) support 0-10V voltage input or 4-20mA current input.
Output terminal

1 high-speed pulse output and collector output terminals (1PH 220V 0.4KW-2.2KW-VF control is not supported); 1(below 5.5KW)/2(above 7.5KW) relay output terminal;

1(1PH 220V 0.4kW-3.7kw-vector /3PH 380V 0.4KW-5.5KW vector)/ 2(7.5KW or more) mode output terminal, support 4~20mA current output or 0~10V voltage output.
Protection Protection function Short-circuit detection, input and output phase loss protection, overcurrent protection, overvoltage protection, undervoltage protection, overheat protection, overload protection, etc.
LED display Good display of parameters(LCD is available separately buy)
Key locking and function selection It can lock the keys partially or completely and define the function range of some keys so as to prevent mal-function.
Environment Installation location Indoor, free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
Altitude <1000m
Ambient temperature -10°C ~+ 40°C ( de-rated if the ambient temperature is between 40°C ~50°C)
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9m/s²(0.6g)
Storage temperature -20~+60℃





T9000 selection guide:

Model Rated output power (kW) Rated input current (A) Rated output current (A) Motor Power (kW)
Input voltage(v):1PH/3PH AC 220V±15%
T9200-0R4G 0.4 5.4 2.5 0.4
T9200-0R75G 0.75 7.2 5 0.75
T9200-1R5G 1.5 10 7 1.5
T9200-2R2G 2.2 16 11 2.2
T9200-3R7G 3.7 17 16.5 3.7
T9200-5R5G 5.5 26 25 5.5
T9200-7R5G 7.5 35 32 7.5
Input voltage(v):3PH AC 380V±15%
T9400-0R4G 0.4 3.4 1.2 0.4
T9400-0R75G 0.75 3.8 2.5 0.75
T9400-1R5G 1.5 5 3.7 1.5
T9400-2R2G 2.2 5.8 5 2.2
T9400-3R7G/5R5P 3.7/5.5 10/15 9/13 3.7/5.5
T9400-5R5G/7R5P 5.5/7.5 15/20 13/17 5.5/7.5
T9400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
T9400-11G/15P 11/15 26/35 25/32 11/15
T9400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
T9400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
T9400-22G/30P 22/30 46/62 45/60 22/30
T9400-30G/37P 30/37 62Z76 60/75 30/37
T9400-37G/45P 37/45 76/90 75/90 37/45
T9400-45G/55P 45/55 92/113 90/110 45/55
T9400-55G 55 113 110 55
T9400-75P 75 157 150 75
T9400-75G/90P 75/90 157/180 150/176 75/90
T9400-90G/110P 90/110 180/214 176/210 90/110





Keypad description:

0.5HP~7HP

440V 380V 220V Low Voltage Inverter VFD 10HP 15HP AC Drive For Motor Controller 0

10HP~612HP

440V 380V 220V Low Voltage Inverter VFD 10HP 15HP AC Drive For Motor Controller 1





FAQ:



Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
