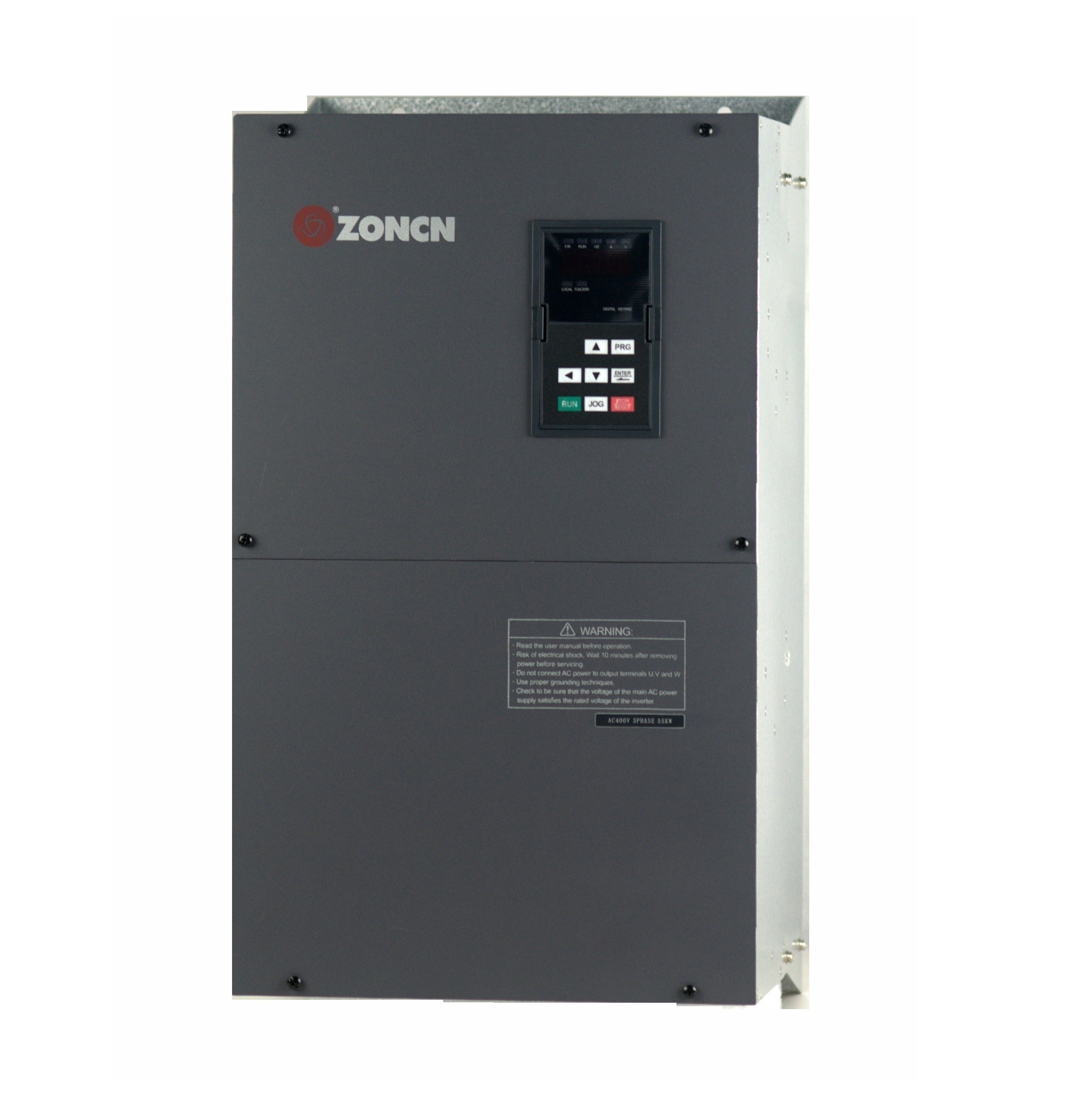

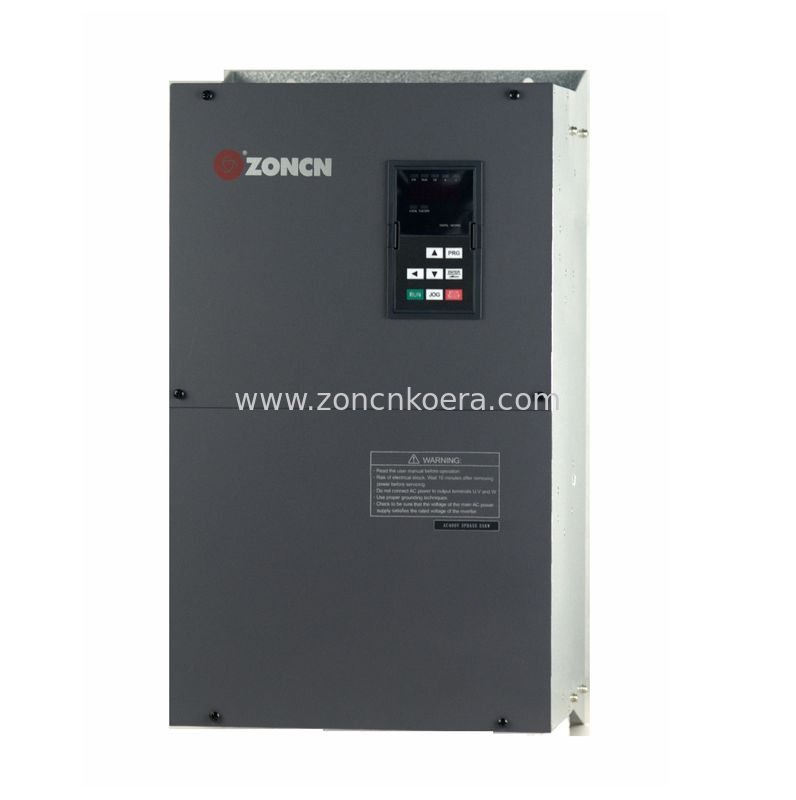

100HP AC Drives VFD 75kW Inverter Low Voltage 380v ZONCN Z2400-75G/90P

100HP AC Drives VFD 75kW Inverter Low Voltage 380v ZONCN Z2400-75G/90P
100HP AC Drives VFD 75kW Inverter Low Voltage 380v ZONCN Z2400-75G/90P 100HP AC Drives VFD 75kW Inverter Low Voltage 380v ZONCN Z2400-75G/90P 100HP AC Drives VFD 75kW Inverter Low Voltage 380v ZONCN Z2400-75G/90P 100HP AC Drives VFD 75kW Inverter Low Voltage 380v ZONCN Z2400-75G/90P 100HP AC Drives VFD 75kW Inverter Low Voltage 380v ZONCN Z2400-75G/90P 100HP AC Drives VFD 75kW Inverter Low Voltage 380v ZONCN Z2400-75G/90P
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: Eu CE certification
Model Number: Z2400-75G/90P
Minimum Order Quantity: 1 unit
Packaging Details: Carton packing；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Power: 75kw Quality: High Quality
ODM Service: Support Voltage: 380v±15%
AC/DC: AC Drives Vfd Synchronous/asynchronous: Asynchronous
Brand: ZONCN
Highlight:

380v AC Drives VFD

,

75kW AC Drives VFD

,

ZONCN AC Drives VFD

Z2000 English Catalog.pdf

ZONCN VFD Drives Motor Speed Controller 75kW 380v



Why choose Z2000 series inverter:

Z2000 is a product of ZONCN technology with strong performance and comprehensive strength. We can achieve a maximum of 450KW, so as to meet the various needs of customers. If customers need rated voltage 110V, 415V,440V, 480V these special voltage, then we can provide customers.In addition, the Z2000 series vfd can optionally install a built-in EMC filter, an external EMC filter, and an Ethecat communication option, but the default is RS485 communication.The Z2000 series drives ensure the smooth start of the motor under heavy load, equipped with a large torque output, and have a variety of protection features to reduce the probability of frequency inverter failure.







Technical Specification:

Item  Z2000 series
Control Mode

Sensorless flux vector control(SFVC)

Voltage/Frequency (V/F) Control
Maximum frequency Vector control:0-320Hz V/F control:0-3200Hz
Carrier frequency

1kHz~16kHz

The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution

Digital setting:0.01Hz

Analog setting: Maximum frequency 0.025%
Start torque

G: Type:0.5Hz/150%(SVC)

P: Type:0.5Hz/100%
Speed range 1:100(SVC)
Speed stability accuracy ±0.5%(SVC)
Overload capacity

G Type:60s for 150% of the rated current, 3s for 180% of the rated current.

P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto-boost ; Customized boost:0.1%~30.0%
VF curve Line V/F curve；Multi-point V/F curve；N-power V/F curve
VF separation 2 types: complete separation；half separation
Ramp Mode Straight-line ramp；S-curve ramp；Four groups of acceleration/deceleration time:0~6500.0s
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage changes
Rapid current limit It helps to avoid frequent over current faults of the AC drive.
Torque limit and control It can keep constant output voltage automatically when the mains voltage changes
Onboard PID It realizes process-controlled closed loop control system easily
JOG control

JOG frequency range: 0.00–50.00 Hz

JOG acceleration/deceleration time: 0.0–6500.0s
DC braking DC braking frequency:0.00Hz to maximum frequency Braking time:0.0-100.0s Braking action current value:0.0%-100.0%
Instantaneous blackout doesn’t stop The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
Timing control Timing range:0.0Min~6500.0Min
Communication RS485 / Ethecat(optional)
Run command channel Given by the panel,control terminals,serial communication port,can be switched by many ways
Frequency source 10 kinds of frequency source, given by digital analog voltage, analog current, pulse, serial port. It can be switched by many ways
Auxiliary frequency source 10 kinds of frequency source, can easily realize micro adjustment, frequency Synthesizer
Input terminals

6 digital input terminals, one of which supports up to100 kHz high-speed pulse input (optional).

2 analog input terminal, one of which only supports0-10 V voltage input and the other supports 0-10V voltage input or 4-20 mA current input.
Output terminals

1 digital output terminal 1 relay output terminal

1 analog output terminal: that supports 0-20 mA current output or 0-10v voltage output
Multiple protection modes Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.





Product configuration Z2000:

Close loop vector control No
Built-in braking unit Yes,below 37kw (include 37kw). Optional for more than 45KW
VF+Vector control Yes
High speed pulse output Yes
Movable digital keypad Yes
AI 2
AO 1
DI 6
DO Standard 1,optional 2
Relay output Standard 1,over 30kw optional 2
DC braking Yes
Collector 1
24V power supply Below 30kw optional,30kw and above support
EMC filter Optional
0.1S acceleration/deceleration Yes
Simple PLC Yes
All kinds of protection Support
PID Yes
DC choke 30kw—220kw optional,250kw and above all have
DC bus +,- terminals Yes
STO function No
Communication RS485
Certificate KC+CE
Warranty 18 months







Product wiring diagram:

100HP AC Drives VFD 75kW Inverter Low Voltage 380v ZONCN Z2400-75G/90P 0

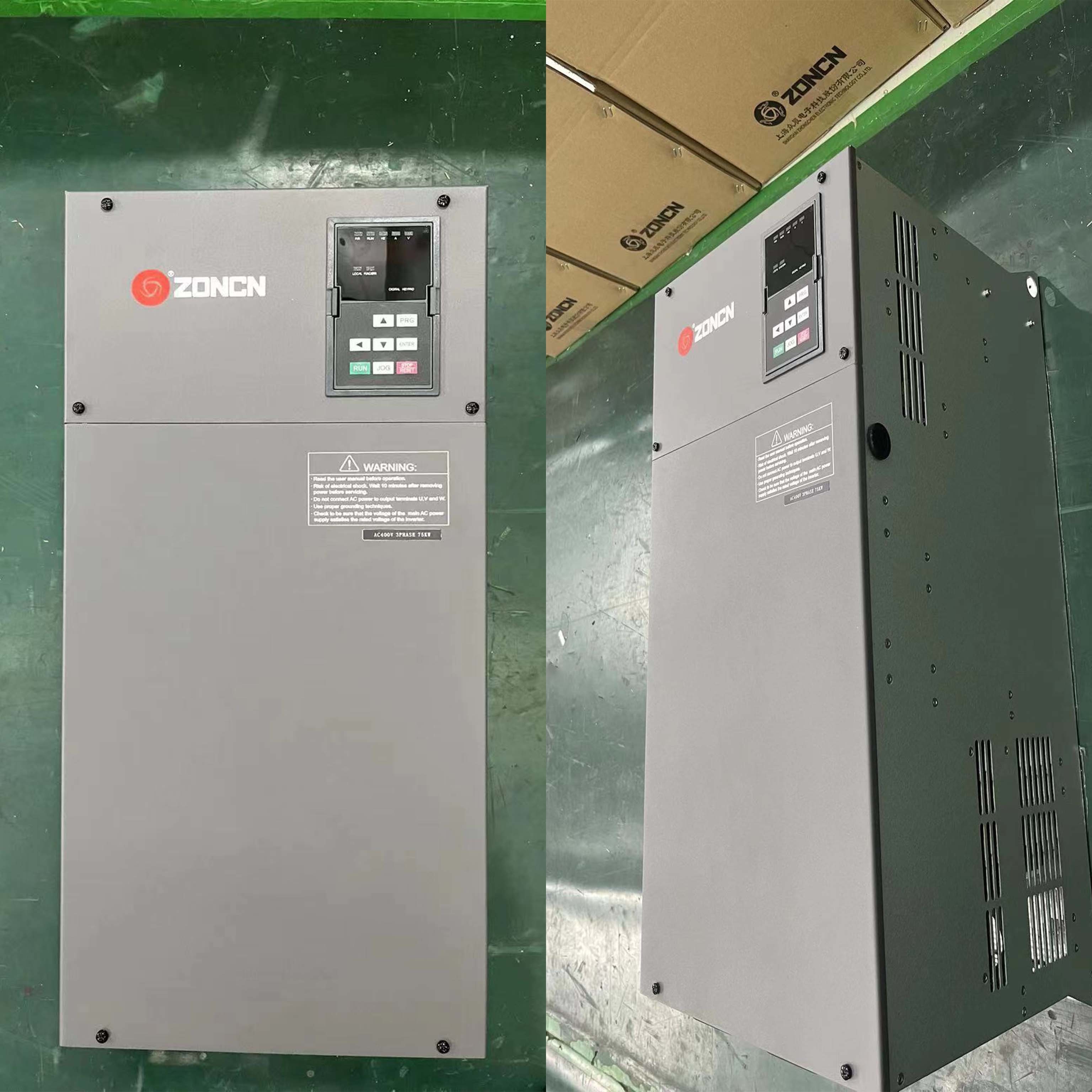

Product shooting:

100HP AC Drives VFD 75kW Inverter Low Voltage 380v ZONCN Z2400-75G/90P 1

  • Senseless flux vector control (VC)
  • V/F (Voltage/Frequency) Control.
  • Overload capacity is 60s for 150% of the rated current,3s for 180% of the rated curent.
  • There are ten auxiliary frequency sources.
  • lt can implement fine tuning of auxiliary frequencyand frequency synthesis.
  • Support PM motor (Z2000 T series)
  • Power range: 220V 0.4~7.5kW380V 0.75~450kW



FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.



Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
