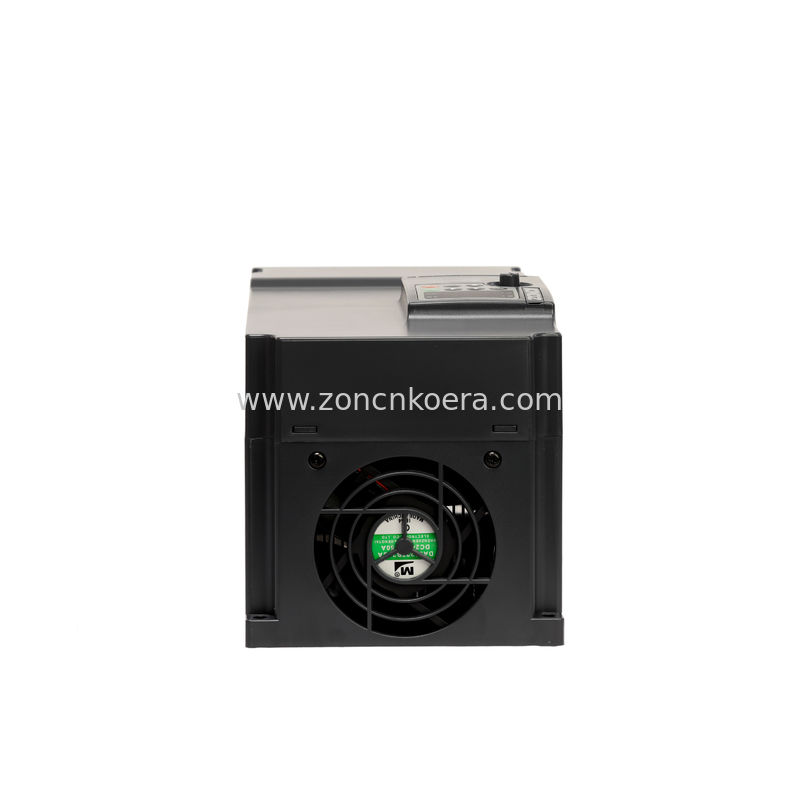

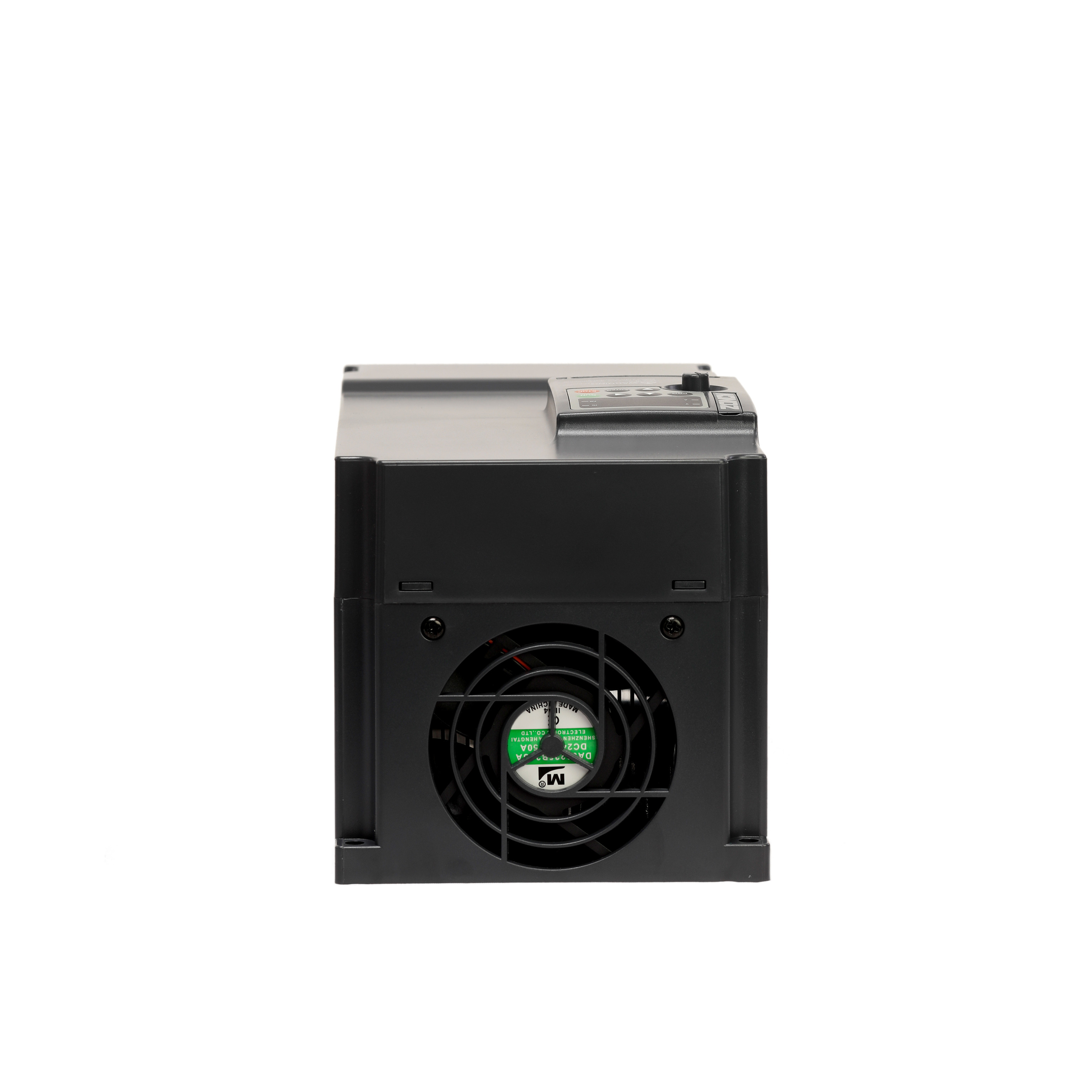

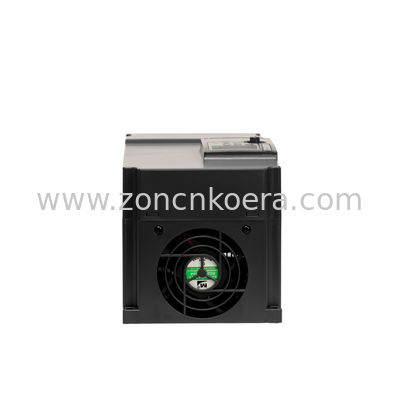

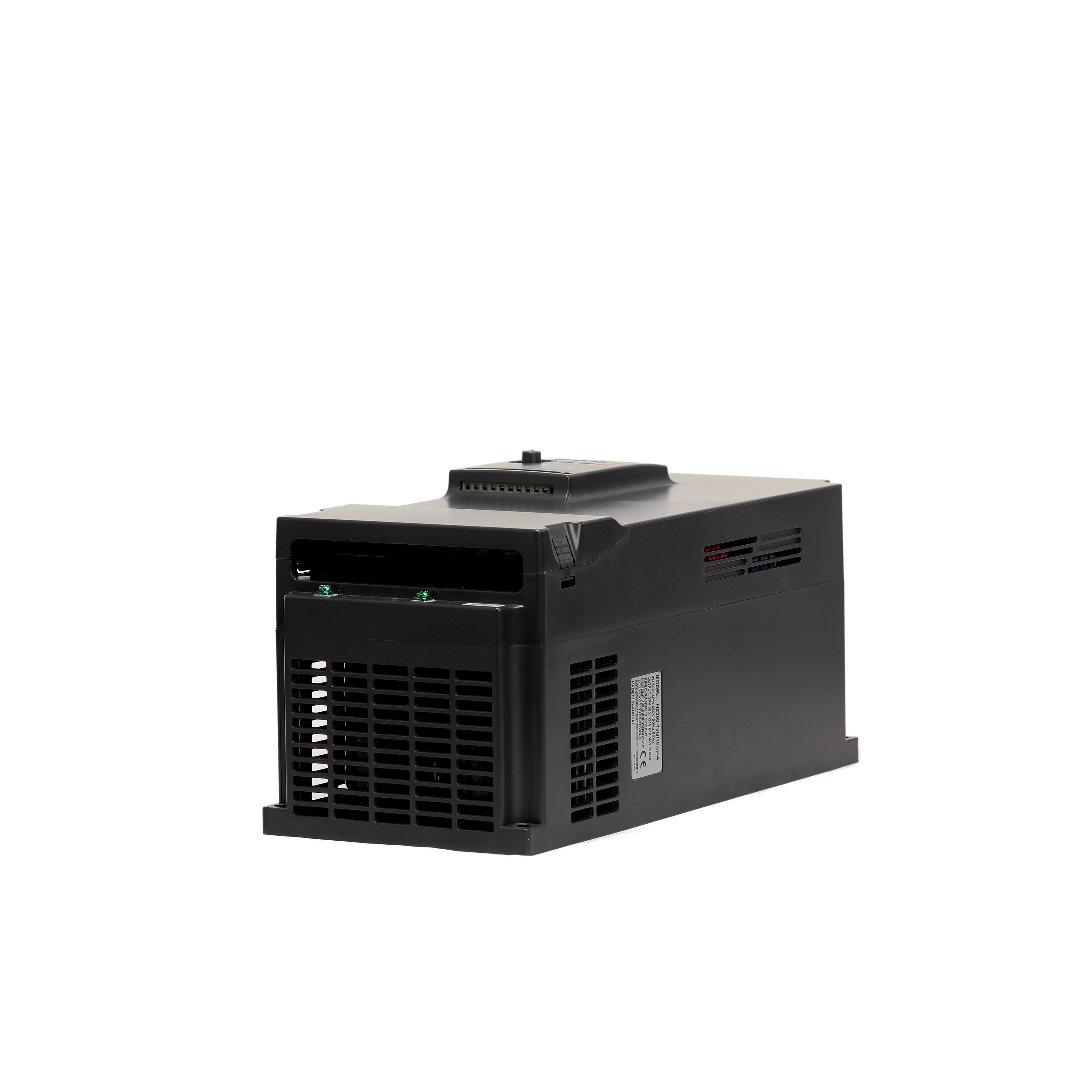

NZ200-18G/22P-4 18.5kw 380v Variador Vfd Ac Drives Low Voltage Inverter Zoncn

NZ200-18G/22P-4 18.5kw 380v Variador Vfd Ac Drives Low Voltage Inverter Zoncn
NZ200-18G/22P-4 18.5kw 380v Variador Vfd Ac Drives Low Voltage Inverter Zoncn NZ200-18G/22P-4 18.5kw 380v Variador Vfd Ac Drives Low Voltage Inverter Zoncn NZ200-18G/22P-4 18.5kw 380v Variador Vfd Ac Drives Low Voltage Inverter Zoncn NZ200-18G/22P-4 18.5kw 380v Variador Vfd Ac Drives Low Voltage Inverter Zoncn NZ200-18G/22P-4 18.5kw 380v Variador Vfd Ac Drives Low Voltage Inverter Zoncn NZ200-18G/22P-4 18.5kw 380v Variador Vfd Ac Drives Low Voltage Inverter Zoncn NZ200-18G/22P-4 18.5kw 380v Variador Vfd Ac Drives Low Voltage Inverter Zoncn NZ200-18G/22P-4 18.5kw 380v Variador Vfd Ac Drives Low Voltage Inverter Zoncn NZ200-18G/22P-4 18.5kw 380v Variador Vfd Ac Drives Low Voltage Inverter Zoncn
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: CE
Model Number: NZ200-18G/22P-4
Minimum Order Quantity: 1 unit
Packaging Details: Carton packing；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Model: NZ200-18G/22P-4 Power: 18.5kW
Type: AC Frequency Drives Voltage: 380v±15%
Phase: 380v 3ph
Highlight:

380v Vfd Ac Drives

,

Low Voltage Inverter Vfd Ac Drives

,

18.5kw Vfd Ac Drives

ZONCN 18.5KW VFD Variable Speed Drive NZ200 series



Product Brief Introduction:

  • Enhanced vector control and V/F control for precise motor control.
  • Overload capacity of 150% for 60 seconds and 180% for 3 seconds.
  • Superior performance and adaptability to various environmental conditions.
  • Streamlined structure, compact size, and easy installation.
  • Cost-effective vector control inverter with high torque output, ensuring smooth motor operation even under heavy loads.
  • Improved fault alarm system to reduce the frequency of false alarms during instantaneous stops.
  • Comprehensive protection functions including output phase loss, over-current, over-voltage, overload, and over-heat protection.
  • Compatible with PM motors (Z200 T series).
  • Available power range: 3.7~160KW, 380V.



NZ200 Technical Specification:

Item ZONCN NZ200 Series
Control Mode

Sensorless flux vector control(SFVC)

Voltage/Frequency (V/F) Control
Maximum frequency Vector control:0-320Hz V/F control:0-3200Hz
Carrier frequency

1kHz~16kHz

The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution

Digital setting:0.01Hz

Analog setting: Maximum frequency 0.025%
Start torque

G: Type:0.5Hz/150%(SVC)

P: Type:0.5Hz/100%
Speed range 1:100(SVC)
Speed stability accuracy ±0.5%(SVC)
Overload capacity

G Type:60s for 150% of the rated current, 3s for 180% of the rated current.

P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto-boost ; Customized boost:0.1%~30.0%
VF curve Straight-line VF curve; Multi-point VF curve; N-power VF curve(1.2-power,1.4-power,1.6-power,1.8-power, 2-power)
VF separation 2 types: complete separation；half separation
Ramp Mode Straight-line ramp；S-curve ramp；Four groups of acceleration/deceleration time:0~6500.0s
Simple PLC, Multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of terminal states
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage changes
Rapid current limit It helps to avoid frequent over current faults of the AC drive.
Torque limit and control It can limit the torque automatically and prevent frequent over-current tripping during the running process.
Onboard PID It realizes process-controlled closed loop control system easily
Rapid current limit It helps to avoid frequent over current faults of the AC drive.
JOG control

JOG frequency range: 0.00–50.00 Hz

JOG acceleration/deceleration time: 0.0–6500.0s
DC braking DC braking frequency:0.00Hz to maximum frequency Braking time:0.0-100.0s Braking action current value:0.0%-100.0%
Instantaneous blackout doesn’t stop The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
Timing control Timing range:0.0Min~6500.0Min
Communication RS485
Run instruction channel Keyboard given, control terminal given, serial communication port given. It can be switched in a variety of ways.
Frequency source 10 kinds: digital given, analog voltage given, analog current given, pulse given, serial port given. It can be switched in a variety of ways.
Auxiliary frequency source 10 auxiliary frequency sources. It can flexibly realize auxiliary frequency fine-tuning and frequency synthesis.
Input terminals

6 digital input terminals, one of which supports up to 100 kHz high-speed pulse input (S3 optional).

2 analog input terminal, one of which only supports 0-10v voltage input(FIV) and the other supports 0-10 voltage input or 4-20 mA current input(FIC).
Output terminals

1 digital output terminal(MO1) 1 relay output terminal(RA,RB,RC)

1 analog output terminal :that supports 0-20 mA current output or 0-10v voltage output(FOV)
Remark X terminal is NPN type by default. If PNP type is required, contact customer service for customization.
LED display Not removable. More than 45kw is acceptable.
Keystroke locking and function selection Realize partial or full lock of keys, and define the scope of action of some keys to prevent false touch
Multiple protection modes Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.



Model Description:



Model Rated output power (kW) Rated input current (A) Rated output current (A) Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
NZ200-0R4G-2 0.4 5.4 2.5 0.4
NZ200-0R75G-2 0.75 7.2 5 0.75
NZ200-1R5G-2 1.5 10 7 1.5
NZ200-2R2G-2 2.2 16 11 2.2
NZ200-3R7G-2 3.7 17 16.5 3.7
Input voltage(v):3PH AC 380V±15%
NZ200-0R4G-4 0.4 3.4 1.2 0.4
NZ200-0R75G-4 0.75 3.8 2.5 0.75
NZ200-1R5G-4 1.5 5 3.7 1.5
NZ200-2R2G-4 2.2 5.8 5 2.2
NZ200-3R7G/5R5P-4 3.7 10.7 9 3.7
NZ200-5R5G/7R5P-4 5.5 14.6 13 5.5
NZ200-7R5G/11P-4 7.5 20 17 7.5
NZ200-11G/15P-4 11 26 25 11
NZ200-15G/18.5P-4 15 35 32 15
NZ200-18.5G/22P-4 18.5 38 37 18.5
NZ200-22G/30P-4 22 46 45 22
NZ200-30G/37P-4 30 62 60 30
NZ200-37G/45P-4 37 76 75 37
NZ200-45G/55P-4 45 92 90 45
NZ200-55G/75P-4 55 113 110 55
NZ200-75G/90P-4 75 157 150 75
NZ200-90G/110P-4 90 180 176 90





Product Application:

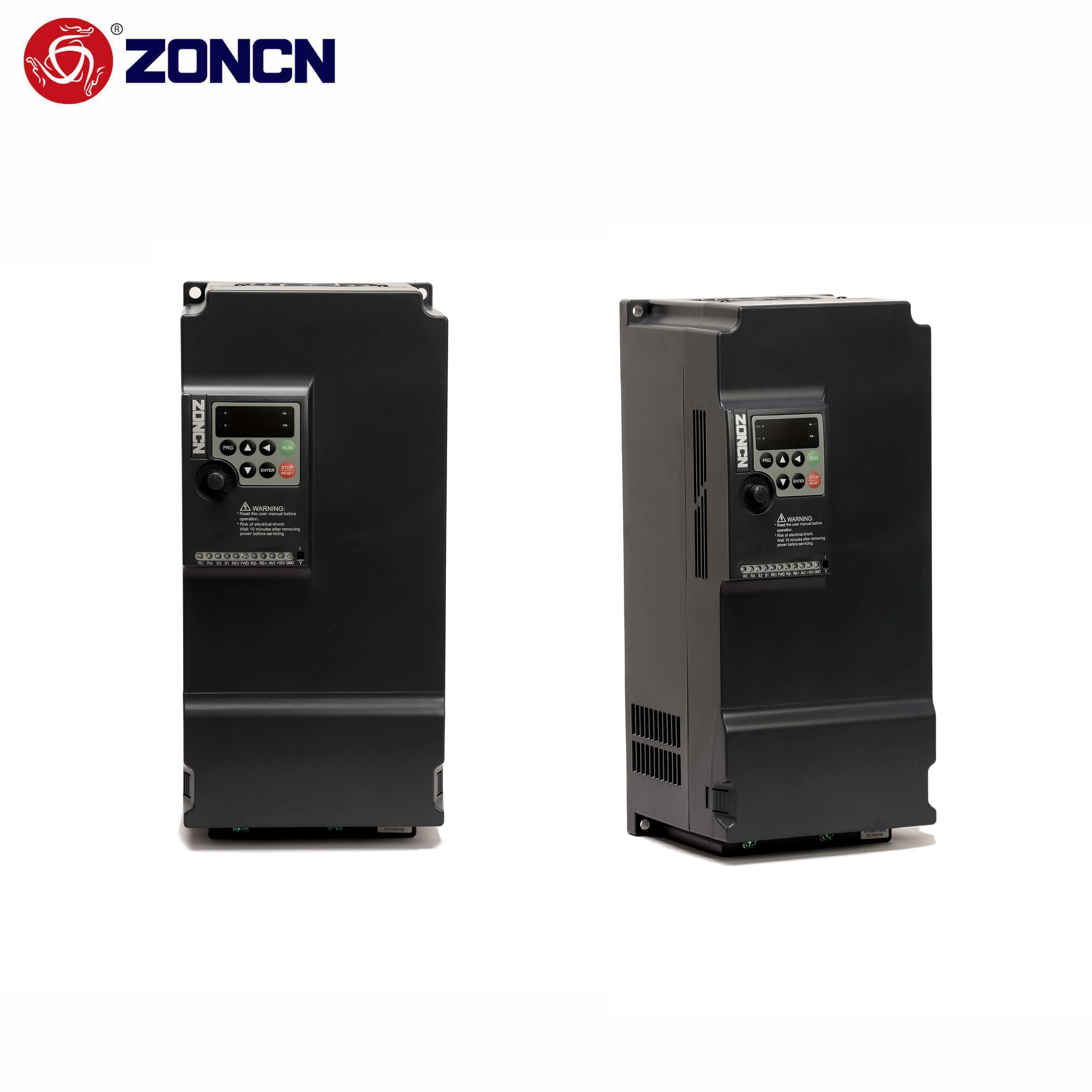

NZ200-18G/22P-4 18.5kw 380v Variador Vfd Ac Drives Low Voltage Inverter Zoncn 0

ZONCN NZ200 series inverter is a series of compressors, air conditioning fans, water pumps, fountain systems and other industrial fields are widely used and excellent performance products.



First of all, the NZ200 series drives have demonstrated excellent performance in the field of compressors. It adopts advanced frequency conversion control technology, which can precisely adjust the operating frequency and voltage according to the actual load demand, so as to achieve the effect of energy saving and consumption reduction. Whether it is an industrial compressor or an air compressor, the NZ200 series drives provide stable and reliable control and regulation functions to improve the efficiency and reliability of equipment operation.



Secondly, the NZ200 series inverter also performs well in the field of air conditioning fans. It can be intelligently adjusted according to indoor temperature and humidity parameters to achieve accurate temperature and moisture control functions. Whether it is a large commercial building or a home air conditioning system, the NZ200 series drives provide stable air conditioning results, save energy consumption and improve comfort.



In addition, the NZ200 series inverter is also widely used in water pump and fountain systems. It can be precisely adjusted according to water flow requirements, enabling energy efficient operation and water flow control. Whether it is an industrial pump or a landscape fountain system, the NZ200 series drives provide reliable control and regulation to meet different water flow requirements and improve the efficiency and reliability of pump and fountain systems.



In short, the ZONCN NZ200 series inverter has excellent applications in various industrial fields such as compressors, air conditioning fans, water pumps, and fountain systems. Its advanced frequency conversion control technology and reliable performance make it the first choice in the field of industrial equipment control. Whether in terms of energy saving, improving equipment efficiency or achieving precise control, the NZ200 series inverter can play an excellent role in bringing greater benefits and convenience to industrial production and equipment operation.



FAQ:

1:What is your MOQ?
1 PC.



2:What is terms of payment?
T/T 100% before delivery.



3:What is your delivery time?
Fast delivery is our advantage. Usually within ten days.



4:How can we do OEM/ODM?
We do OEM for more than 40 brands. If your order reaches a certain quantity, we can do it for you.
