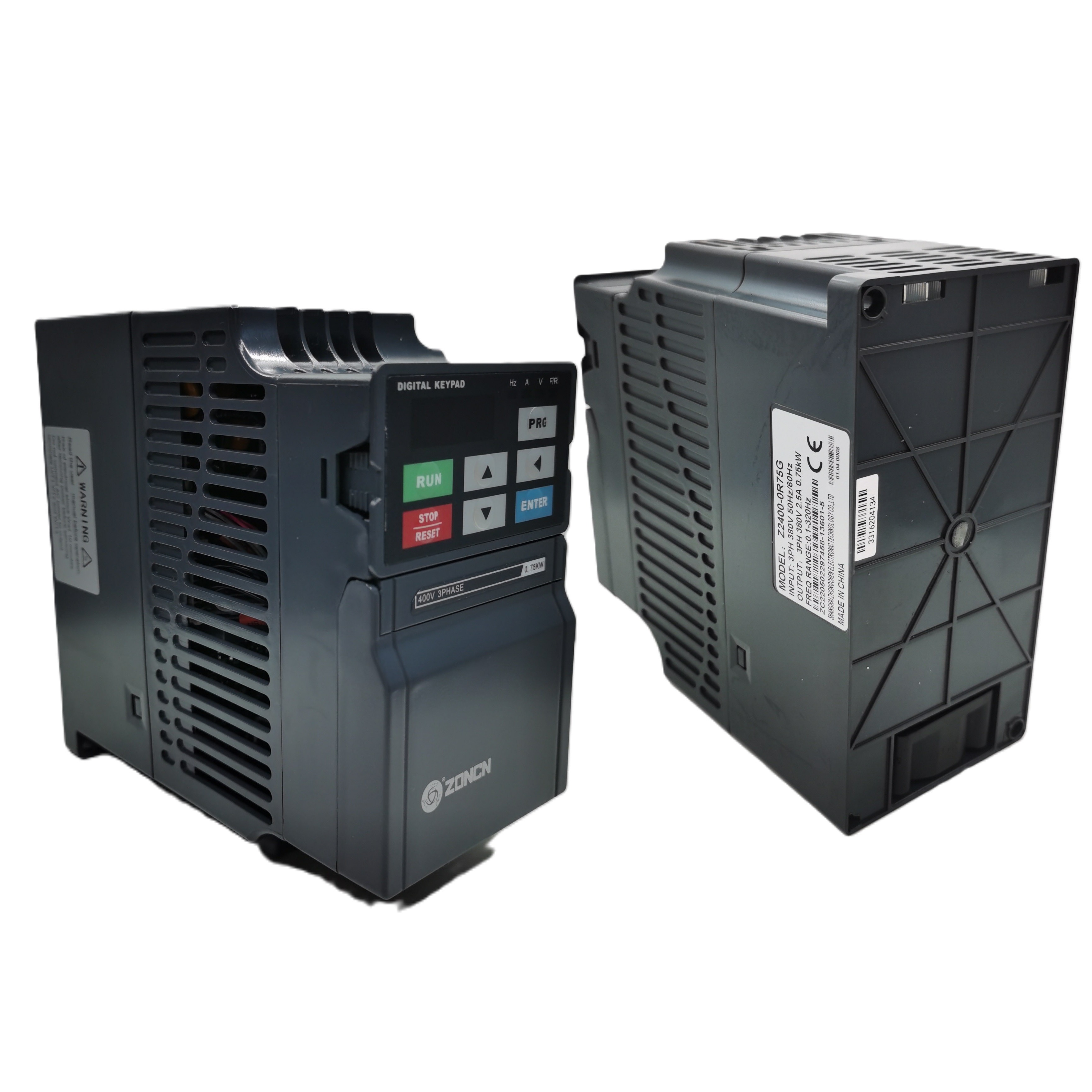

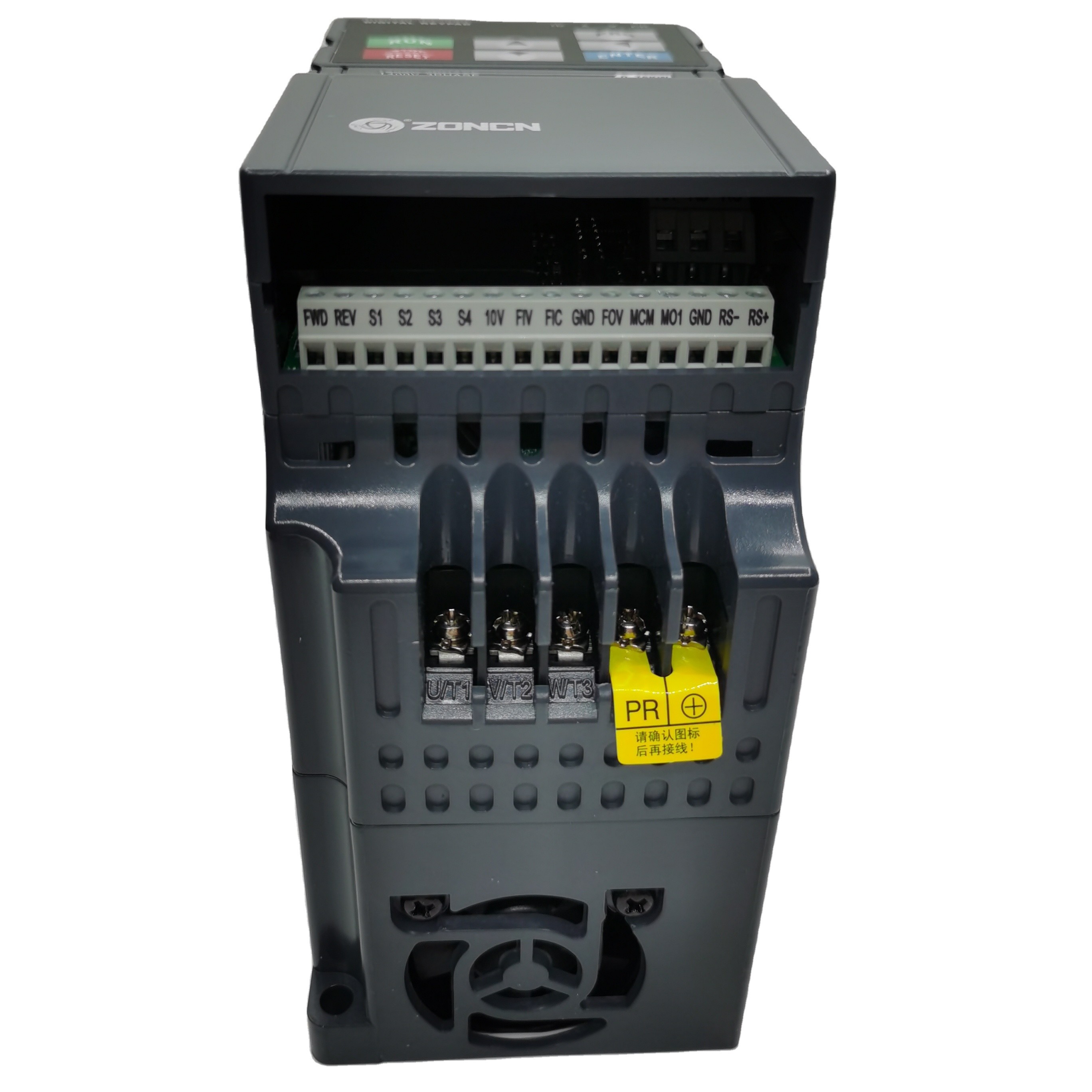

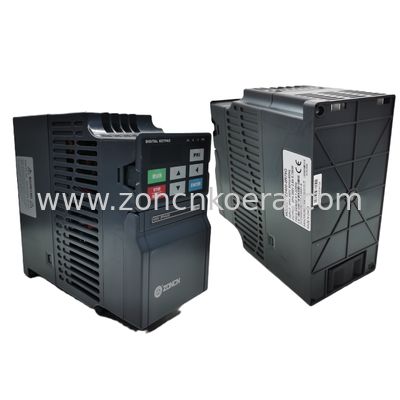

1hp 2hp 3hp 5hp Variable Frequency Drive 380v AC Drives For Motor

1hp 2hp 3hp 5hp Variable Frequency Drive 380v AC Drives For Motor
1hp 2hp 3hp 5hp Variable Frequency Drive 380v AC Drives For Motor
1hp 2hp 3hp 5hp Variable Frequency Drive 380v AC Drives For Motor 1hp 2hp 3hp 5hp Variable Frequency Drive 380v AC Drives For Motor 1hp 2hp 3hp 5hp Variable Frequency Drive 380v AC Drives For Motor 1hp 2hp 3hp 5hp Variable Frequency Drive 380v AC Drives For Motor 1hp 2hp 3hp 5hp Variable Frequency Drive 380v AC Drives For Motor 1hp 2hp 3hp 5hp Variable Frequency Drive 380v AC Drives For Motor 1hp 2hp 3hp 5hp Variable Frequency Drive 380v AC Drives For Motor
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: Z2400-0R75G
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: AC Inverters Brand: ZONCN
Model: Z2200-0R75G; Z2400-0R75G Voltage: 220V; 380V
Power: 0.75kw Certificate: CE,KC
OEM: Yes Communication: RS485
Highlight:

5hp Variable Frequency Drive

,

3hp Variable Frequency Drive

,

2hp Variable Frequency Drive





ZONCN Z2000 Series General Purpose Vector Control Inverter





1hp 2hp 3hp 5hp Variable Frequency Drive 380v AC Drives For Motor 0

Product description

Item Z2000
Standard Function Control mode Senseless flux vector control(SFVC) ; Voltage/Frequency (V/F) control
Maximum frequency Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency 1-16kHz ; The carrier frequency is automatically adjusted based on the load features
Input frequency solution Digital setting: 0.01Hz ; Analog setting: maximum frequency x 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ; P type: 0.5Hz/100%
Speed range 1:100
Speed stability accuracy ±0.5%
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost ; Customized boost 0.1%-30.0%
V/F curve Line V/F curve; Multi-point V/F curve; N-power V/F curve
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp ; S-curve ramp ; Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking DC braking frequency : 0.0Hz to maximum frequency Braking time: 0.0~100.0s Braking action current value: 0.0%~100.0%
JOG control JOG frequency range: 0.00~50.00Hz JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of X terminal states.
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage changes.
Auto voltage/ Over current stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive
Torque limit and control It can keep constant output voltage automatically when the mains voltage changes

Specification

Specification
Model Rated Output Power(kW) Rated Input Current(A) Rated Output Current(A) Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G 0.4 5.4 2.5 0.4
Z2200-0R75G 0.75 7.2 5 0.75
Z2200-1R5G 1.5 10 7 1.5
Z2200-2R2G 2.2 16 11 2.2
Z2200-3R7G 3.7 23 16.5 3.7
Z2200-5R5G 5.5 21 25 5.5
Z2200-7R5G 7.5 31 32 7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G 0.75 3.8 2.5 0.75
Z2400-1R5G 1.5 5 3.7 1.5
Z2400-2R2G 2.2 5.8 5 2.2
Z2400-3R7G/5R5P 3.7/5.5 10/15.0 9/13 3.7/5.5
Z2400-5R5G 5.5 15 13 5.5
Z2400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
Z2400-11G/15P 11/15 26/35 25/32 11/15
Z2400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
Z2400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
Z2400-22G/30P 22/30 46/62 45/60 22/30
Z2400-30G/37P 30/37 62/76 60/75 30/37
Z2400-37G/45P 37/45 76/90 75/90 37/45
Z2400-45G/55P 45/55 90/105 90/110 45/55
Z2400-55G 55 105 110 55
Z2400-75G/90P 75/90 140/160 150/176 75/90
Z2400-90G/110P 90/110 160/210 176/210 90/110
Z2400-110G/132P 110/132 210/240 210/253 110/132
Z2400-132G/160P 132/160 240/290 253/300 132/160
Z2400-160G/185P 160/185 290/330 300/340 160/185
Z2400-185G/200P 185/200 330/370 340/380 185/200
Z2400-200G/220P 200/220 370/410 380/420 200/220
… 　 　 　 　





Nameplate Description

1hp 2hp 3hp 5hp Variable Frequency Drive 380v AC Drives For Motor 1

Company Introduction

1hp 2hp 3hp 5hp Variable Frequency Drive 380v AC Drives For Motor 2



Wuhu ZONCN is a professional manufacturer specializing in the production of inverters and servo products for 19 years. Our headquarters is in Shanghai, with factories located in both Shanghai and Wuhu, covering a total factory area of over 100,000 square meters. We have 6 main series of inverters, NZ100, NZ200, Z2000, Z8000, T9000, and Z5000-BF (IP65/IP54 protection), which can meet customers' various application requirements. We also have specific purpose inverters, for example, automatic door, injection machine, air compressor, etc.

Now our products are exported to more than 50 countries in Europe, Africa, Asia and America, etc. And we have produced for lots of OEM brands too.

ZONCN will always warmly welcome you to join us to work as partners together.



Exhibition

1hp 2hp 3hp 5hp Variable Frequency Drive 380v AC Drives For Motor 3





FAQ

Q1. What is your MOQ?

A: 1 PC.

Q2. What is the input voltage you can do?
A: Single phase 220v; 3 phase 220v; 3 phase 380V/440V/480V/690V

Q3. What is the power range you can do ?
A: We can prodduce from 0.4 kw to 1000 kw.

Q4. What is your terms of payment?
A: 100% in advance by T/T or Paypal, Trade Assurance, etc.

Q5. What is your lead time?
A: Normally, within15 days after receiving payment. If we have stock, we can deliver to you at once after payment.

Q6. What is your warranty period?
A. 18 months after delivery from factory.

Q7. How about the shipping?
A. We can deliver to you by Sea/by Air. Or door to door by UPS/Fedex Express etc.

Q8. Can you produce for OEM brand?
A. No problem.
