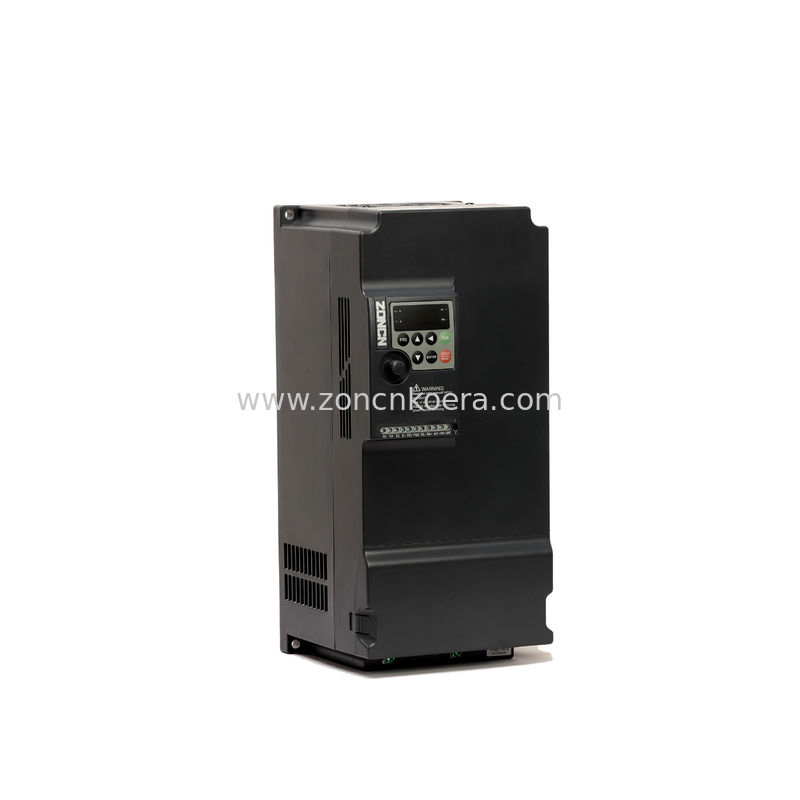

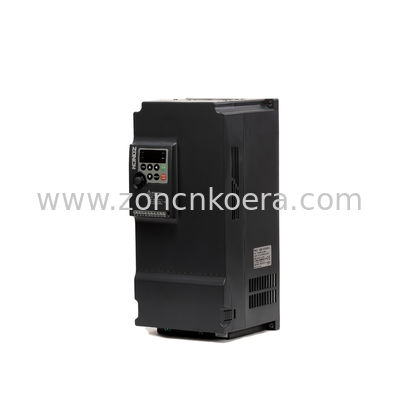

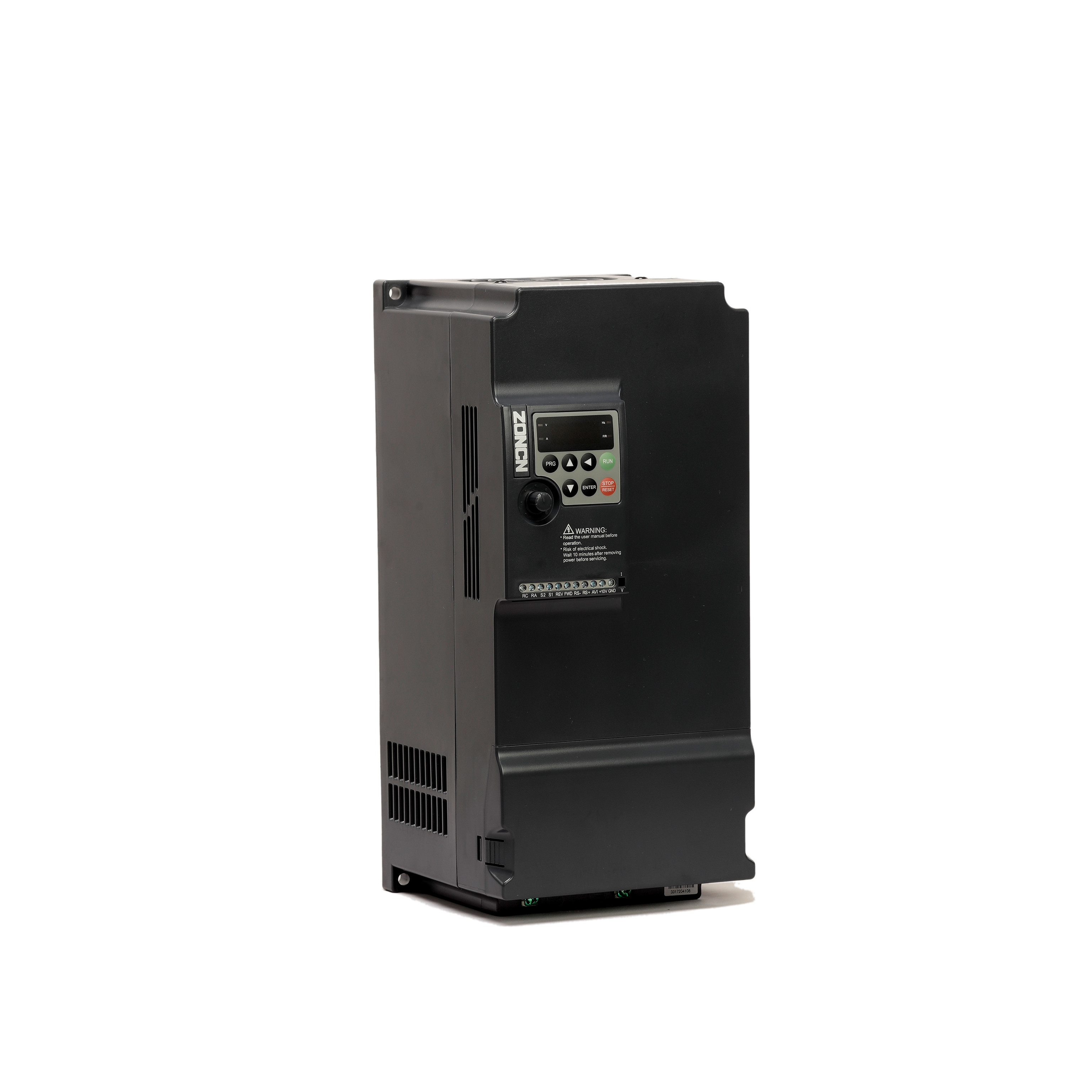

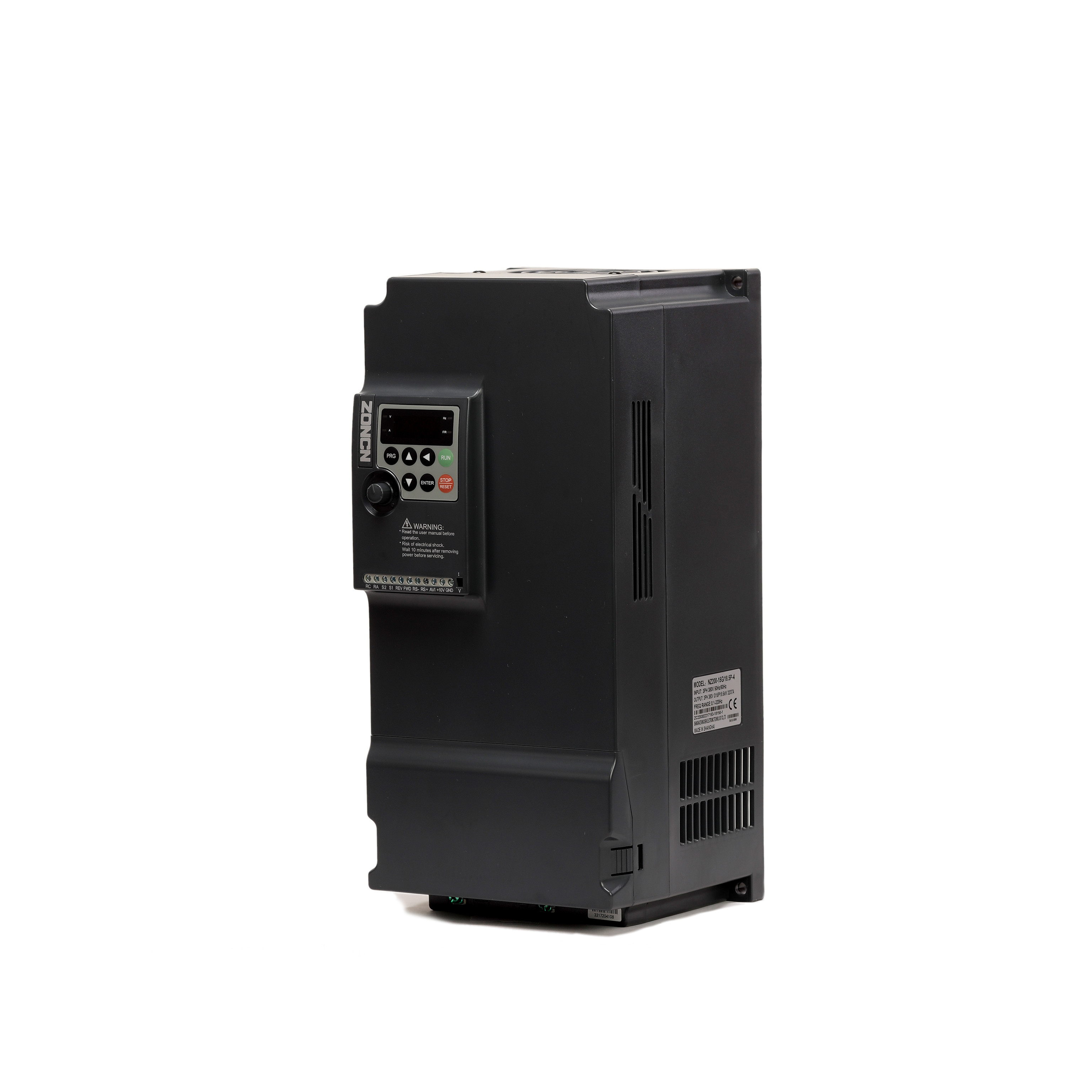

18.5kw Variable Frequency Drive Inverter VFD 380v ZONCN Inverter 25HP



15kw Frequency Inverter 380v Ac Drives 50hz 60hz Vector Control Inverter

ZONCN NZ200 Series Econonic Vector control inverter







Nameplate Description

Specification

Model	Input Voltage (V)	Rated output power ( KW)	Rated input current(A)	Rated output current (A)	Motor power ( KW)
NZ200-0R4G-2	1PH 220V±15%	0.4	5.4	2.5	0.4
NZ200-0R75G-2		0.75	7.2	5	0.75
NZ200-1R5G-2		1.5	10	7	1.5
NZ200-2R2G-2		2.2	16	11	2.2
NZ200-3R7G-2		3.7	17	16.5	3.7
NZ200-0R4G-4	3PH 380V±15%	0.4	3.4	1.2	0.4
NZ200-0R75G-4		0.75	3.8	2.5	0.75
NZ200-1R5G-4		1.5	5	3.7	1.5
NZ200-2R2G-4		2.2	5.8	5	2.2
NZ200-3R7G/5R5P-4		3.7	10.7	9	3.7
NZ200-5R5G/75R5P-4		5.5	14.6	13	5.5
NZ200-7R5G/11P-4		7.5	20	17	7.5
NZ200-11G/15P-4		11	26	25	11
NZ200-15G/18.5P-4		15	35	32	15
NZ200-18.5G/22P-4		18.5	38	37	18.5
NZ200-22G/30P-4		22	46	45	22
NZ200-30G/37P-4		30	62	60	30
NZ200-37G/45P-4		37	76	75	37
NZ200-45G/55P-4		45	90	90	45
NZ200-55G-4		55	105	110	55
NZ200-75G/90P-4		75	140	150	75
NZ200-90G/110P-4		90	160	176	90
NZ200-110G/132P-4		110	210	210	110
NZ200-132G/160P-4		132	240	253	132
...		...	...	...	...
NZ200-450G/500P-4		450	790	790	450





Dimension



A. 0.4kw-37kw







B. 45kw-450kw

Packing

Workshop



Wuhu ZONCN is a professional manufacturer specializing in the production of inverters and servo products. With a rich experience of 19 years, ZONCN offers a wide range of product series including NZ100, NZ200, Z2000, Z8000, T9000, and Z5000-BF (IP65/IP54 protection). Our headquartered is in Shanghai, with factories located in both Shanghai and Wuhu city, covering a total factory area of over 100,000 square meters.

ZONCN inverters are widely used in textile, CNC machine, food package, injection machine, fan, pump, water treatment, industrial washing machine and many ther industrial applications.

ZONCN has many agents at abroad. Now our products are exported to more than 50 countries in Europe, Africa, Asia and America, etc. ZONCN will always warmly welcome you to join us to work as partners together.



Exhibition





Recommend Series







FAQ

Q1: What is your minimum order quantity (MOQ)?

A: 1 unit.

Q2: Where are your factories located?

A: Our factories are located in Shanghai and Wuhu.

Q3: What is the warranty period for your products?

A: 18 months after delivery.

Q4: Can you produce for OEM brand?

A: We have many experience for producing OEM brands.

Q5: How long is your lead time?

A: Normally, within 15 days after receiving payment.

Q6: What are your payment terms?

A: 100% T/T in advance.

Q7: Do your products have CE certification?

A: Yes, all our inverters have CE.
