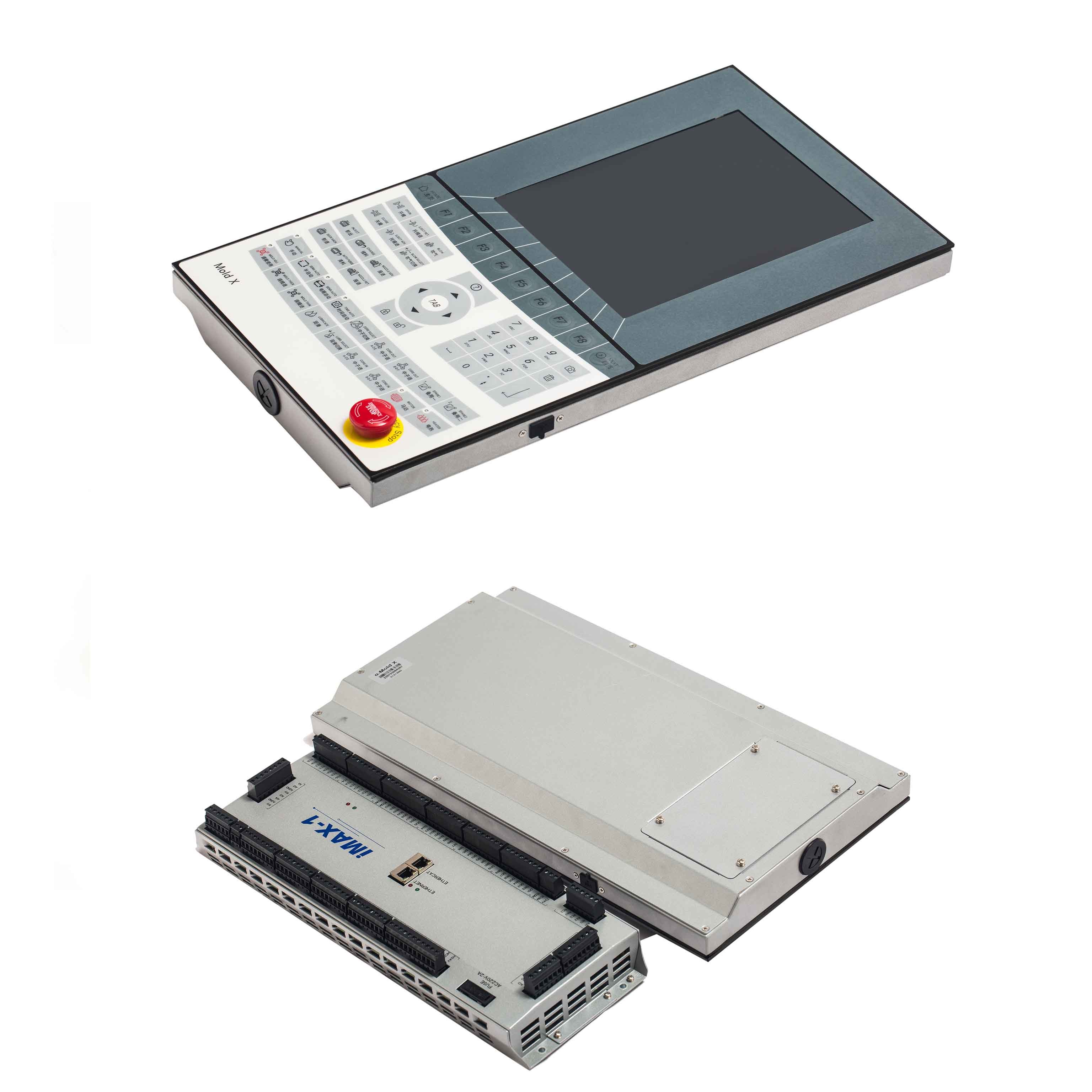

256M DDR3 Hmi Operator Panel 10 Inch Metal Housing 16G Capacity

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	ZONCN
Certification:	CE
Model Number:	IMAX-1

Minimum Order Quantity:	1 units
Price:	Price subject to negotiation
Packaging Details:	Carton Packing
Delivery Time:	7-30 work days
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	100000 units per unit

Get Best Price Contact Now

Display Specification:	8inches And 10inches	OS:	Linux OS
Material:	Metal	Warranty:	18 Months
TF Card:	16G Capacity	Closed Loop Control:	Yes
ODM Service:	Yes
Highlight:	256M DDR3 Hmi Operator Panel , Hmi Operator Panel 10 Inch

Others Injection Molding Machine Controller 10 Inch Metal Housing

Product Introduction HMI:

Product advantage:

1)Product UI is beautiful and generous, picture quality is very good, resolution is very good, multi-language support

2)The key partition is clear and the operation is very convenient

3)The communication rate is extremely fast

Item	Specification
Display specification	8 inches(800600)10 inches(800600)
Overall dimension	8 inches(47026050)10 inches(47029050)
Kernel processor	ARM Cortex-A8 kernel
Internal storage	256M DDR3
Flash	256M NANDFLASH
TF card	16G
Communication interface	100M Ethernet RJ45 port 1 Standard RS232 serial port 1 Dedicated CAN interface 1 USB Host 2.0 port 1 USB*1
OS	Linux OS
Program maintenance	Usb flash drive online upgrade

Product introduction DSP:

Product advantage:

1)The control cycle is 250US for faster speed, greater accuracy and greater stability

2)Multi-core control, rich hardware resources, to meet all injection molding machine configuration requirements

3)Hardware resources can be configured and valves can be programmed

4)Action synchronous control, closed-loop control

Item	Specification
Size	36614345.5
Kernel processor	Cortex-M4+Microsemi FPGA
IO input	24
IO output	28
Relay output	5
Temperature acquisition	6
Electrothermal control	5
Analog acquisition	4
Input resolution	16 Bit
Proportional valve output	3 channel(0-800mA) 2 channel(0-10V)
Output resolution	12 bit
Communication	1 channel RS232,1 channel RS485,1 channel CAN
Extensibility	Support remote modules (IO,AO,DA,TC)

Injection molding machine system solution topology:

256M DDR3 Hmi Operator Panel 10 Inch Metal Housing 16G Capacity 0

About ZONCN:

256M DDR3 Hmi Operator Panel 10 Inch Metal Housing 16G Capacity 1

The company was founded in 2006.
Headquartered in Shanghai, China, there are branches in Maanshan, Anhui and Wuhu, Anhui, among which Wuhu Company is responsible for international trade business. A total of four large plants are expected to come on stream by mid-2024.
The registered capital is $20 million.
There are about 1000 employees.
The annual output of inverter is more than 900,000 units.
All products through the EU CE certification.
In addition to the development of inverter, the company also focuses on the development of HMI, PLC, servo system, medium voltage inverter, high voltage inverter, a variety of special industries of professional inverter, the company has a strong strength in the field of inverter in China.
The company was listed on the main board of the Shanghai Stock Exchange in 2023. Stock code 603275.

FAQ:

1,What is your MOQ?
1 PC.

2,What is terms of payment?
T/T 100% before delivery.

3,What is your delivery time?
Fast delivery is our advantage. Usually within ten days.

4,How can we do OEM/ODM?
We do OEM for more than 40 brands. If your order reaches a certain quantity, we can do it for you.
