380v 22kw 3 Phase Variable Frequency Drive Sensorless Vector Control

380v 22kw 3 Phase Variable Frequency Drive Sensorless Vector Control
380v 22kw 3 Phase Variable Frequency Drive Sensorless Vector Control

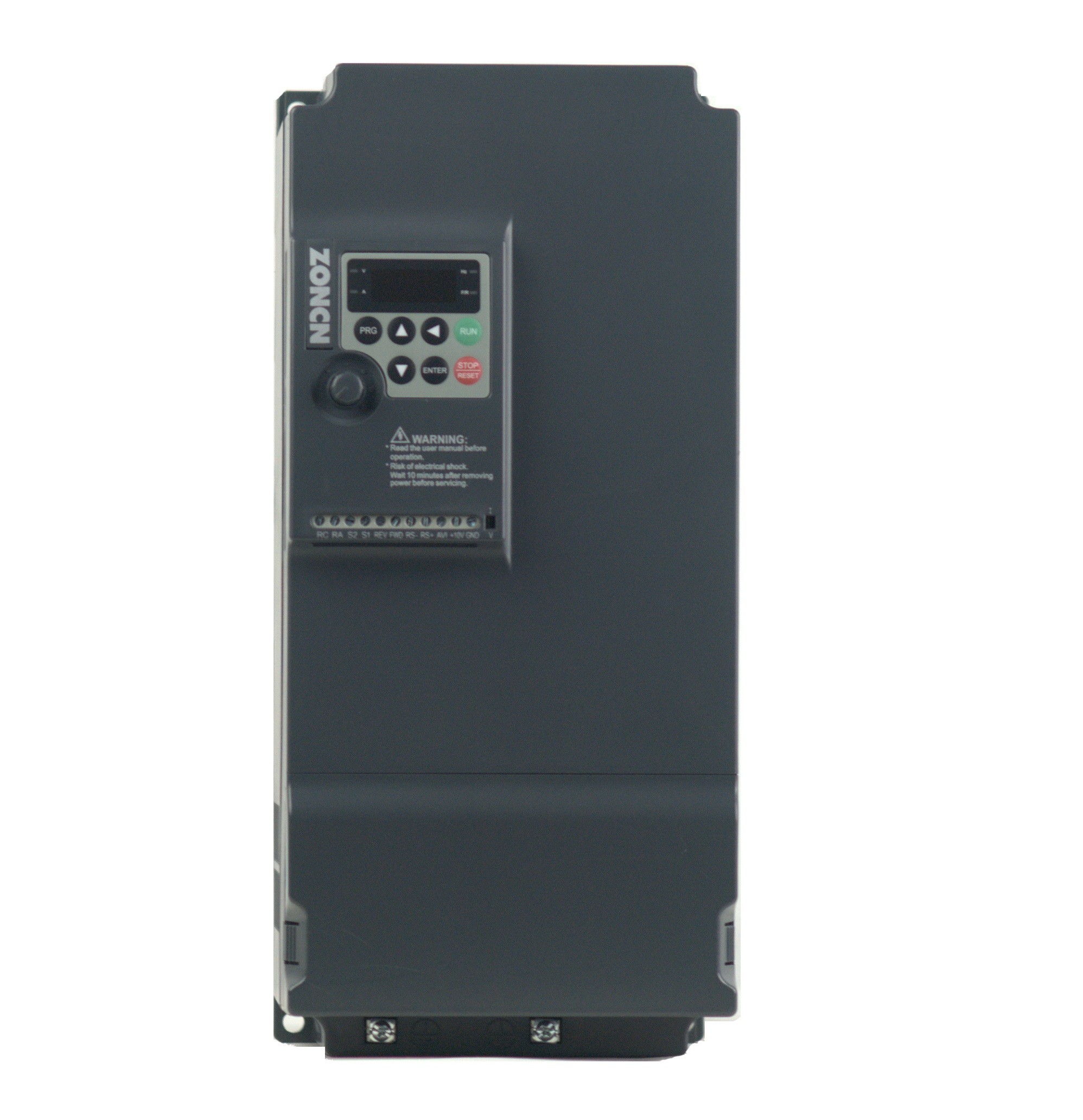

380v 22kw 3 Phase Variable Frequency Drive Sensorless Vector Control 380v 22kw 3 Phase Variable Frequency Drive Sensorless Vector Control 380v 22kw 3 Phase Variable Frequency Drive Sensorless Vector Control 380v 22kw 3 Phase Variable Frequency Drive Sensorless Vector Control
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: CE
Model Number: NZ200 series
Minimum Order Quantity: 1 unit
Packaging Details: Carton packing；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Model: NZ200 Series Inverter Product Name: Frequency Inverter
Name: VFD Inverter ZONCN Protection: IP20 Level Protection
Control Mode: Sensorless Vector Control Voltage: 380v In And Out
Phase: 3ph In And 3ph Out Removable Panel: Optional For Less Than 45kW
0.1S Acceleration/deceleration: Yes
Highlight:

22kw 3 Phase Variable Frequency Drive

,

380v 3 Phase Variable Frequency Drive

,

frequency drive inverter Vector Control

Low Frequency 380v Voltage 22kw Vfd Inverter For Motor Control ZONCN NZ200

ZONCN NZ200 380V Frequency Inverter VFD 22KW





Product Brief Introduction:

The NZ200 series inverter is a high-performing and user-friendly device that is well-known for its simple design, easy installation, and cost-effectiveness. It offers both open-loop vector control and VF control, providing excellent overload capacity and ensuring smooth motor operation even under heavy loads with its strong torque output. It includes features such as instant stop and rapid current regulation, reducing the likelihood of inverter malfunctions. Additionally, it incorporates various protective functions like overheating and overvoltage protection, ensuring system safety and reliability. In summary, the NZ200 series inverter is a reliable and efficient solution that meets the needs of a wide range of applications.





NZ200 Technical Specification:

Item ZONCN NZ200 Series
Control Mode

Sensorless flux vector control(SFVC)

Voltage/Frequency (V/F) Control
Maximum frequency Vector control:0-320Hz V/F control:0-3200Hz
Carrier frequency

1kHz~16kHz

The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution

Digital setting:0.01Hz

Analog setting: Maximum frequency 0.025%
Start torque

G: Type:0.5Hz/150%(SVC)

P: Type:0.5Hz/100%
Speed range 1:100(SVC)
Speed stability accuracy ±0.5%(SVC)
Overload capacity

G Type:60s for 150% of the rated current, 3s for 180% of the rated current.

P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto-boost ; Customized boost:0.1%~30.0%
VF curve Straight-line VF curve; Multi-point VF curve; N-power VF curve(1.2-power,1.4-power,1.6-power,1.8-power, 2-power)
VF separation 2 types: complete separation；half separation
Ramp Mode Straight-line ramp；S-curve ramp；Four groups of acceleration/deceleration time:0~6500.0s
Simple PLC, Multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of terminal states
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage changes
Rapid current limit It helps to avoid frequent over current faults of the AC drive.
Torque limit and control It can limit the torque automatically and prevent frequent over-current tripping during the running process.
Onboard PID It realizes process-controlled closed loop control system easily
Rapid current limit It helps to avoid frequent over current faults of the AC drive.
JOG control

JOG frequency range: 0.00–50.00 Hz

JOG acceleration/deceleration time: 0.0–6500.0s
DC braking DC braking frequency:0.00Hz to maximum frequency Braking time:0.0-100.0s Braking action current value:0.0%-100.0%
Instantaneous blackout doesn’t stop The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
Timing control Timing range:0.0Min~6500.0Min
Communication RS485
Run instruction channel Keyboard given, control terminal given, serial communication port given. It can be switched in a variety of ways.
Frequency source 10 kinds: digital given, analog voltage given, analog current given, pulse given, serial port given. It can be switched in a variety of ways.
Auxiliary frequency source 10 auxiliary frequency sources. It can flexibly realize auxiliary frequency fine-tuning and frequency synthesis.
Input terminals

6 digital input terminals, one of which supports up to 100 kHz high-speed pulse input (S3 optional).

2 analog input terminal, one of which only supports 0-10v voltage input(FIV) and the other supports 0-10 voltage input or 4-20 mA current input(FIC).
Output terminals

1 digital output terminal(MO1) 1 relay output terminal(RA,RB,RC)

1 analog output terminal :that supports 0-20 mA current output or 0-10v voltage output(FOV)
Remark X terminal is NPN type by default. If PNP type is required, contact customer service for customization.
LED display Not removable. More than 45kw is acceptable.
Keystroke locking and function selection Realize partial or full lock of keys, and define the scope of action of some keys to prevent false touch
Multiple protection modes Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.



Model Description:

Model Rated output power (kW) Rated input current (A) Rated output current (A) Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
NZ200-0R4G-2 0.4 5.4 2.5 0.4
NZ200-0R75G-2 0.75 7.2 5 0.75
NZ200-1R5G-2 1.5 10 7 1.5
NZ200-2R2G-2 2.2 16 11 2.2
NZ200-3R7G-2 3.7 17 16.5 3.7
Input voltage(v):3PH AC 380V±15%
NZ200-0R4G-4 0.4 3.4 1.2 0.4
NZ200-0R75G-4 0.75 3.8 2.5 0.75
NZ200-1R5G-4 1.5 5 3.7 1.5
NZ200-2R2G-4 2.2 5.8 5 2.2
NZ200-3R7G/5R5P-4 3.7 10.7 9 3.7
NZ200-5R5G/7R5P-4 5.5 14.6 13 5.5
NZ200-7R5G/11P-4 7.5 20 17 7.5
NZ200-11G/15P-4 11 26 25 11
NZ200-15G/18.5P-4 15 35 32 15
NZ200-18.5G/22P-4 18.5 38 37 18.5
NZ200-22G/30P-4 22 46 45 22
NZ200-30G/37P-4 30 62 60 30
NZ200-37G/45P-4 37 76 75 37
NZ200-45G/55P-4 45 92 90 45
NZ200-55G/75P-4 55 113 110 55
NZ200-75G/90P-4 75 157 150 75
NZ200-90G/110P-4 90 180 176 90





About our company:

  • The company was established in 2006.
  • With its headquarters in Shanghai, China, the company has branches in Maanshan, Anhui and Wuhu, Anhui. The Wuhu branch handles international trade operations. By mid-2024, a total of four large plants are expected to be operational.
  • The registered capital amounts to $20 million.
  • The company has approximately 1000 employees.
  • The annual production of inverters exceeds 900,000 units.
  • All products have obtained EU CE certification.
  • In addition to inverter development, the company also focuses on the advancement of HMI, PLC, servo systems, medium voltage inverters, high voltage inverters, and various specialized inverters for specific industries. The company possesses a strong presence in the Chinese inverter industry.
  • In 2023, the company was listed on the main board of the Shanghai Stock Exchange under the stock code 603275.





FAQ:

1:What is your MOQ?
1 PC.



2:What is terms of payment?
T/T 100% before delivery.



3:What is your delivery time?
Fast delivery is our advantage. Usually within ten days.



4:How can we do OEM/ODM?
We do OEM for more than 40 brands. If your order reaches a certain quantity, we can do it for you.
