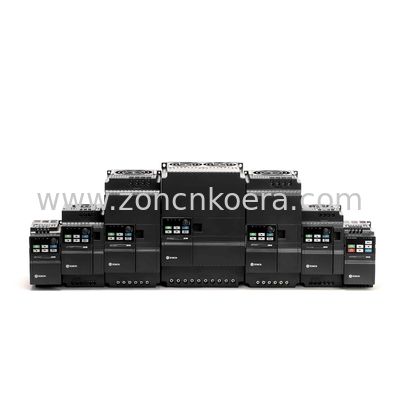

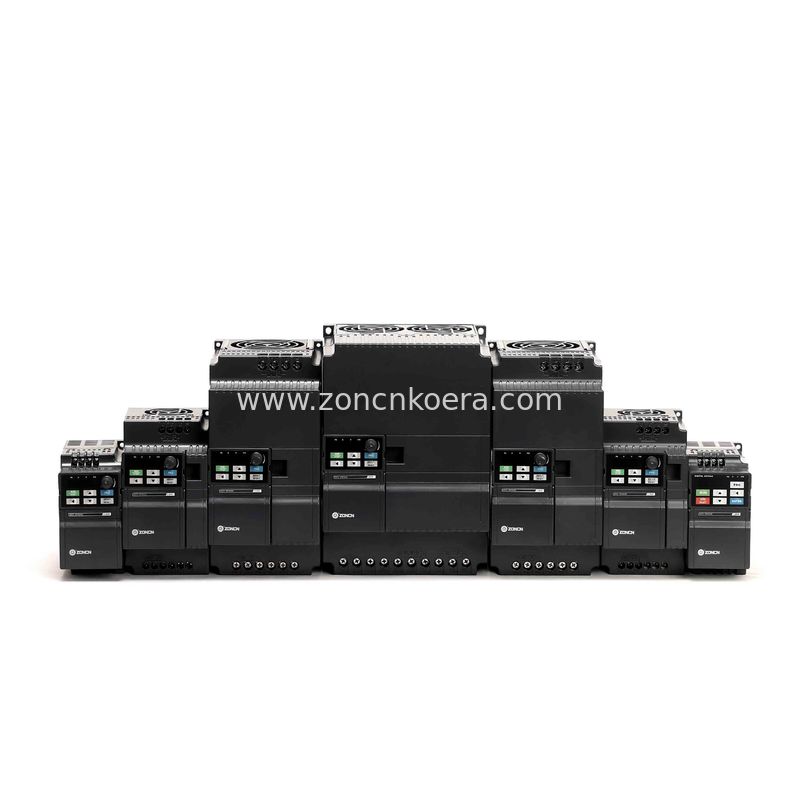

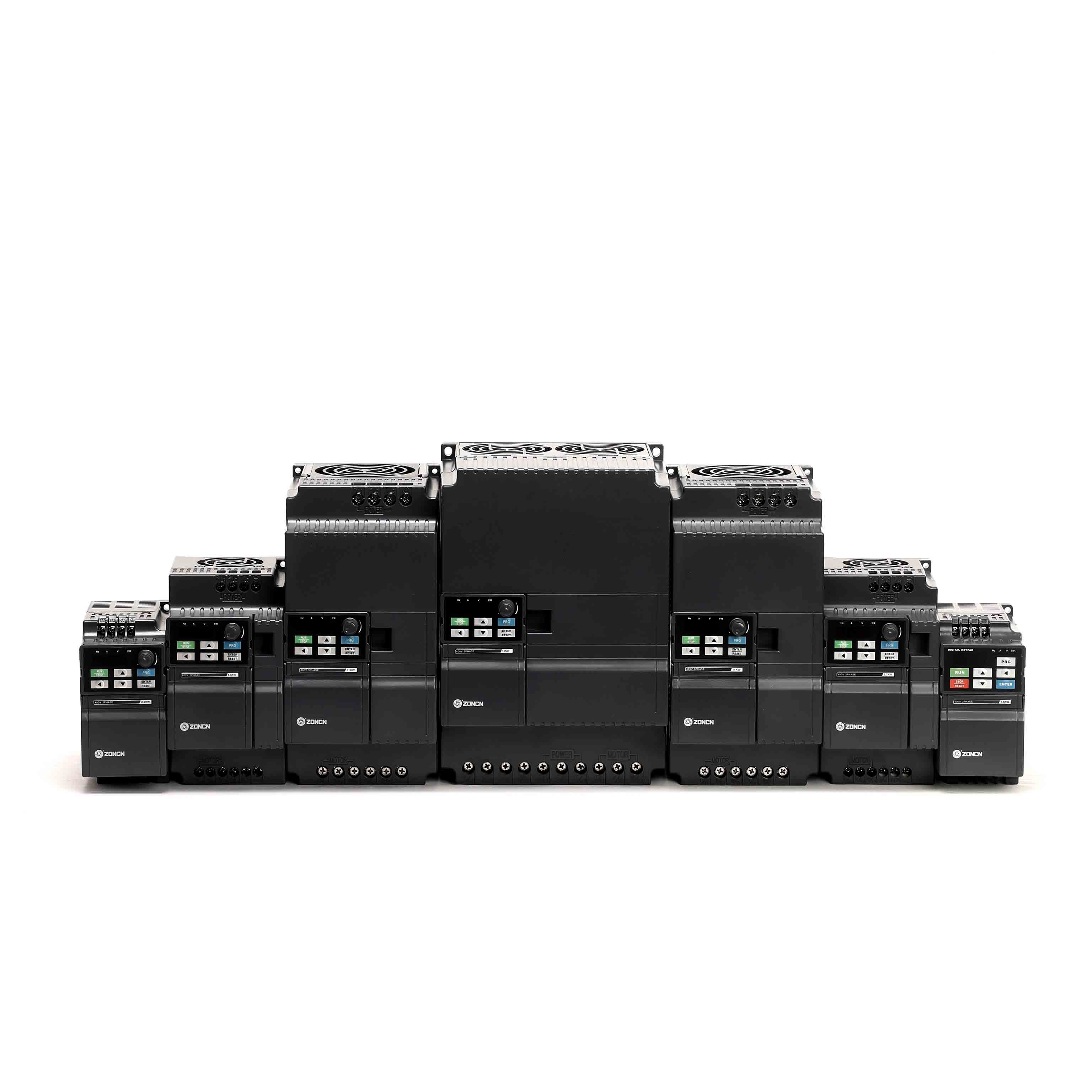

ZONCN Z2000 Low Voltage Vfd Optional Inclusion Built In EMC Filter

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	ZONCN
Certification:	Eu CE certification
Model Number:	Z2000 series

Minimum Order Quantity:	1 unit
Packaging Details:	Carton packing；
Delivery Time:	7-30 work days
Payment Terms:	T/T, Western Union，Paypal
Supply Ability:	100000 units a month

Get Best Price Contact Now

Power:	450kw Maximum	Speed Range:	1:100(SVC)
Voltage:	380V±15%；220V±15%	Maximum Frequency:	Vector Control：0-320Hz V/F Control：0-3200Hz
Warranty:	18 Months	IGBT/ Single Tube:	Yes
Type:	AC Drive	Weight:	Depend
Highlight:	ZONCN Z2000 Low Voltage Vfd , Low Voltage Vfd EMC Filter

ZONCN Z2000 Series Low Voltage 220v 380v Vfd Inverters Variador De Frecuencia

ZONCN Z2000 Frequency Inverter AC Drives Vfd

Basic product introduction:

· Senseless flux vector control(VC)V/F(Voltage/Frequency)control

· The overload capacity allows for 60 seconds at 150% of the rated current and 3 seconds at 180% of the rated current.

· Ten auxiliary frequency sources are available.

· It enables precise adjustment of the auxiliary frequency and frequency synthesis.

· Supports PM motor (Z2000T series)

· Optional inclusion of built-in EMC filter;

· Power range: 110V/220V/380V/415V/440V/480V, ranging from 0.4kW to 450kW.

Technical Specification:

ZONCN Z2000 Low Voltage Vfd Optional Inclusion Built In EMC Filter 0

Product configuration Z2000:

Close loop vector control	No
Built-in braking unit	Yes,below 37kw (include 37kw). Optional for more than 45KW
VF+Vector control	Yes
High speed pulse output	Yes
Movable digital keypad	Yes
AI	2
AO	1
DI	6
DO	Standard 1,optional 2
Relay output	Standard 1,over 30kw optional 2
DC braking	Yes
Collector	1
24V power supply	Below 30kw optional,30kw and above support
EMC filter	Optional
0.1S acceleration/deceleration	Yes
Simple PLC	Yes
All kinds of protection	Support
PID	Yes
DC choke	30kw—220kw optional,250kw and above all have
DC bus +,- terminals	Yes
STO function	No
Communication	RS485
Certificate	KC+CE
Warranty	18 months

Product wiring diagram:

ZONCN Z2000 Low Voltage Vfd Optional Inclusion Built In EMC Filter 1

Product specification:

ZONCN Z2000 Low Voltage Vfd Optional Inclusion Built In EMC Filter 2

About our company:

ZONCN Z2000 Low Voltage Vfd Optional Inclusion Built In EMC Filter 3

The company was founded in 2006.
Headquartered in Shanghai, China, there are branches in Maanshan, Anhui and Wuhu, Anhui, among which Wuhu Company is responsible for international trade business. A total of four large plants are expected to come on stream by mid-2024.
The registered capital is $20 million.
There are about 1000 employees.
The annual output of inverter is more than 900,000 units.
All products through the EU CE certification.
In addition to the development of inverter, the company also focuses on the development of HMI, PLC, servo system, medium voltage inverter, high voltage inverter, a variety of special industries of professional inverter, the company has a strong strength in the field of inverter in China.
The company was listed on the main board of the Shanghai Stock Exchange in 2023. Stock code 603275.

FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
