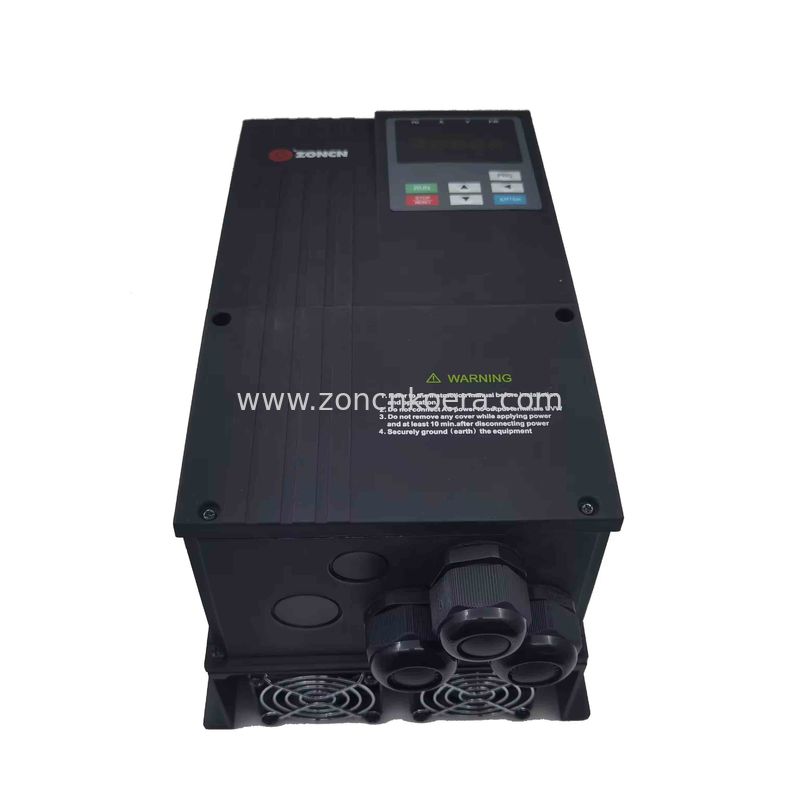

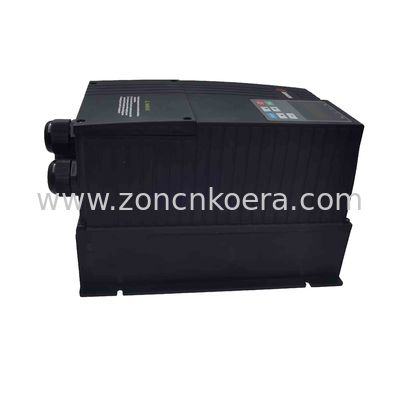

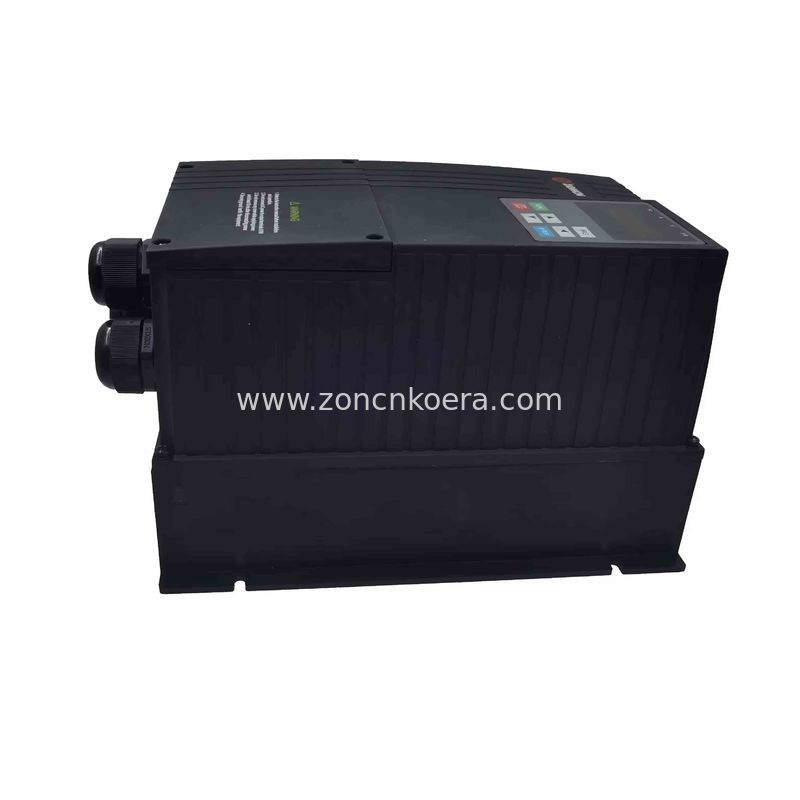

15KW Variable Frequency Drives IP54 High Protection Level Inverter For Water Pump

ZONCN Z5400-BF AC VFD inverter For Pump



Product Brief Introduction:



The Z5000-BF series inverter offers a multitude of benefits. It provides exceptional performance and boasts a minimal failure rate, guaranteeing dependable operation. With its superior waterproof and dustproof capabilities, it is perfectly suited for demanding environments. Moreover, the Z5000-BF series is energy-efficient, contributing to reduced power consumption. Additionally, it incorporates effective heat dissipation mechanisms and a straightforward installation process. Overall, the Z5000-BF series inverter excels in terms of performance, reliability, water and dust resistance, energy efficiency, heat dissipation, and ease of installation.





Z5000-BF Technical Specification:



Item	Z5000-BF inverter
Control Mode	Sensorless flux vector control(SFVC) Voltage/Frequency (V/F) Control
Maximum frequency	Vector control:0-320Hz V/F control:0-3200Hz
Carrier frequency	1kHz~16kHz The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution	Digital setting:0.01Hz Analog setting: Maximum frequency 0.025%
Start torque	G: Type:0.5Hz/150%(SVC) P: Type:0.5Hz/100%
Speed range	1:100(SVC)
Speed stability accuracy	±0.5%(SVC)
Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost	Auto-boost ; Customized boost:0.1%~30.0%
VF curve	Line V/F curve；Multi-point V/F curve；N-power V/F curve
VF separation	2 types: complete separation；half separation
Ramp Mode	Straight-line ramp；S-curve ramp；Four groups of acceleration/deceleration time:0~6500.0s
Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage changes
Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
Torque limit and control	It can keep constant output voltage automatically when the mains voltage changes
Onboard PID	It realizes process-controlled closed loop control system easily
JOG control	JOG frequency range: 0.00–50.00 Hz JOG acceleration/deceleration time: 0.0–6500.0s
DC braking	DC braking frequency:0.00Hz to maximum frequency Braking time:0.0-100.0s Braking action current value:0.0%-100.0%
Instantaneous blackout doesn’t stop	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
Timing control	Timing range:0.0Min~6500.0Min
Communication	RS485
Run command channel	Given by the panel,control terminals,serial communication port,can be switched by many ways
Frequency source	10 kinds of frequency source, given by digital analog voltage, analog current, pulse, serial port. It can be switched by many ways
Auxiliary frequency source	10 kinds of frequency source, can easily realize micro adjustment, frequency Synthesizer
Input terminals	6 digital input terminals, one of which supports up to100 kHz high-speed pulse input (optional). 2 analog input terminal, one of which only supports0-10 V voltage input and the other supports 0-10V voltage input or 4-20 mA current input.
Output terminals	1 digital output terminal 1 relay output terminal 1 analog output terminal: that supports 0-20 mA current output or 0-10v voltage output
Multiple protection modes	Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.

Model Description:

Model	Rated output power (kW)	Rated input current (A)	Rated output current (A)	Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
Z5200A0D75K-BF	0.75	7.2	5	0.75
Z5200A01D5K-BF	1.5	10	7	1.5
Z5200A02D2K-BF	2.2	16	11	2.2
Input voltage(v):3PH AC 380V±15%
Z5400A0D75K-BF	0.75	3.8	2.5	0.75
Z5400A01D5K-BF	1.5	5	3.7	1.5
Z5400A02D2K-BF	2.2	5.8	5	2.2
Z5400A03D7K-BF	3.7	10	9	3.7
Z5400A05D5K-BF	5.5	15	13	5.5
Z5400A07D5K-BF	7.5	20	17	7.5
Z5400A0011K-BF	11	26	25	11
Z5400A0015K-BF	15	35	32	15
Z5400A0018K-BF	18	38	37	18
Z5400A0022K-BF	22	46	45	22
Z5400A0030K-BF	30	62	60	30
Z5400A0037K-BF	37	76	75	37
Z5400A0045K-BF	45	92	90	45
Z5400A0055K-BF	55	113	110	55
Z5400A0075K-F	75	157	150	75
Z5400A0090K-BF	90	180	176	90
Z5400A0110K-BF	110	214	210	110
Z5400A0132K-BF	132	256	253	132
Z5400A0160K-BF	160	307	300	160



Z5000-BF dimension:

Model	Motor	Output Current	Mounting dimension(mm)
			Overall dimension
			W	H	D	A	B	Φd
Z5200A0D75K-BF	0.75	5	188	122	134	178	105	4
Z5200A01D5K-BF	1.5	7
Z5200A02D2K-BF	2.2	11
Z5400A0D75K-BF	0.75	2.5
Z5400A01D5K-BF	1.5	3.7
Z5400A02D2K-BF	2.2	5
Z5400A03D7K-BF	3.7	9	235	154	179	225	129	4
Z5400A05D5K-BF	5.5	13
Z5400A07D5K-BF	7.5	17
Z5400A0011K-BF	11	25
Z5400A0D75K-BF-V	0.75	2.5	140	190	138	130	160	4.5
Z5400A01D5K-BF-V	1.5	3.7
Z5400A02D2K-BF-V	2.2	5
Z5400A03D7K-BF-V	3.7	9	192	280	178	180	200	5.5
Z5400A05D5K-BF-V	5.5	13
Z5400A07D5K-BF-V	7.5	17
Z5400A0011K-BF-V	11	25
Z5400A0015K-BF	15	32
Z5400A0018K-BF	18	37	236	300	204	225	250	7
Z5400A0022K-BF	22	45
Z5400A0030K-BF	30	60	236	400	231	225	175+175	7
Z5400A0037K-BF	37	75



Note:
380v/0.75-11kw Horizontal installation and vertical installation exist at the same time. -V indicates vertical installation. Above 15kw is installed vertically.









Application:

Applicable industry:



Coal mine: There are a lot of coal dust and humidity in the working environment of coal mine, which requires high dust and moisture resistance of equipment.



Cement production plant: The cement production process produces a lot of dust, and due to the use of wet production process, there is also high humidity in the environment.



Flour processing plant: The flour processing process will produce a lot of flour dust, while due to the need for moisture in the processing process, there is also high humidity in the environment.



Ceramic production plant: The ceramic production process will produce a lot of dust, and due to the use of water for molding and firing, there is also high humidity in the environment.



Coal ash treatment plants: Coal ash treatment plants deal with coal ash and waste from coal combustion, and high dust and humidity are present in the environment.



The working environment in these industries usually has high dust and high humidity, which puts forward high requirements for the dustproof and moisture-proof performance of equipment. Therefore, it is essential to use suitable dust and moisture proof equipment in these industries to ensure the normal operation of the equipment and the safety of the working environment.











Typical Wiring diagram:



FAQ:

1:What is your MOQ?
1 PC.



2:What is terms of payment?
T/T 100% before delivery.



3:What is your delivery time?
Fast delivery is our advantage. Usually within ten days.



4:How can we do OEM/ODM?
We do OEM for more than 40 brands. If your order reaches a certain quantity, we can do it for you.
