Z5400A03D7K-BF High Protection Level Inverter 380v 3.7kW Variable Frequency Drive

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	ZONCN
Certification:	CE
Model Number:	Z5400A03DK-BF

Minimum Order Quantity:	1 unit
Packaging Details:	Carton packing；
Delivery Time:	7-30 work days
Payment Terms:	T/T, Western Union，Paypal
Supply Ability:	100000 units a month

Get Best Price Contact Now

Model:	Z5400A03D7K-BF	Voltage:	380v
Application:	Pump Motor Speed Control	Input:	3phase 50/60Hz
Output:	3phase 0-320Hz	EMC Filter:	Yes
Warranty:	18 Months	Brand:	ZONCN
Highlight:	Z5400A03D7K-BF High Protection Level Inverter , High Protection Level Inverter 380v , 3.7kW variable frequency drive

IP65 level Waterproof High Protection Level Inverter 380v Ac Drives Frequency Vfd 3.7kW

ZONCN Z5400A03D7K-BF AC inverter IP65 Waterproof

Product Brief Introduction:

The Z5000-BF series inverter is highly favored by customers for its wide range of advantageous features. It is specifically designed with a motor end cover installation, enabling seamless compatibility with heavy-duty equipment. Additionally, it incorporates a waterless shutdown function, holds an IP65 or IP54 waterproof rating, incorporates a timer function, freeze protection, pump replacement in case of failure, and a waterless alarm. These capabilities make the Z5000-BF series inverter exceptionally well-suited for use in demanding environments characterized by high temperatures, pollution, and challenging conditions.

Z5000-BF Technical Specification:

Item	Z5000-BF inverter
Control Mode	Sensorless flux vector control(SFVC) Voltage/Frequency (V/F) Control
Maximum frequency	Vector control:0-320Hz V/F control:0-3200Hz
Carrier frequency	1kHz~16kHz The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution	Digital setting:0.01Hz Analog setting: Maximum frequency 0.025%
Start torque	G: Type:0.5Hz/150%(SVC) P: Type:0.5Hz/100%
Speed range	1:100(SVC)
Speed stability accuracy	±0.5%(SVC)
Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost	Auto-boost ; Customized boost:0.1%~30.0%
VF curve	Line V/F curve；Multi-point V/F curve；N-power V/F curve
VF separation	2 types: complete separation；half separation
Ramp Mode	Straight-line ramp；S-curve ramp；Four groups of acceleration/deceleration time:0~6500.0s
Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage changes
Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
Torque limit and control	It can keep constant output voltage automatically when the mains voltage changes
Onboard PID	It realizes process-controlled closed loop control system easily
JOG control	JOG frequency range: 0.00–50.00 Hz JOG acceleration/deceleration time: 0.0–6500.0s
DC braking	DC braking frequency:0.00Hz to maximum frequency Braking time:0.0-100.0s Braking action current value:0.0%-100.0%
Instantaneous blackout doesn’t stop	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
Timing control	Timing range:0.0Min~6500.0Min
Communication	RS485
Run command channel	Given by the panel,control terminals,serial communication port,can be switched by many ways
Frequency source	10 kinds of frequency source, given by digital analog voltage, analog current, pulse, serial port. It can be switched by many ways
Auxiliary frequency source	10 kinds of frequency source, can easily realize micro adjustment, frequency Synthesizer
Input terminals	6 digital input terminals, one of which supports up to100 kHz high-speed pulse input (optional). 2 analog input terminal, one of which only supports0-10 V voltage input and the other supports 0-10V voltage input or 4-20 mA current input.
Output terminals	1 digital output terminal 1 relay output terminal 1 analog output terminal: that supports 0-20 mA current output or 0-10v voltage output
Multiple protection modes	Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.

Model Description:

Model	Rated output power (kW)	Rated input current (A)	Rated output current (A)	Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
Z5200A0D75K-BF	0.75	7.2	5	0.75
Z5200A01D5K-BF	1.5	10	7	1.5
Z5200A02D2K-BF	2.2	16	11	2.2
Input voltage(v):3PH AC 380V±15%
Z5400A0D75K-BF	0.75	3.8	2.5	0.75
Z5400A01D5K-BF	1.5	5	3.7	1.5
Z5400A02D2K-BF	2.2	5.8	5	2.2
Z5400A03D7K-BF	3.7	10	9	3.7
Z5400A05D5K-BF	5.5	15	13	5.5
Z5400A07D5K-BF	7.5	20	17	7.5
Z5400A0011K-BF	11	26	25	11
Z5400A0015K-BF	15	35	32	15
Z5400A0018K-BF	18	38	37	18
Z5400A0022K-BF	22	46	45	22
Z5400A0030K-BF	30	62	60	30
Z5400A0037K-BF	37	76	75	37
Z5400A0045K-BF	45	92	90	45
Z5400A0055K-BF	55	113	110	55
Z5400A0075K-F	75	157	150	75
Z5400A0090K-BF	90	180	176	90
Z5400A0110K-BF	110	214	210	110
Z5400A0132K-BF	132	256	253	132
Z5400A0160K-BF	160	307	300	160

Z5000-BF dimension:

Model	Motor	Output Current	Mounting dimension(mm)
			Overall dimension
			W	H	D	A	B	Φd
Z5200A0D75K-BF	0.75	5	188	122	134	178	105	4
Z5200A01D5K-BF	1.5	7
Z5200A02D2K-BF	2.2	11
Z5400A0D75K-BF	0.75	2.5
Z5400A01D5K-BF	1.5	3.7
Z5400A02D2K-BF	2.2	5
Z5400A03D7K-BF	3.7	9	235	154	179	225	129	4
Z5400A05D5K-BF	5.5	13
Z5400A07D5K-BF	7.5	17
Z5400A0011K-BF	11	25
Z5400A0D75K-BF-V	0.75	2.5	140	190	138	130	160	4.5
Z5400A01D5K-BF-V	1.5	3.7
Z5400A02D2K-BF-V	2.2	5
Z5400A03D7K-BF-V	3.7	9	192	280	178	180	200	5.5
Z5400A05D5K-BF-V	5.5	13
Z5400A07D5K-BF-V	7.5	17
Z5400A0011K-BF-V	11	25
Z5400A0015K-BF	15	32
Z5400A0018K-BF	18	37	236	300	204	225	250	7
Z5400A0022K-BF	22	45
Z5400A0030K-BF	30	60	236	400	231	225	175+175	7
Z5400A0037K-BF	37	75

Note:
380v/0.75-11kw Horizontal installation and vertical installation exist at the same time. -V indicates vertical installation. Above 15kw is installed vertically.

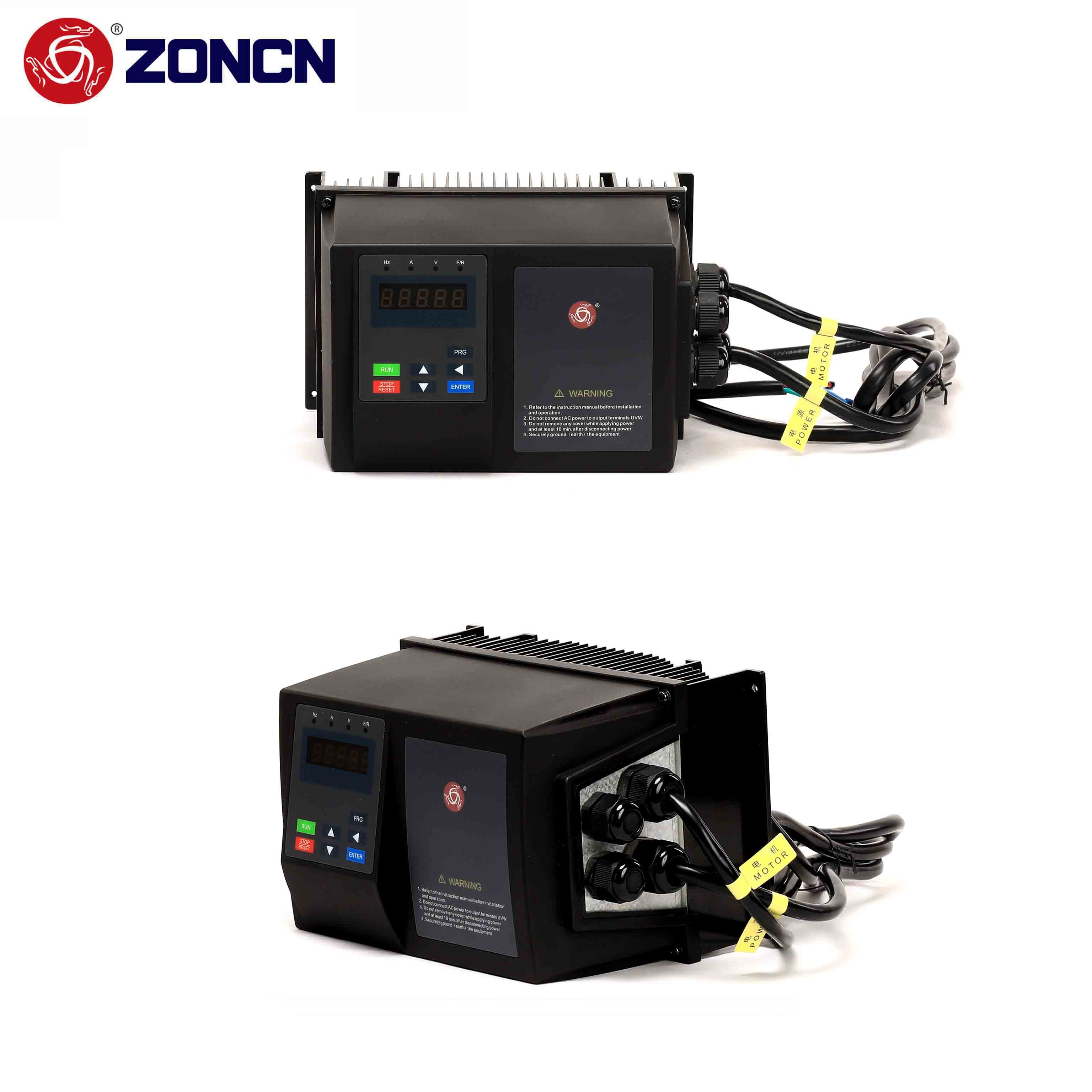

Z5400A03D7K-BF High Protection Level Inverter 380v 3.7kW Variable Frequency Drive 0

Z5400A03D7K-BF High Protection Level Inverter 380v 3.7kW Variable Frequency Drive 1

Application:

The Z5400-BF series inverter is widely recognized for its excellent waterproof and dustproof capabilities, offering a high level of protection with an IP54/65 rating. It is specifically engineered for use in water pump applications and environments with high levels of pollution. The inverter is equipped with an integrated EMC filter, ensuring stable and dependable operation even in the presence of electromagnetic interference.

Furthermore, the Z5400-BF series inverter features a robust all-metal enclosure, enhancing its heat dissipation capabilities. This design attribute allows for efficient heat dispersion during operation, guaranteeing optimal performance and extended lifespan.

With its exceptional waterproof and dustproof features, IP54/65 protection rating, integrated EMC filter, and effective heat dissipation, the Z5400-BF series inverter is the ideal choice for demanding applications in water pumps and highly contaminated environments.

FAQ:

1:What is your MOQ?
1 PC.

2:What is terms of payment?
T/T 100% before delivery.

3:What is your delivery time?
Fast delivery is our advantage. Usually within ten days.

4:How can we do OEM/ODM?
We do OEM for more than 40 brands. If your order reaches a certain quantity, we can do it for you.

Tag:

Z5400A03D7K-BF High Protection Level Inverter 380v 3.7kW Variable Frequency Drive
