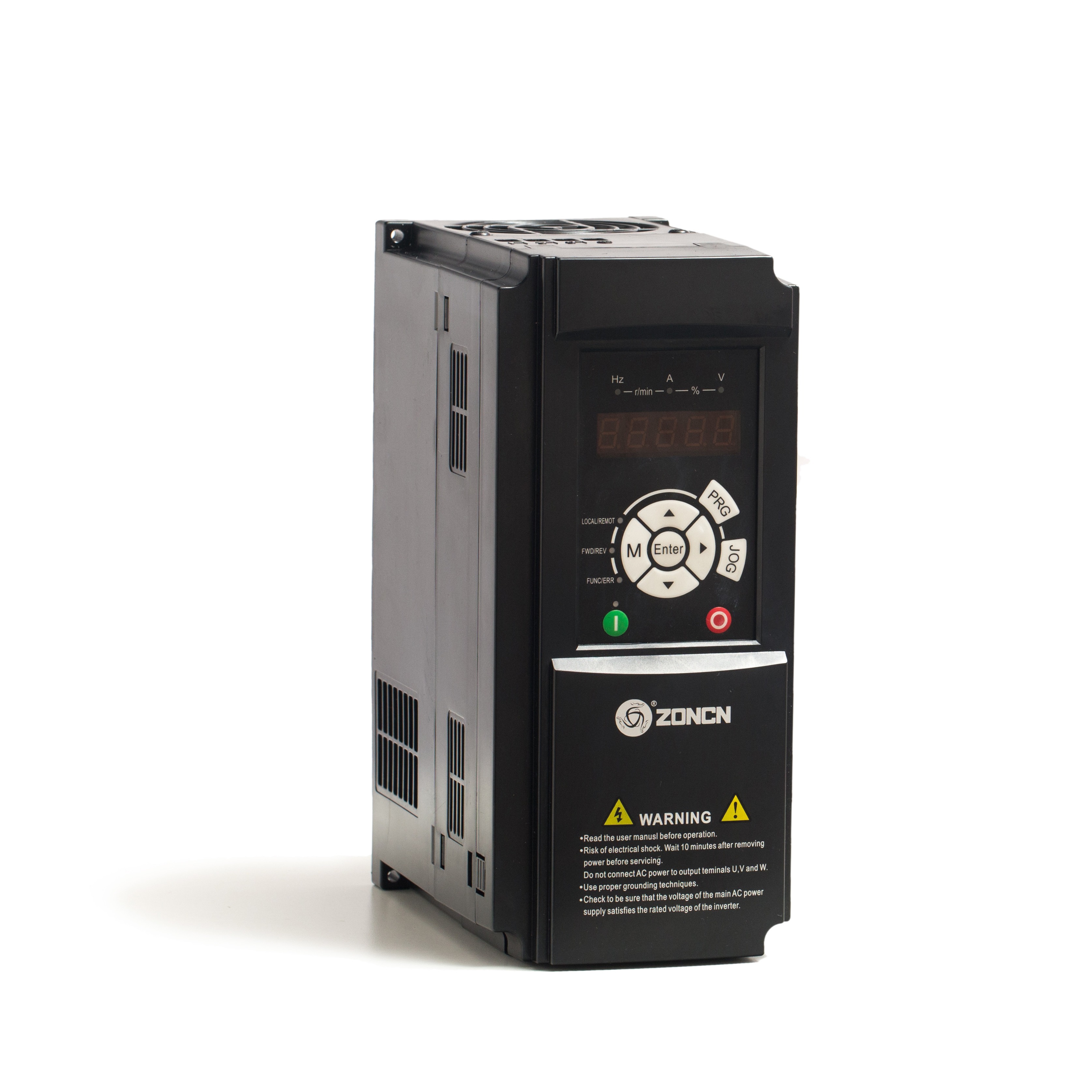

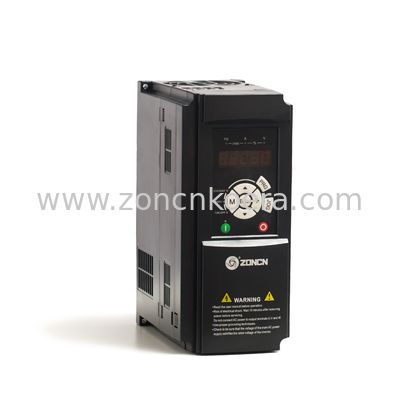

380v 22kw Low Voltage Inverter With STO Function Advanced Vector Control

380v 22kw Low Voltage Inverter With STO Function Advanced Vector Control
380v 22kw Low Voltage Inverter With STO Function Advanced Vector Control 380v 22kw Low Voltage Inverter With STO Function Advanced Vector Control 380v 22kw Low Voltage Inverter With STO Function Advanced Vector Control
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: Eu CE certification
Model Number: T9400-22G/30P
Minimum Order Quantity: 1 unit
Packaging Details: Carton packing；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Model: T9400-22G/30P Voltage: 380v±15%
Color: Black Application: Motor Speed Adjust / Energy Saving
Method: RS485 Power: 22kW
Highlight:

Low Voltage Inverter STO Function

,

22kw Low Voltage Inverter

,

STO Function vector control inverter

Frequency Drives Inverter Low Voltage 380v 22kw With STO Function T9400-22G/30P

ZONCN T9000 Series 22kW Advanced Vector Control Inverter



Basic product introduction:

1: Synchronous and asynchronous motor open-loop/closed-loop vector control, V/F control (with built-in PID).
2: Large torque output to ensure smooth motor start under heavy load.
3: Powerful function, outstanding performance, suitable for most general occasions.
4:Supports various types of PG cards.
5:Supports instant stop and instant start.
6:It is compact and easy for customers to install.
7: The voltage range is 220v,380v,415v,440v,460v, and the maximum power is 450kw.





Technical Specification:

Item T9000 series inverter
Control mode V/F control；Open loop vector control (without PG); Closed loop vector control (with PG)
Maximum frequency 0~600Hz
Carrier frequency  0.5kHz~16kHz
The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution Digital setting:0.01Hz
Analog setting: Maximum frequency 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ；  P type: 0.5Hz/100%
Speed range 1:100(SVC)
Speed stability accuracy ±0.5%(SVC)
Overload capacity G Type:60s for 150% of the rated current, 3s for 180% of the rated current.
P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost or Customized boost 0.1%-30.0%
V/F cure Straight-line VF curve; Multi-point VF curve; N-power VF curve(1.2-power,1.4-power,1.6-power,1.8-power,square)
V/F separation 2 types: complete separation；half separation
Ramp mode Straight-line ramp ; Four groups of acceleration/deceleration time with the range of 0.00'6500.0s
Simple PLC, Multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of terminal states
Auto voltage regulation It can keep constant output voltage automatically when the mains voltage changes
Rapid current limit It helps to avoid frequent over current faults of the AC drive.
Torque limit and control It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be implemented in the FVC mode.
Support for multiple PG card Support for differential input PG card, resolver PG card ,rotating transformer PG card
Rapid current limit It helps to avoid frequent over current faults of the AC drive.
Timing control Timing range:0.0Min~6500.0Min





Product configuration T9000:

380v 22kw Low Voltage Inverter With STO Function Advanced Vector Control 0





Product nameplate:

380v 22kw Low Voltage Inverter With STO Function Advanced Vector Control 1







FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.



Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.



Tag:

Variable Frequency Drive Inverter,

vector control inverter,

low power inverter
