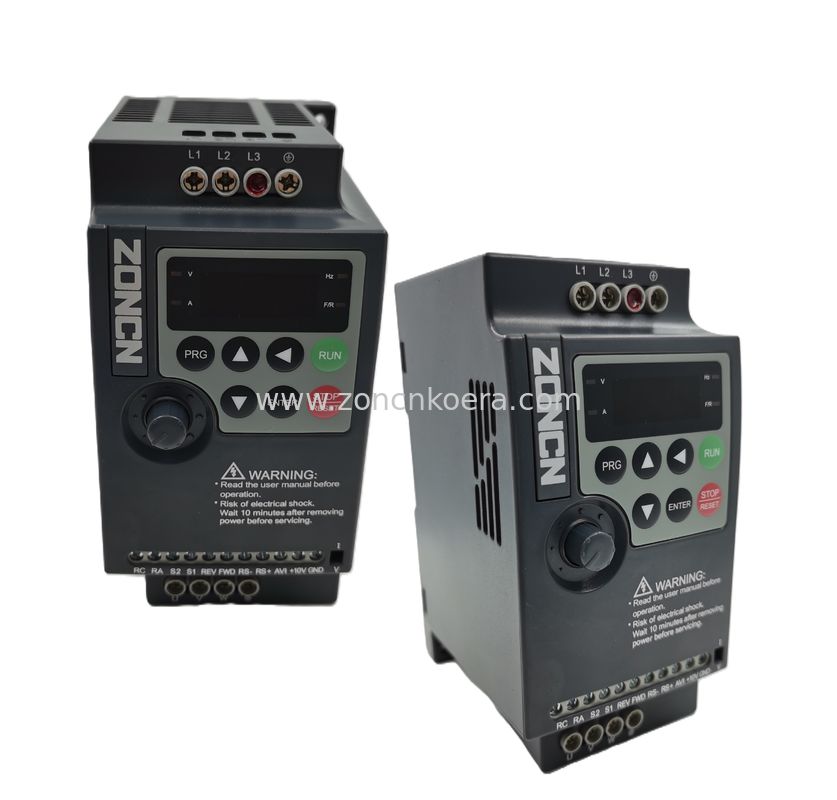

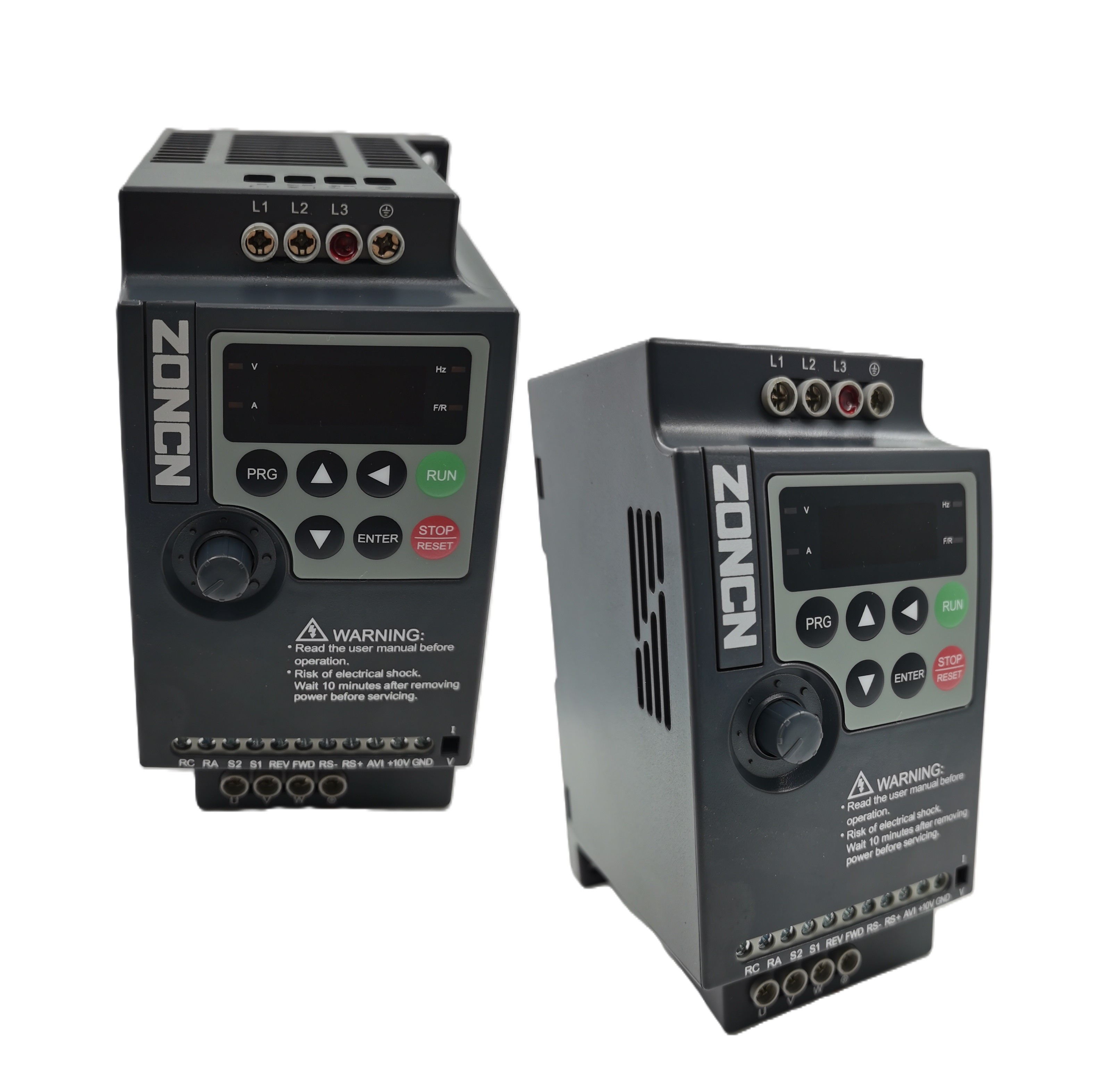

Low Voltage 220v Single Phase 5hp Ac Inverter Drives 3.7kw 50hz 60hz VFD For Pump

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	CE
Model Number:	NZ200-3R7G-2

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T, L/C, Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	AC Inverters	Product Name:	Variable Speed Drive
Brand:	ZONCN	Input:	220v, 380v
Power:	3.7kw/5hp	Control Mode:	Senseless Vector Control
Output Frequency:	0-320hz	Weight:	1.5kg
Output:	9A	Protection:	IP20
Highlight:	220v Ac Inverter Drives , Low Voltage Ac Inverter Drives , 5hp Ac Inverter Drives

ZONCN NZ200 Series Econonic Vector control inverter

Inverter Nameplate Description

Low Voltage 220v Single Phase 5hp Ac Inverter Drives 3.7kw 50hz 60hz VFD For Pump 0

Inverter Specification

Inverter Model	Input Voltage (V)	Rated output power ( KW)	Rated input current(A)	Rated output current (A)	Motor power ( KW)
NZ200-0R4G-2	1PH 220V±15%	0.4	5.4	2.5	0.4
NZ200-0R75G-2		0.75	7.2	5	0.75
NZ200-1R5G-2		1.5	10	7	1.5
NZ200-2R2G-2		2.2	16	11	2.2
NZ200-3R7G-2		3.7	17	16.5	3.7
NZ200-0R4G-4	3PH 380V±15%	0.4	3.4	1.2	0.4
NZ200-0R75G-4		0.75	3.8	2.5	0.75
NZ200-1R5G-4		1.5	5	3.7	1.5
NZ200-2R2G-4		2.2	5.8	5	2.2
NZ200-3R7G/5R5P-4		3.7	10.7	9	3.7
NZ200-5R5G/75R5P-4		5.5	14.6	13	5.5
NZ200-7R5G/11P-4		7.5	20	17	7.5
NZ200-11G/15P-4		11	26	25	11
NZ200-15G/18.5P-4		15	35	32	15
NZ200-18.5G/22P-4		18.5	38	37	18.5
NZ200-22G/30P-4		22	46	45	22
NZ200-30G/37P-4		30	62	60	30
NZ200-37G/45P-4		37	76	75	37
NZ200-45G/55P-4		45	90	90	45
NZ200-55G-4		55	105	110	55
NZ200-75G/90P-4		75	140	150	75
NZ200-90G/110P-4		90	160	176	90
NZ200-110G/132P-4		110	210	210	110
NZ200-132G/160P-4		132	240	253	132
...		...	...	...	...
NZ200-450G/500P-4		450	790	790	450

Inverter Dimension

A. 0.4kw-37kw

Low Voltage 220v Single Phase 5hp Ac Inverter Drives 3.7kw 50hz 60hz VFD For Pump 1

Low Voltage 220v Single Phase 5hp Ac Inverter Drives 3.7kw 50hz 60hz VFD For Pump 2

B. 45kw-450kw

Low Voltage 220v Single Phase 5hp Ac Inverter Drives 3.7kw 50hz 60hz VFD For Pump 3

Low Voltage 220v Single Phase 5hp Ac Inverter Drives 3.7kw 50hz 60hz VFD For Pump 4

Inverter Packing

Low Voltage 220v Single Phase 5hp Ac Inverter Drives 3.7kw 50hz 60hz VFD For Pump 5

Workshop

Low Voltage 220v Single Phase 5hp Ac Inverter Drives 3.7kw 50hz 60hz VFD For Pump 6

Wuhu Zoncn Automation Equipment Co. Ltd is a professional factory that focus on producing inverter and servo products. We have 6 main series of inverter, they are NZ100, NZ200, Z2000, Z8000, T9000 and H5000-BF, they are widely used in textile, print, CNC machine, food package, injection machine, fan, pump, air compressor, water treatment and many industry applications. We have professional technical engineers, and all the inverters have CE certification. Besides, we also have specific

What's more, we have our own R&D team, so we designed specific purpose inverters for different applications, for example, air compressor, injection mold machines, door, construction elevator, CNC, etc.

Exhibition

Low Voltage 220v Single Phase 5hp Ac Inverter Drives 3.7kw 50hz 60hz VFD For Pump 7

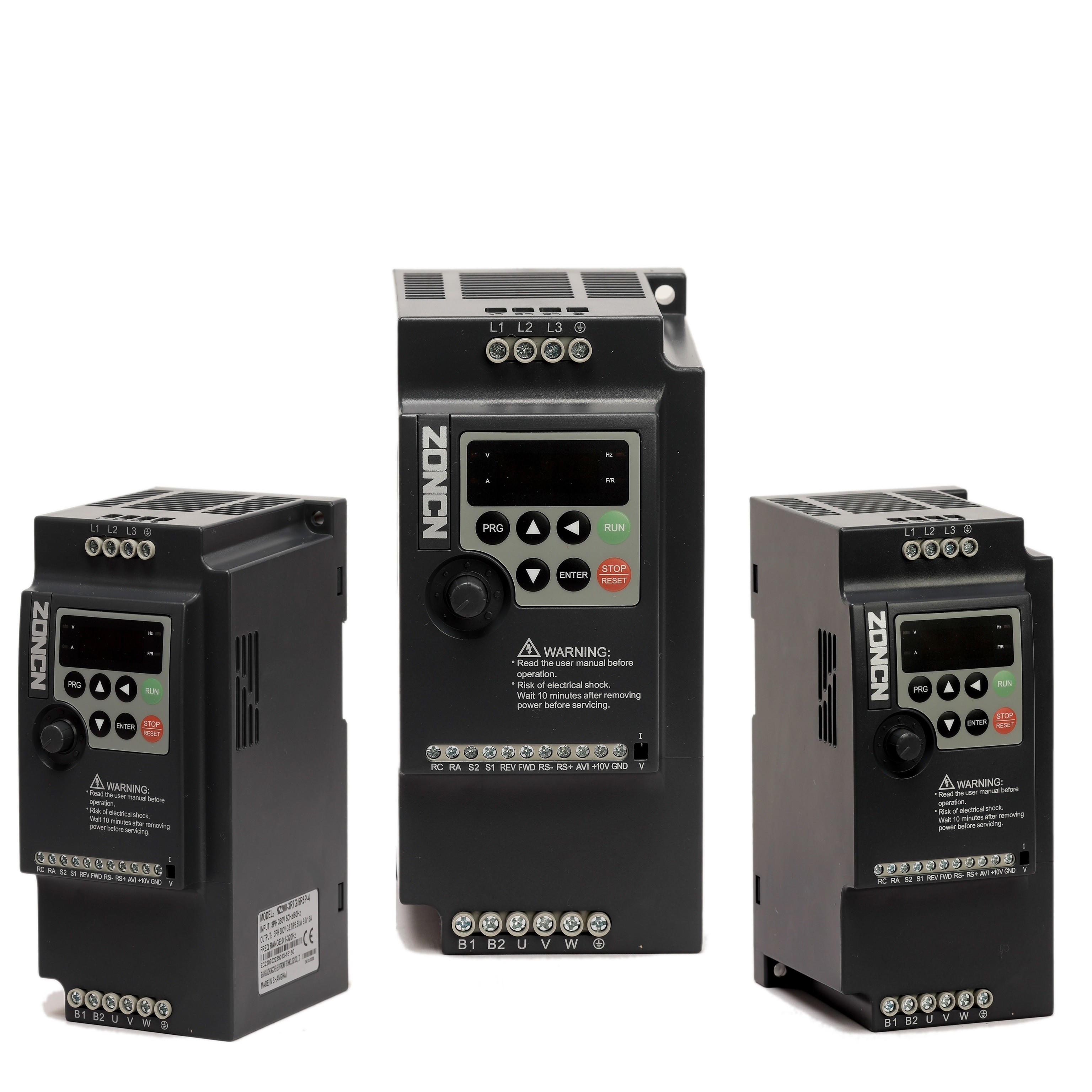

Recommend Series

Low Voltage 220v Single Phase 5hp Ac Inverter Drives 3.7kw 50hz 60hz VFD For Pump 8

FAQ

Q1: What is your inverter's MOQ?

A: 1 Unit

Q2: What is your inverter's warranty time?

A: 18 months

Q3: Do you produce for OEM brand inverter?

A: Yes, we have lots of OEM experience.

Q4: What is your inverter's delivery time?

A: Within 15 days normally.

Q5: What is your terms of payment?

A: 100% in advance by T/T, paypal, etc.

Q6: What is your inverter's shipping way?

A: By Sea, by Air, by Fedex/UPS Express etc.
