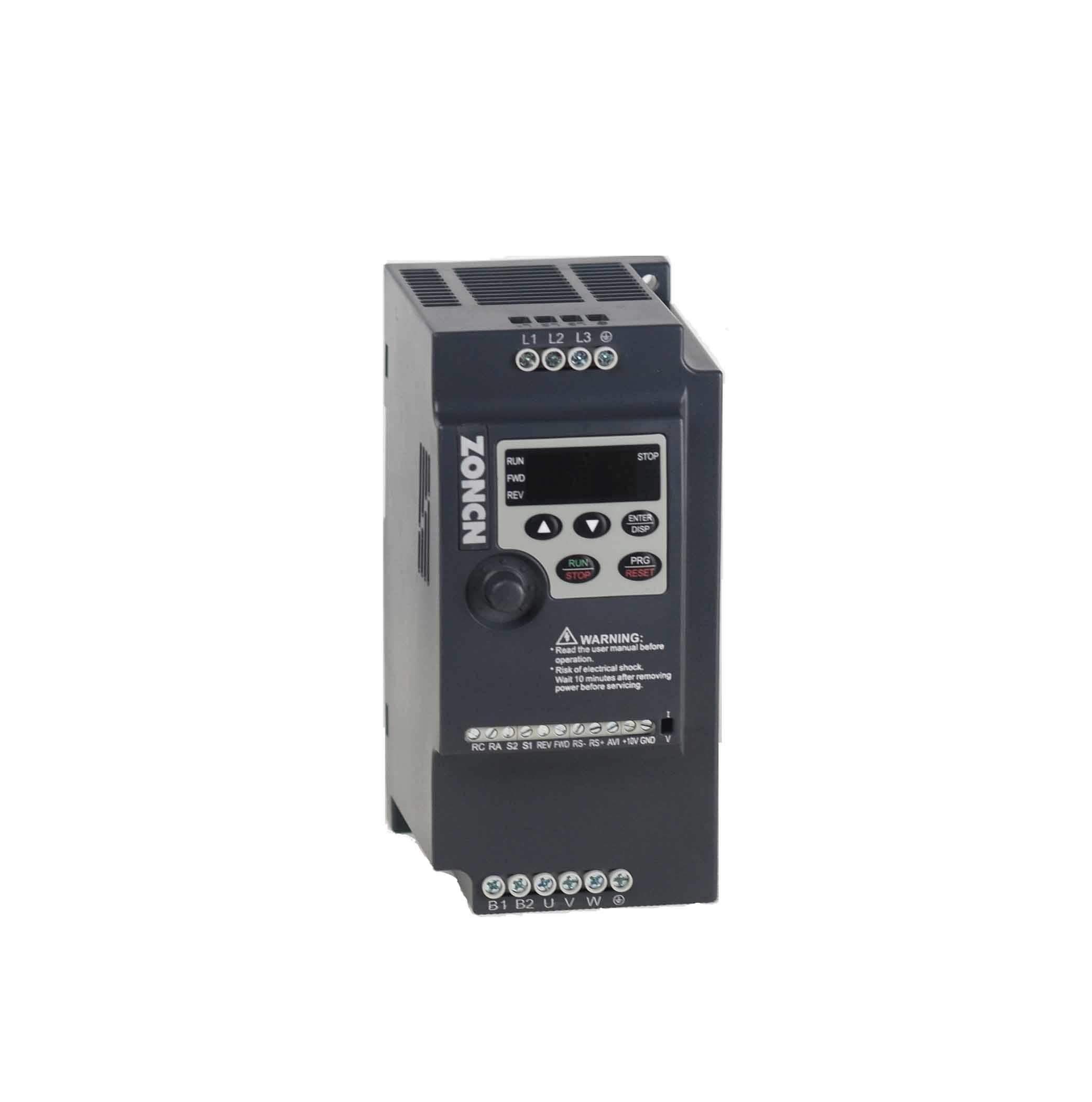

Variador De Frecuencia NZ100 Frequency Inverter 380v Low Voltage 3HP

Variador De Frecuencia NZ100 Frequency Inverter 380v Low Voltage 3HP
Variador De Frecuencia NZ100 Frequency Inverter 380v Low Voltage 3HP
Variador De Frecuencia NZ100 Frequency Inverter 380v Low Voltage 3HP Variador De Frecuencia NZ100 Frequency Inverter 380v Low Voltage 3HP Variador De Frecuencia NZ100 Frequency Inverter 380v Low Voltage 3HP Variador De Frecuencia NZ100 Frequency Inverter 380v Low Voltage 3HP Variador De Frecuencia NZ100 Frequency Inverter 380v Low Voltage 3HP Variador De Frecuencia NZ100 Frequency Inverter 380v Low Voltage 3HP Variador De Frecuencia NZ100 Frequency Inverter 380v Low Voltage 3HP
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: CE+KC
Model Number: NZ100-2R2G-4
Minimum Order Quantity: 1 unit
Packaging Details: Carton；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Model: NZ100-2R2G-4 Type: AC Drive Inverters
MOQ: 1 Nos Modbus ASCII: Support
Simple PLC: Yes Input Power: 1.5kw
Output Power: 1.5kw
Highlight:

NZ100 Vector Frequency Inverter

,

Vector Frequency Inverter 380v

,

Vector Drive Vfd 2.2kw

Low Voltage Frequency Ac Drives Inverter 2.2kw 380v NZ100

NZ100 series micro vfd inverter 380V 2.2kw NZ100-2R2G-4



Basic product introduction:

  • Compact size and low cost desgin
  • Terminals uncovered,easy for wiring design
  • DIN-rail mounting(below 5.5kw)
  • Modbus via RS485
  • Maintenance-free function
  • Support MODBUS ASCII communication





Technical Specific:

Variador De Frecuencia NZ100 Frequency Inverter 380v Low Voltage 3HP 0





Product model details:

Model Rated output power (kW) Rated input current (A) Rated output current (A) Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
NZ100-0R4G-2 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
Input voltage(v):3PH AC 380V±15%
NZ100-0R75G-4 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5 4 1.5
NZ100-2R2G-4 2.2 5.8 5 2.2
NZ100-3R7G/5R5P-4 3.7 10.7 8.6 3.7
NZ100-5R5G/7R5P-4 5.5 14.6 12.5 5.5
NZ100-7R5G/11P-4 7.5 20 17.5 7.5
NZ100-11G/15P-4 11 26 24 11
NZ100-15G/18.5P-4 15 35 33 15





NZ100 nameplate:

Variador De Frecuencia NZ100 Frequency Inverter 380v Low Voltage 3HP 1







NZ100 dimension:

Variador De Frecuencia NZ100 Frequency Inverter 380v Low Voltage 3HP 2







NZ100 wiring diagram:

Variador De Frecuencia NZ100 Frequency Inverter 380v Low Voltage 3HP 3







FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.





Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
