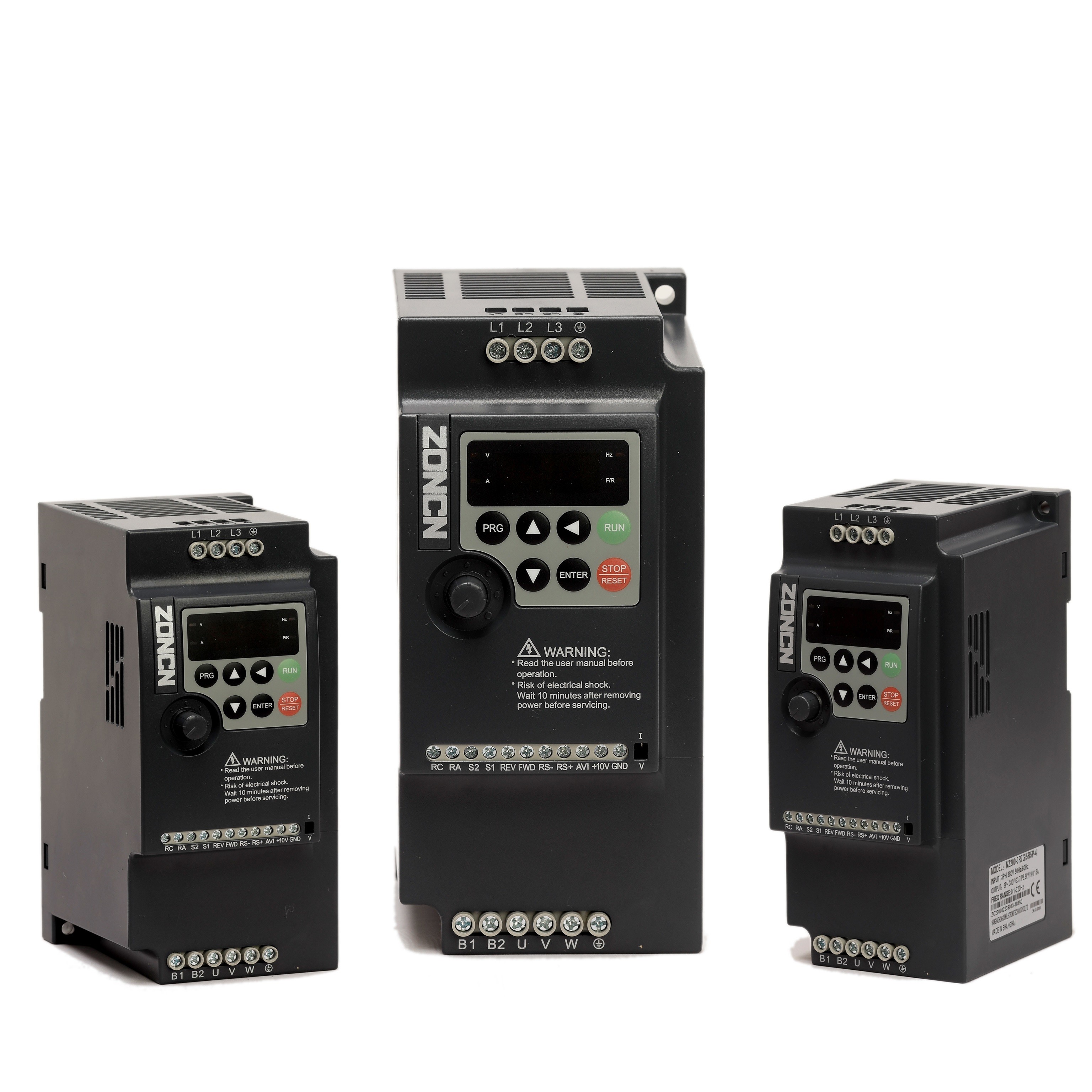

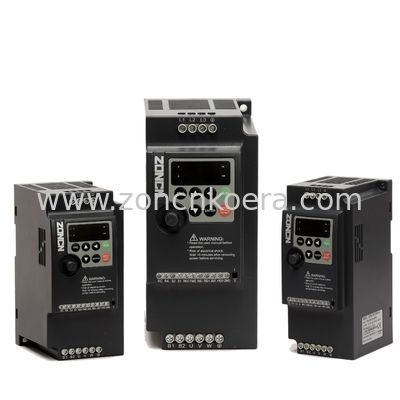

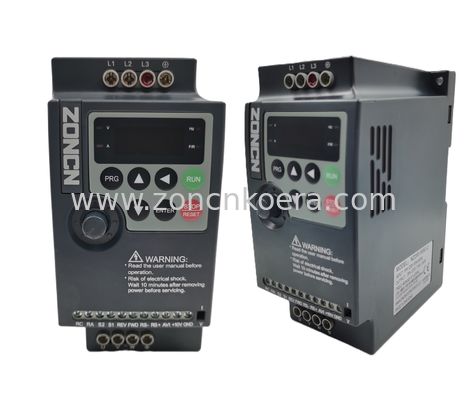

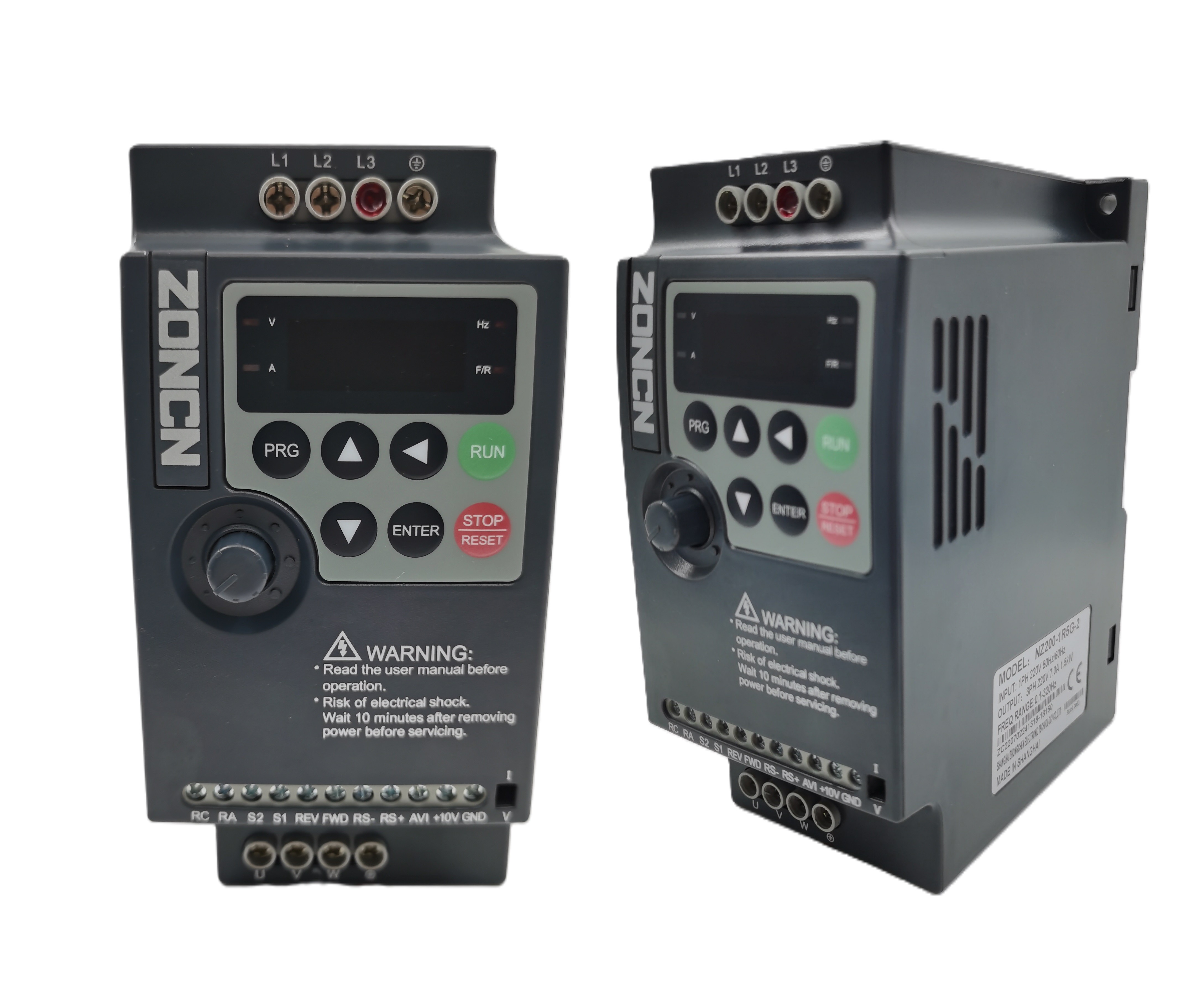

3 Phase 5hp 380v Variable Frequency Drive 3.7kw VFD 50hz 60hz Vector Control Inverter

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	CE
Model Number:	NZ200-2R2G-4

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T, L/C, Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	VFD Drive	Product Name:	VFD Inverter
Brand:	ZONCN	Input:	380v-480v
Power:	3.7kw/5hp	Control Mode:	Senseless Vector Control
Output Frequency:	0-320hz	Weight:	1.5kg
Output:	9A	PM Motor:	Support
Highlight:	3 Phase 5hp VFD , 380v 5hp VFD , 3.7kw 5hp VFD

ZONCN NZ200 Series Econonic Vector control VFD inverter

VFD Features

Frequency: Vector control: 0-320Hz; V/F control: 0-3200Hz
Economic vector control inverter, high torque output, motor runs smoothly when heavy loading.
Simple structure; Compact size;
Support PM motor (Z200T Series)
Power range: 220v 0.4kw-3.7kw; 380v 0.75kw-500kw

VFD Nameplate Description

3 Phase 5hp 380v Variable Frequency Drive 3.7kw VFD 50hz 60hz Vector Control Inverter 0

VFD Specification

Model	Input Voltage (V)	Rated output power ( KW)	Rated input current(A)	Rated output current (A)	Motor power ( KW)
NZ200-0R4G-2	1PH 220V±15%	0.4	5.4	2.5	0.4
NZ200-0R75G-2		0.75	7.2	5	0.75
NZ200-1R5G-2		1.5	10	7	1.5
NZ200-2R2G-2		2.2	16	11	2.2
NZ200-3R7G-2		3.7	17	16.5	3.7
NZ200-0R4G-4	3PH 380V±15%	0.4	3.4	1.2	0.4
NZ200-0R75G-4		0.75	3.8	2.5	0.75
NZ200-1R5G-4		1.5	5	3.7	1.5
NZ200-2R2G-4		2.2	5.8	5	2.2
NZ200-3R7G/5R5P-4		3.7	10.7	9	3.7
NZ200-5R5G/75R5P-4		5.5	14.6	13	5.5
NZ200-7R5G/11P-4		7.5	20	17	7.5
NZ200-11G/15P-4		11	26	25	11
NZ200-15G/18.5P-4		15	35	32	15
NZ200-18.5G/22P-4		18.5	38	37	18.5
NZ200-22G/30P-4		22	46	45	22
NZ200-30G/37P-4		30	62	60	30
NZ200-37G/45P-4		37	76	75	37
NZ200-45G/55P-4		45	90	90	45
NZ200-55G-4		55	105	110	55
NZ200-75G/90P-4		75	140	150	75
NZ200-90G/110P-4		90	160	176	90
NZ200-110G/132P-4		110	210	210	110
NZ200-132G/160P-4		132	240	253	132
...		...	...	...	...
NZ200-450G/500P-4		450	790	790	450

VFD Dimension

1. 0.4kw-37kw

3 Phase 5hp 380v Variable Frequency Drive 3.7kw VFD 50hz 60hz Vector Control Inverter 1

3 Phase 5hp 380v Variable Frequency Drive 3.7kw VFD 50hz 60hz Vector Control Inverter 2

2. 45kw-450kw

3 Phase 5hp 380v Variable Frequency Drive 3.7kw VFD 50hz 60hz Vector Control Inverter 3

3 Phase 5hp 380v Variable Frequency Drive 3.7kw VFD 50hz 60hz Vector Control Inverter 4

VFD Packing

3 Phase 5hp 380v Variable Frequency Drive 3.7kw VFD 50hz 60hz Vector Control Inverter 5

VFD Workshop

3 Phase 5hp 380v Variable Frequency Drive 3.7kw VFD 50hz 60hz Vector Control Inverter 6

VFD Exhibition

3 Phase 5hp 380v Variable Frequency Drive 3.7kw VFD 50hz 60hz Vector Control Inverter 7

Recommend VFD Series

3 Phase 5hp 380v Variable Frequency Drive 3.7kw VFD 50hz 60hz Vector Control Inverter 8

FAQ

Q1: What is your VFD's warranty time?

A: 18 months

Q2: Do you produce for OEM brand VFD?

A: Yes, we have lots of OEM experience.

Q3: What is your VFD's delivery time?

A: Within 15 days normally.

Q4: Do you have CE certification for your VFD?

A: Yes.

Q5: What is your payment terms?

A: 100% in advance by T/T, paypal, etc.

Q6: What is your VFD's shipping way?

A: By Sea, by Air, by Fedex/UPS Express etc.

Tag:

Variable Frequency Drive Inverter,

vector control inverter,

low power inverter
