Products

5.5kw 380v Low Voltage Inverter Three Phase Variable Frequency Drive Vfd

Basic Information

Place of Origin:	China
Brand Name:	ZONCN
Certification:	KC; CE
Model Number:	NZ100-5R5G-4

Minimum Order Quantity:	1 PC
Packaging Details:	inside: box; outside: carton
Delivery Time:	7-30 days
Payment Terms:	T/T, L/C, Paypal
Supply Ability:	100,000 pcs/month

Get Best Price Contact Now

Type:	VFD Drive	Product Name:	VFD Inverter
Brand:	ZONCN	Input:	380v-480v
Power:	5.5kw/7hp	Control Mode:	V/F Control Only
Output Frequency:	0-400hz	Size:	Mini
Application:	Fan/Pump/conveyor/blower Etc.	Output:	12.5A
Protection:	IP20
Highlight:	5.5kw Low Voltage Inverter , Low Voltage Inverter Three Phase , 380v Three Phase Variable Frequency Drive

5.5kw 380v Three Phase VFD Drives 7hp Inversor ZONCN Frequency Inverter VSD

ZONCN NZ100 Series Mini variable frequency inverter VFD

VFD Features

Small size design
Easy-to-access terminals for wiring
Installation: Wall-mounted or standard 35mm rail mounting (below 5.5kw)
Communication: Standard RS485
Control mode: V/F control, setting V/F curve for various load requirements.
Frequency: 50Hz/60Hz
Analog input: 0-10V; 4-20A
Application: fan/pump/conveyor/blower/food machinery, etc.

VFD Nameplate Description

5.5kw 380v Low Voltage Inverter Three Phase Variable Frequency Drive Vfd 0

VFD Specification

VFD Model	Input Voltage	Output Power (KW)	Input Current (A)	Output Current (A)	Motor Equipped (KW)
NZ100-0R4G-2	1PH AC220V+/-15%	0.4	5.4	2.5	0.4
NZ100-0R75G-2		0.75	8.2	5	0.75
NZ100-1R5G-2		1.5	14	7	1.5
NZ100-2R2G-2		2.2	23	11	2.2
NZ100-0R75G-4	3PH AC380V+/-15%	0.75	3.4	2.7	0.75
NZ100-1R5G-4		1.5	5.0	4.0	1.5
NZ100-2R2G-4		2.2	5.8	5.0	2.2
NZ100-3R7G-4		3.7	10.7	8.6	3.7
NZ100-5R5G-4		5.5	14.6	12.5	5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.

VFD Dimension

5.5kw 380v Low Voltage Inverter Three Phase Variable Frequency Drive Vfd 1

VFD Wiring Diagram

5.5kw 380v Low Voltage Inverter Three Phase Variable Frequency Drive Vfd 2

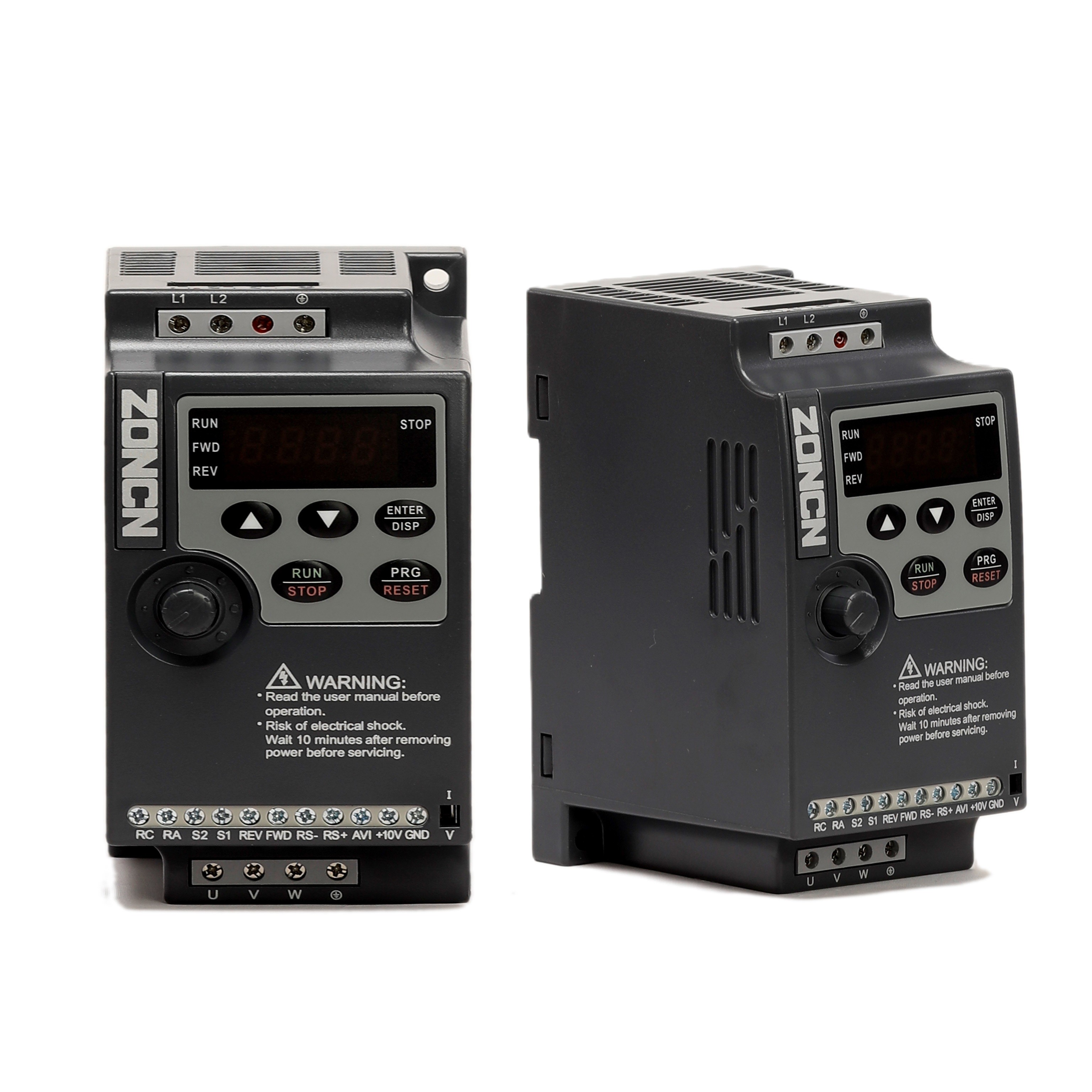

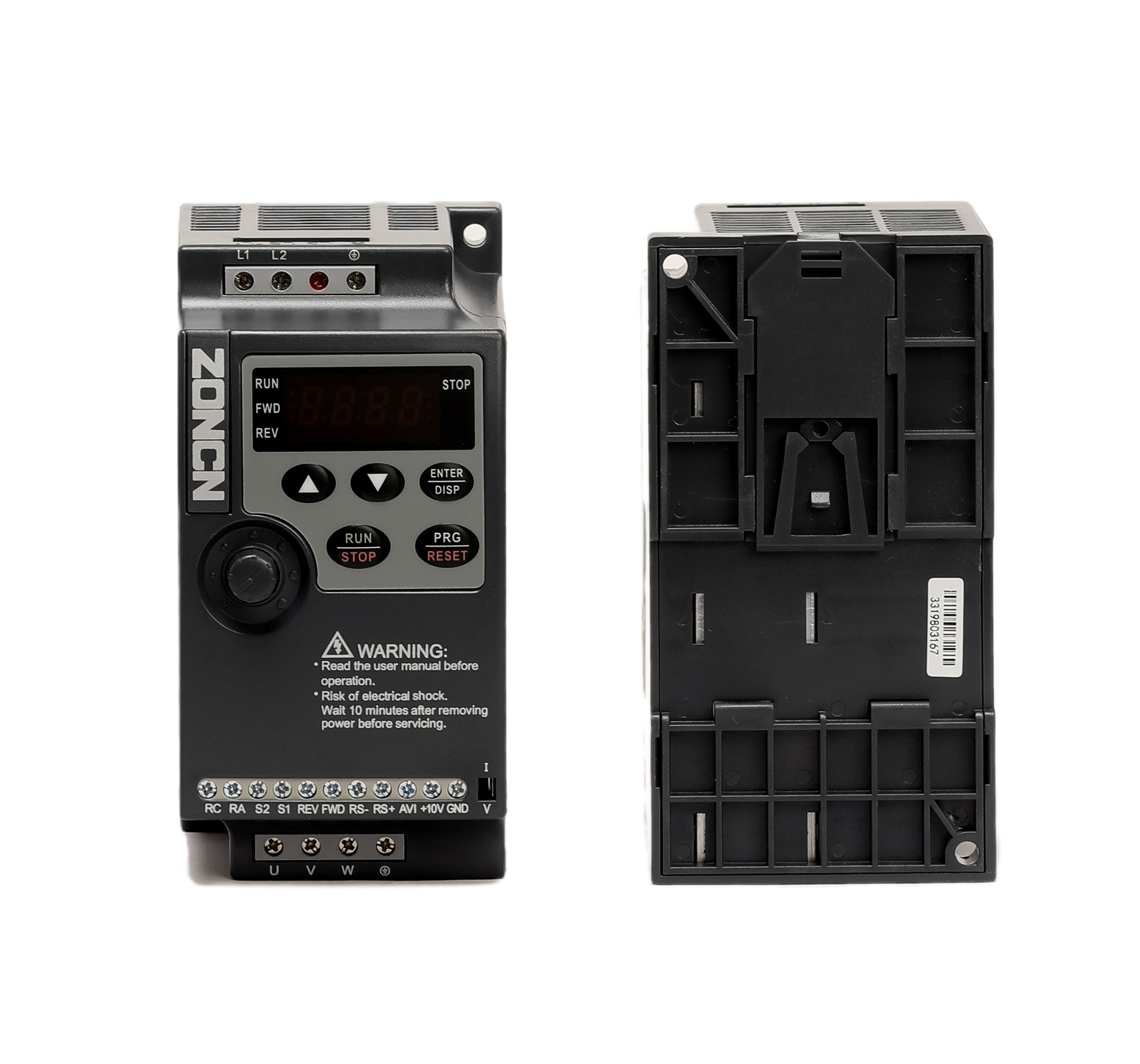

VFD picture

5.5kw 380v Low Voltage Inverter Three Phase Variable Frequency Drive Vfd 3

VFD Packing&Shipping

5.5kw 380v Low Voltage Inverter Three Phase Variable Frequency Drive Vfd 4

VFD Workshop

5.5kw 380v Low Voltage Inverter Three Phase Variable Frequency Drive Vfd 5

VFD Exhibition

5.5kw 380v Low Voltage Inverter Three Phase Variable Frequency Drive Vfd 6

VFD Application

5.5kw 380v Low Voltage Inverter Three Phase Variable Frequency Drive Vfd 7

FAQ

Q1: What is your VFD's warranty time?

A: 18 months

Q2: Do you produce for OEM brand VFD?

A: Yes, we have lots of OEM experience.

Q3: What is your VFD's delivery time?

A: Within 15 days normally.

Q4: Do you have CE certification for your VFD?

A: Yes.

Q5: What is your payment terms?

A: 100% in advance by T/T, paypal, etc.

Q6: What is your shipping way?

A: By Sea, by Air, by Fedex/UPS Express etc.
