3.7kw 380v 3 Phase Variable Frequency Drive for conveyor blower

3.7kw 380v Three Phase VFD Drives 5hp Variable Speed Drive ZONCN Variadores

ZONCN NZ100 Series Mini variable frequency inverter



Product Features

• Small size design

• Easy-to-access terminals for wiring

• Installation: Wall-mounted or standard 35mm rail mounting (below 5.5kw)

• Communication: Standard RS485 (MODBUS)

• Control mode: V/F control

• Frequency: 50HZ/60HZ

• Out frequency: 0-400Hz

• Application: fan/pump/conveyor/blower/food machinery, etc.



Nameplate Description

Specification

Model	Input Voltage	Output Power (KW)	Input Current (A)	Output Current (A)	Motor Equipped (KW)
NZ100-0R4G-2	1PH AC220V+/-15%	0.4	5.4	2.5	0.4
NZ100-0R75G-2		0.75	8.2	5	0.75
NZ100-1R5G-2		1.5	14	7	1.5
NZ100-2R2G-2		2.2	23	11	2.2
NZ100-0R75G-4	3PH AC380V+/-15%	0.75	3.4	2.7	0.75
NZ100-1R5G-4		1.5	5.0	4.0	1.5
NZ100-2R2G-4		2.2	5.8	5.0	2.2
NZ100-3R7G-4		3.7	10.7	8.6	3.7
NZ100-5R5G-4		5.5	14.6	12.5	5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.































Dimension







Wiring Diagram

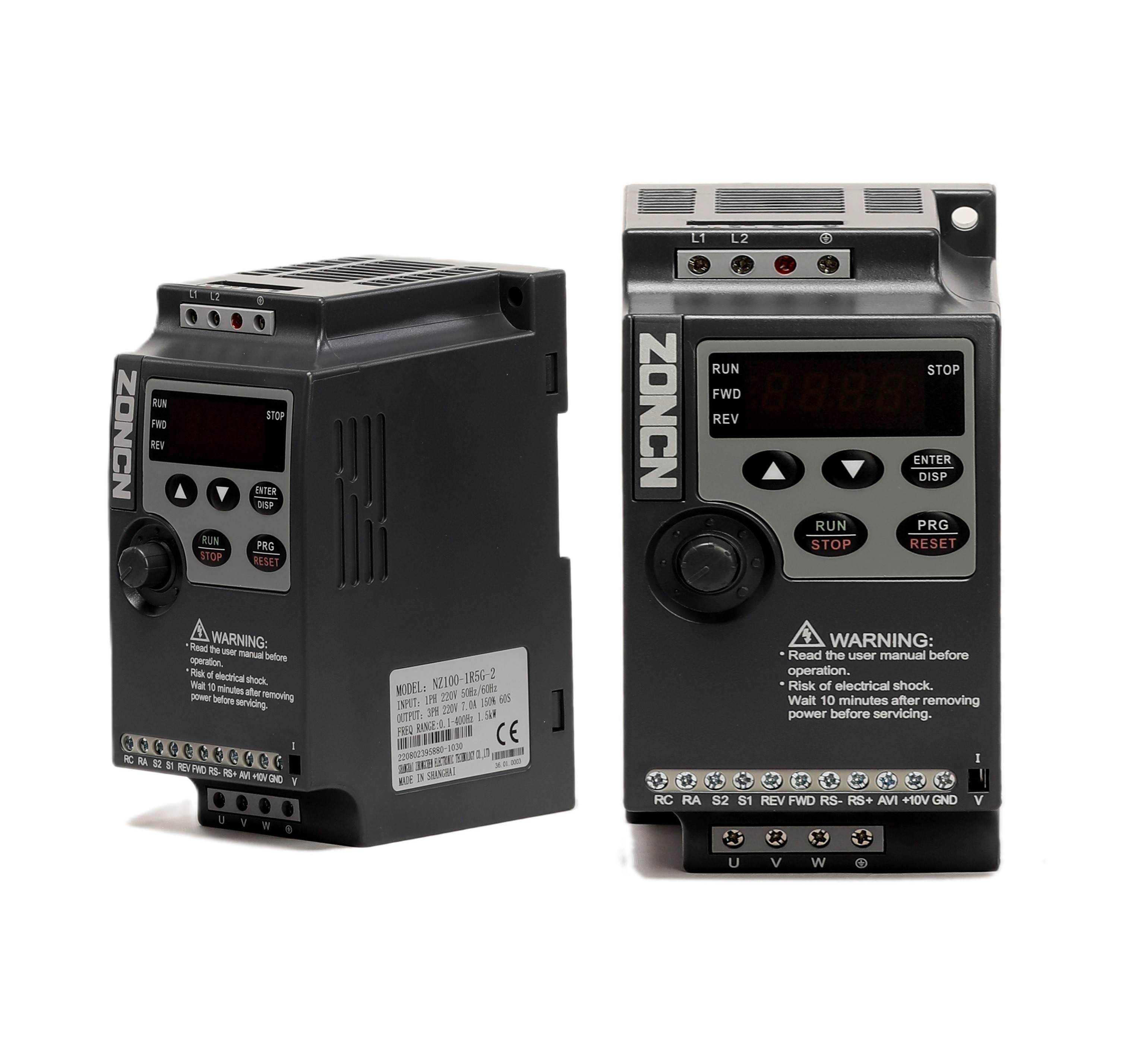

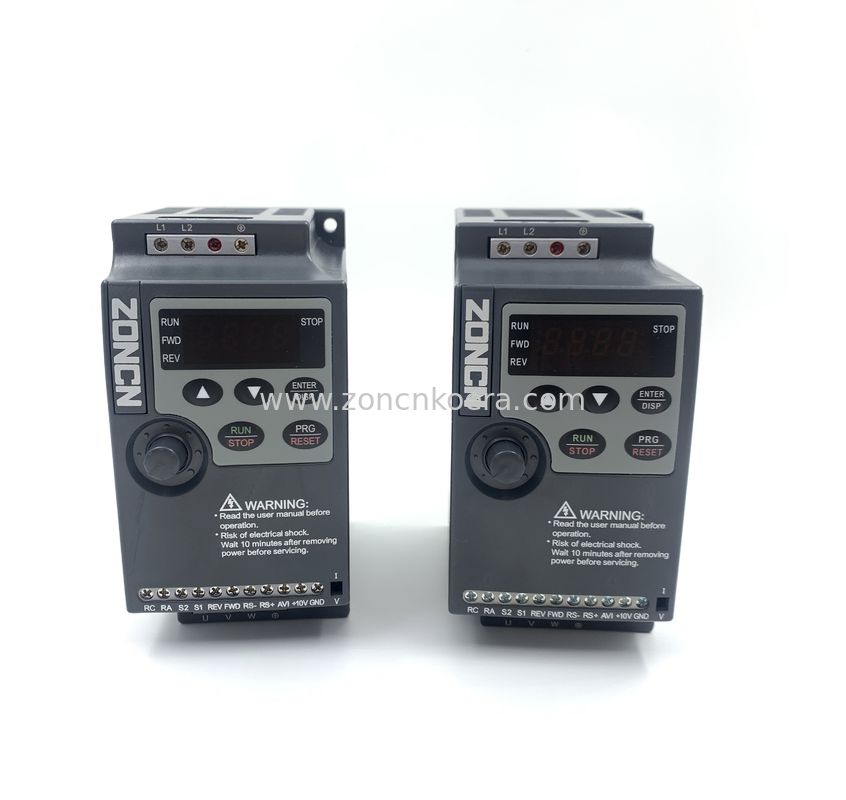

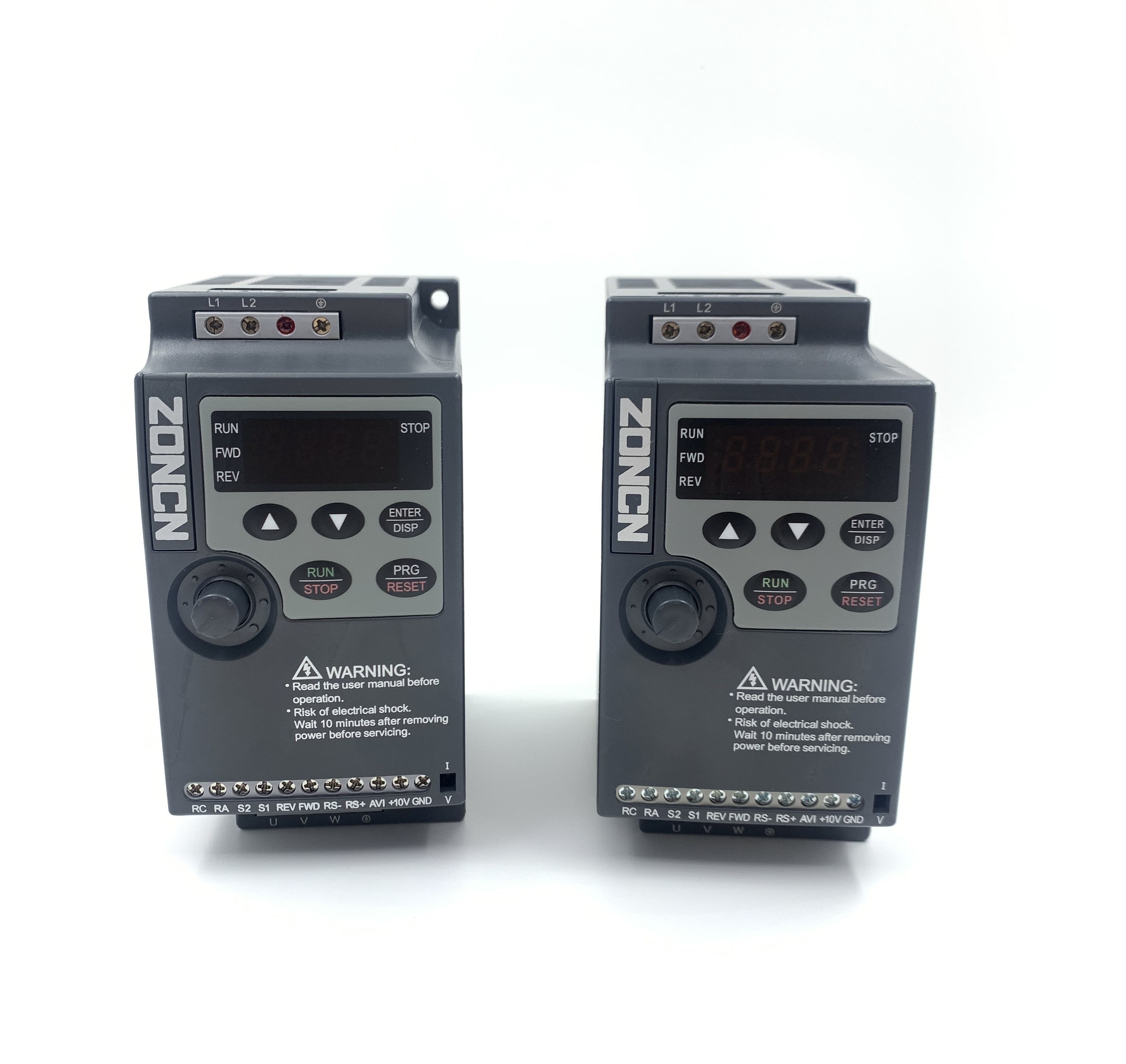

Product picture

Packing&Shipping

Workshop



Exhibition





Application





FAQ

Q1: Do you produce for OEM brand?



A: Yes, we have lots of OEM experience.



Q2: What is your delivery time?



A: Within 15 days normally.



Q3: Do you have CE certification?



A: Yes.



Q4: What is your payment terms?



A: 100% T/T, Paypal in advance.

Q5: What is your warranty time?

A: 18 months
