3.7kw 220v VFD Inverter Single Phase 5hp Variable Frequency Drive With CE

3.7kw 220v VFD Inverter Single Phase 5hp Variable Frequency Drive With CE
3.7kw 220v VFD Inverter Single Phase 5hp Variable Frequency Drive With CE
3.7kw 220v VFD Inverter Single Phase 5hp Variable Frequency Drive With CE 3.7kw 220v VFD Inverter Single Phase 5hp Variable Frequency Drive With CE 3.7kw 220v VFD Inverter Single Phase 5hp Variable Frequency Drive With CE 3.7kw 220v VFD Inverter Single Phase 5hp Variable Frequency Drive With CE 3.7kw 220v VFD Inverter Single Phase 5hp Variable Frequency Drive With CE 3.7kw 220v VFD Inverter Single Phase 5hp Variable Frequency Drive With CE 3.7kw 220v VFD Inverter Single Phase 5hp Variable Frequency Drive With CE
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: NZ100-3R7G-2
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: AC Drive Product Name: Variable Frequency Drive
Brand: ZONCN Input: 220v
Power: 3.7kw/5hp Control Mode: V/F Control Only
Size: Mini Application: Fan/Pump/conveyor/blower Etc.
PID: Built-in Cooling Mode: Forces Air Cooling
Protection: IP20
Highlight:

5hp VFD Inverter

,

220v VFD Inverter

,

Single Phase VFD Inverter

ZONCN NZ100 Series Mini variable frequency inverter



Product Features

  • Micro design

  • Easy-to-access terminals for wiring

  • Installation: Wall-mounted or standard 35mm rail mounting (below 5.5kw)

  • Communication: Standard RS485 communication function(MODBUS)

  • Control mode: V/F control

  • Frequency: 50HZ/60HZ

  • PID control: Built-in

  • Application: fan/pump/conveyor/blower/food equipments, etc.

Nameplate Description

3.7kw 220v VFD Inverter Single Phase 5hp Variable Frequency Drive With CE 0

Specification

Model Input Voltage  Output Power (KW) Input Current (A) Output Current (A)  Motor Equipped (KW)
NZ100-0R4G-2 1PH AC220V+/-15% 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
NZ100-0R75G-4 3PH AC380V+/-15% 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5.0 4.0 1.5
NZ100-2R2G-4 2.2 5.8 5.0 2.2
NZ100-3R7G-4 3.7 10.7 8.6 3.7
NZ100-5R5G-4 5.5 14.6 12.5 5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.































Dimension



3.7kw 220v VFD Inverter Single Phase 5hp Variable Frequency Drive With CE 1





Wiring Diagram



3.7kw 220v VFD Inverter Single Phase 5hp Variable Frequency Drive With CE 2

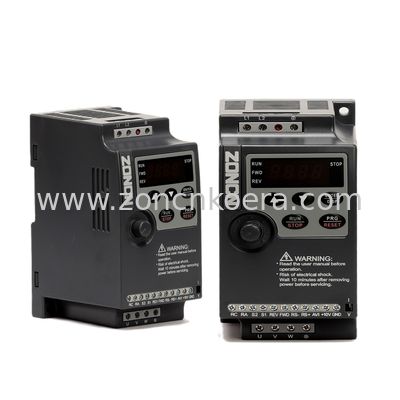

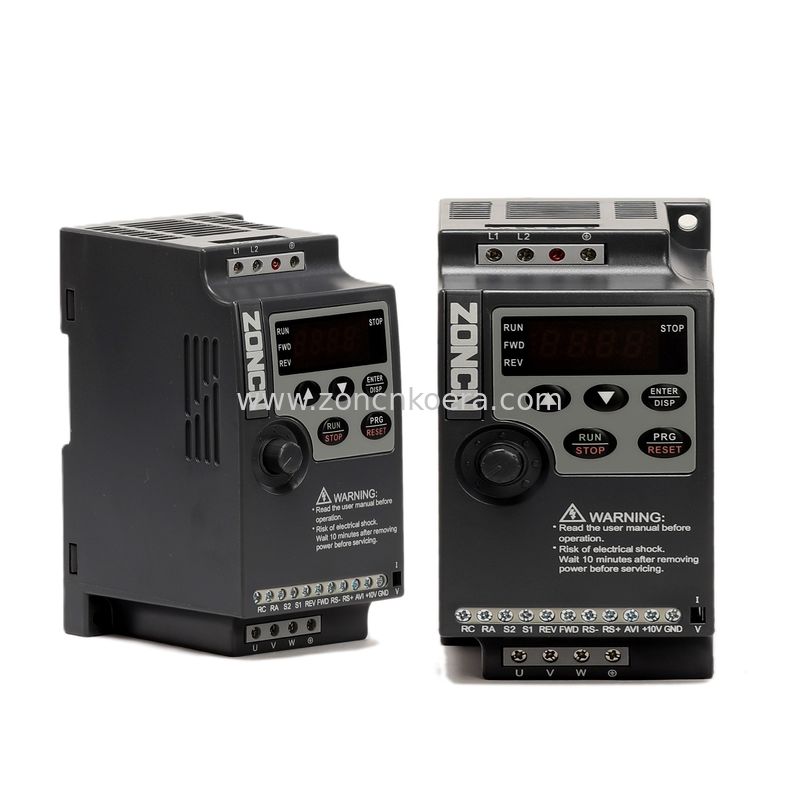

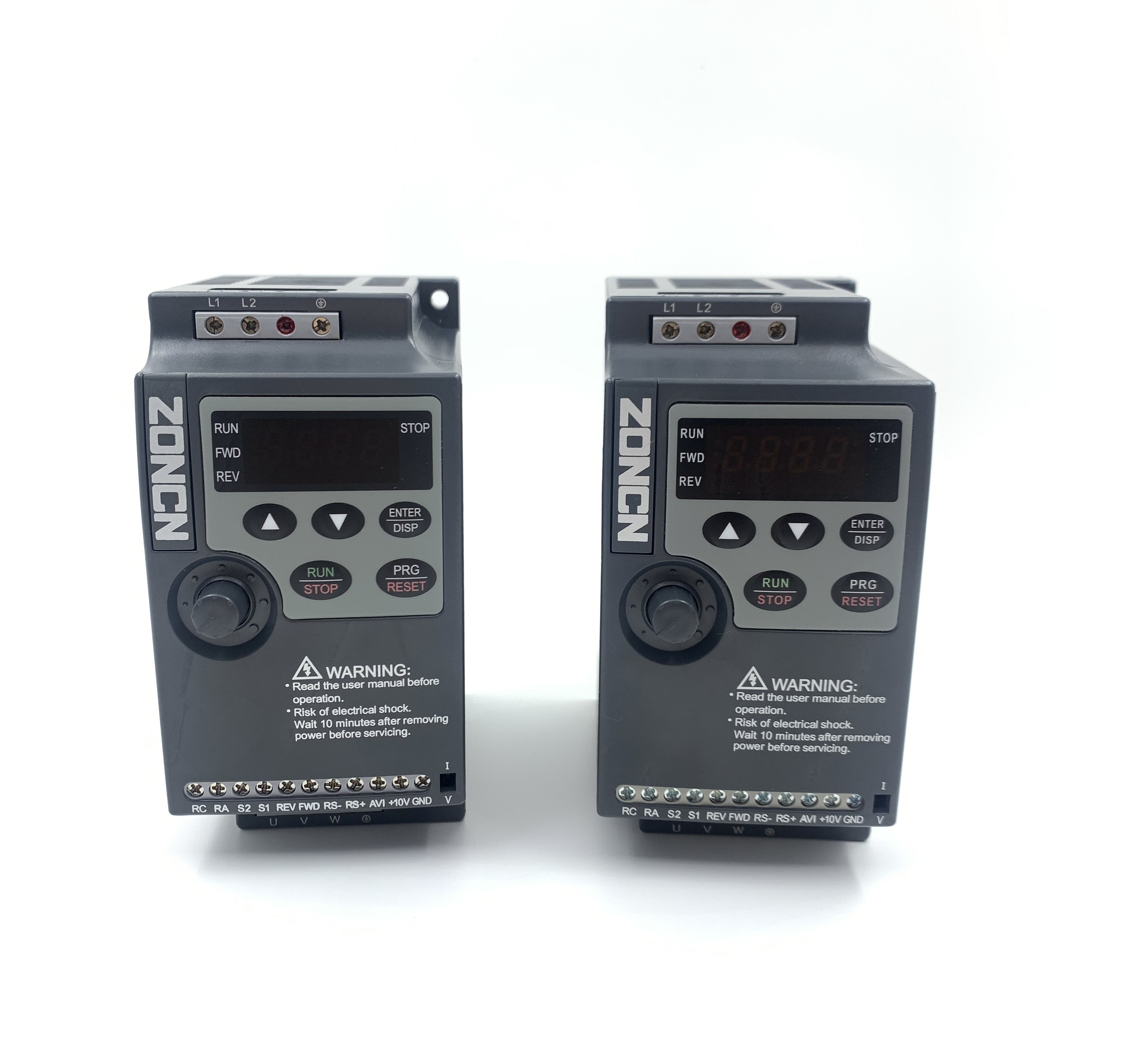

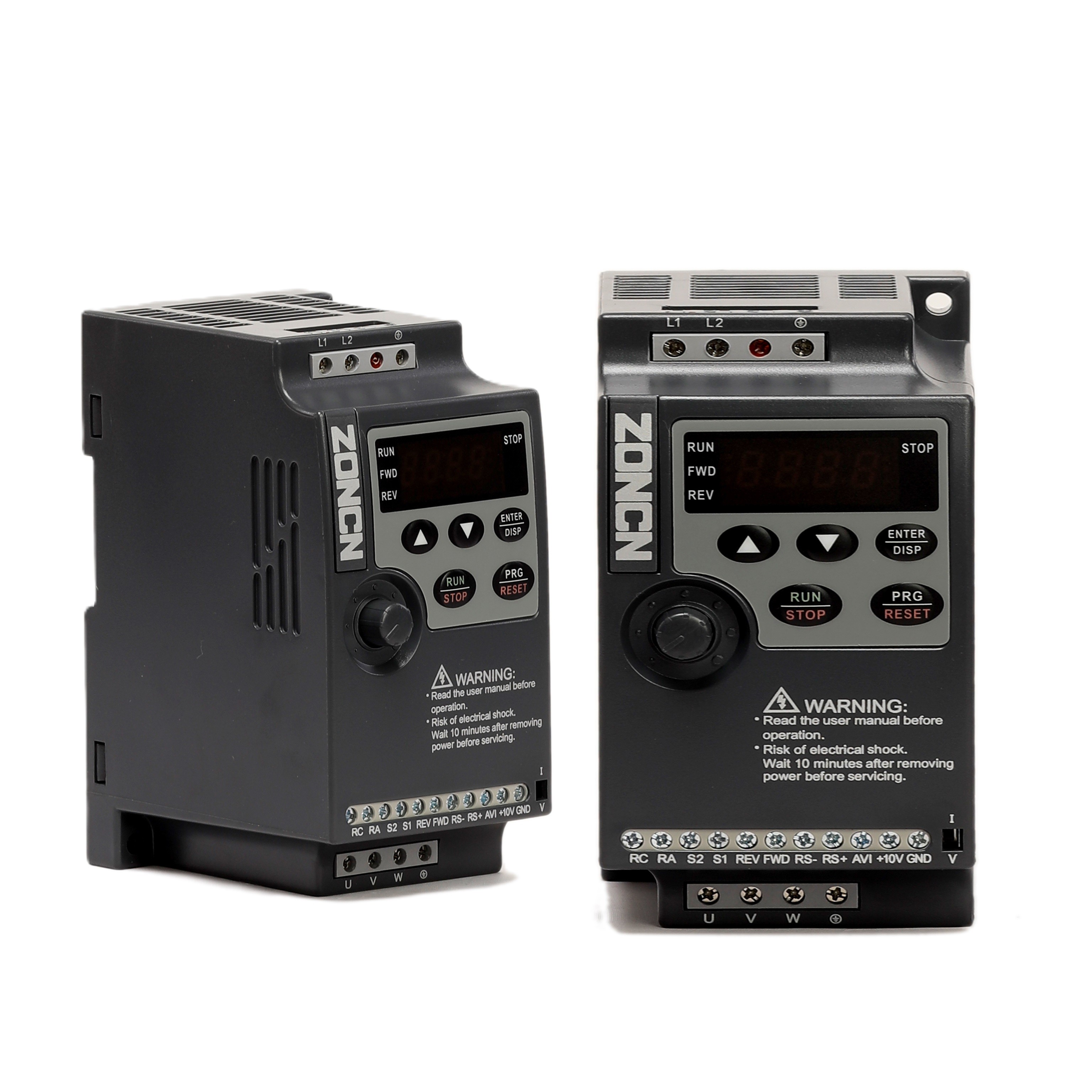

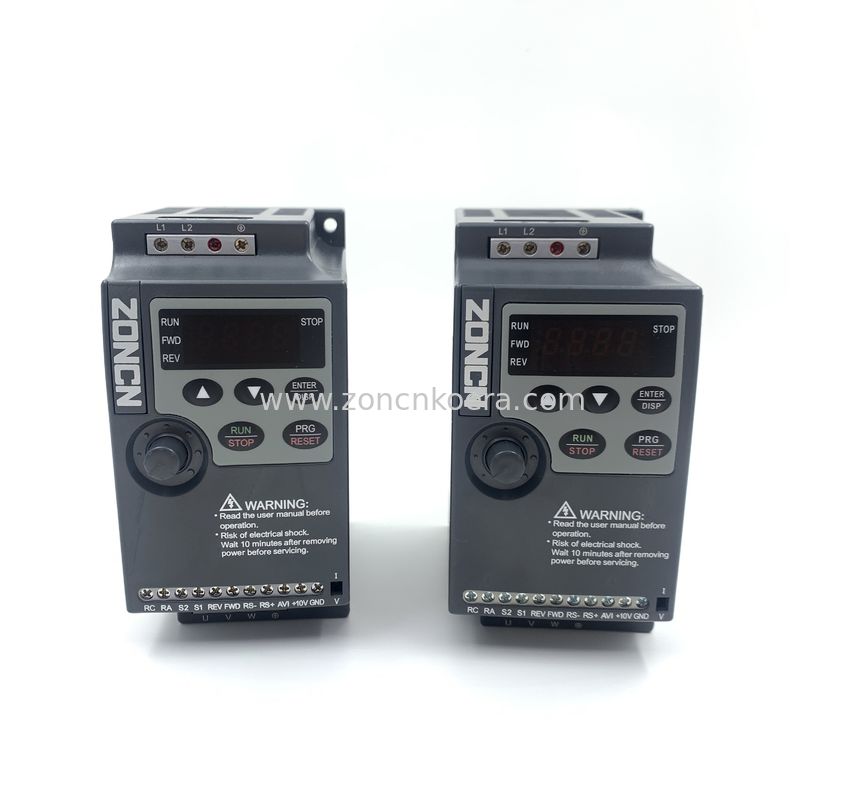

Product picture

3.7kw 220v VFD Inverter Single Phase 5hp Variable Frequency Drive With CE 3

Packing&Shipping

3.7kw 220v VFD Inverter Single Phase 5hp Variable Frequency Drive With CE 4

Workshop

3.7kw 220v VFD Inverter Single Phase 5hp Variable Frequency Drive With CE 5

Warehouse Corner

3.7kw 220v VFD Inverter Single Phase 5hp Variable Frequency Drive With CE 6

Exhibition

3.7kw 220v VFD Inverter Single Phase 5hp Variable Frequency Drive With CE 7



Application



3.7kw 220v VFD Inverter Single Phase 5hp Variable Frequency Drive With CE 8















Tag:

Variable Frequency Drive Inverter,

vector control inverter,

low power inverter
