3hp VFD Inverter 3 Phase 380v 2.2kw Variable Frequency Drive With RS485 Communication

3hp VFD Inverter 3 Phase 380v 2.2kw Variable Frequency Drive With RS485 Communication
3hp VFD Inverter 3 Phase 380v 2.2kw Variable Frequency Drive With RS485 Communication
3hp VFD Inverter 3 Phase 380v 2.2kw Variable Frequency Drive With RS485 Communication 3hp VFD Inverter 3 Phase 380v 2.2kw Variable Frequency Drive With RS485 Communication 3hp VFD Inverter 3 Phase 380v 2.2kw Variable Frequency Drive With RS485 Communication 3hp VFD Inverter 3 Phase 380v 2.2kw Variable Frequency Drive With RS485 Communication 3hp VFD Inverter 3 Phase 380v 2.2kw Variable Frequency Drive With RS485 Communication 3hp VFD Inverter 3 Phase 380v 2.2kw Variable Frequency Drive With RS485 Communication 3hp VFD Inverter 3 Phase 380v 2.2kw Variable Frequency Drive With RS485 Communication
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: NZ100-2R2G-4
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Product Name: Frequency Inverter Brand: ZONCN
Input: 380v-480v Power: 2.2kw/3hp
Output Current: 5A Control Mode: V/F Control Only
Size: Mini Application: Fan/Pump/conveyor/blower Etc.
PID: Built-in Cooling Mode: Forces Air Cooling
Highlight:

3 Phase VFD Inverter

,

RS485 VFD Inverter

,

3hp VFD Inverter

ZONCN NZ100 Series Mini variable frequency inverter



Product Features

  • Micro/Mini Size

  • Easy-to-access terminals for wiring

  • Installation: Wall-mounted or standard 35mm rail mounting (below 5.5kw)

  • Communication: Standard RS485 communication function(MODBUS)

  • Control mode: V/F control

  • PID control: Built-in

  • Input Voltage: 1ph 220v, 3ph 380v



Nameplate Description

3hp VFD Inverter 3 Phase 380v 2.2kw Variable Frequency Drive With RS485 Communication 0



Specification

Model Input Voltage  Output Power (KW) Input Current (A) Output Current (A)  Motor Equipped (KW)
NZ100-0R4G-2 1PH AC220V+/-15% 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
NZ100-0R75G-4 3PH AC380V+/-15% 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5.0 4.0 1.5
NZ100-2R2G-4 2.2 5.8 5.0 2.2
NZ100-3R7G-4 3.7 10.7 8.6 3.7
NZ100-5R5G-4 5.5 14.6 12.5 5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.

































Dimension



3hp VFD Inverter 3 Phase 380v 2.2kw Variable Frequency Drive With RS485 Communication 1





Wiring Diagram



3hp VFD Inverter 3 Phase 380v 2.2kw Variable Frequency Drive With RS485 Communication 2

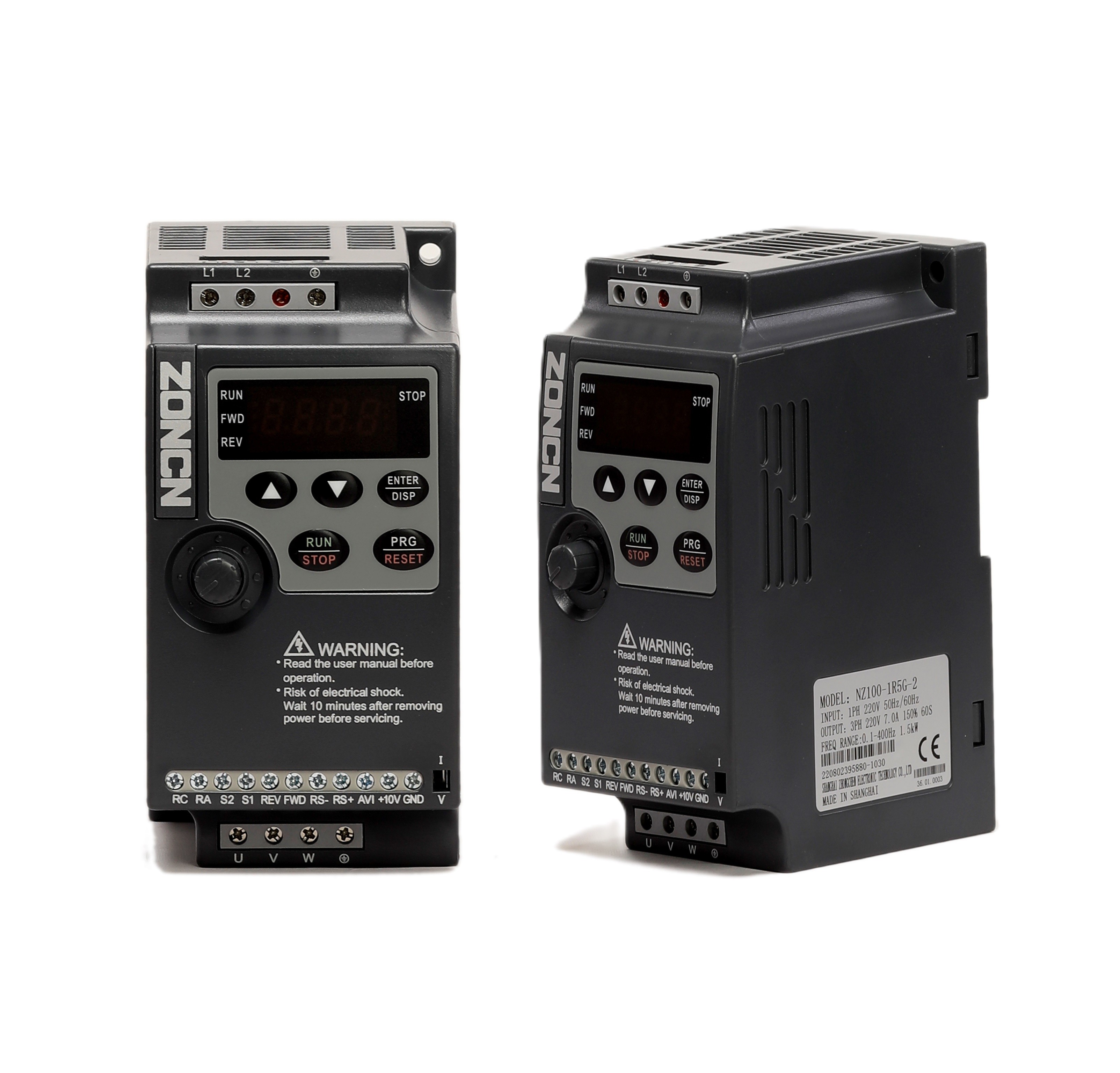

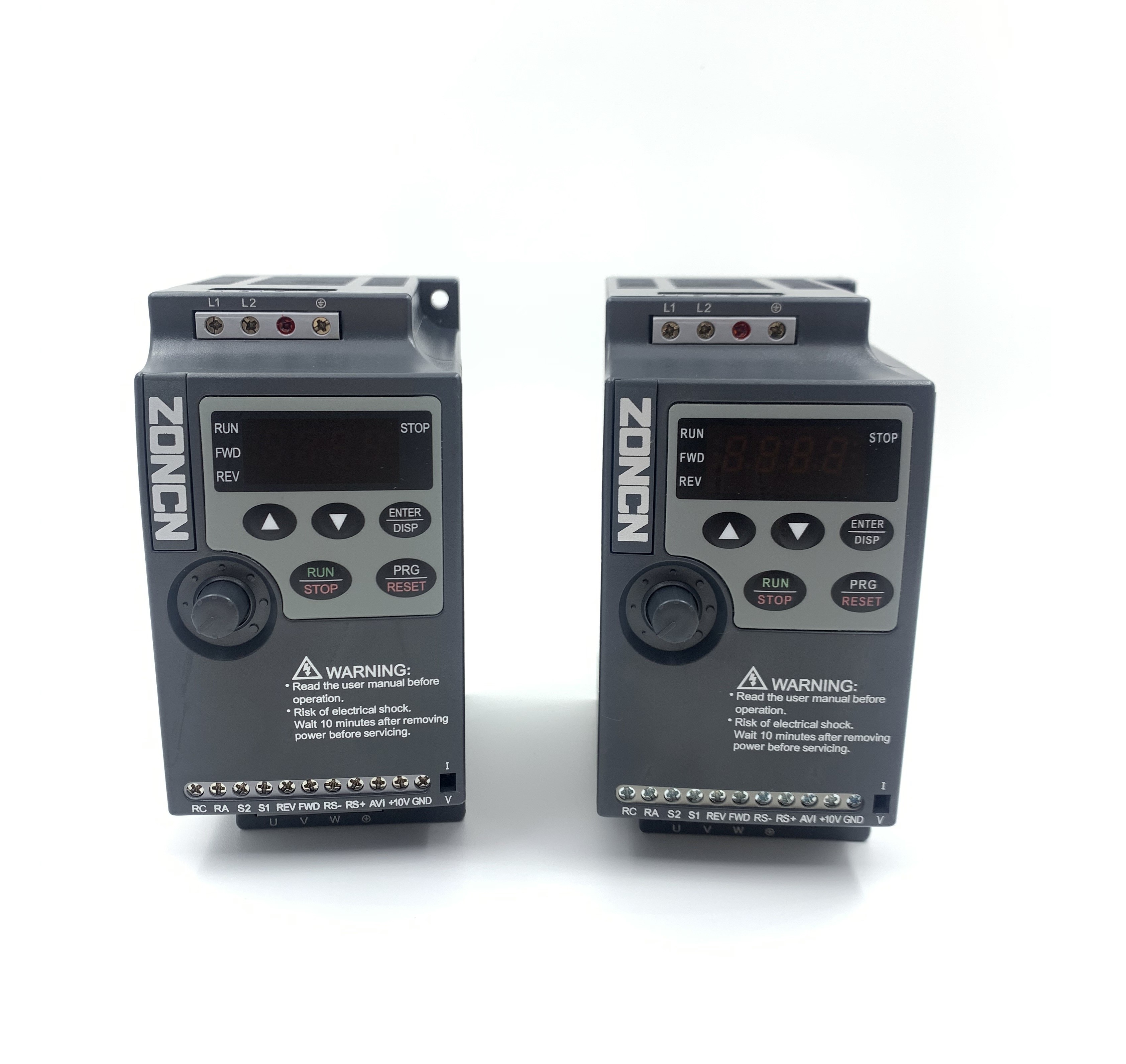

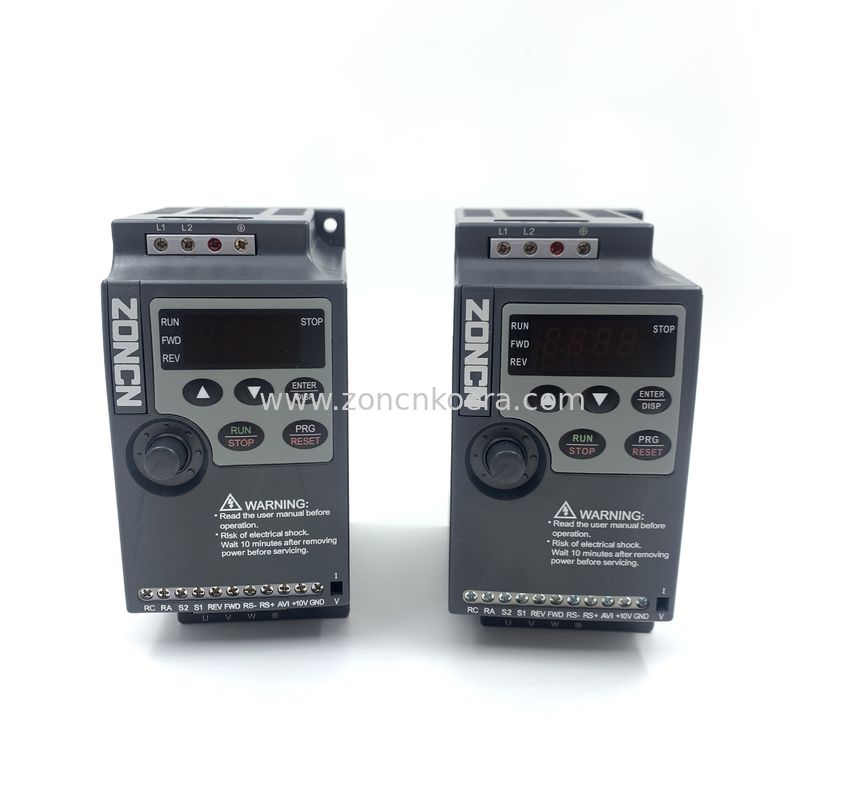

Product picture

3hp VFD Inverter 3 Phase 380v 2.2kw Variable Frequency Drive With RS485 Communication 3



Packing&Shipping

3hp VFD Inverter 3 Phase 380v 2.2kw Variable Frequency Drive With RS485 Communication 4



Workshop

3hp VFD Inverter 3 Phase 380v 2.2kw Variable Frequency Drive With RS485 Communication 5



Warehouse Corner

3hp VFD Inverter 3 Phase 380v 2.2kw Variable Frequency Drive With RS485 Communication 6



Exhibition

3hp VFD Inverter 3 Phase 380v 2.2kw Variable Frequency Drive With RS485 Communication 7





Application



3hp VFD Inverter 3 Phase 380v 2.2kw Variable Frequency Drive With RS485 Communication 8
