Industrial Controls Low Voltage Inverter NZ100-1R5G-4 1.5kw

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	ZONCN
Certification:	CE+KC
Model Number:	NZ100-1R5G-2

Minimum Order Quantity:	1 unit
Packaging Details:	Carton；
Delivery Time:	7-30 work days
Payment Terms:	T/T, Western Union，Paypal
Supply Ability:	100000 units a month

Get Best Price Contact Now

Model:	NZ100-1R5G-2	Type:	AC Drive Inverter
Modbus ASCII:	Support	MOQ:	1 Pc
Simple PLC:	Yes	Output Power:	1.5kw
Input Power:	1.5kw
Highlight:	Industrial Controls Low Voltage Inverter , Low Voltage Inverter 1.5kw

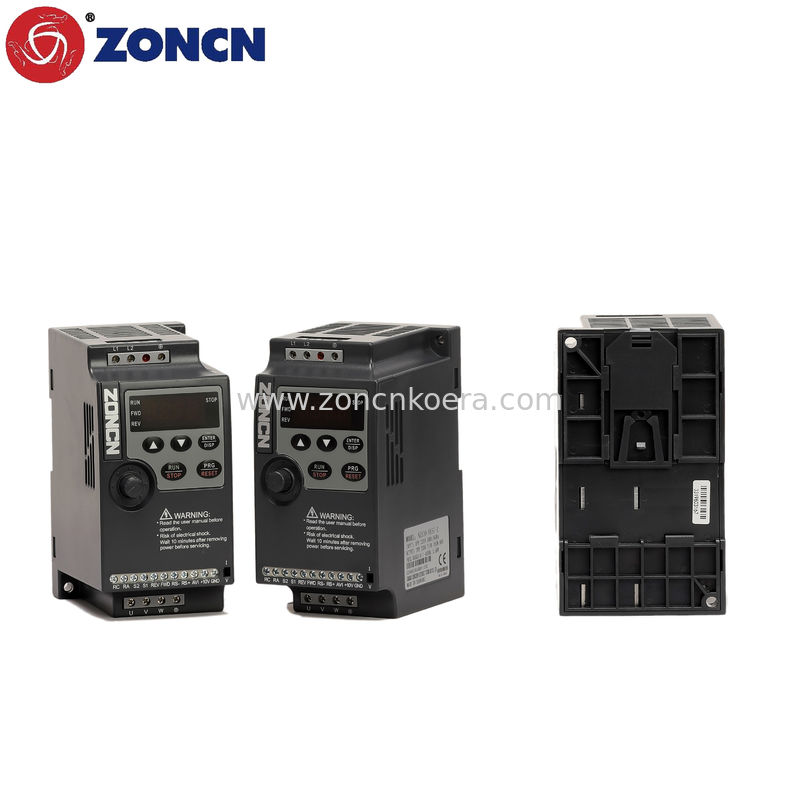

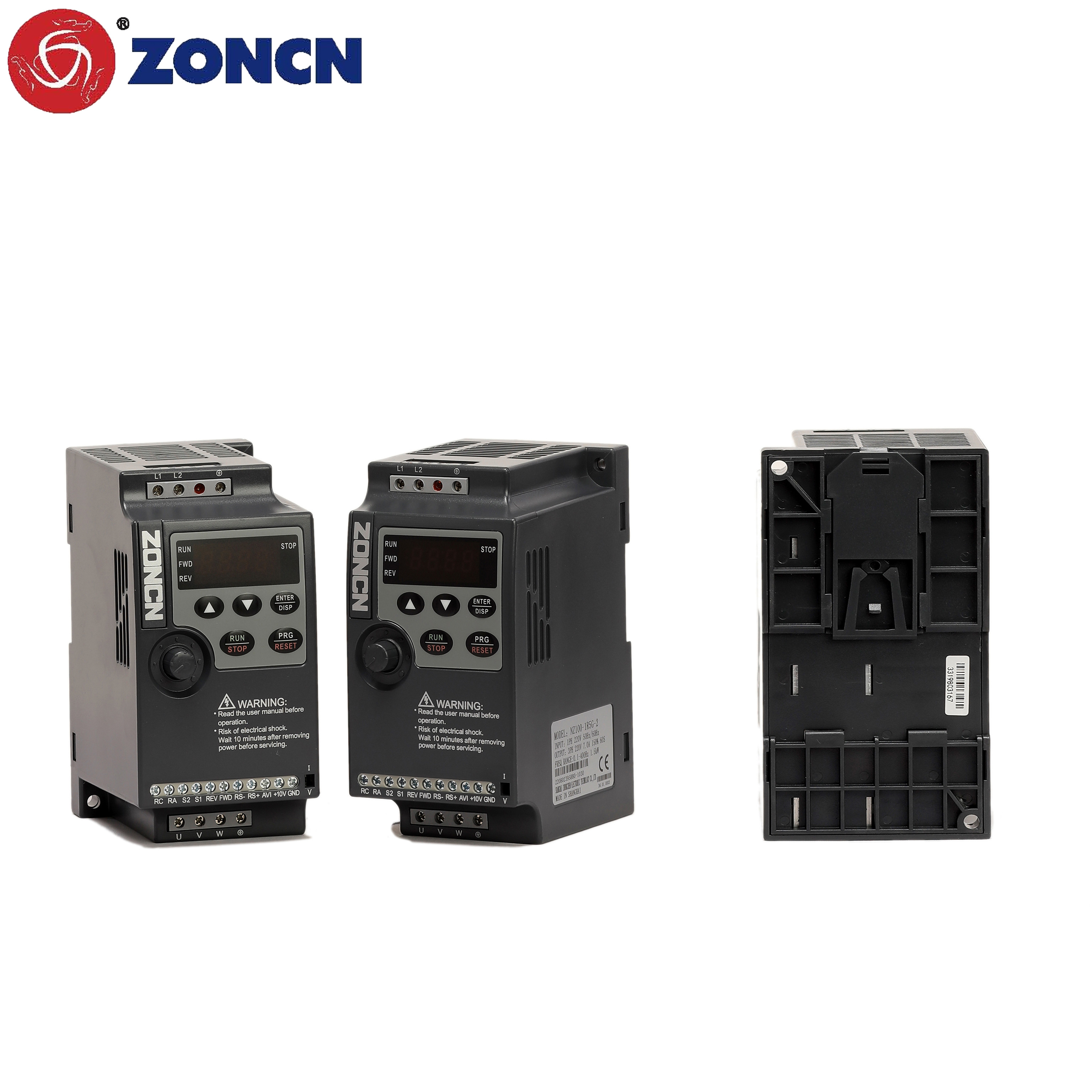

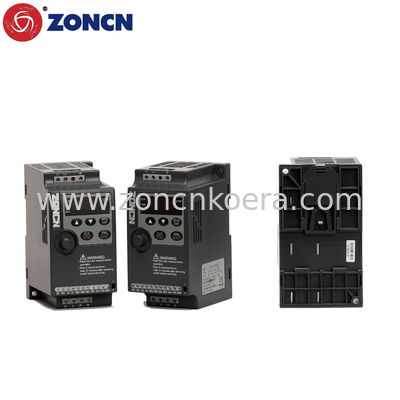

Industrial Controls AC Drives Vfd Inverter Simple Low Voltage Inverter NZ100-1R5G-4 1.5kw

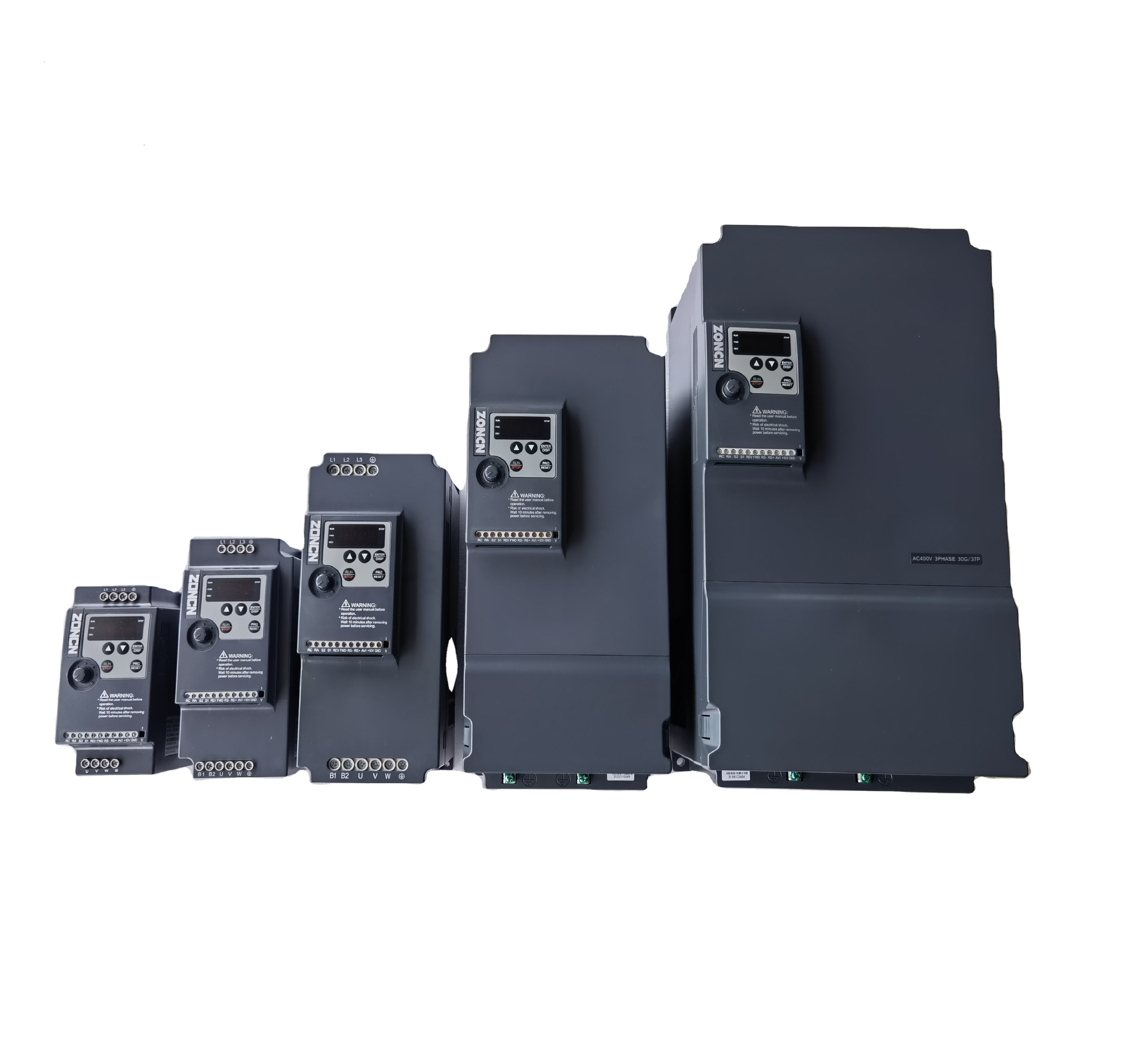

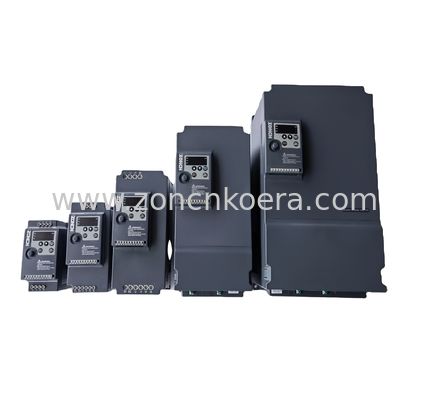

NZ100 series micro vfd inverter 220V 1.5kw NZ100-1R5G-2

Basic product introduction:

Compact size and low cost desgin
Terminals uncovered,easy for wiring design
DIN-rail mounting(below 5.5kw)
Modbus via RS485
Maintenance-free function
Support MODBUS ASCII communication

Technical Specific:

Items	NZ100 series inverter
Input rated voltage,frequency	One-phase/Three phase AC 220v/380v 50/60Hz
Input voltage range	170-240v(220v)330-440v(380v)
Output voltage range	0-220v(220v)0-380v(380v)
Output frequency range	0.1~400Hz
Indication	Operating status/Alarm definition/interactive guidance: frequency setting,the output frequency/ current, DC bus voltage and so on.
Frequency setting resolution	Digital input: 0.10Hz,analog input: 0.1% of maximum output frequency
Output frequency accuracy	0.01Hz
VF control	Setting V/F curve to satisfy various load requirements
Torque boost	Auto increase: auto raise torque by loading Condition;Manual increase:enable to set 0.0~20.0% of raising torque.
Multifunctional input terminal	Four multi-function input terminals, realizing functions including eight sectionspeed control, program running, four-section acceleration/deceleration speedswitch, UP/DOWN function and emergency stop and other functions
Multifunctional output terminal	1 multi-function output terminals for displaying of run, zero speed, extermnalabnormity, program operation and other information and warnings
Acceleration/ Deceleration time setting	0~999.9s acceleration/deceleration time can be set individually
PID control	Build-in PID control
RS485	Standard RS485 communication function(MODBUS)
Frequency setting	Analog input: 0~ 10 V, 4~20mA Digital input: Operation panel or RS485 or UP/DOWN. Note: AVI terminals can be used to select an analog voltage input(AV) and analog current input (Al) through the switch J2.
Multi-speed	Four multifunction input terminals, 15 section speed can be set
Automatic voltage regulation	Automatic voltage regulation function can be selected
Counter	Built-in 2 group of counters
Protection	IP20

Product model details:

Model	Rated output power (kW)	Rated input current (A)	Rated output current (A)	Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
NZ100-0R4G-2	0.4	5.4	2.5	0.4
NZ100-0R75G-2	0.75	8.2	5	0.75
NZ100-1R5G-2	1.5	14	7	1.5
NZ100-2R2G-2	2.2	23	11	2.2
Input voltage(v):3PH AC 380V±15%
NZ100-0R75G-4	0.75	3.4	2.7	0.75
NZ100-1R5G-4	1.5	5	4	1.5
NZ100-2R2G-4	2.2	5.8	5	2.2
NZ100-3R7G/5R5P-4	3.7	10.7	8.6	3.7
NZ100-5R5G/7R5P-4	5.5	14.6	12.5	5.5
NZ100-7R5G/11P-4	7.5	20	17.5	7.5
NZ100-11G/15P-4	11	26	24	11
NZ100-15G/18.5P-4	15	35	33	15

NZ100 nameplate:

NZ100 dimension:

Application:

Introduction to the Wide Application of NZ100 Series Variable Frequency Drives in the Small Food Machinery Industry

The NZ100 series variable frequency drives have gained significant popularity in the small food machinery industry due to their versatile applications and reliable performance. These drives are designed to efficiently control the speed and torque of electric motors, making them an ideal choice for various small food processing machines.

One of the key advantages of the NZ100 series variable frequency drives is their ability to provide precise control over motor speed. This feature is particularly crucial in the small food machinery industry, where different processes such as mixing, grinding, and cutting require specific motor speeds for optimal results. The NZ100 drives allow operators to easily adjust the motor speed to achieve the desired level of precision, ensuring consistent and high-quality food production.

Moreover, the NZ100 series drives are known for their user-friendly interface and intuitive programming capabilities. This makes them suitable for small food machinery manufacturers who may not have extensive technical expertise. The drives can be easily integrated into existing machinery systems, enabling seamless operation and minimizing downtime during installation or maintenance.

Another significant advantage of the NZ100 series drives is their energy-saving capabilities. With the increasing emphasis on sustainability and cost-efficiency, small food machinery manufacturers are constantly seeking ways to reduce energy consumption. The NZ100 drives feature advanced energy-saving algorithms that optimize motor performance, resulting in reduced energy consumption and lower operating costs.

Furthermore, the NZ100 series drives are renowned for their robust construction and durability. In the small food machinery industry, where machines are subjected to demanding operating conditions, reliability is of utmost importance. The NZ100 drives are designed to withstand harsh environments, ensuring uninterrupted operation and minimizing the risk of breakdowns or production delays.

In conclusion, the NZ100 series variable frequency drives have found extensive application in the small food machinery industry. Their precise speed control, user-friendly interface, energy-saving capabilities, and robust construction make them an ideal choice for small food processing machines. With their reliable performance, these drives contribute to efficient and high-quality food production, meeting the demands of the ever-growing small food machinery market.

FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
