220V Low Voltage 3 Phase Variable Frequency Drive 2HP 1.5KW

220V Low Voltage Inverters 2HP 1.5KW Vfd ZONCN NZ100-1R5G-2 Variable Frequency Drives

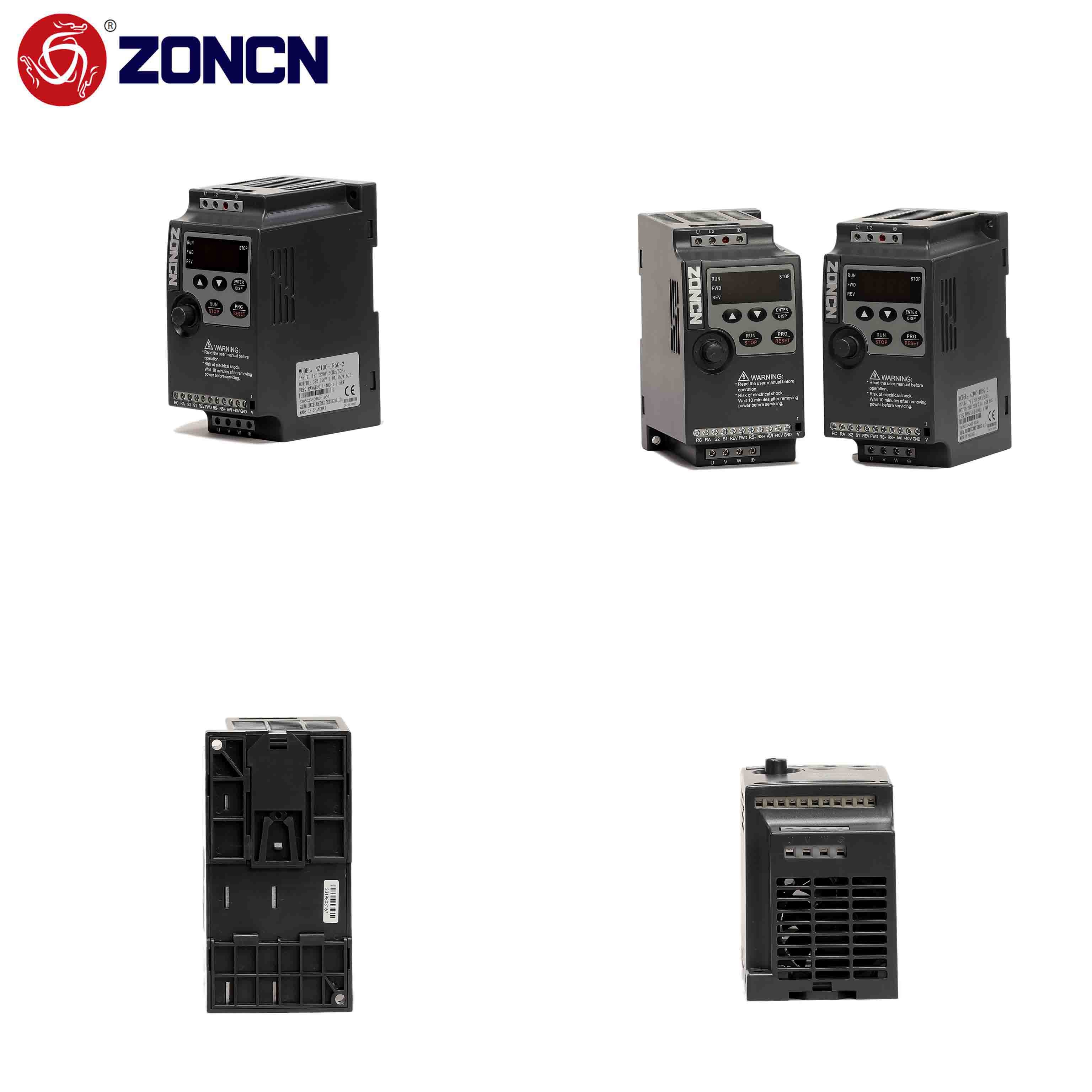

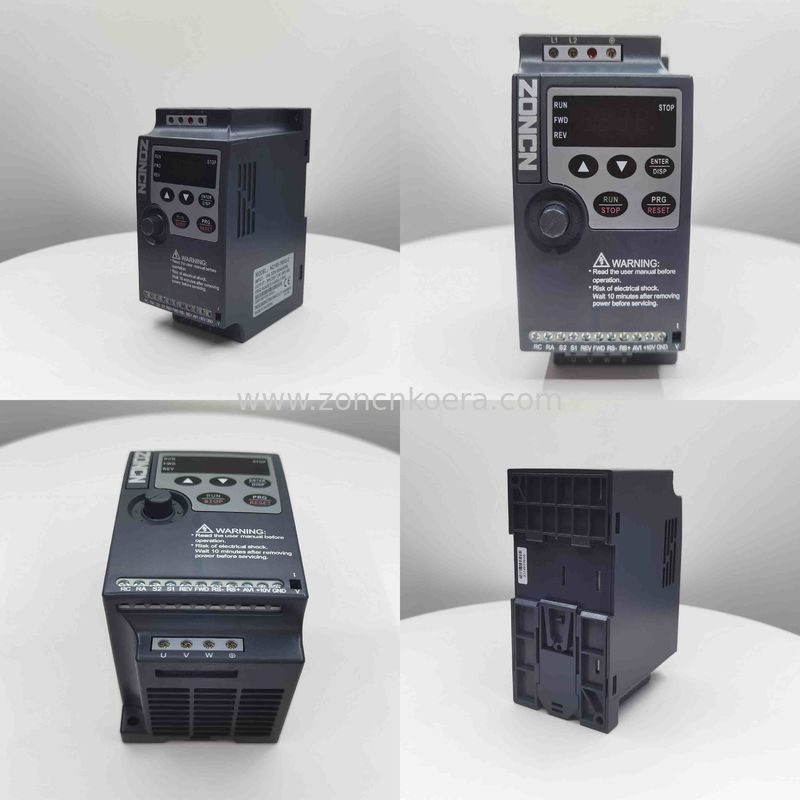

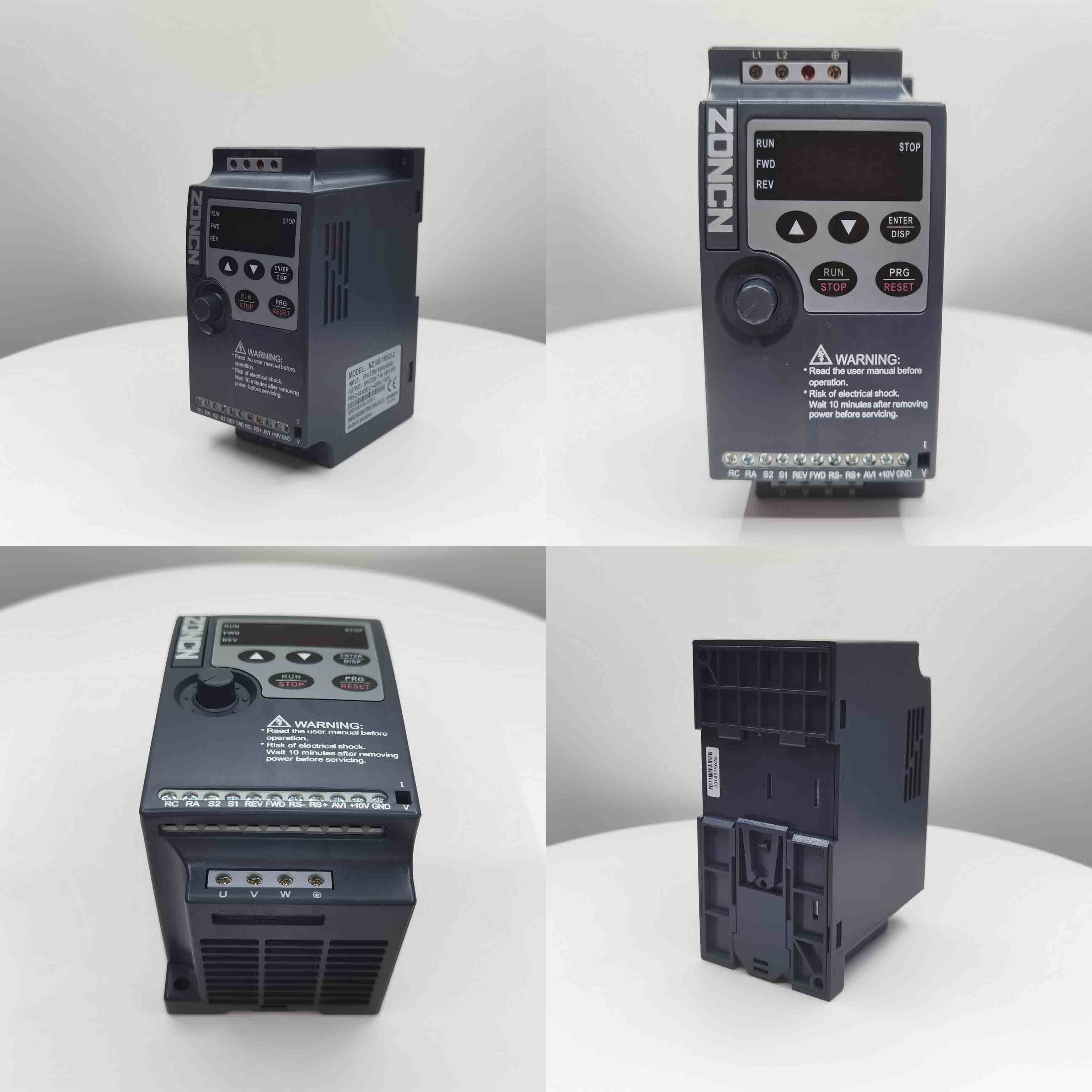

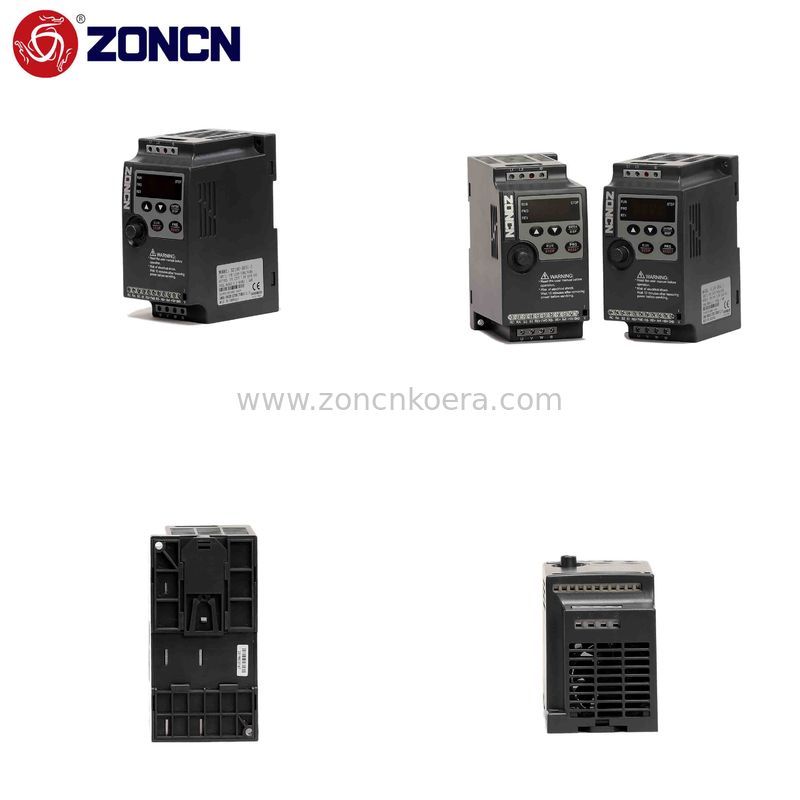

NZ100 series micro vfd inverter 220V 2HP NZ100-1R5G-2



Basic product introduction:

• Compact size and low cost desgin
• Terminals uncovered,easy for wiring design
• DIN-rail mounting(below 5.5kw)
• Modbus via RS485
• Maintenance-free function
• Support MODBUS ASCII communication





Technical Specific:

Items	NZ100 series inverter
Input rated voltage,frequency	One-phase/Three phase AC 220v/380v 50/60Hz
Input voltage range	170-240v(220v)330-440v(380v)
Output voltage range	0-220v(220v)0-380v(380v)
Output frequency range	0.1~400Hz
Indication	Operating status/Alarm definition/interactive guidance: frequency setting,the output frequency/ current, DC bus voltage and so on.
Frequency setting resolution	Digital input: 0.10Hz,analog input: 0.1% of maximum output frequency
Output frequency accuracy	0.01Hz
VF control	Setting V/F curve to satisfy various load requirements
Torque boost	Auto increase: auto raise torque by loading Condition;Manual increase:enable to set 0.0~20.0% of raising torque.
Multifunctional input terminal	Four multi-function input terminals, realizing functions including eight sectionspeed control, program running, four-section acceleration/deceleration speedswitch, UP/DOWN function and emergency stop and other functions
Multifunctional output terminal	1 multi-function output terminals for displaying of run, zero speed, extermnalabnormity, program operation and other information and warnings
Acceleration/ Deceleration time setting	0~999.9s acceleration/deceleration time can be set individually
PID control	Build-in PID control
RS485	Standard RS485 communication function(MODBUS)
Frequency setting	Analog input: 0~ 10 V, 4~20mA Digital input: Operation panel or RS485 or UP/DOWN. Note: AVI terminals can be used to select an analog voltage input(AV) and analog current input (Al) through the switch J2.
Multi-speed	Four multifunction input terminals, 15 section speed can be set
Automatic voltage regulation	Automatic voltage regulation function can be selected
Counter	Built-in 2 group of counters
Protection	IP20







Product model details:

Model	Rated output power (kW)	Rated input current (A)	Rated output current (A)	Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
NZ100-0R4G-2	0.4	5.4	2.5	0.4
NZ100-0R75G-2	0.75	8.2	5	0.75
NZ100-1R5G-2	1.5	14	7	1.5
NZ100-2R2G-2	2.2	23	11	2.2
Input voltage(v):3PH AC 380V±15%
NZ100-0R75G-4	0.75	3.4	2.7	0.75
NZ100-1R5G-4	1.5	5	4	1.5
NZ100-2R2G-4	2.2	5.8	5	2.2
NZ100-3R7G/5R5P-4	3.7	10.7	8.6	3.7
NZ100-5R5G/7R5P-4	5.5	14.6	12.5	5.5
NZ100-7R5G/11P-4	7.5	20	17.5	7.5
NZ100-11G/15P-4	11	26	24	11
NZ100-15G/18.5P-4	15	35	33	15





NZ100 nameplate:





Keypad description:





Application:



The NZ100 series inverter has been widely used in the field of small equipment. Due to its superior performance and reliability, the NZ100 series drives are ideal for small equipment control.



First of all, the compact design and small size of the NZ100 series drives make them suitable for small equipment with limited installation space. Whether in small machinery, small pumping stations or other small industrial equipment, the NZ100 series drives provide efficient control functions to meet the needs of small equipment for precise control.



Secondly, the NZ100 series inverter has high precision control capability. With advanced vector control algorithms and high-performance control chips, the NZ100 series enables precise motor speed control to ensure stable operation of small equipment. Whether in small conveyor belts, small fans or other small equipment, the NZ100 series drives provide stable and reliable control performance.



In addition, the NZ100 series inverter also has the characteristics of high efficiency and energy saving. For small equipment, the control of energy consumption is particularly important. The NZ100 series inverter adopts advanced PWM modulation technology and energy feedback technology, which can effectively reduce the energy consumption of small equipment and achieve energy saving effect.



Overall, the wide application of the NZ100 series inverter in the field of small equipment is due to its compact design, high-precision control capabilities and energy-saving characteristics. Whether in the field of small machinery manufacturing, small chemical industry, small construction or other small equipment, the NZ100 series drives provide reliable control solutions to help small equipment achieve efficient and stable operation, improve production efficiency and save energy.









FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.





Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
