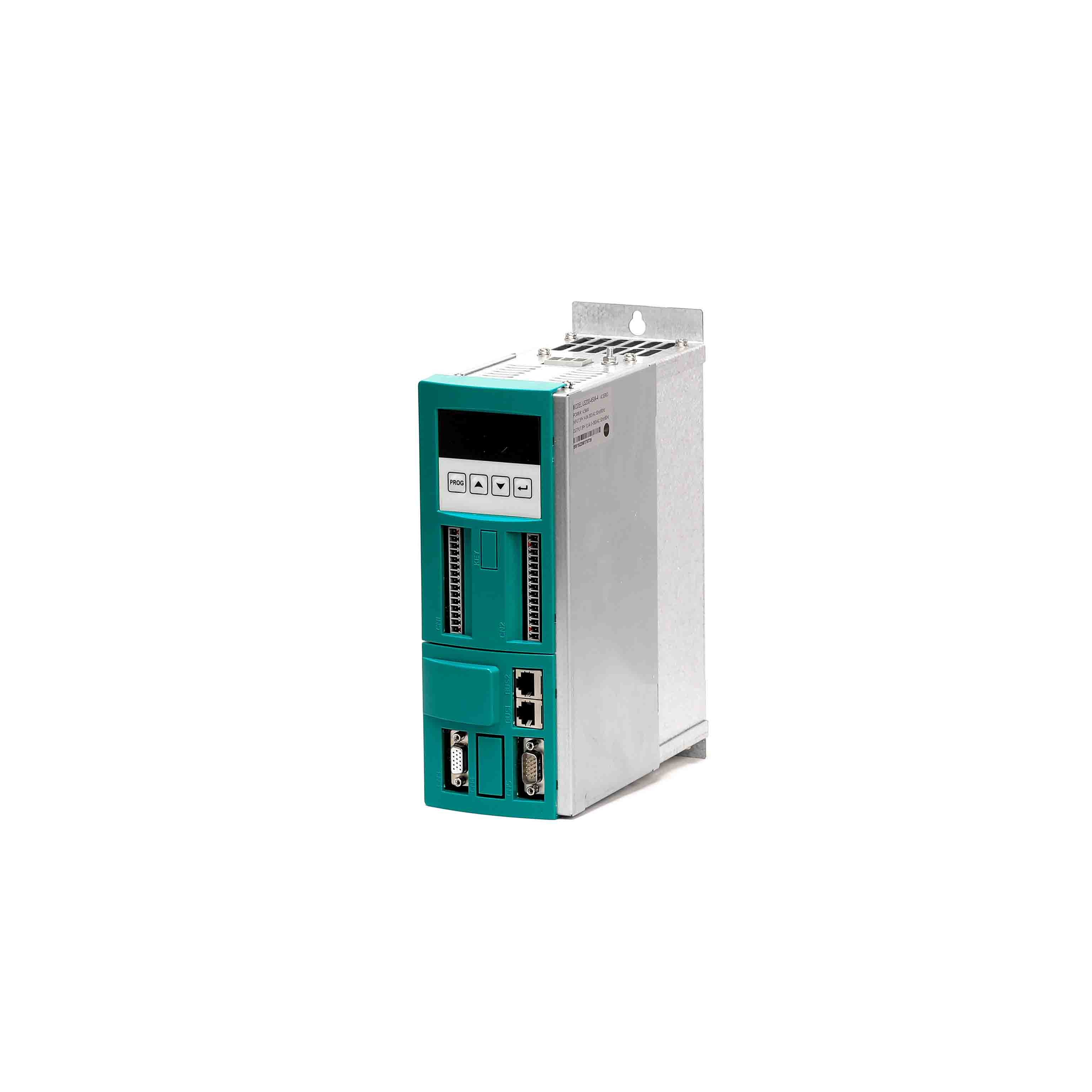

T8400D-3R7G/5R5P Industry Specific Inverter 3.7kw For CNC

T8400D-3R7G/5R5P 380v 3.7kw Ac Frequency Industry Specific Inverter For CNC

High Performance Spindle Servo Driver Inverter 3.7kw

Product introduction:

The ZONCN T8000D Series Inverter is a compact and powerful device designed for high-precision applications, such as CNC lathes. It offers several advantages that make it an excellent choice for precise control.

One of its key benefits is the support for closed-loop vector control. This advanced control method ensures accurate and stable motor performance, enabling precise speed and torque control. With closed-loop vector control, users can expect improved motor efficiency and energy savings.

The T8000D Series also provides support for multiple encoders, allowing users to choose from various encoder types for motor feedback and position control. This flexibility enhances customization options and fine-tuning of the control system.

Furthermore, the inverter is compatible with various PG cards, enabling the integration of additional features and expanding its functionality. This adaptability allows users to tailor the inverter to their specific requirements.

The T8000D Series is compatible with different types of motors, including standard asynchronous motors, spindle asynchronous motors, permanent magnet synchronous motors, and spindle synchronous motors. This wide compatibility makes it suitable for various applications, offering versatility and adaptability.

Additionally, the T8000D Series is equipped with spindle positioning functionality, enabling precise control of the spindle. This feature is particularly useful in high-precision applications like CNC lathes, ensuring accurate machining operations.

In summary, the ZONCN T8000D Series Inverter is a compact and versatile device that supports closed-loop vector control, multiple encoder support, various PG card installations, and compatibility with different motor types. Its spindle positioning functionality makes it an ideal choice for high-precision applications such as CNC lathes.

Product specification :

• Maximum frequency:Vector control: 0 ~ 1000Hz V/F control: 0~1500Hz
• Carrier frequency:0.8kHz ~ 16kHz；The carrier frequency can be automatically adjusted according to the load characteristics.
• Input frequency resolution:Digital setting:0.01Hz ；Analog setting: Maximum frequency x 0.025%
• Control Mode:Sensorless flux vector control (SVC)；Close-loop vector control (FVC)；Voltage/Frequency (V/F) control
• Start torque:G type:0.5Hz/150%(SVC)；0Hz/180%(FVC)
• Speed range:1:100(SVC)；1:1000(FVC)
• Speed stability accuracy:±0.5(SVC) ；±0.02%(FVC)
• Torque control accuracy:±5%(FVC)
• Overload capacity:G type:60s for 150% of the rated current,3s for 180% of the rated current.
• Torque boost:Auto-boost;Customized boost: 0.1%~30.0%

• V/F Curve:Straight-line V/F curve；Multi-point V/F curve；N-power V/F curve (1.2-power, 1.4-power, 1.6-power,1.8-power, square)



Selecton guide:

Wiring diagram:

FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within ten days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
