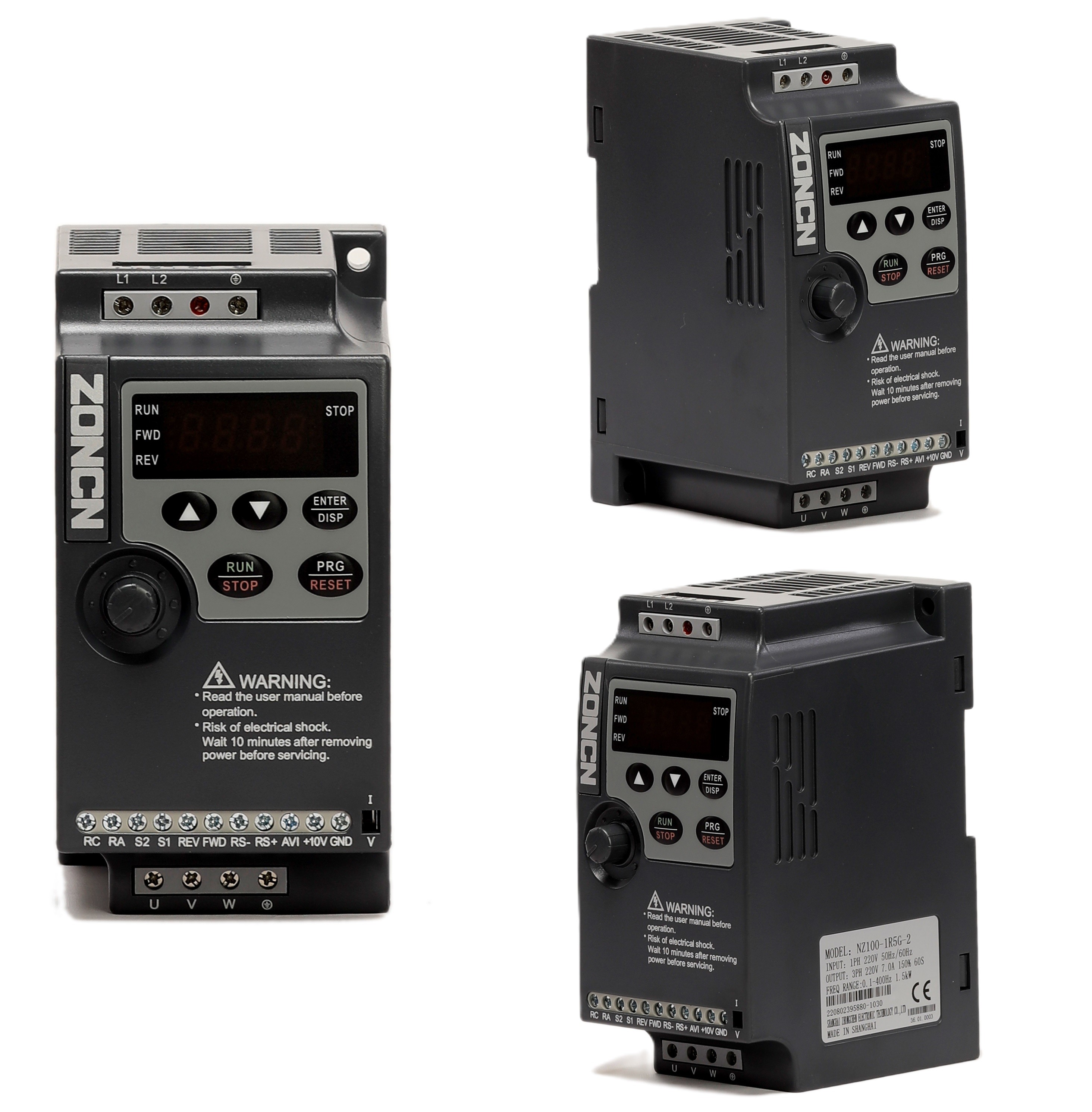

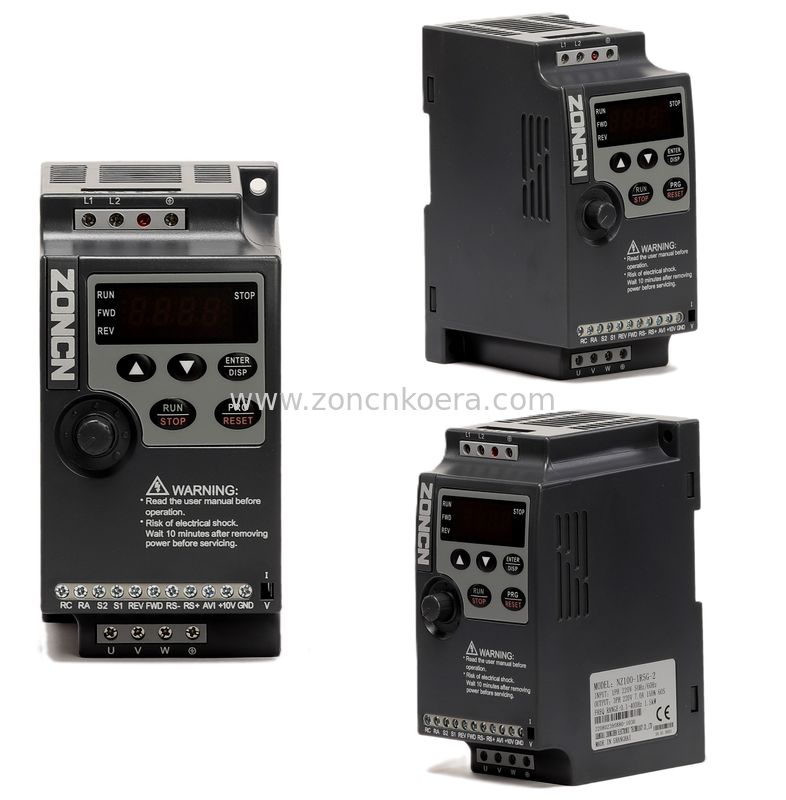

380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz

380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz
380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz 380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz 380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz 380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz 380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz 380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: NZ100-0R75G-2
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Brand: ZONCN Input: 380V+/-15%
Output: 0-380V Power: 0.75kw/1hp; 1.5kw/2hp
Output Frequency: 0 - 400Hz OEM: Accept
Control Method: V/F Control Only Communication: RS485
Highlight:

1.5kw VFD Drives

,

50hz 60hz VFD Drives

,

3ph Input VFD Drives

ZONCN NZ100 Series Mini variable frequency inverter



Nameplate Description

380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz 0

Specification

Model Input Voltage  Output Power (KW) Input Current (A) Output Current (A)  Motor Equipped (KW)
NZ100-0R4G-2 1PH AC220V+/-15% 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
NZ100-0R75G-4 3PH AC380V+/-15% 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5.0 4.0 1.5
NZ100-2R2G-4 2.2 5.8 5.0 2.2
NZ100-3R7G-4 3.7 10.7 8.6 3.7
NZ100-5R5G-4 5.5 14.6 12.5 5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.





























Dimension



380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz 1





Wiring Diagram



380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz 2

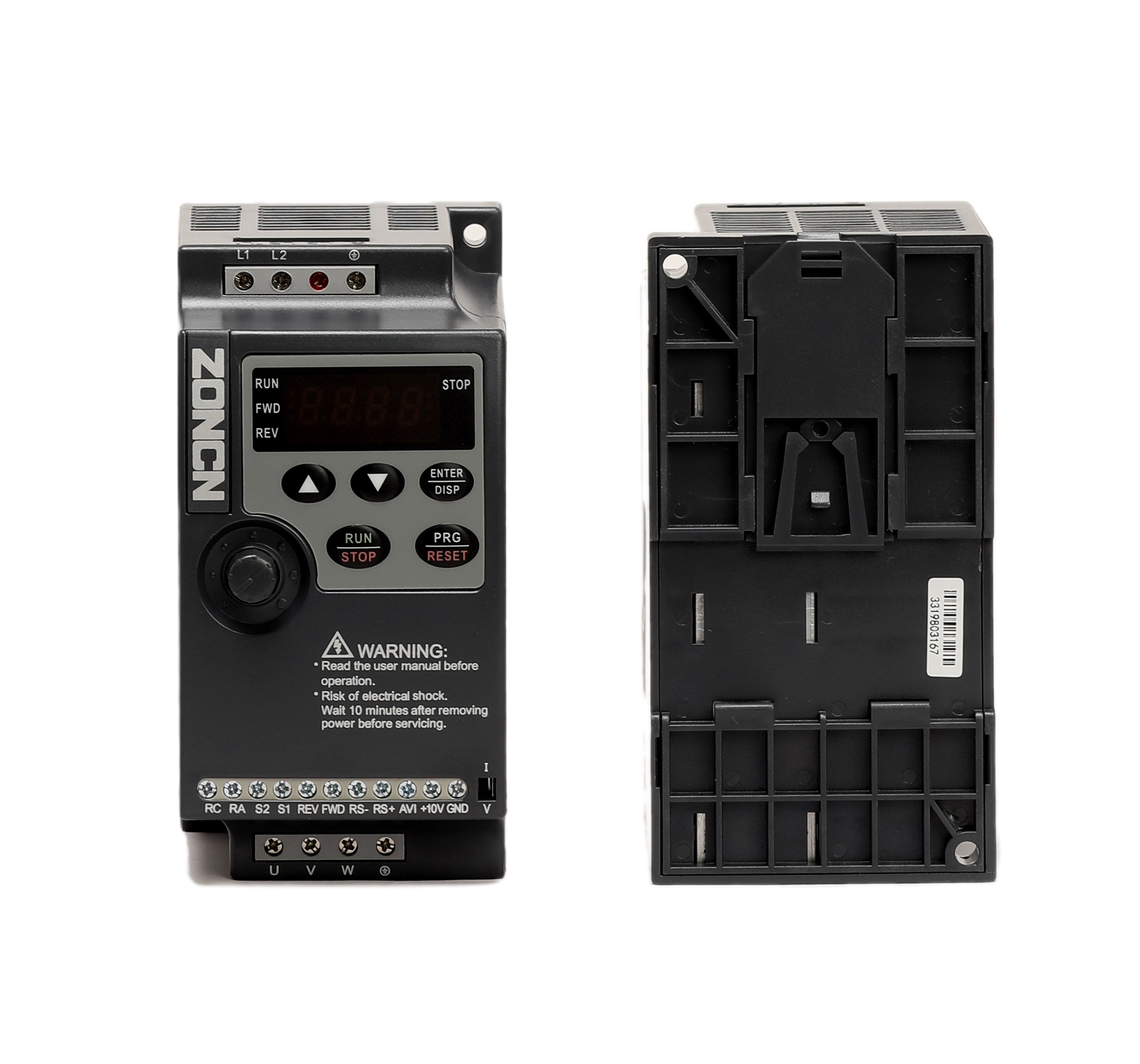

Product picture

380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz 3

Keypad Description

380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz 4

Packing&Shipping

380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz 5

Workshop

380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz 6



Wuhu Zoncn Automation Equipment Co. Ltd is a professional factory that focus on producing inverter and servo products. We have 6 main series, they are, NZ100, NZ200, Z2000, Z8000, T9000 and H5000-BF, they are widely used in textile, print, CNC machine, food package, injection machine, fan, pump, air compressor, water treatment and many industry applications. We have professional technical engineers, and all the products have CE certification.



Exhibition

380v 3ph Input VFD Drives 0.75kw 1.5kw Variable Speed Drive VSD 50hz 60hz 7



FAQ

Q1. What is your MOQ?

A: 1 unit.

Q2. What is the input voltage you can do?
A: 1PH/3H AC 220V+/-15%; 3PH AC 380V/440V/480V/690V

Q3. What is the power range you can do ?
A: From 0.4 kw to 1000 kw.

Q4. What is your terms of payment?
A: T/T 100% in advance( Paypal / TT, etc.)

Q5. What is your delivery time?
A: within 15 days after receiving full payment normally.

Q6. What is your warranty time?
A. 18 months after delivering from factory.
