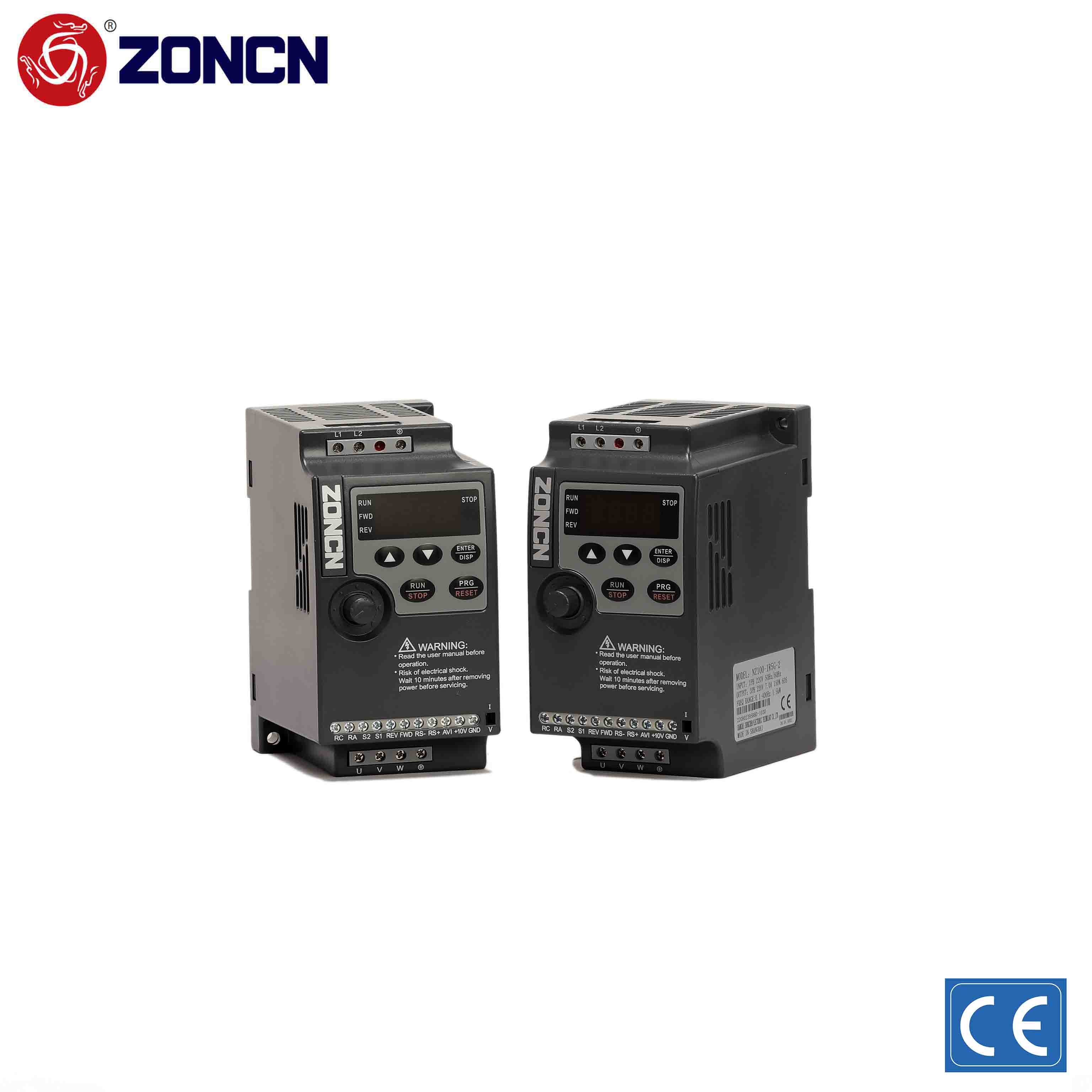

NZ100-3R7G-4 3.7KW Low Voltage Inverter Vector Control In Vfd 380V

NZ100-3R7G-4 3.7KW Low Voltage Inverter Vector Control In Vfd 380V
NZ100-3R7G-4 3.7KW Low Voltage Inverter Vector Control In Vfd 380V
NZ100-3R7G-4 3.7KW Low Voltage Inverter Vector Control In Vfd 380V NZ100-3R7G-4 3.7KW Low Voltage Inverter Vector Control In Vfd 380V NZ100-3R7G-4 3.7KW Low Voltage Inverter Vector Control In Vfd 380V NZ100-3R7G-4 3.7KW Low Voltage Inverter Vector Control In Vfd 380V NZ100-3R7G-4 3.7KW Low Voltage Inverter Vector Control In Vfd 380V NZ100-3R7G-4 3.7KW Low Voltage Inverter Vector Control In Vfd 380V NZ100-3R7G-4 3.7KW Low Voltage Inverter Vector Control In Vfd 380V
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: CE+KC
Model Number: NZ100-3R7G-4
Minimum Order Quantity: 1 unit
Packaging Details: Carton；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Model: NZ100-3R7G-4 Type: AC Drive Inverter
External Keypad: Yes Display: LED Display
Input Voltage: 380V AC Output Power: 3.7KW
Highlight:

3.7KW Low Voltage Inverter

,

Low Voltage Inverter Vector Control

,

Inverter Vector Control In Vfd 380V

NZ100-3R7G-4 3.7KW Variable Frequency Drives low voltage inverter motor controller

NZ100 series micro vfd inverter 380V 3.7KW NZ100-3R7G-4



Basic product introduction:

  • Compact size and low cost desgin
  • Terminals uncovered,easy for wiring design
  • DIN-rail mounting(below 5.5kw)
  • Modbus via RS485
  • Maintenance-free function
  • Support MODBUS ASCII communication





Technical Specific:

Items NZ100 series inverter
Input rated voltage,frequency One-phase/Three phase AC 220v/380v 50/60Hz
Input voltage range 170-240v(220v)330-440v(380v)
Output voltage range 0-220v(220v)0-380v(380v)
Output frequency range 0.1~400Hz
Indication Operating status/Alarm definition/interactive guidance: frequency setting,the output frequency/ current, DC bus voltage and so on.
Frequency setting resolution Digital input: 0.10Hz,analog input: 0.1% of maximum output frequency
Output frequency accuracy 0.01Hz
VF control Setting V/F curve to satisfy various load requirements
Torque boost Auto increase: auto raise torque by loading Condition;Manual increase:enable to set 0.0~20.0% of raising torque.
Multifunctional input terminal Four multi-function input terminals, realizing functions including eight sectionspeed control, program running, four-section acceleration/deceleration speedswitch, UP/DOWN function and emergency stop and other functions
Multifunctional output terminal 1 multi-function output terminals for displaying of run, zero speed, extermnalabnormity, program operation and other information and warnings
Acceleration/ Deceleration time setting 0~999.9s acceleration/deceleration time can be set individually
PID control Build-in PID control
RS485 Standard RS485 communication function(MODBUS)
Frequency setting

Analog input: 0~ 10 V, 4~20mA
Digital input: Operation panel or RS485 or UP/DOWN.

Note: AVI terminals can be used to select an analog voltage input(AV) and analog current input (Al) through the switch J2.
Multi-speed Four multifunction input terminals, 15 section speed can be set
Automatic voltage regulation Automatic voltage regulation function can be selected
Counter Built-in 2 group of counters
Protection

IP20





Product application:

NZ100-3R7G-4 3.7KW Low Voltage Inverter Vector Control In Vfd 380V 0

The NZ100 series inverter has significant advantages in the field of small machine applications. First, it has a compact design and flexible installation that is suitable for the space constraints of small machines. Whether on an automated production line or in personal household equipment, the NZ100 series drives are easily integrated and provide efficient motor control.



Second, the NZ100 series drives have high precision speed and torque control capabilities to achieve precise motion control. For small machines, precise motion control is essential to ensure equipment stability and productivity. NZ100 series inverter through advanced frequency conversion technology and intelligent control system, can meet the needs of small machines for high-precision movement.



In addition, the NZ100 series drives have a variety of protection features to effectively protect the motors and other critical components of small machines. It has overcurrent protection, overload protection, overheat protection and other functions, and can detect and prevent equipment damage due to overload or other failures in time. These protection features not only extend the service life of the equipment, but also improve the safety and reliability of small machines.



Finally, the NZ100 series drives also support a variety of communication interfaces and network connections for seamless integration and remote monitoring with other devices. This allows small machines to be more intelligent and automated, improving production efficiency and ease of operation.



In summary, the application of the NZ100 series inverter in the field of small machines has the advantages of compact design, high-precision control, multiple protection and intelligent connection. Whether on industrial production lines or in personal household equipment, the NZ100 series drives provide a reliable motor control solution to meet the needs of small machines for efficiency, stability and intelligence.





Product model details:

Model Rated output power (kW) Rated input current (A) Rated output current (A) Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
NZ100-0R4G-2 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
Input voltage(v):3PH AC 380V±15%
NZ100-0R75G-4 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5 4 1.5
NZ100-2R2G-4 2.2 5.8 5 2.2
NZ100-3R7G/5R5P-4 3.7 10.7 8.6 3.7
NZ100-5R5G/7R5P-4 5.5 14.6 12.5 5.5
NZ100-7R5G/11P-4 7.5 20 17.5 7.5
NZ100-11G/15P-4 11 26 24 11
NZ100-15G/18.5P-4 15 35 33 15







FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.





Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
