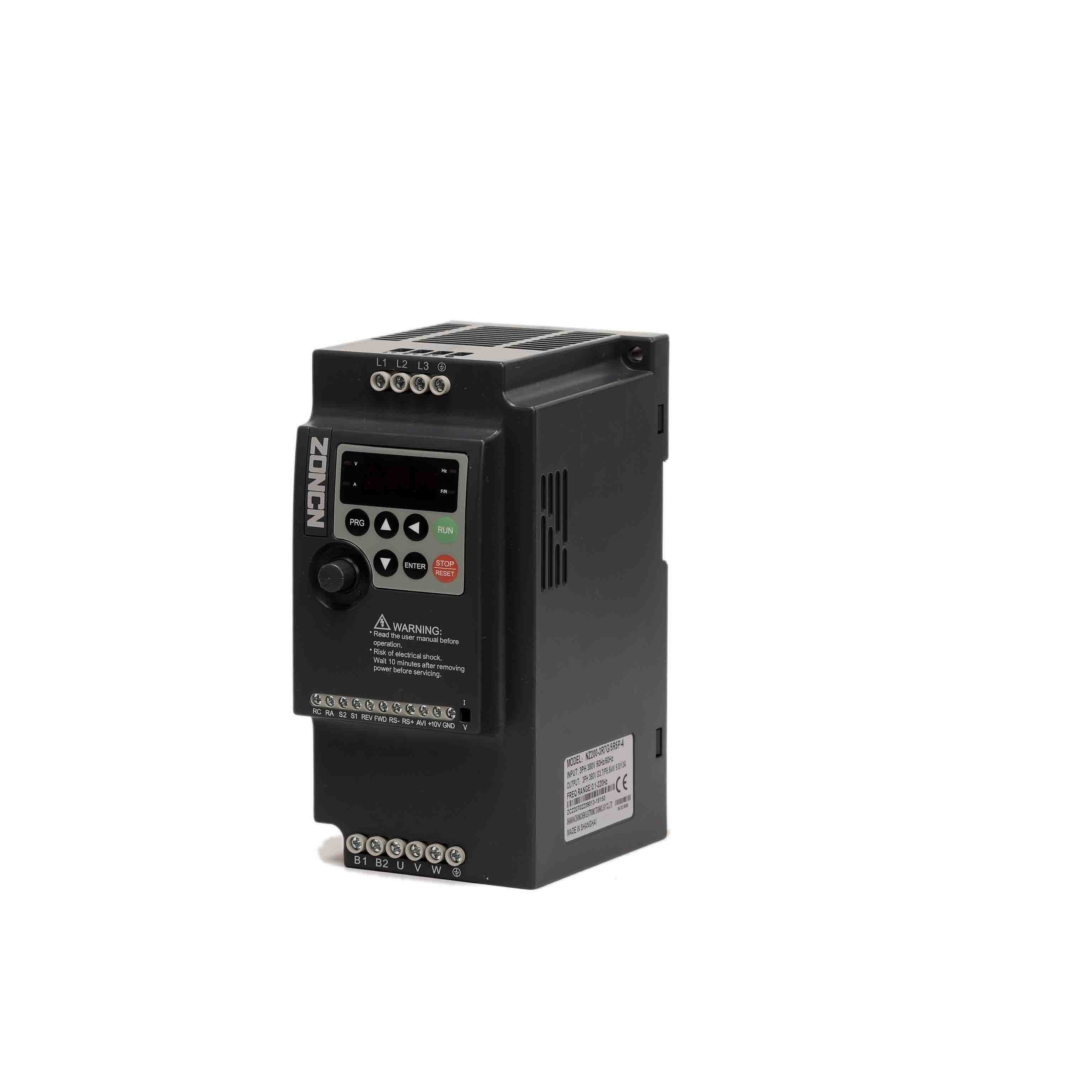

3.7KW 5HP Low Voltage Inverter Vector Frequency Inverter 400v

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	ZONCN
Certification:	CE
Model Number:	NZ200-3R7G/5R5P-4

Minimum Order Quantity:	1 unit
Packaging Details:	Carton packing；
Delivery Time:	7-30 work days
Payment Terms:	T/T, Western Union，Paypal
Supply Ability:	100000 units a month

Get Best Price Contact Now

Model:	NZ200-3R7G/5R5P-4	Warranty:	18 Months Warranty
Power:	5HP（3.7kw）	Input:	380v±15% 50/60HZ
Output:	380v±15% Maximum 600Hz	Color:	Black
RS485:	Yes
Highlight:	3.7KW 5HP Low Voltage Inverter , Low Voltage Inverter Vector Frequency , Vector Frequency Inverter 400v

NZ200 3.7KW 5HP Inverter Vfd Low Voltage 400v NZ200-3R7G/5R5P-4

ZONCN NZ200 5HP Mini Simple Vector Control Vfd

Product Brief Introduction:

The NZ200 series inverter offers both open loop vector control and V/F control options, providing versatile motor control solutions for various applications.
With an overload capacity of 60 seconds for 150% of the rated current and 3 seconds for 180% of the rated current, the NZ200 series inverter ensures reliable and efficient operation even under heavy load conditions.
Designed for high performance and adaptability to different environmental conditions, the NZ200 series inverter delivers exceptional functionality and reliability in diverse industrial settings.
Featuring a simple structure, compact size, and easy installation process, the NZ200 series inverter offers convenience and flexibility for seamless integration into existing systems.
The NZ200 series inverter is an economical choice for vector control, delivering high torque output and ensuring smooth motor operation even under heavy load conditions.
By preventing instantaneous stops and reducing the occurrence of frequent fault alarms, the NZ200 series inverter enhances operational stability and minimizes interruptions in industrial processes.
Equipped with comprehensive protection functions such as output phase loss protection, over-current protection, over-voltage protection, overload protection, and over-heat protection, the NZ200 series inverter ensures the safety and longevity of connected equipment.
The NZ200 series inverter is fully compatible with PM motors, specifically the Z200 T series, providing optimal performance and efficiency in motor control applications.
With a power range of 3.7~160KW and operating at 380V, the NZ200 series inverter offers a wide selection of power options to meet various industrial requirements.

NZ200 Technical Specification:

Item		ZONCN NZ200 Series
Control Mode	Sensorless flux vector control(SFVC) Voltage/Frequency (V/F) Control
Maximum frequency	Vector control:0-320Hz V/F control:0-3200Hz
Carrier frequency	1kHz~16kHz The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution	Digital setting:0.01Hz Analog setting: Maximum frequency 0.025%
Start torque	G: Type:0.5Hz/150%(SVC) P: Type:0.5Hz/100%
Speed range	1:100(SVC)
Speed stability accuracy	±0.5%(SVC)
Overload capacity	G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost	Auto-boost ; Customized boost:0.1%~30.0%
VF curve	Straight-line VF curve; Multi-point VF curve; N-power VF curve(1.2-power,1.4-power,1.6-power,1.8-power, 2-power)
VF separation	2 types: complete separation；half separation
Ramp Mode	Straight-line ramp；S-curve ramp；Four groups of acceleration/deceleration time:0~6500.0s
Simple PLC, Multiple preset speeds	It implements up to 16 speeds via the simple PLC function or combination of terminal states
Auto voltage regulation(AVR)	It can keep constant output voltage automatically when the mains voltage changes
Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
Torque limit and control	It can limit the torque automatically and prevent frequent over-current tripping during the running process.
Onboard PID	It realizes process-controlled closed loop control system easily
Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
JOG control	JOG frequency range: 0.00–50.00 Hz JOG acceleration/deceleration time: 0.0–6500.0s
DC braking	DC braking frequency:0.00Hz to maximum frequency Braking time:0.0-100.0s Braking action current value:0.0%-100.0%
Instantaneous blackout doesn’t stop	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
Timing control	Timing range:0.0Min~6500.0Min
Communication	RS485
Run instruction channel	Keyboard given, control terminal given, serial communication port given. It can be switched in a variety of ways.
Frequency source	10 kinds: digital given, analog voltage given, analog current given, pulse given, serial port given. It can be switched in a variety of ways.
Auxiliary frequency source	10 auxiliary frequency sources. It can flexibly realize auxiliary frequency fine-tuning and frequency synthesis.
Input terminals	6 digital input terminals, one of which supports up to 100 kHz high-speed pulse input (S3 optional). 2 analog input terminal, one of which only supports 0-10v voltage input(FIV) and the other supports 0-10 voltage input or 4-20 mA current input(FIC).
Output terminals	1 digital output terminal(MO1) 1 relay output terminal(RA,RB,RC) 1 analog output terminal :that supports 0-20 mA current output or 0-10v voltage output(FOV)
Remark	X terminal is NPN type by default. If PNP type is required, contact customer service for customization.
LED display	Not removable. More than 45kw is acceptable.
Keystroke locking and function selection	Realize partial or full lock of keys, and define the scope of action of some keys to prevent false touch
Multiple protection modes	Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.

Model Description:

Model	Rated output power (kW)	Rated input current (A)	Rated output current (A)	Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
NZ200-0R4G-2	0.4	5.4	2.5	0.4
NZ200-0R75G-2	0.75	7.2	5	0.75
NZ200-1R5G-2	1.5	10	7	1.5
NZ200-2R2G-2	2.2	16	11	2.2
NZ200-3R7G-2	3.7	17	16.5	3.7
Input voltage(v):3PH AC 380V±15%
NZ200-0R4G-4	0.4	3.4	1.2	0.4
NZ200-0R75G-4	0.75	3.8	2.5	0.75
NZ200-1R5G-4	1.5	5	3.7	1.5
NZ200-2R2G-4	2.2	5.8	5	2.2
NZ200-3R7G/5R5P-4	3.7	10.7	9	3.7
NZ200-5R5G/7R5P-4	5.5	14.6	13	5.5
NZ200-7R5G/11P-4	7.5	20	17	7.5
NZ200-11G/15P-4	11	26	25	11
NZ200-15G/18.5P-4	15	35	32	15
NZ200-18.5G/22P-4	18.5	38	37	18.5
NZ200-22G/30P-4	22	46	45	22
NZ200-30G/37P-4	30	62	60	30
NZ200-37G/45P-4	37	76	75	37
NZ200-45G/55P-4	45	92	90	45
NZ200-55G/75P-4	55	113	110	55
NZ200-75G/90P-4	75	157	150	75
NZ200-90G/110P-4	90	180	176	90

NZ200 Wiring:

Product Application:

The ZONCN NZ200 inverter is widely utilized in common industrial sectors such as compressors, packaging machines, engraving machines, textile machinery, and conveyor belts. Its versatility and reliability make it an ideal choice for these applications. The NZ200 inverter provides precise control and efficient operation, ensuring optimal performance in various industrial processes. With its advanced technology and user-friendly interface, the NZ200 inverter offers seamless integration and ease of operation. Its compact design and robust construction make it suitable for installation in different industrial environments. Whether it's controlling the speed of a compressor, regulating the packaging process, or powering an engraving machine, the NZ200 inverter delivers exceptional performance and enhances productivity in these industrial fields.

FAQ:

1:What is your MOQ?
1 PC.

2:What is terms of payment?
T/T 100% before delivery.

3:What is your delivery time?
Fast delivery is our advantage. Usually within ten days.

4:How can we do OEM/ODM?
We do OEM for more than 40 brands. If your order reaches a certain quantity, we can do it for you.
