Low Voltage 220v 1ph Input 3ph Output Vfd Inverter 1hp 2hp Variable Frequency Drive 0.75kw 1.5kw

Low Voltage 220v 1ph Input 3ph Output Vfd Inverter 1hp 2hp Variable Frequency Drive 0.75kw 1.5kw
Low Voltage 220v 1ph Input 3ph Output Vfd Inverter 1hp 2hp Variable Frequency Drive 0.75kw 1.5kw
Low Voltage 220v 1ph Input 3ph Output Vfd Inverter 1hp 2hp Variable Frequency Drive 0.75kw 1.5kw Low Voltage 220v 1ph Input 3ph Output Vfd Inverter 1hp 2hp Variable Frequency Drive 0.75kw 1.5kw Low Voltage 220v 1ph Input 3ph Output Vfd Inverter 1hp 2hp Variable Frequency Drive 0.75kw 1.5kw Low Voltage 220v 1ph Input 3ph Output Vfd Inverter 1hp 2hp Variable Frequency Drive 0.75kw 1.5kw Low Voltage 220v 1ph Input 3ph Output Vfd Inverter 1hp 2hp Variable Frequency Drive 0.75kw 1.5kw Low Voltage 220v 1ph Input 3ph Output Vfd Inverter 1hp 2hp Variable Frequency Drive 0.75kw 1.5kw Low Voltage 220v 1ph Input 3ph Output Vfd Inverter 1hp 2hp Variable Frequency Drive 0.75kw 1.5kw
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: NZ100-1R5G-2
Minimum Order Quantity: 1 PC
Packaging Details: carton box
Delivery Time: 7-30 days
Payment Terms: T/T, L/C, Western Union,Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Type: AC Inverter Product Name: Frequency Inverter
Brand: ZONCN Communication Interface: RS485(MODBUS)
Control Mode: V/F Only Input Voltage: 220V+/-15%
Output Frequency: 0 - 400Hz Output Voltage: 0-220V
Power Range: 0.4kW-3.7kW OEM: YES
Warranty: 18 Months Application: Fan, Pump, Blower, Motor, Etc.
Highlight:

3ph Output Vfd Inverter

,

1ph Input Vfd Inverter

,

220v Vfd Inverter

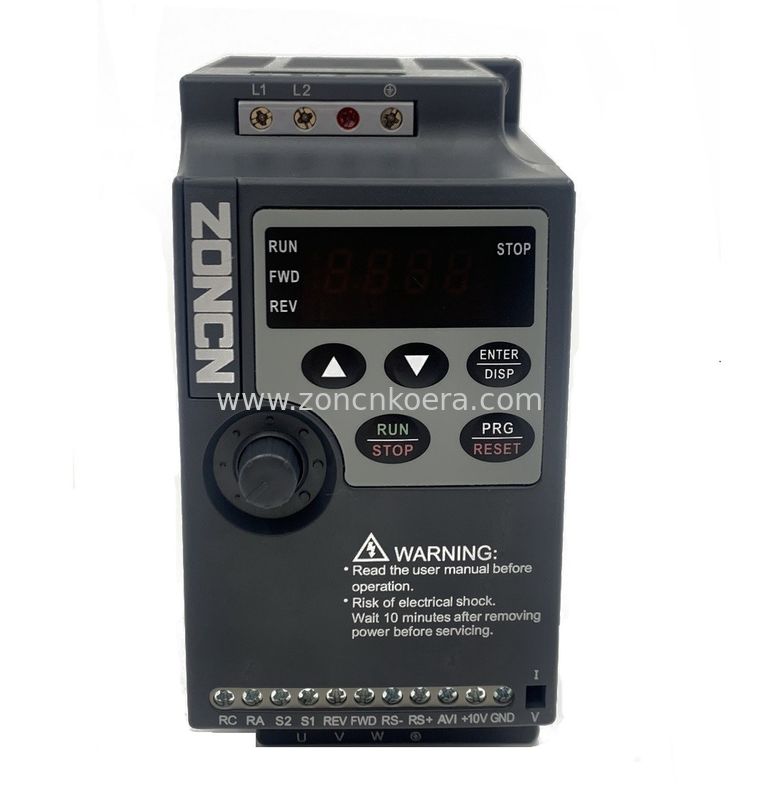

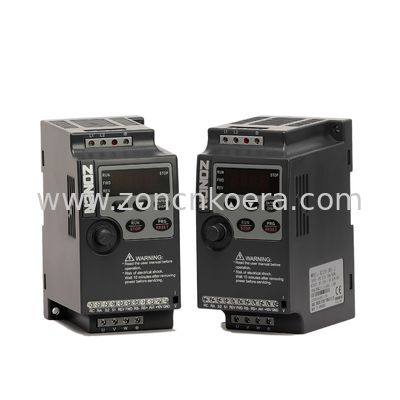

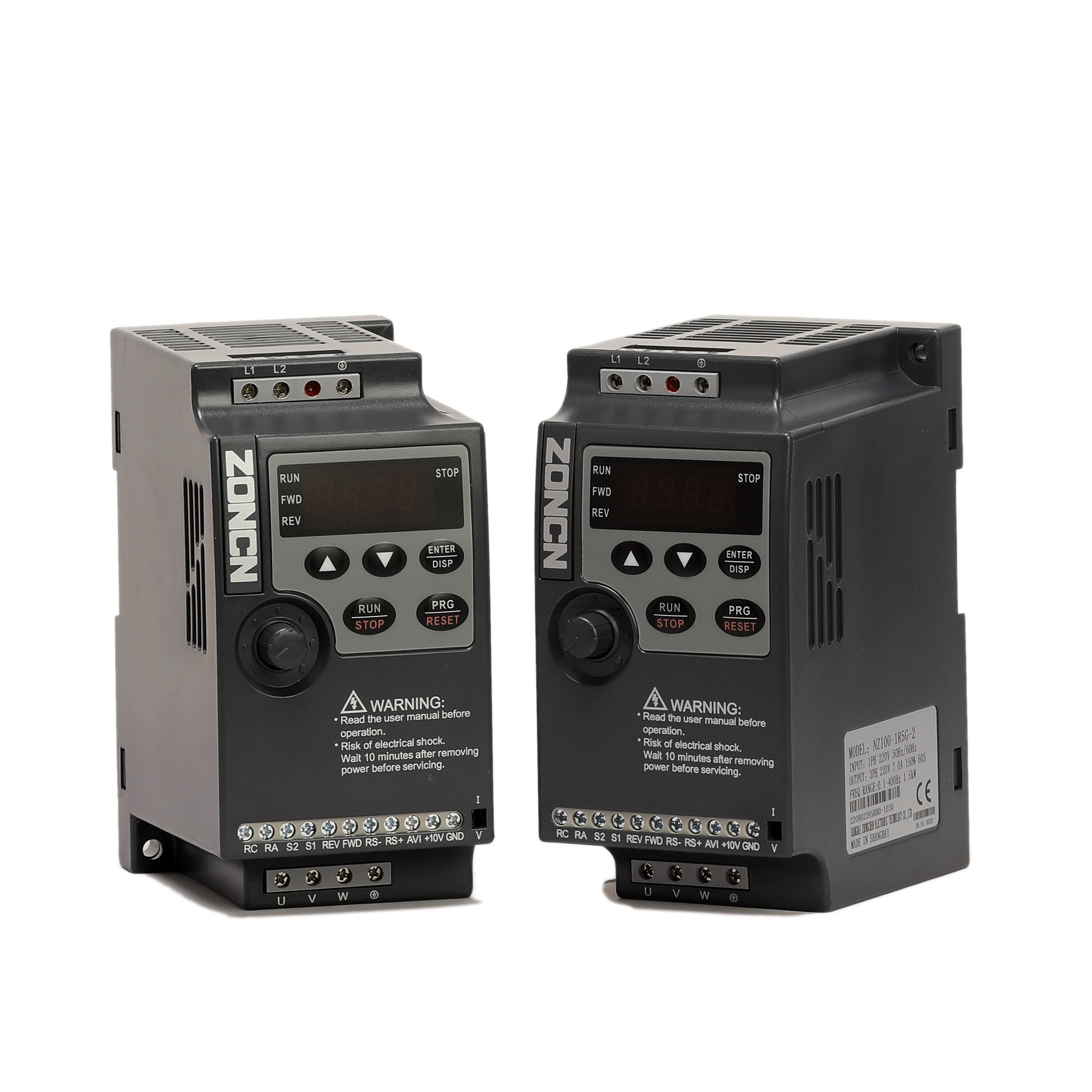

ZONCN NZ100 Series Mini variable frequency inverter



Inverter description

  • Mini size and low cost design;
  • Terminals uncovered, easy for wiring;
  • DIN-rail mounting (below 5.5kW);
  • Supports MODBUS via RS485;
  • V/F control;
  • Built-in PID control;
  • Power rating: 220v single phase 0.4kw-3.7kw(0.5hp-5hp); 380v 3 phase 0.4kw-5.5kw (0.5hp-7hp)

Inverter Specification

Model Input Voltage  Output Power (KW) Input Current (A) Output Current (A)  Motor Equipped (KW)
NZ100-0R4G-2 1PH AC220V+/-15% 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
NZ100-0R75G-4 3PH AC380V+/-15% 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5.0 4.0 1.5
NZ100-2R2G-4 2.2 5.8 5.0 2.2
NZ100-3R7G-4 3.7 10.7 8.6 3.7
NZ100-5R5G-4 5.5 14.6 12.5 5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.





























Low Voltage 220v 1ph Input 3ph Output Vfd Inverter 1hp 2hp Variable Frequency Drive 0.75kw 1.5kw 0







Inverter Packing&Shipping

Low Voltage 220v 1ph Input 3ph Output Vfd Inverter 1hp 2hp Variable Frequency Drive 0.75kw 1.5kw 1

Company Introduction

Low Voltage 220v 1ph Input 3ph Output Vfd Inverter 1hp 2hp Variable Frequency Drive 0.75kw 1.5kw 2

Wuhu Zoncn Automation Equipment Co., Ltd is one of a leading manufacturer focus on producing inverter and servo products with 19 years of experience in China. We have 4 factories with headquarters in Shanghai, total factory area 100,000 ㎡+, annual production capacity is about 900,000 pcs. ZONCN has 6 mains series of VFD inverters: NZ100, NZ200, Z2000, Z8000, T9000, H5000 (IP65/54), etc. Our factory has passed ISO9001 quality control system and all the inverters have CE certification.


ZONCN inverters are very competitive both on quality and price, and have gained high reputation in domestic market and at abroad. Our inverters are widely used in textile, print, CNC machine, food package, injection machine, fan, pump, air compressor, water treatment, industrial washing machine and many industrial applications. What’s more, ZONCN is a leading inverter supplier in the fields of air compressor, automatic door, construction machinery, hoisting machinery etc.




Power rating: 0.4kw~2000kw
Voltage: 1PH/3PH 220v/380v/440v/480v/690v
OEM: Yes


ZONCN Development History

Low Voltage 220v 1ph Input 3ph Output Vfd Inverter 1hp 2hp Variable Frequency Drive 0.75kw 1.5kw 3



Exhibition

Low Voltage 220v 1ph Input 3ph Output Vfd Inverter 1hp 2hp Variable Frequency Drive 0.75kw 1.5kw 4



Recommend Inverter Series

Low Voltage 220v 1ph Input 3ph Output Vfd Inverter 1hp 2hp Variable Frequency Drive 0.75kw 1.5kw 5

FAQ

Q1. What is your Inverter's MOQ?

A: 1 unit.

Q2. What is the inverter's voltage you can do?
A: 1PH/3H AC 220V+/-15%; 3PH AC 380V/440V/480V/690V

Q3. What is the inverter's power range you can do ?
A: From 0.4 kw to 2000 kw.

Q4. What is your terms of payment?
A: T/T 100% in advance.

Q5. What is your inverter's delivery time?
A: Generally within 15 days after receiving full payment.

Q6. What is your inverter's warranty time?
A. 18 months
