ZONCN NZ200 Series Frequency Inverter AC Drives 380V 0.4KW-630kw VFD VSD

ZONCN NZ200 Series Frequency Inverter AC Drives 380V 0.4KW-630kw VFD VSD





Inverter Description



NZ200 Series is one of the hottest selling series inverter of ZONCN. It is compact size but vector control, power ranges from 0.4kw to 630kw. It is the competitive series which widely used in various of industrial applications, especially used in air compressor, NZ200 series takes the largest market share in China. It can be used for Asynchronous motors and PM synchronous motors.





Inverter Configuration



	Technical parameter function	ZONCN Inverter
		NZ200 series
1	VF+Vector control	YES
3	Built-in braking unit	YES,below 37kw(include 37kw) Optional for more than 45KW
4	Removable panel	YES, over 45kw
5	high speed pulse output	optional
6	AI	1, Below 37KW 2, Over 45KW
7	AO	NO,Below 37KW 1,Over 45KW
8	DI	4, Below37KW 6, Over 45KW
9	DO	1
10	relay output	Standard 1, Over 30kw optional 2
11	DC braking	YES
12	collector	NO,Below 37KW 1,Over 45KW
13	24V power supply	Below 37kw no, Over 45kw with standard
15	Protection	IP20
16	Certificate	CE
17	0.1S acceleration/deceleration	YES
18	simple PLC	YES
19	all kinds of protection	YES
20	PID	YES
25	normally Communication	RS485





Inverter Specification























































Inverter Specification



Inverter Model	Input Voltage (V)	Rated output power ( KW)	Rated input current(A)	Rated output current (A)	Motor power ( KW)
NZ200-0R4G-2	1PH 220V±15%	0.4	5.4	2.5	0.4
NZ200-0R75G-2		0.75	7.2	5	0.75
NZ200-1R5G-2		1.5	10	7	1.5
NZ200-2R2G-2		2.2	16	11	2.2
NZ200-3R7G-2		3.7	17	16.5	3.7
NZ200-0R4G-4	3PH 380V±15%	0.4	3.4	1.2	0.4
NZ200-0R75G-4		0.75	3.8	2.5	0.75
NZ200-1R5G-4		1.5	5	3.7	1.5
NZ200-2R2G-4		2.2	5.8	5	2.2
NZ200-3R7G/5R5P-4		3.7	10.7	9	3.7
NZ200-5R5G/75R5P-4		5.5	14.6	13	5.5
NZ200-7R5G/11P-4		7.5	20	17	7.5
NZ200-11G/15P-4		11	26	25	11
NZ200-15G/18.5P-4		15	35	32	15
NZ200-18.5G/22P-4		18.5	38	37	18.5
NZ200-22G/30P-4		22	46	45	22
NZ200-30G/37P-4		30	62	60	30
NZ200-37G/45P-4		37	76	75	37
NZ200-45G/55P-4		45	90	90	45
NZ200-55G-4		55	105	110	55
NZ200-75G/90P-4		75	140	150	75
NZ200-90G/110P-4		90	160	176	90
NZ200-110G/132P-4		110	210	210	110
NZ200-132G/160P-4		132	240	253	132
...		...	...	...	...
NZ200-450G/500P-4		450	790	790	450

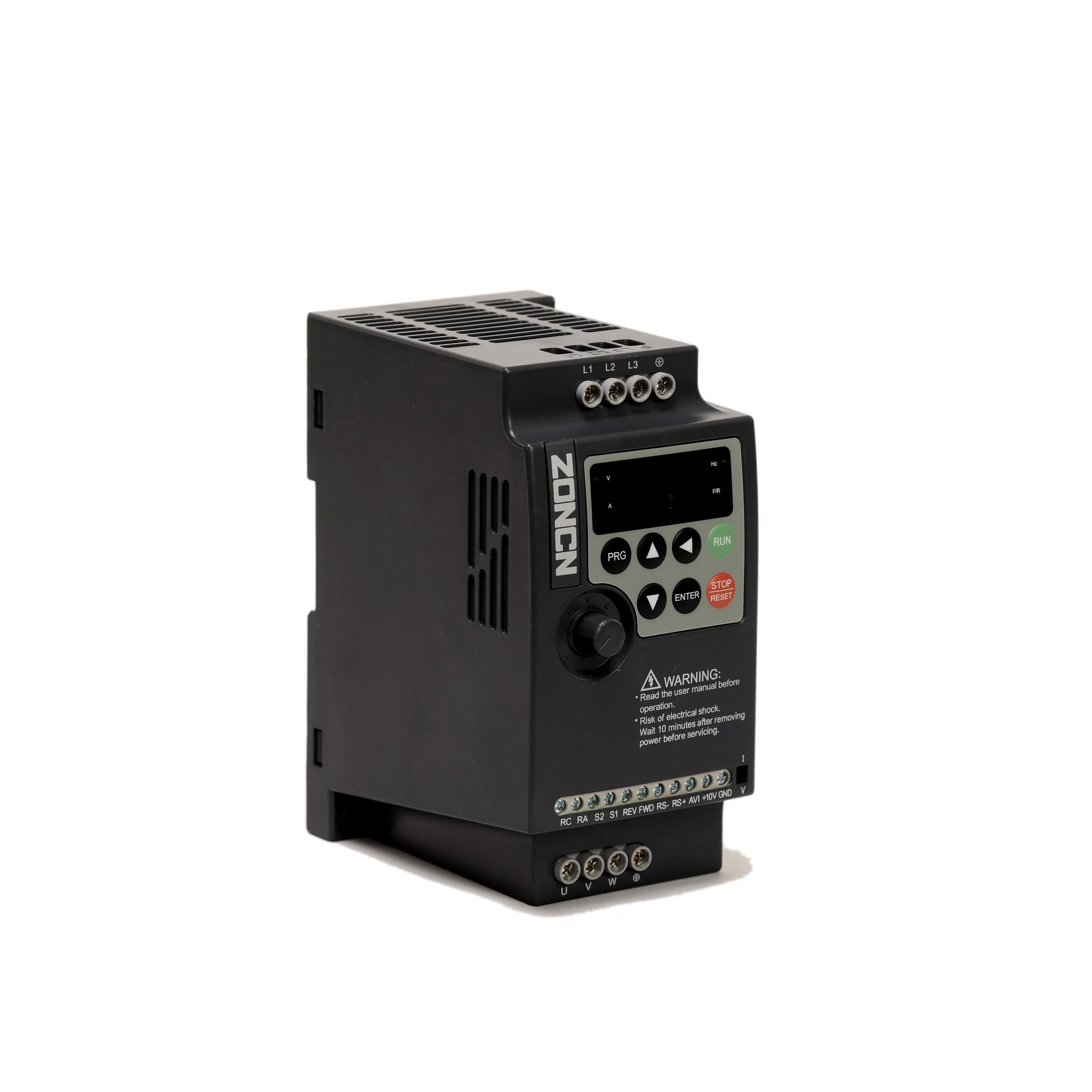

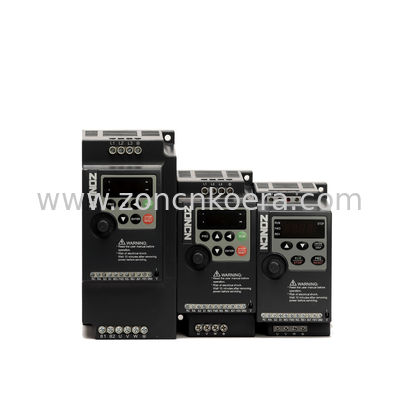

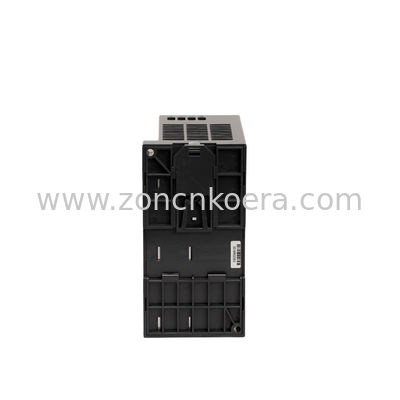

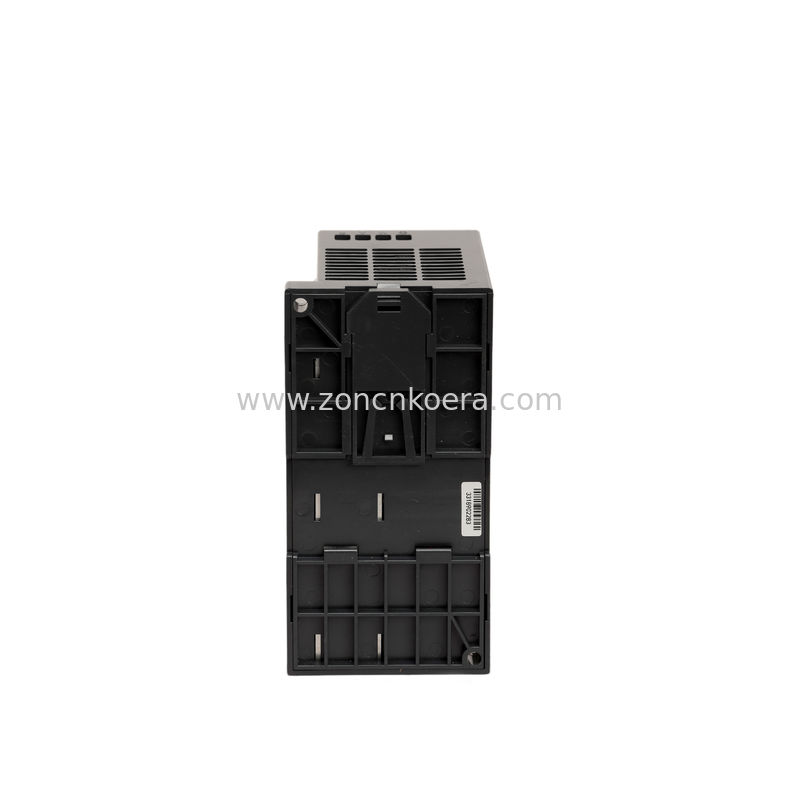

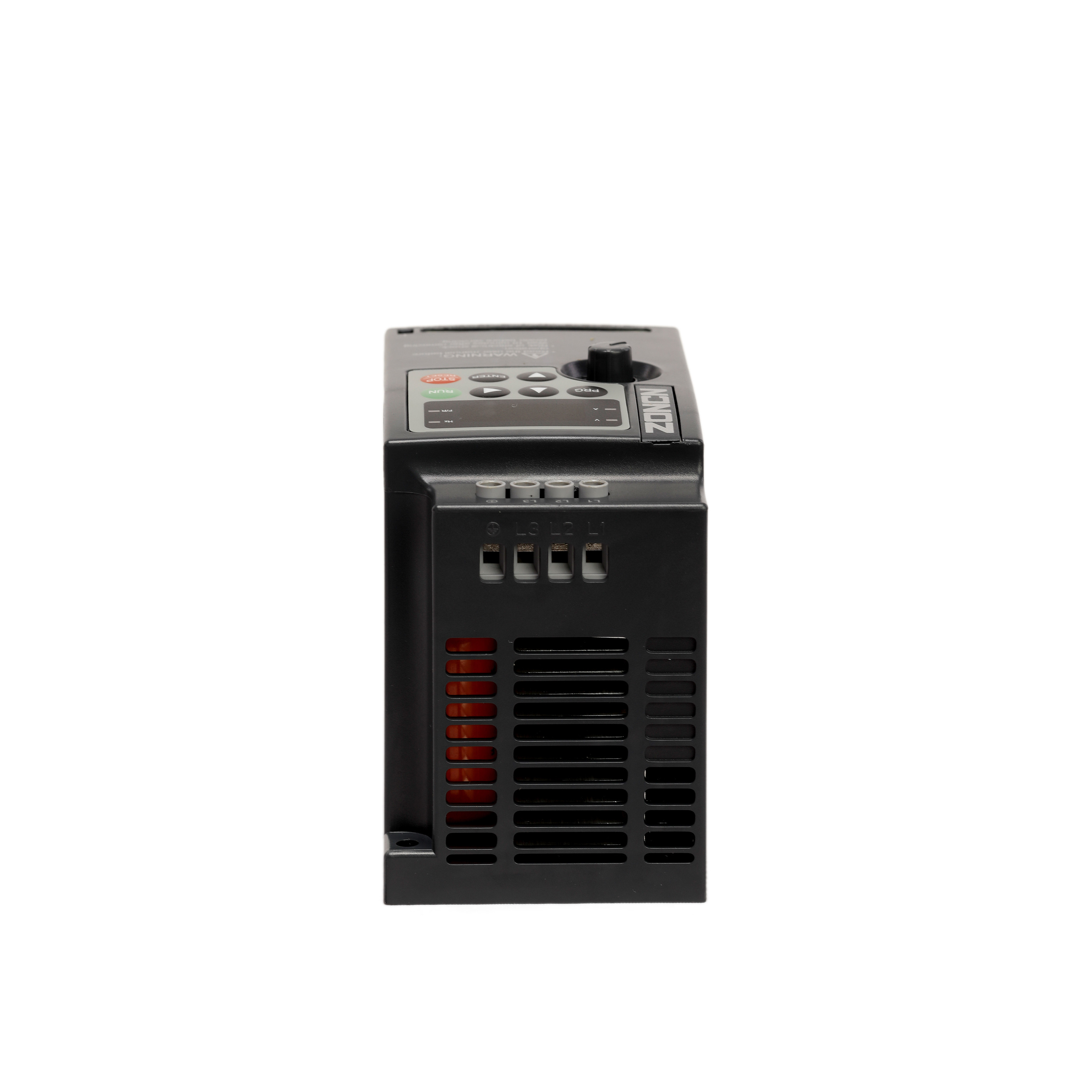

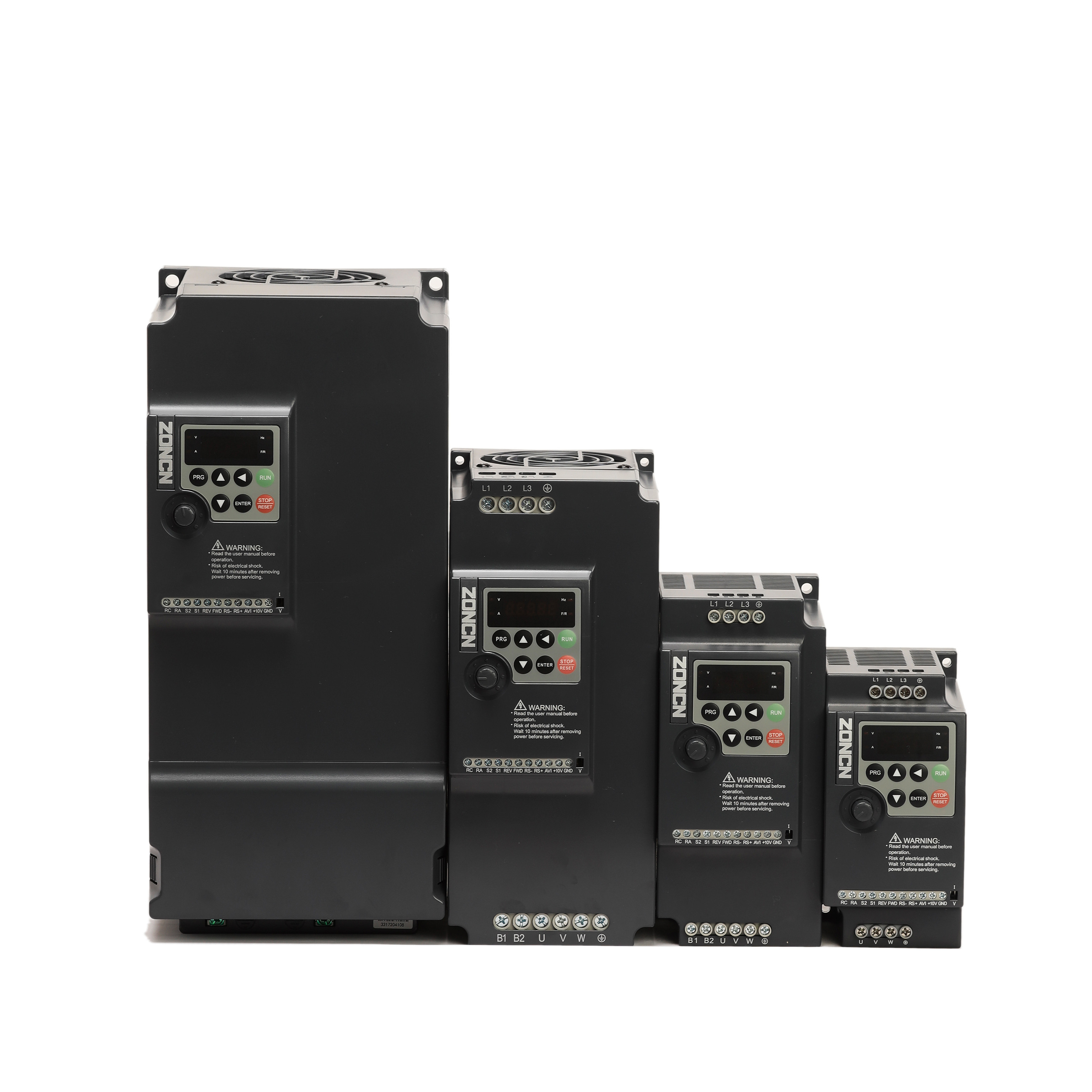

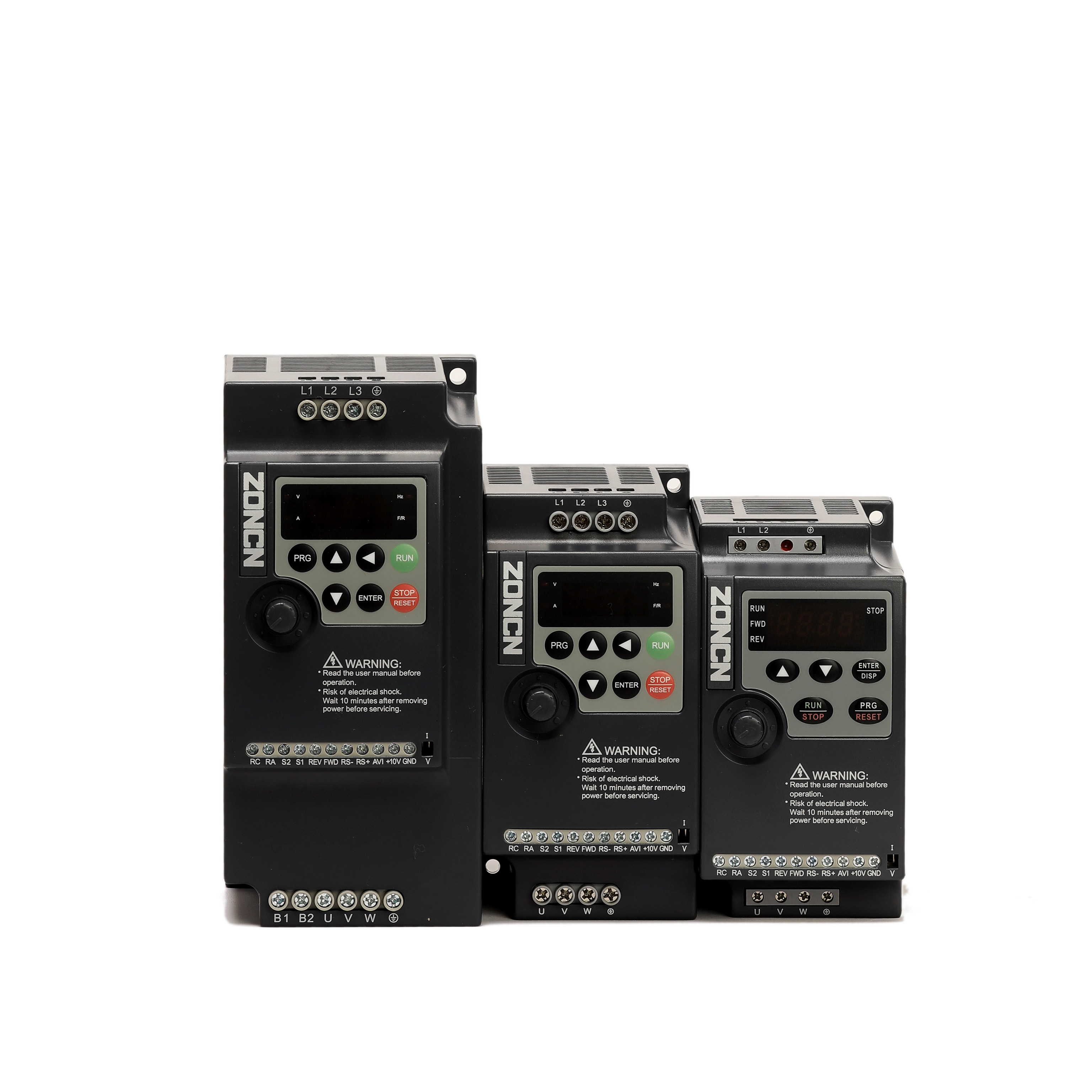

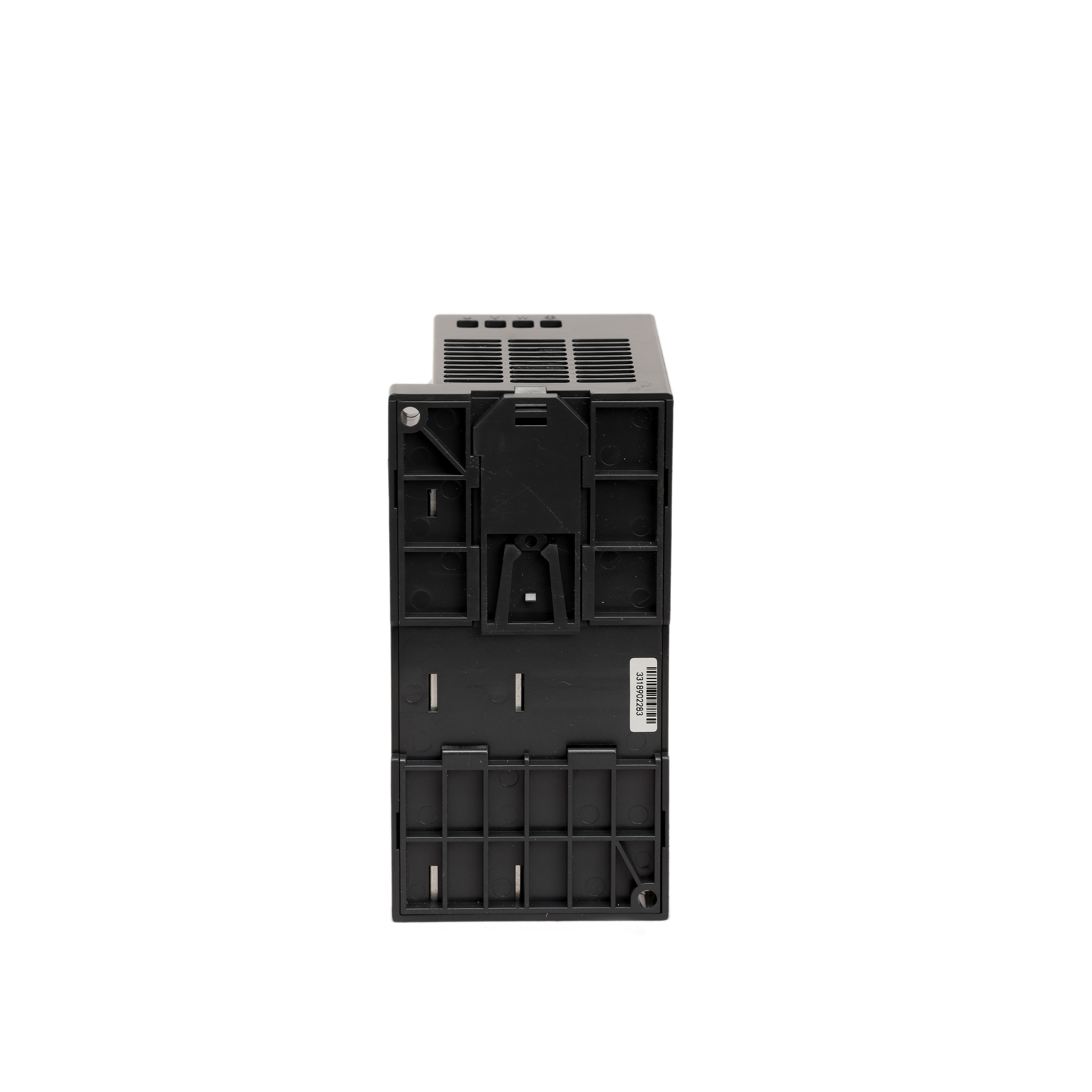

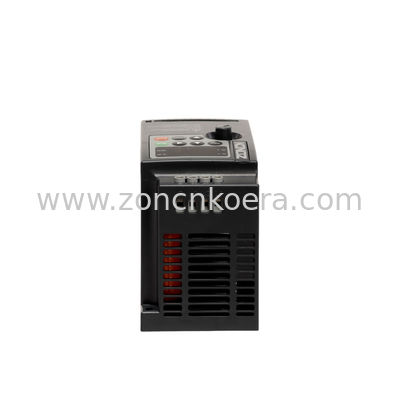

Inverter Picture
