ZONCN NZ200 Low Voltage Inverter 380V 0.4kw 0.75kw 1.5kw 2.2kw VFD Frequency Converter

Basic Information

Place of Origin:	SHANGHAI
Brand Name:	ZONCN
Certification:	CE
Model Number:	NZ200

Minimum Order Quantity:	1
Packaging Details:	Carton Packaging
Delivery Time:	7-10
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100000

Get Best Price Contact Now

Type:	Frequency Inverter	Product Name:	VFD Inverter
Series:	NZ200 (T)	Brand Name:	ZONCN
Rated Power:	0.4kw~2.2kw	Nominal Voltage:	380v
Power Phase Number:	Three Phase	Voltage:	3PH AC380V±15%
Warranty:	18 Months	Customized:	Yes
Highlight:	3 PH Output Low Voltage Inverter , Low Voltage Inverter 380V 0.4KW

ZONCN NZ200 Low Voltage Inverter 380V 0.4kw 0.75kw 1.5kw 2.2kw VFD Frequency Converter

NZ200 series introduction

ZONCN NZ200 is economic vector control series inverter, power ranges from 0.4kw to 630kw, which can be used in most of the industrial applications. NZ200 inverters have compact size, high torque output, they both support permanent magnet synchronous motors and asynchronous motors. NZ200 inverter built-in PID control, they have analog input terminals and DC 24V terminal.

ZONCN NZ200 series inverter is also the best-selling series used in air compressor in China. We have designed special software for air compressor, which is easier to use, and high performance with good price.

ZONCN NZ200 series inverter specification

Inverter Model	Input Voltage (V)	Rated output power ( KW)	Rated input current(A)	Rated output current (A)	Motor power ( KW)
NZ200-0R4G-2	1PH 220V±15%	0.4	5.4	2.5	0.4
NZ200-0R75G-2		0.75	7.2	5	0.75
NZ200-1R5G-2		1.5	10	7	1.5
NZ200-2R2G-2		2.2	16	11	2.2
NZ200-3R7G-2		3.7	17	16.5	3.7
NZ200-0R4G-4	3PH 380V±15%	0.4	3.4	1.2	0.4
NZ200-0R75G-4		0.75	3.8	2.5	0.75
NZ200-1R5G-4		1.5	5	3.7	1.5
NZ200-2R2G-4		2.2	5.8	5	2.2
NZ200-3R7G/5R5P-4		3.7	10.7	9	3.7
NZ200-5R5G/75R5P-4		5.5	14.6	13	5.5
NZ200-7R5G/11P-4		7.5	20	17	7.5
NZ200-11G/15P-4		11	26	25	11
NZ200-15G/18.5P-4		15	35	32	15
NZ200-18.5G/22P-4		18.5	38	37	18.5
NZ200-22G/30P-4		22	46	45	22
NZ200-30G/37P-4		30	62	60	30
NZ200-37G/45P-4		37	76	75	37
NZ200-45G/55P-4		45	90	90	45
NZ200-55G-4		55	105	110	55
NZ200-75G/90P-4		75	140	150	75
NZ200-90G/110P-4		90	160	176	90
NZ200-110G/132P-4		110	210	210	110
NZ200-132G/160P-4		132	240	253	132
...		...	...	...	...
NZ200-450G/500P-4		450	790	790	450

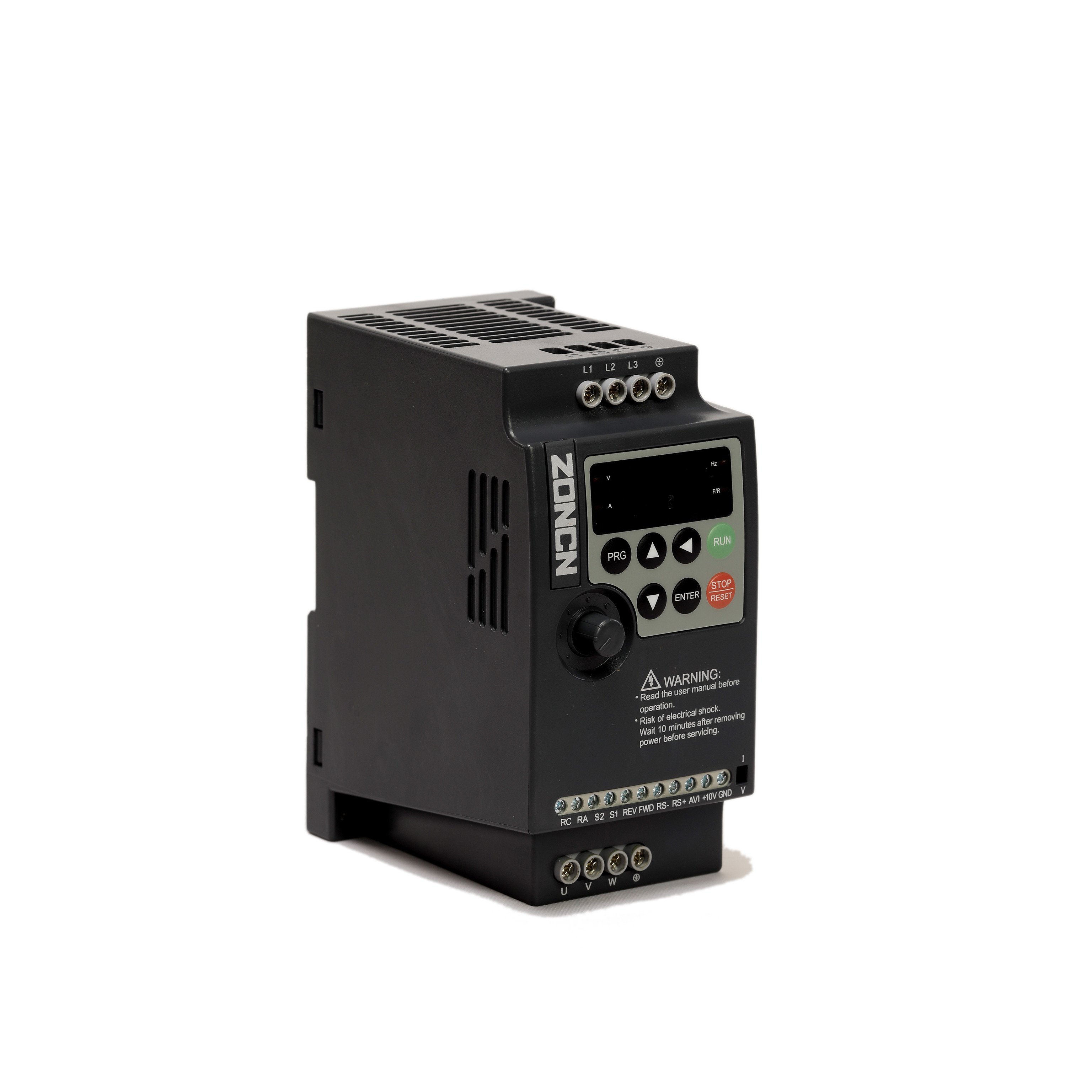

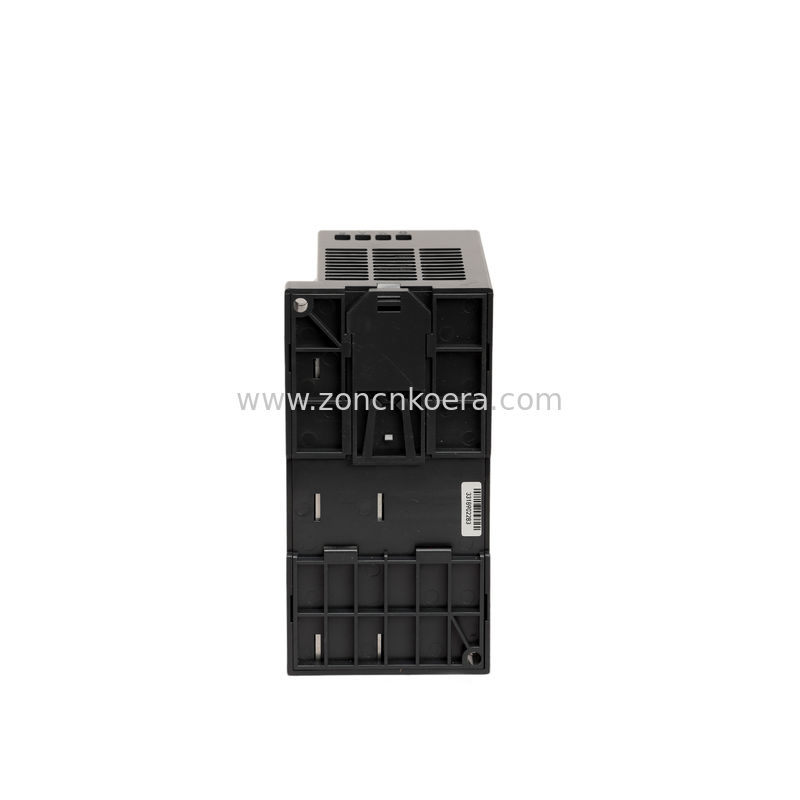

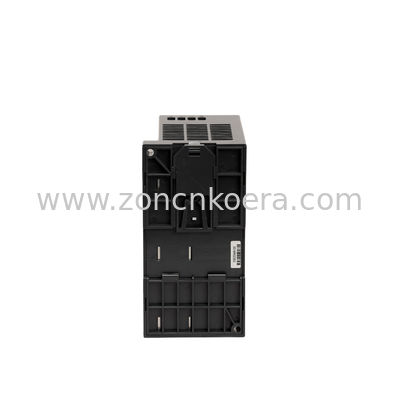

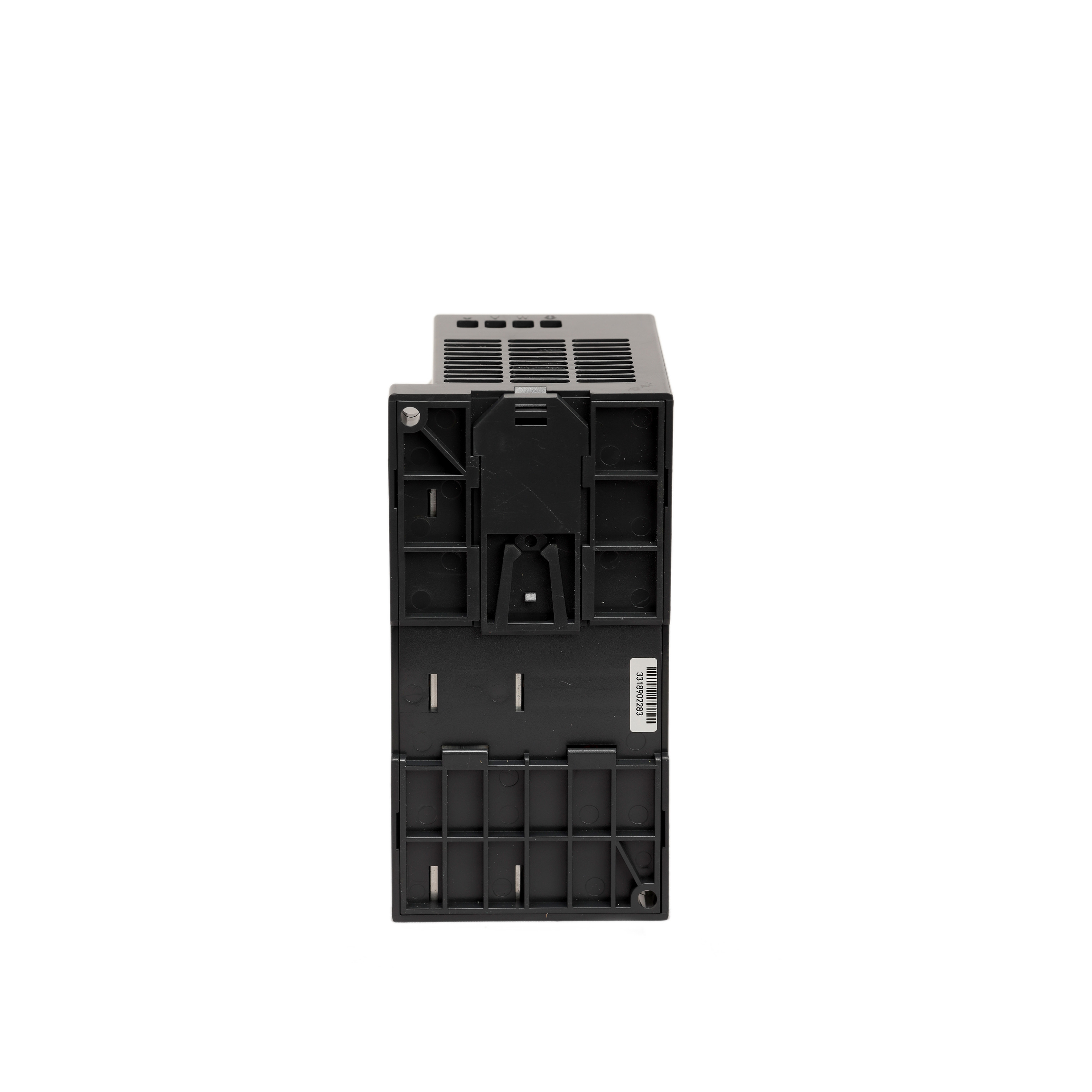

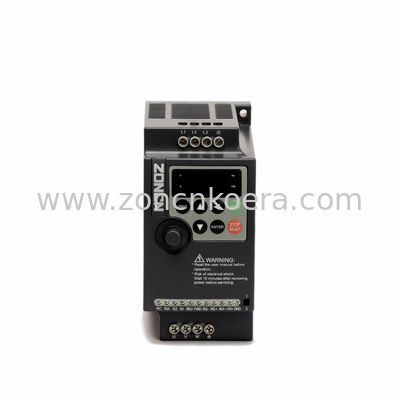

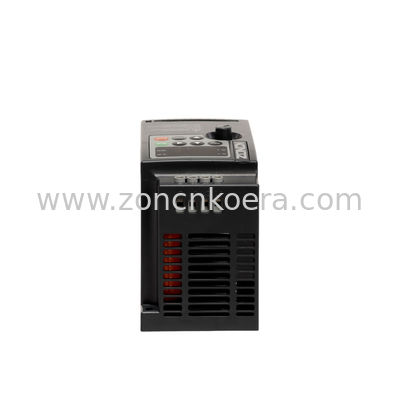

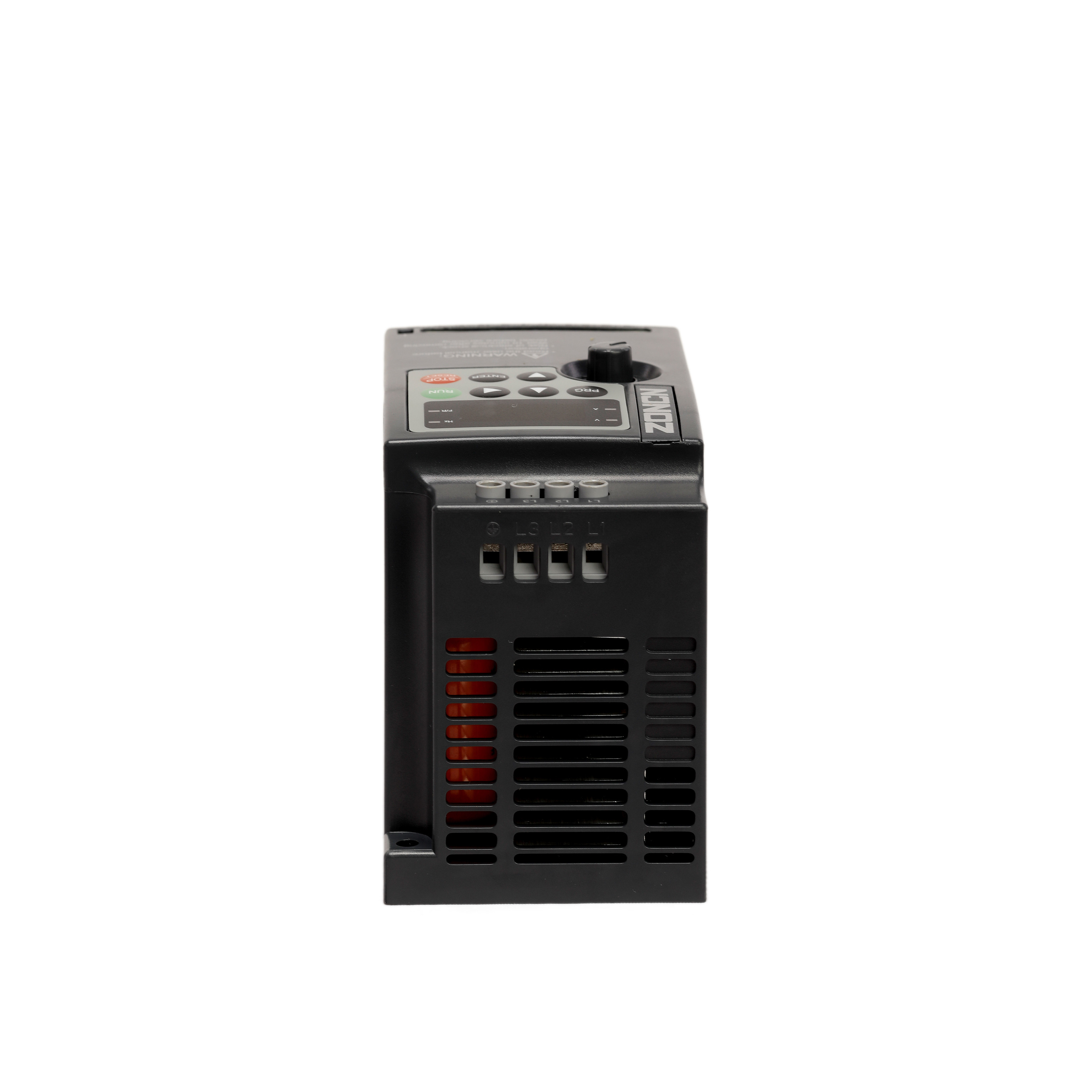

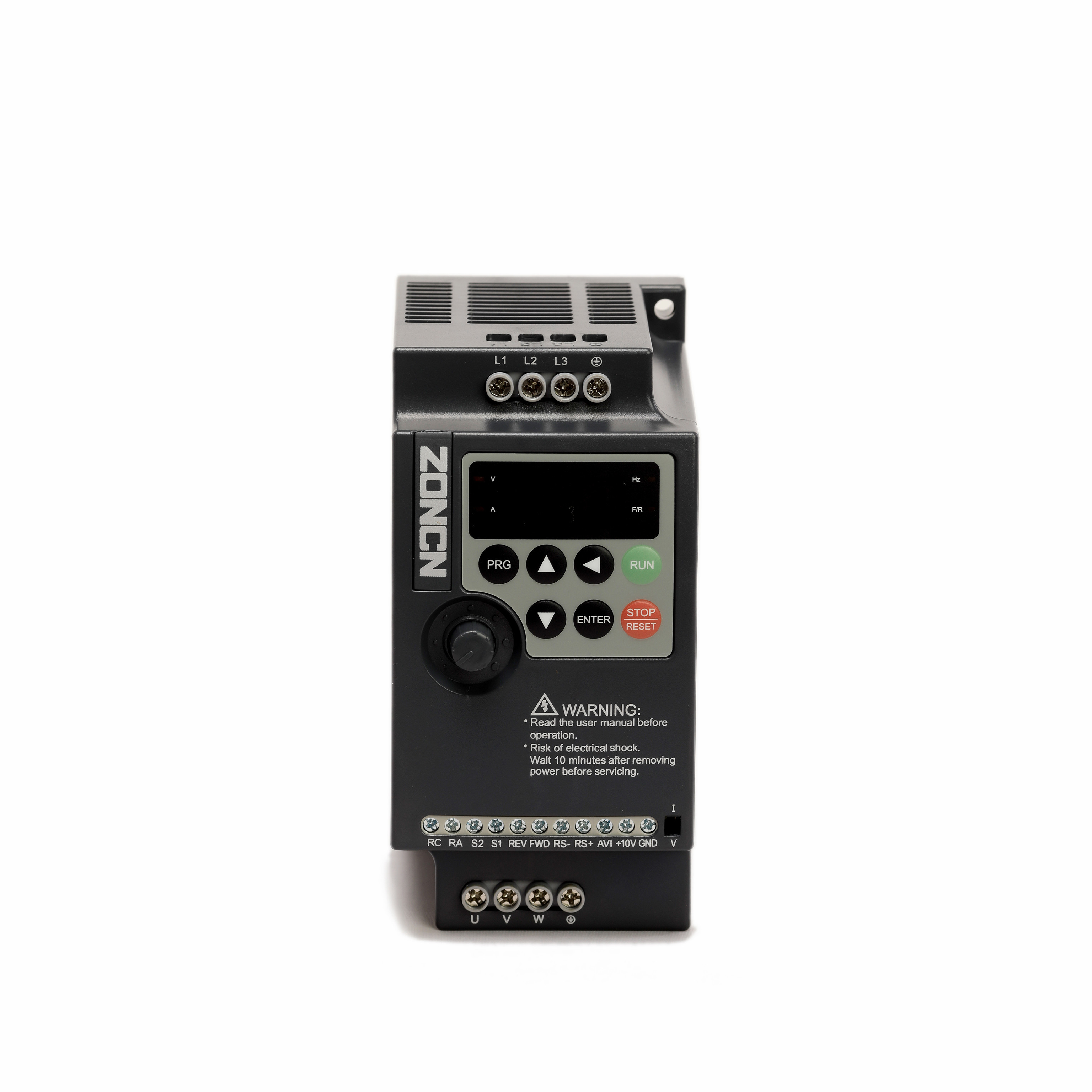

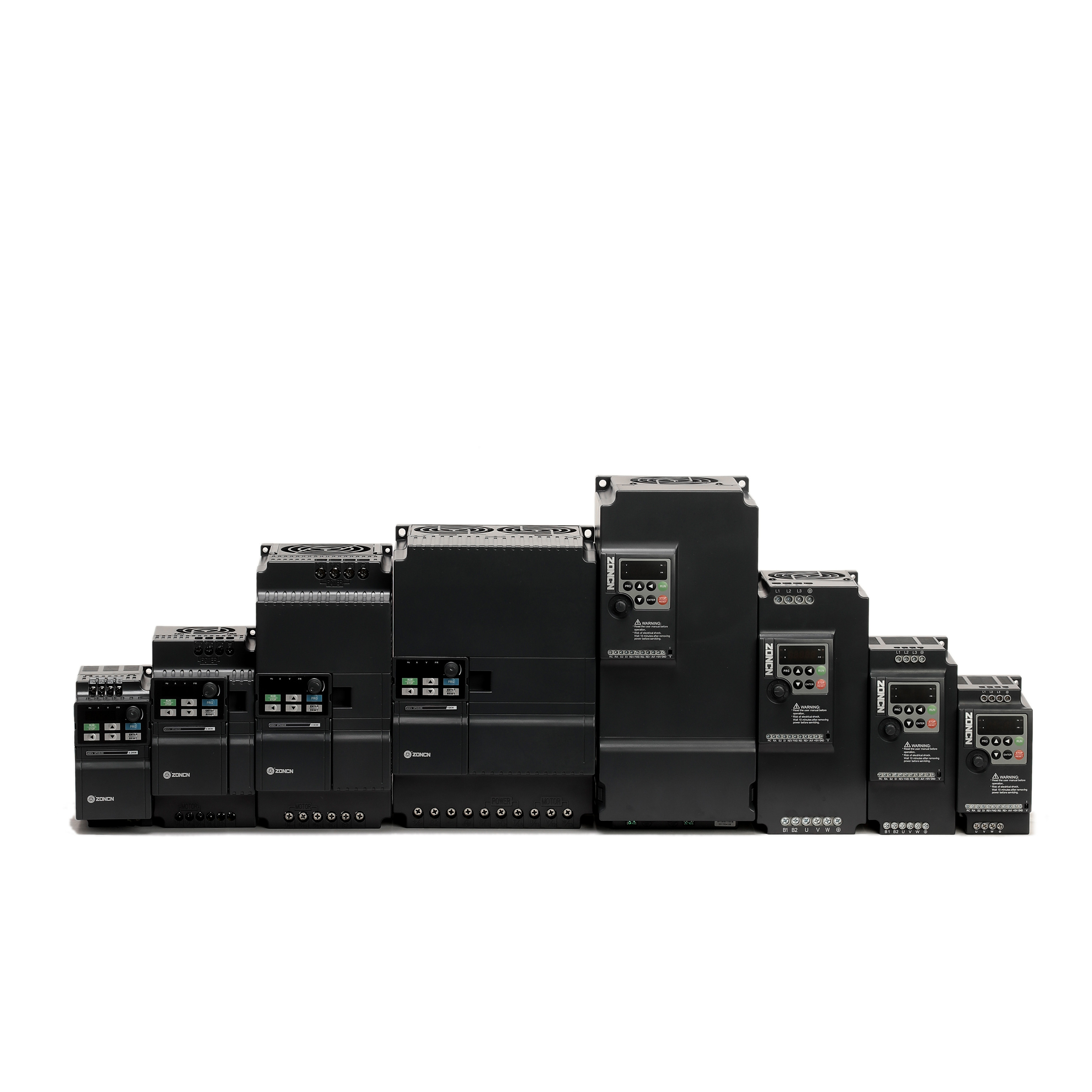

NZ200 Inverter Pictures

ZONCN NZ200 Low Voltage Inverter 380V 0.4kw 0.75kw 1.5kw 2.2kw VFD Frequency Converter 0

NZ200 Inverter Features

NZ200 Inverter applications
