220v Single Phase Input Vfd 0.75kw 1.5kw Variable Frequency Inverter 1hp 2hp

220v Single Phase Input Vfd 0.75kw 1.5kw Variable Frequency Inverter 1hp 2hp
220v Single Phase Input Vfd 0.75kw 1.5kw Variable Frequency Inverter 1hp 2hp
220v Single Phase Input Vfd 0.75kw 1.5kw Variable Frequency Inverter 1hp 2hp 220v Single Phase Input Vfd 0.75kw 1.5kw Variable Frequency Inverter 1hp 2hp 220v Single Phase Input Vfd 0.75kw 1.5kw Variable Frequency Inverter 1hp 2hp 220v Single Phase Input Vfd 0.75kw 1.5kw Variable Frequency Inverter 1hp 2hp 220v Single Phase Input Vfd 0.75kw 1.5kw Variable Frequency Inverter 1hp 2hp 220v Single Phase Input Vfd 0.75kw 1.5kw Variable Frequency Inverter 1hp 2hp 220v Single Phase Input Vfd 0.75kw 1.5kw Variable Frequency Inverter 1hp 2hp
Basic Information
Place of Origin: China
Brand Name: ZONCN
Certification: KC; CE
Model Number: NZ100-0R75G-2
Minimum Order Quantity: 1 PC
Packaging Details: inside: box; outside: carton
Delivery Time: 7-30 days
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 100,000 pcs/month
Get Best Price Contact Now
Brand: ZONCN Input: 220V 1ph
Output: 0-220V 3ph Power Range: 0.4kW-3.7kW
Output Frequency: 0 - 400Hz OEM: Accept
Overload Capacity: 150% Rated Current For 60s, 180% Rated Current For 10s Control Method: V/F Control, Vector Control
Highlight:

1hp Variable Frequency Inverter

,

1.5kw Variable Frequency Inverter

,

220v Single Phase Input Vfd

ZONCN NZ100 Series Mini variable frequency inverter





Inverter Nameplate Description

220v Single Phase Input Vfd 0.75kw 1.5kw Variable Frequency Inverter 1hp 2hp 0



Inverter Specification

Inverter Model Input Voltage  Output Power (KW) Input Current (A) Output Current (A)  Motor Equipped (KW)
NZ100-0R4G-2 1PH AC220V+/-15% 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
NZ100-0R75G-4 3PH AC380V+/-15% 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5.0 4.0 1.5
NZ100-2R2G-4 2.2 5.8 5.0 2.2
NZ100-3R7G-4 3.7 10.7 8.6 3.7
NZ100-5R5G-4 5.5 14.6 12.5 5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.





























Dimension



220v Single Phase Input Vfd 0.75kw 1.5kw Variable Frequency Inverter 1hp 2hp 1





Wiring Diagram



220v Single Phase Input Vfd 0.75kw 1.5kw Variable Frequency Inverter 1hp 2hp 2

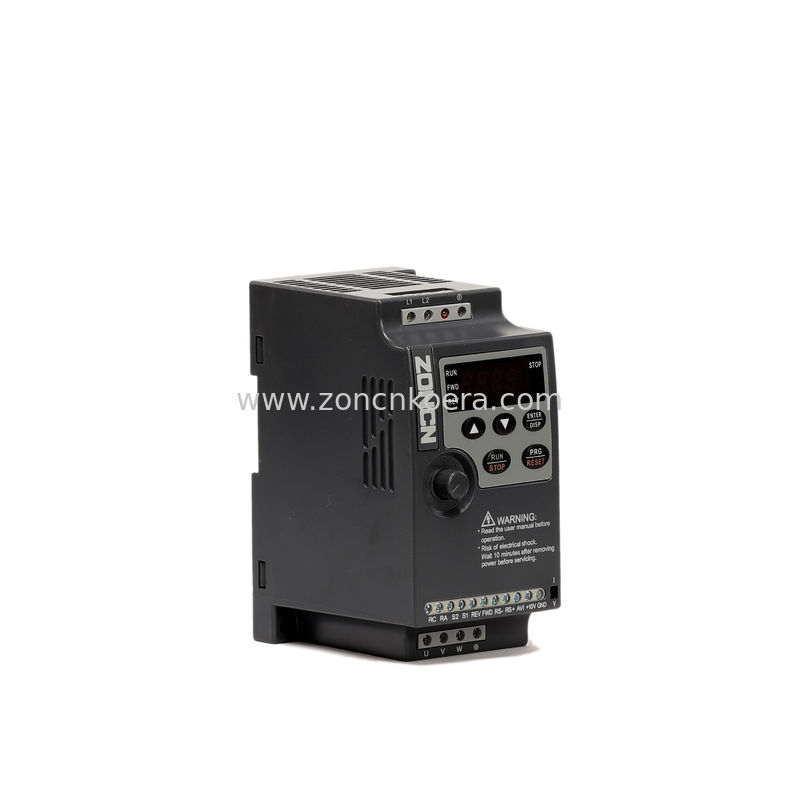

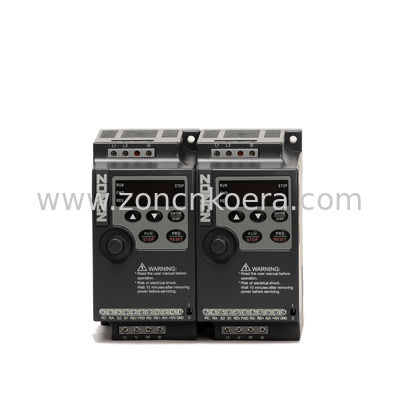

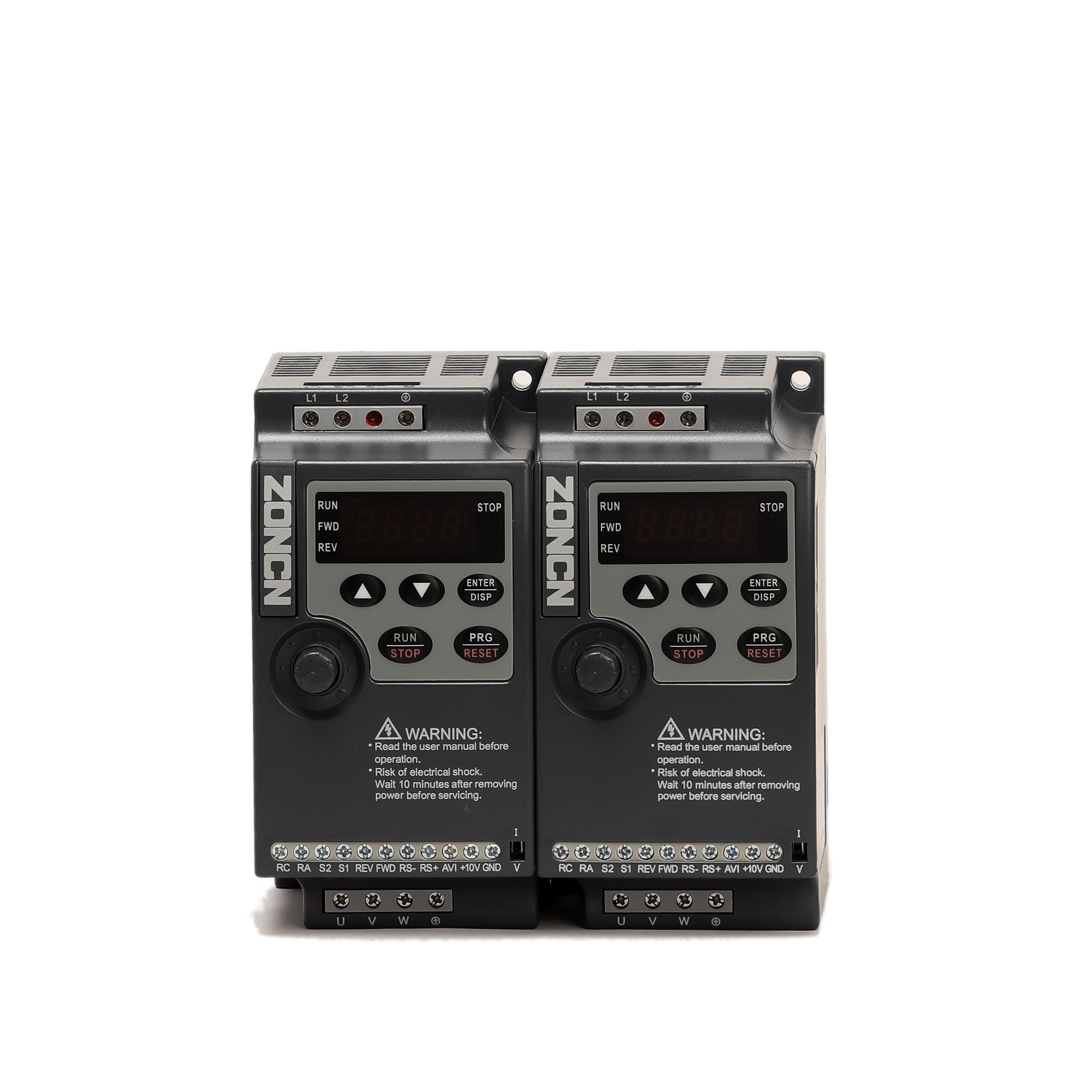

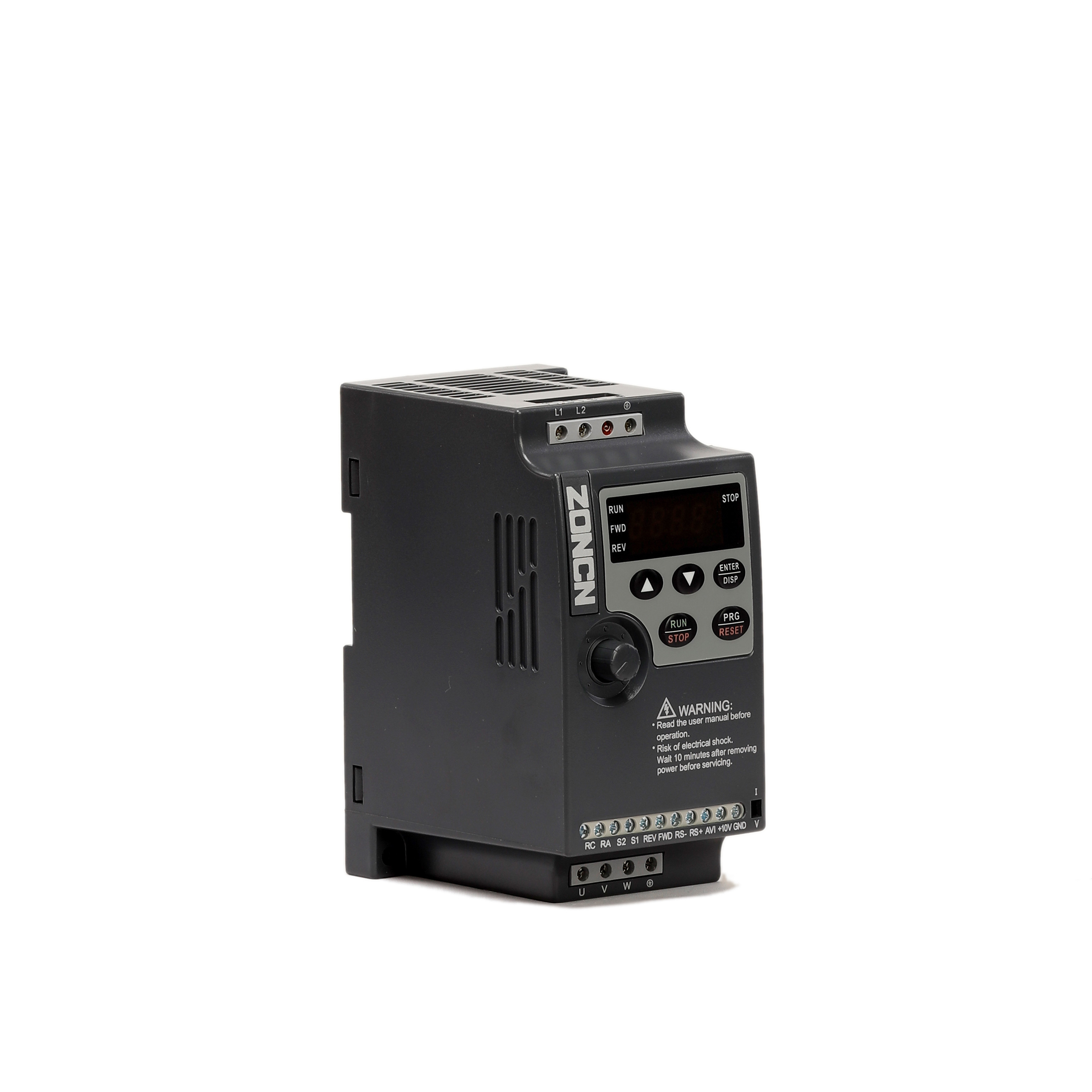

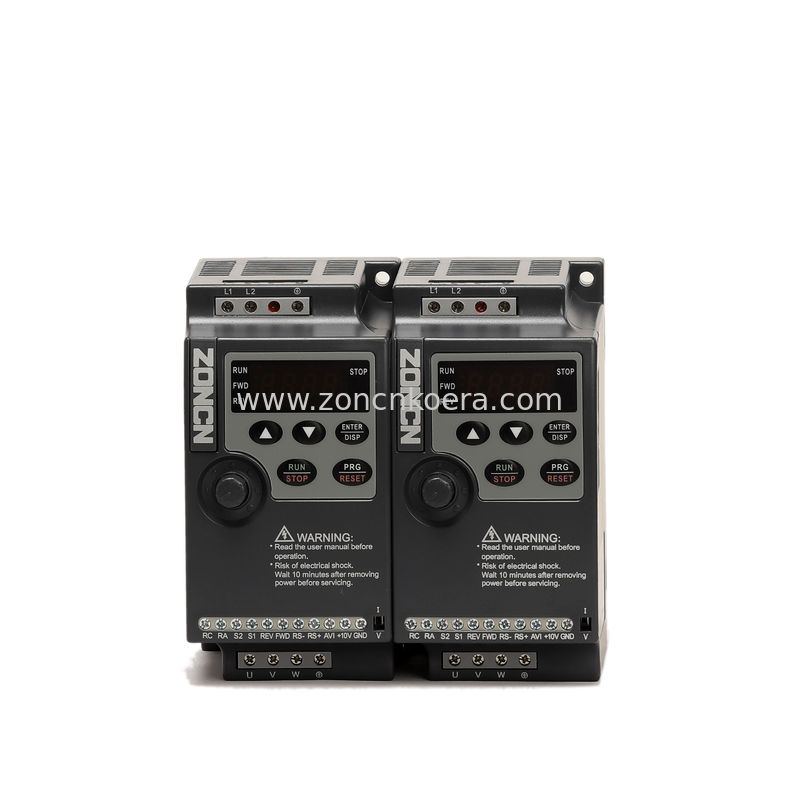

Inverter picture

220v Single Phase Input Vfd 0.75kw 1.5kw Variable Frequency Inverter 1hp 2hp 3

Inverter Packing&Shipping

220v Single Phase Input Vfd 0.75kw 1.5kw Variable Frequency Inverter 1hp 2hp 4



Inverter Workshop

220v Single Phase Input Vfd 0.75kw 1.5kw Variable Frequency Inverter 1hp 2hp 5



Exhibition

220v Single Phase Input Vfd 0.75kw 1.5kw Variable Frequency Inverter 1hp 2hp 6



FAQ

Q1. What is your inverter's MOQ?

A: 1 unit.

Q2. What is the inverter's voltage you can do?
A: 1PH/3H AC 220V+/-15%; 3PH AC 380V/440V/480V/690V

Q3. What is the inverter's power range you can do ?
A: From 0.4 kw to 1000 kw.

Q4. What is your terms of payment?
A: T/T 100% in advance( Paypal / TT, etc.)

Q5. What is your inverter's delivery time?
A: within 15 days after receiving full payment normarlly.

Q6. What is your inverter's warranty time?
A. 18 months after delivering from factory







Tag:

Variable Frequency Drive Inverter,

vector control inverter,

low power inverter
