2.2kw Low Voltage Inverter Vector Frequency Inverter Three Phase 50 60Hz

Low Voltage 2.2kw Inverter 400v Ac Three Phase 50/60Hz

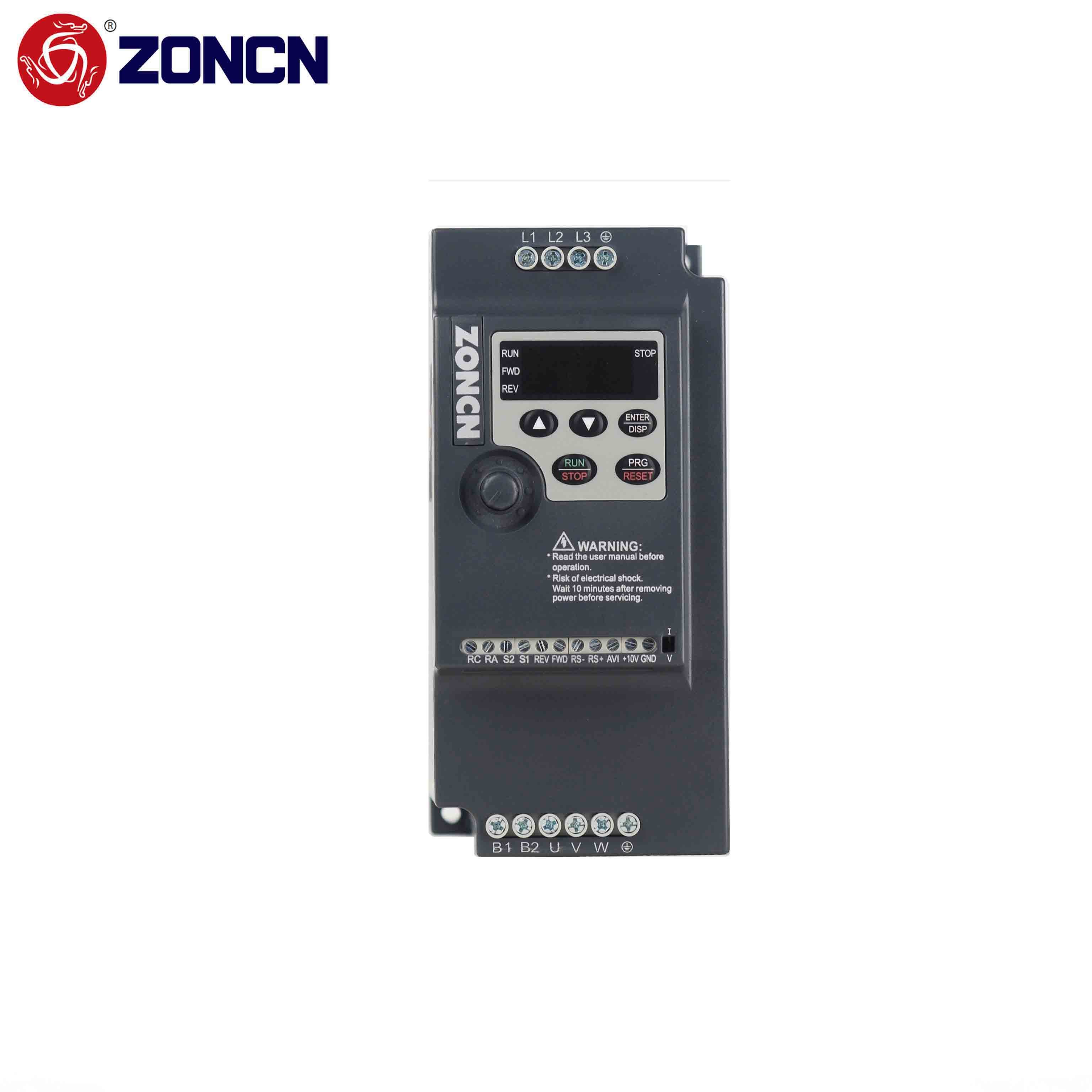

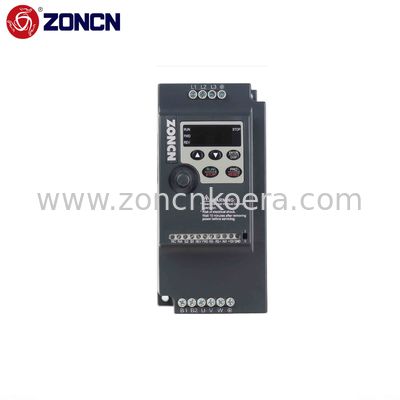

NZ100 series vfd inverter 380V 2.2KW NZ100-2R2G-4



Basic product introduction:



· Small and affordable design, ideal for situations with limited space and budget limitations

· Conveniently accessible terminals, making wiring effortless and convenient

· Simple installation on DIN rail, supporting power up to 5.5KW

· Smooth RS485 communication using the widely used Modbus protocol

· No need for maintenance, guaranteeing trouble-free operation and long lifespan

· Fully compatible with MODBUS ASCII protocol, enabling seamless integration with current systems







Technical Specific:

Items	NZ100 series inverter
Input rated voltage,frequency	One-phase/Three phase AC 220v/380v 50/60Hz
Input voltage range	170-240v(220v)330-440v(380v)
Output voltage range	0-220v(220v)0-380v(380v)
Output frequency range	0.1~400Hz
Indication	Operating status/Alarm definition/interactive guidance: frequency setting,the output frequency/ current, DC bus voltage and so on.
Frequency setting resolution	Digital input: 0.10Hz,analog input: 0.1% of maximum output frequency
Output frequency accuracy	0.01Hz
VF control	Setting V/F curve to satisfy various load requirements
Torque boost	Auto increase: auto raise torque by loading Condition;Manual increase:enable to set 0.0~20.0% of raising torque.
Multifunctional input terminal	Four multi-function input terminals, realizing functions including eight sectionspeed control, program running, four-section acceleration/deceleration speedswitch, UP/DOWN function and emergency stop and other functions
Multifunctional output terminal	1 multi-function output terminals for displaying of run, zero speed, extermnalabnormity, program operation and other information and warnings
Acceleration/ Deceleration time setting	0~999.9s acceleration/deceleration time can be set individually
PID control	Build-in PID control
RS485	Standard RS485 communication function(MODBUS)
Frequency setting	Analog input: 0~ 10 V, 4~20mA Digital input: Operation panel or RS485 or UP/DOWN. Note: AVI terminals can be used to select an analog voltage input(AV) and analog current input (Al) through the switch J2.
Multi-speed	Four multifunction input terminals, 15 section speed can be set
Automatic voltage regulation	Automatic voltage regulation function can be selected
Counter	Built-in 2 group of counters
Protection	IP20





Product application:

The NZ100 series drives have a wide range of protection features to ensure safe operation and reliability of the equipment. The following is an introduction to its various protection functions:



Overload protection: The inverter can monitor the load of the motor, and once the set load limit is exceeded, it will automatically stop the motor to avoid overload damage.



Overcurrent protection: When the motor is running, the inverter will monitor the change of current. If the current exceeds the rated value, the inverter will take immediate measures, such as reducing the output frequency or stopping the motor to prevent motor damage.



Overvoltage protection: When the input voltage exceeds the set safety range, the inverter will automatically stop the motor to protect it from damage.



Undervoltage protection: If the input voltage is lower than the set minimum operating voltage, the inverter will automatically stop the motor to avoid equipment failure.



Overheat protection: The inverter has a built-in temperature sensor, and once the temperature exceeds the set safety range, it will take measures, such as reducing the output power or stopping the motor, to prevent overheating damage.



Short-circuit protection: When there is a short-circuit fault in the motor line, the inverter can quickly detect and stop the motor to avoid circuit damage.



Phase loss protection: If a phase in the power supply is missing, the inverter will automatically stop the motor to avoid abnormal operation.



With these protection features, the NZ100 Series drives are able to protect motors and equipment from various electrical faults and operating anomalies, ensuring safe and stable operation and extending the service life of the equipment.







Product model details:

Model	Rated output power (kW)	Rated input current (A)	Rated output current (A)	Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
NZ100-0R4G-2	0.4	5.4	2.5	0.4
NZ100-0R75G-2	0.75	8.2	5	0.75
NZ100-1R5G-2	1.5	14	7	1.5
NZ100-2R2G-2	2.2	23	11	2.2
Input voltage(v):3PH AC 380V±15%
NZ100-0R75G-4	0.75	3.4	2.7	0.75
NZ100-1R5G-4	1.5	5	4	1.5
NZ100-2R2G-4	2.2	5.8	5	2.2
NZ100-3R7G/5R5P-4	3.7	10.7	8.6	3.7
NZ100-5R5G/7R5P-4	5.5	14.6	12.5	5.5
NZ100-7R5G/11P-4	7.5	20	17.5	7.5
NZ100-11G/15P-4	11	26	24	11
NZ100-15G/18.5P-4	15	35	33	15
