Low Voltage 380V 0.4kw Ac Mini Vfd Frequency Inverter Converter ZONCN NZ100 Series

Low Voltage 380V 0.4kw Ac Mini Vfd Frequency Inverter Converter ZONCN NZ100 Series
Low Voltage 380V 0.4kw Ac Mini Vfd Frequency Inverter Converter ZONCN NZ100 Series Low Voltage 380V 0.4kw Ac Mini Vfd Frequency Inverter Converter ZONCN NZ100 Series Low Voltage 380V 0.4kw Ac Mini Vfd Frequency Inverter Converter ZONCN NZ100 Series
Basic Information
Place of Origin: Shanghai, China
Brand Name: ZONCN
Certification: CE+KC
Model Number: NZ100-0R4G-4
Minimum Order Quantity: 1 unit
Packaging Details: Carton；
Delivery Time: 7-30 work days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 100000 units a month
Get Best Price Contact Now
Model: NZ100-0R4G-4 Type: AC Drive VFD
Protection: IP20 Level Display: LED Display
Input Voltage: 380V Output Power: 0.4kw
Highlight:

IP20 Level Low Voltage Inverter

,

Low Voltage Converter 380v

,

Low Voltage Converter 0.4kw

Low Voltage Converter Inverter 380v Ac Drives Motor Speed Controller 380v 0.4kw

NZ100 series vfd inverter 380V 0.4KW NZ100-0R4G-4



Basic product introduction:



· Compact and cost-effective design, perfect for limited space and budget constraints

· User-friendly exposed terminals, making wiring hassle-free and convenient

· Easy installation on DIN rail, accommodating power up to 5.5KW

· Seamless RS485 communication utilizing the widely adopted Modbus protocol

· Maintenance-free operation, ensuring hassle-free usage and longevity

· Full compatibility with MODBUS ASCII protocol, providing seamless integration with existing systems







Technical Specific:

Items NZ100 series inverter
Input rated voltage,frequency One-phase/Three phase AC 220v/380v 50/60Hz
Input voltage range 170-240v(220v)330-440v(380v)
Output voltage range 0-220v(220v)0-380v(380v)
Output frequency range 0.1~400Hz
Indication Operating status/Alarm definition/interactive guidance: frequency setting,the output frequency/ current, DC bus voltage and so on.
Frequency setting resolution Digital input: 0.10Hz,analog input: 0.1% of maximum output frequency
Output frequency accuracy 0.01Hz
VF control Setting V/F curve to satisfy various load requirements
Torque boost Auto increase: auto raise torque by loading Condition;Manual increase:enable to set 0.0~20.0% of raising torque.
Multifunctional input terminal Four multi-function input terminals, realizing functions including eight sectionspeed control, program running, four-section acceleration/deceleration speedswitch, UP/DOWN function and emergency stop and other functions
Multifunctional output terminal 1 multi-function output terminals for displaying of run, zero speed, extermnalabnormity, program operation and other information and warnings
Acceleration/ Deceleration time setting 0~999.9s acceleration/deceleration time can be set individually
PID control Build-in PID control
RS485 Standard RS485 communication function(MODBUS)
Frequency setting

Analog input: 0~ 10 V, 4~20mA
Digital input: Operation panel or RS485 or UP/DOWN.

Note: AVI terminals can be used to select an analog voltage input(AV) and analog current input (Al) through the switch J2.
Multi-speed Four multifunction input terminals, 15 section speed can be set
Automatic voltage regulation Automatic voltage regulation function can be selected
Counter Built-in 2 group of counters
Protection

IP20





Product application:

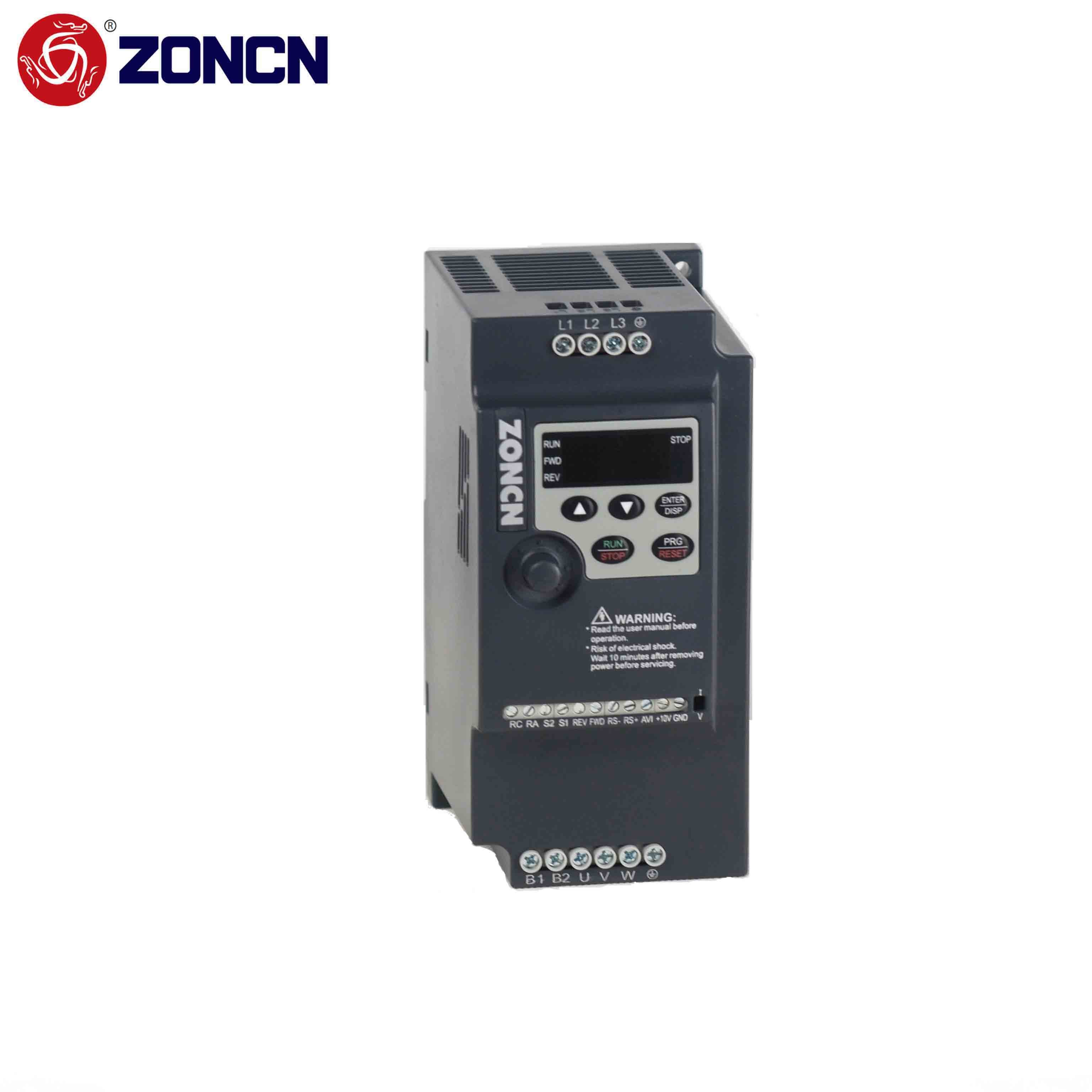

Low Voltage 380V 0.4kw Ac Mini Vfd Frequency Inverter Converter ZONCN NZ100 Series 0

NZ100 series VF control inverter is a powerful motor speed regulation equipment, which has a wide range of product application prospects. This series of inverter adopts advanced control algorithm and reliable hardware design, which can precisely control the speed and output power of the motor. Its compact and affordable design makes it suitable for a variety of occasions.



The NZ100 Series VF Control inverter features an exposed terminal design for easy wiring and maintenance. It can also be easily mounted on a DIN rail and supports a power output of up to 5.5KW. This makes it widely used in the field of industrial automation.



The inverter adopts RS485 communication and supports Modbus protocol to realize efficient communication and data exchange with other devices. This allows the NZ100 series drives to be easily integrated with existing control systems, improving the overall performance and efficiency of the system.



The NZ100 Series VF Control inverters require no additional maintenance and are very easy to use. Its reliable and stable performance and durable design ensure reliable operation over long periods of time, reducing maintenance and downtime.



In short, NZ100 series VF control inverter has a wide range of product application prospects, can be widely used in industrial automation, mechanical equipment, pumps, fans and other fields, to provide users with efficient and reliable motor speed regulation solutions.





Product model details:

Model Rated output power (kW) Rated input current (A) Rated output current (A) Motor Power (kW)
Input voltage(v):1PH AC 220V±15%
NZ100-0R4G-2 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
Input voltage(v):3PH AC 380V±15%
NZ100-0R75G-4 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5 4 1.5
NZ100-2R2G-4 2.2 5.8 5 2.2
NZ100-3R7G/5R5P-4 3.7 10.7 8.6 3.7
NZ100-5R5G/7R5P-4 5.5 14.6 12.5 5.5
NZ100-7R5G/11P-4 7.5 20 17.5 7.5
NZ100-11G/15P-4 11 26 24 11
NZ100-15G/18.5P-4 15 35 33 15







FAQ:

Q1:What is your MOQ?
A: 1 pc



Q2:What's your terms of payment?
A:T/T 100% before delivery.





Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.



Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
